IslandPath Analysis: Methanococcus maripaludis C6

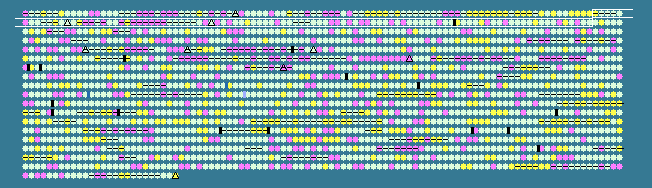

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.95   STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
96	 42.19	+2	79028..79501	+	157	159904492	-	MmarC6_0098	-	hypothetical protein
97	 33.46	0	79635..80453	+	272	159904493	-	MmarC6_0099	-	hypothetical protein
98	 31.37	0	80581..80988	-	135	159904494	-	MmarC6_0100	-	hypothetical protein
99	 33.33	0	80989..81474	-	161	159904495	-	MmarC6_0101	-	putative prophage protein (ps3)
100	 30.53	0	81771..82055	-	94	159904496	-	MmarC6_0102	-	hypothetical protein
101	 28.42	-1	82129..82983	-	284	159904497	-	MmarC6_0103	-	hypothetical protein
102	 30.83	0	83207..83566	-	119	159904498	-	MmarC6_0104	-	transcriptional regulator PadR family protein
103	 30.58	0	83818..84180	-	120	159904499	-	MmarC6_0105	-	transcriptional regulator PadR family protein
104	 36.67	0	84349..84558	+	69	159904500	-	MmarC6_0106	-	hypothetical protein
105	 36.92	0	84566..85123	+	185	159904501	-	MmarC6_0107	-	hypothetical protein
106	 38.00	+1	85123..87135	+	670	159904502	-	MmarC6_0108	-	MCM family protein
107	 37.41	0	87135..87404	+	89	159904503	-	MmarC6_0109	-	hypothetical protein
108	 36.00	0	87450..88424	+	324	159904504	-	MmarC6_0110	-	integrase family protein
109	 32.54	0	89005..89382	+	125	159904505	-	MmarC6_0111	-	hypothetical protein
110	 37.58	0	89625..90707	-	360	159904506	-	MmarC6_0112	-	hypothetical protein
111	 22.88	-2	91750..92055	-	101	159904507	-	MmarC6_0113	-	hypothetical protein
112	 30.24	0	92107..92397	-	96	159904508	-	MmarC6_0114	-	hypothetical protein
113	 32.09	0	92828..93790	-	320	159904509	-	MmarC6_0115	-	CaCA family Na(+)/Ca(+) antiporter
114	 26.17	-2	94586..95269	+	227	159904510	-	MmarC6_0116	-	hypothetical protein
115	 34.33	0	95306..95905	-	199	159904511	-	MmarC6_0117	-	signal transduction histidine kinase, LytS
116	 35.03	0	96255..97079	+	274	159904512	-	MmarC6_0118	-	hypothetical protein
117	 27.69	-1	97115..97309	-	64	159904513	-	MmarC6_0119	-	hypothetical protein
118	 37.71	0	97436..97846	+	136	159904514	-	MmarC6_0120	-	hypothetical protein
119	 29.81	-1	97930..98298	+	122	159904515	-	MmarC6_0121	-	hypothetical protein
120	 24.67	-2	98425..98574	-	49	159904516	-	MmarC6_0122	-	hypothetical protein
121	 29.74	-1	98594..99622	-	342	159904517	-	MmarC6_0123	-	FRG domain-containing protein
122	 28.15	-1	99631..100401	-	256	159904518	-	MmarC6_0124	-	hypothetical protein
123	 25.87	-2	100472..100672	+	66	159904519	-	MmarC6_0125	-	hypothetical protein
124	 29.32	-1	100681..101253	+	190	159904520	-	MmarC6_0126	-	hypothetical protein
125	 34.26	0	101318..101533	+	71	159904521	-	MmarC6_0127	-	hypothetical protein
126	 31.02	0	101954..102256	-	100	159904522	-	MmarC6_0128	-	transcriptional regulator PadR family protein
127	 33.71	0	102661..103185	+	174	159904523	-	MmarC6_0130	-	hypothetical protein
128	 35.77	0	103157..103402	+	81	159904524	-	MmarC6_0131	-	hypothetical protein
129	 35.61	0	103595..103990	+	131	159904525	-	MmarC6_0132	-	hypothetical protein
130	 37.19	0	103992..106016	+	674	159904526	-	MmarC6_0133	-	MCM family protein
131	 29.22	-1	106020..106262	+	80	159904527	-	MmarC6_0134	-	hypothetical protein
132	 32.40	0	106274..107242	+	322	159904528	-	MmarC6_0135	-	integrase family protein
133	 28.07	-1	107271..107726	-	151	159904529	-	MmarC6_0136	-	MarR family transcriptional regulator
134	 33.83	0	108021..110219	+	732	159904530	-	MmarC6_0137	-	methyl-accepting chemotaxis sensory transducer
135	 27.40	-1	110251..110739	+	162	159904531	-	MmarC6_0138	-	hypothetical protein
136	 37.23	0	111925..112515	+	196	159904532	-	MmarC6_0139	-	protein of unknown function DUF71 ATP-binding region
137	 34.73	0	112643..113428	-	261	159904533	-	MmarC6_0140	-	chymotrypsin serine protease
138	 38.90	+1	113804..119206	+	1800	159904534	-	MmarC6_0141	-	cobaltochelatase
139	 35.38	0	119338..120120	+	260	159904535	-	MmarC6_0142	-	chymotrypsin serine protease
140	 31.62	0	120299..121057	-	252	159904536	-	MmarC6_0143	-	extracellular solute-binding protein
141	 34.41	0	121355..121912	-	185	159904537	-	MmarC6_0144	-	hypothetical protein
142	 35.06	0	122084..124222	-	712	159904538	-	MmarC6_0145	-	hypothetical protein
143	 29.72	-1	124501..125994	+	497	159904539	-	MmarC6_0146	-	hypothetical protein
144	 34.73	0	126194..127123	+	309	159904540	-	MmarC6_0147	-	elongation factor Tu domain-containing protein
145	 36.19	0	127177..127980	-	267	159904541	-	MmarC6_0148	-	L-aspartate dehydrogenase
146	 32.16	0	128005..128259	-	84	159904542	-	MmarC6_0149	-	PRC-barrel domain-containing protein
147	 33.33	0	128383..128553	+	56	159904543	-	MmarC6_0150	-	hypothetical protein
148	 31.49	0	128573..129493	-	306	159904544	-	MmarC6_0151	-	DNA adenine methylase
149	 30.82	0	129568..129885	-	105	159904545	-	MmarC6_0152	-	hypothetical protein
150	 32.59	0	130020..131363	+	447	159904546	-	MmarC6_0153	-	MATE efflux family protein
151	 30.56	0	131457..132680	+	407	159904547	-	MmarC6_0154	-	exodeoxyribonuclease VII large subunit
152	 29.90	-1	132701..132904	+	67	159904548	-	MmarC6_0155	-	exodeoxyribonuclease VII small subunit
153	 29.05	-1	132914..133333	+	139	159904549	-	MmarC6_0156	-	hypothetical protein
154	 35.46	0	133451..136315	+	954	159904550	-	MmarC6_0157	-	excinuclease ABC, A subunit
155	 29.99	-1	136323..137906	+	527	159904551	-	MmarC6_0158	-	excinuclease ABC subunit C
156	 35.09	0	137903..139843	+	646	159904552	-	MmarC6_0159	-	excinuclease ABC subunit B
157	 30.47	0	139939..140496	+	185	159904553	-	MmarC6_0160	-	hypothetical protein
158	 25.62	-2	140505..140906	-	133	159904554	-	MmarC6_0161	-	hypothetical protein
159	 31.01	0	141075..141419	-	114	159904555	-	MmarC6_0162	-	hypothetical protein
160	 35.68	0	141475..142155	-	226	159904556	-	MmarC6_0163	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
161	 35.04	0	142259..143899	-	546	159904557	-	MmarC6_0164	-	hydroxylamine reductase
162	 30.15	-1	144156..144563	-	135	159904558	-	MmarC6_0165	-	CopG family transcriptional regulator
163	 35.04	0	144605..144955	-	116	159904559	-	MmarC6_0166	-	hypothetical protein
164	 27.93	-1	145340..145876	+	178	159904560	-	MmarC6_0167	-	hypothetical protein
165	 33.10	0	145879..146304	-	141	159904561	-	MmarC6_0168	-	amino acid-binding ACT domain-containing protein
166	 36.80	0	146318..147616	-	432	159904562	-	MmarC6_0169	-	phenylacetate--CoA ligase
167	 35.63	0	147627..148193	-	188	159904563	-	MmarC6_0170	-	indolepyruvate oxidoreductase subunit B
168	 36.33	0	148193..149929	-	578	159904564	-	MmarC6_0171	-	indolepyruvate ferredoxin oxidoreductase, alpha subunit
169	 30.66	0	150405..151151	-	248	159904565	-	MmarC6_0172	-	extracellular solute-binding protein
170	 29.65	-1	151240..152298	-	352	159904566	-	MmarC6_0173	-	magnesium and cobalt transport protein CorA
171	 34.05	0	152308..155088	-	926	159904567	-	MmarC6_0174	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
172	 35.10	0	155246..155869	-	207	159904568	-	MmarC6_0175	-	hypothetical protein
173	 39.24	+1	156270..156980	-	236	159904569	-	MmarC6_0176	-	hypothetical protein
174	 37.00	0	157185..158438	+	417	159904570	-	MmarC6_0177	-	sodium/hydrogen exchanger
175	 35.12	0	158451..159734	+	427	159904571	-	MmarC6_0178	-	nucleotide sugar dehydrogenase
176	 30.52	0	159739..160839	+	366	159904572	-	MmarC6_0179	-	UDP-N-acetylglucosamine 2-epimerase
177	 38.16	+1	160933..161802	+	289	159904573	-	MmarC6_0180	-	cobyrinic acid ac-diamide synthase
178	 28.25	-1	161842..162864	+	340	159904574	-	MmarC6_0181	-	hypothetical protein
179	 35.04	0	162861..163739	-	292	159904575	-	MmarC6_0182	-	alpha-L-glutamate ligase
180	 34.02	0	163781..164215	-	144	159904576	-	MmarC6_0183	-	hypothetical protein
181	 28.89	-1	164423..164962	+	179	159904577	-	MmarC6_0184	-	PadR-like family transcriptional regulator
182	 34.81	0	164985..166334	+	449	159904578	-	MmarC6_0185	-	MATE efflux family protein
183	 32.08	0	166395..166712	-	105	159904579	-	MmarC6_0186	-	hypothetical protein
184	 34.59	0	166739..169606	-	955	159904580	-	MmarC6_0187	-	leucyl-tRNA synthetase
185	 34.56	0	169858..171240	+	460	159904581	-	MmarC6_0188	-	prolyl-tRNA synthetase
186	 38.48	+1	171338..171997	+	219	159904582	-	MmarC6_0189	-	proteasome endopeptidase complex
187	 36.43	0	172134..174041	+	635	159904583	-	MmarC6_0190	-	beta-lactamase domain-containing protein
188	 35.79	0	174609..175502	+	297	159904584	-	MmarC6_0192	-	cell wall binding repeat 2-containing protein
189	 32.23	0	175590..176132	+	180	159904585	-	MmarC6_0193	-	hypothetical protein
190	 28.49	-1	176138..176839	+	233	159904586	-	MmarC6_0194	-	ferredoxin-type protein (NapH)
191	 39.55	+1	176900..178201	-	433	159904587	-	MmarC6_0195	-	xanthine/uracil/vitamin C permease
192	 32.71	0	178297..179910	+	537	159904588	-	MmarC6_0196	-	O-phosphoseryl-tRNA synthetase
193	 30.43	0	179920..180126	-	68	159904589	-	MmarC6_0197	-	hypothetical protein
194	 33.85	0	180185..182122	-	645	159904590	-	MmarC6_0198	-	ferrous iron transport protein B
195	 36.23	0	182266..182472	-	68	159904591	-	MmarC6_0199	-	FeoA family protein
33.95	MEAN

3.79	STD DEV
