IslandPathversion 1.0

IslandPath Analysis: Methanococcus maripaludis C6

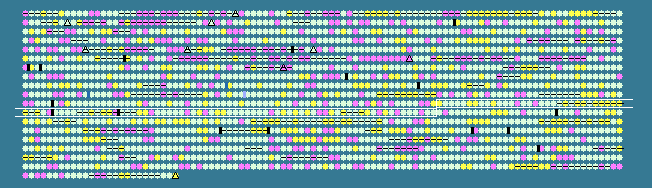

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1070	 38.23	+1	1021249..1022820	+	523	159905466	-	MmarC6_1082	-	D-3-phosphoglycerate dehydrogenase
1071	 36.47	0	1022847..1023260	+	137	159905467	-	MmarC6_1083	-	hypothetical protein
1072	 33.78	0	1023283..1023507	-	74	159905468	-	MmarC6_1084	-	hypothetical protein
1073	 35.92	0	1023628..1024476	-	282	159905469	-	MmarC6_1085	-	agmatinase
1074	 36.06	0	1024518..1025360	-	280	159905470	-	MmarC6_1086	-	spermidine synthase
1075	 42.01	+2	1025357..1025725	-	122	159905471	-	MmarC6_1087	-	S-adenosylmethionine decarboxylase proenzyme
1076	 41.82	+2	1025852..1026346	-	164	159905472	-	MmarC6_1088	-	pyruvoyl-dependent arginine decarboxylase
1077	 33.02	0	1026528..1028429	-	633	159905473	-	MmarC6_1089	-	putative DNA helicase
1078	 31.30	0	1028549..1030120	+	523	159905474	-	MmarC6_1090	-	dihydropteroate synthase-related protein
1079	 38.16	+1	1030191..1030646	-	151	159905475	-	MmarC6_1091	-	30S ribosomal protein S15P
1080	 34.50	0	1030775..1031290	-	171	159905476	-	MmarC6_1092	-	nicotinamide-nucleotide adenylyltransferase
1081	 37.08	0	1031421..1033046	+	541	159905477	-	MmarC6_1093	-	ELP3 family histone acetyltransferase
1082	 34.62	0	1033060..1033215	-	51	159905478	-	MmarC6_1094	-	hypothetical protein
1083	 30.34	0	1033401..1034135	+	244	159905479	-	MmarC6_1095	-	6-carboxyhexanoate--CoA ligase
1084	 30.73	0	1034144..1035256	+	370	159905480	-	MmarC6_1096	-	8-amino-7-oxononanoate synthase
1085	 30.72	0	1035319..1035891	+	190	159905481	-	MmarC6_1097	-	dethiobiotin synthase
1086	 26.26	-2	1035903..1036199	-	98	159905482	-	MmarC6_1098	-	hypothetical protein
1087	 30.58	0	1036288..1037232	+	314	159905483	-	MmarC6_1099	-	nucleoside recognition domain-containing protein
1088	 32.54	0	1037241..1037996	+	251	159905484	-	MmarC6_1100	-	TatD family hydrolase
1089	 36.25	0	1038007..1038315	+	102	159905485	-	MmarC6_1101	-	hypothetical protein
1090	 33.15	0	1038290..1038826	+	178	159905486	-	MmarC6_1102	-	hypothetical protein
1091	 40.94	+1	1038917..1039876	-	319	159905487	-	MmarC6_1103	-	tetrahydromethanopterin S-methyltransferase subunit H
1092	 36.44	0	1039901..1040125	-	74	159905488	-	MmarC6_1104	-	tetrahydromethanopterin S-methyltransferase subunit G
1093	 41.21	+1	1040130..1040891	-	253	159905489	-	MmarC6_1105	-	tetrahydromethanopterin S-methyltransferase subunit A
1094	 40.28	+1	1040908..1041627	-	239	159905490	-	MmarC6_1106	-	tetrahydromethanopterin S-methyltransferase subunit A
1095	 36.09	0	1041649..1041975	-	108	159905491	-	MmarC6_1107	-	tetrahydromethanopterin S-methyltransferase subunit B
1096	 41.44	+1	1041986..1042774	-	262	159905492	-	MmarC6_1108	-	tetrahydromethanopterin S-methyltransferase subunit C
1097	 43.93	+2	1042813..1043520	-	235	159905493	-	MmarC6_1109	-	tetrahydromethanopterin S-methyltransferase subunit D
1098	 43.00	+2	1043547..1044446	-	299	159905494	-	MmarC6_1110	-	tetrahydromethanopterin S-methyltransferase subunit E
1099	 42.60	+2	1044715..1046376	-	553	159905495	-	MmarC6_1111	-	methyl-coenzyme M reductase, alpha subunit
1100	 40.49	+1	1046423..1047205	-	260	159905496	-	MmarC6_1112	-	methyl-coenzyme M reductase, gamma subunit
1101	 41.04	+1	1047216..1047812	-	198	159905497	-	MmarC6_1113	-	methyl-coenzyme M reductase I operon protein C
1102	 37.08	0	1047820..1048299	-	159	159905498	-	MmarC6_1114	-	methyl-coenzyme M reductase operon protein D
1103	 40.84	+1	1048311..1049642	-	443	159905499	-	MmarC6_1115	-	methyl-coenzyme M reductase, beta subunit
1104	 33.41	0	1049902..1051212	+	436	159905500	-	MmarC6_1116	-	methanogenesis marker protein 10
1105	 27.27	-1	1051205..1051765	-	186	159905501	-	MmarC6_1117	-	hypothetical protein
1106	 32.44	0	1052309..1052866	+	185	159905502	-	MmarC6_1118	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1107	 35.77	0	1052893..1054245	+	450	159905503	-	MmarC6_1119	-	signal recognition particle protein Srp54
1108	 34.82	0	1054593..1055264	-	223	159905504	-	MmarC6_1120	-	NADPH-dependent F420 reductase
1109	 32.34	0	1055283..1056089	-	268	159905505	-	MmarC6_1121	-	xylose isomerase domain-containing protein
1110	 35.24	0	1056167..1056742	+	191	159905506	-	MmarC6_1122	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
1111	 36.83	0	1056828..1057313	-	161	159905507	-	MmarC6_1123	-	30S ribosomal protein S19P
1112	 41.49	+1	1057352..1058074	-	240	159905508	-	MmarC6_1124	-	50S ribosomal protein L2P
1113	 34.10	0	1058115..1058375	-	86	159905509	-	MmarC6_1125	-	50S ribosomal protein L23
1114	 38.08	+1	1058397..1059155	-	252	159905510	-	MmarC6_1126	-	50S ribosomal protein L4P
1115	 39.00	+1	1059186..1060190	-	334	159905511	-	MmarC6_1127	-	50S ribosomal protein L3P
1116	 27.07	-1	1060458..1061048	+	196	159905512	-	MmarC6_1128	-	translin family protein
1117	 33.65	0	1061335..1061652	+	105	159905513	-	MmarC6_1129	-	hypothetical protein
1118	 33.58	0	1061667..1062488	-	273	159905514	-	MmarC6_1130	-	hypothetical protein
1119	 33.33	0	1062485..1063051	-	188	159905515	-	MmarC6_1131	-	hypothetical protein
1120	 41.40	+1	1063113..1063583	-	156	159905516	-	MmarC6_1132	-	transporter component
1121	 40.35	+1	1063605..1064060	-	151	159905517	-	MmarC6_1133	-	cytochrome c heme-binding site
1122	 28.92	-1	1064282..1064893	+	203	159905518	-	MmarC6_1134	-	nucleic acid binding OB-fold tRNA/helicase-type
1123	 31.00	0	1066098..1066655	-	185	159905519	-	MmarC6_1136	-	hypothetical protein
1124	 32.01	0	1066652..1067104	-	150	159905520	-	MmarC6_1137	-	hypothetical protein
1125	 36.06	0	1067475..1068719	+	414	159905521	-	MmarC6_1138	-	phosphoglycerate kinase
1126	 36.28	0	1068847..1069830	+	327	159905522	-	MmarC6_1139	-	methanogenesis marker protein 2
1127	 36.08	0	1069840..1070130	+	96	159905523	-	MmarC6_1140	-	hypothetical protein
1128	 23.49	-2	1070127..1070837	+	236	159905524	-	MmarC6_1141	-	methyltransferase type 11
1129	 33.95	0	1070834..1071643	+	269	159905525	-	MmarC6_1142	-	prephenate dehydratase
1130	 38.05	+1	1071751..1073001	+	416	159905526	-	MmarC6_1143	-	aspartate aminotransferase
1131	 28.70	-1	1073029..1073718	-	229	159905527	-	MmarC6_1144	-	ribonuclease III
1132	 33.89	0	1073769..1075031	-	420	159905528	-	MmarC6_1145	-	peptidase U62 modulator of DNA gyrase
1133	 38.89	+1	1075141..1075986	+	281	159905529	-	MmarC6_1146	-	preprotein translocase subunit SecF
1134	 37.62	0	1076004..1077170	+	388	159905530	-	MmarC6_1147	-	preprotein translocase subunit SecD
1135	 33.63	0	1077222..1078244	+	340	159905531	-	MmarC6_1148	-	hypothetical protein
1136	 32.62	0	1078254..1078673	+	139	159905532	-	MmarC6_1149	-	hypothetical protein
1137	 34.67	0	1078708..1079382	-	224	159905533	-	MmarC6_1150	-	hydrogenase accessory protein HypB
1138	 33.72	0	1079533..1080315	+	260	159905534	-	MmarC6_1151	-	binding-protein-dependent transport systems inner membrane component
1139	 31.31	0	1080328..1081266	+	312	159905535	-	MmarC6_1152	-	ABC transporter related
1140	 35.99	0	1081436..1082038	+	200	159905536	-	MmarC6_1153	-	peptidase M50
1141	 33.78	0	1082057..1082725	+	222	159905537	-	MmarC6_1154	-	chromosome segregation and condensation protein ScpA
1142	 29.72	-1	1082867..1084000	+	377	159905538	-	MmarC6_1155	-	phosphate uptake regulator, PhoU
1143	 31.60	0	1084016..1084246	+	76	159905539	-	MmarC6_1156	-	hypothetical protein
1144	 39.78	+1	1084366..1085994	+	542	159905540	-	MmarC6_1157	-	thermosome
1145	 31.14	0	1086089..1087408	-	439	159905541	-	MmarC6_1158	-	prephenate dehydrogenase
1146	 39.48	+1	1087729..1088850	+	373	159905542	-	MmarC6_1159	-	alanine dehydrogenase
1147	 35.83	0	1088908..1090029	+	373	159905543	-	MmarC6_1160	-	alanine racemase
1148	 41.19	+1	1090244..1091605	+	453	159905544	-	MmarC6_1161	-	amino acid carrier protein
1149	 37.27	0	1091776..1093071	+	431	159905545	-	MmarC6_1162	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1150	 27.64	-1	1093167..1093640	-	157	159905546	-	MmarC6_1163	-	hypothetical protein
1151	 29.78	-1	1093673..1094431	-	252	159905547	-	MmarC6_1164	-	extracellular solute-binding protein
1152	 38.89	+1	1094637..1094978	-	113	159905548	-	MmarC6_1165	-	hypothetical protein
1153	 32.03	0	1094999..1095304	-	101	159905549	-	MmarC6_1166	-	hypothetical protein
1154	 38.42	+1	1095559..1096089	+	176	159905550	-	MmarC6_1167	-	pyruvate ferredoxin oxidoreductase subunit gamma
1155	 34.88	0	1096103..1096360	+	85	159905551	-	MmarC6_1168	-	pyruvate ferredoxin/flavodoxin oxidoreductase, delta subunit
1156	 37.11	0	1096382..1097545	+	387	159905552	-	MmarC6_1169	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
1157	 42.25	+2	1097562..1098458	+	298	159905553	-	MmarC6_1170	-	pyruvate ferredoxin oxidoreductase subunit beta
1158	 38.10	+1	1098480..1098983	+	167	159905554	-	MmarC6_1171	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1159	 37.17	0	1099001..1099417	+	138	159905555	-	MmarC6_1172	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1160	 30.08	-1	1099428..1099919	-	163	159905556	-	MmarC6_1173	-	phosphodiesterase
1161	 38.98	+1	1100486..1101583	+	365	159905557	-	MmarC6_1174	-	cell division protein FtsZ
1162	 34.11	0	1101625..1102137	+	170	159905558	-	MmarC6_1175	-	hypothetical protein
1163	 30.40	0	1102149..1102931	-	260	159905559	-	MmarC6_1176	-	hypothetical protein
1164	 32.71	0	1102928..1103407	-	159	159905560	-	MmarC6_1177	-	hypothetical protein
1165	 32.21	0	1103429..1104937	-	502	159905561	-	MmarC6_1178	-	phenylalanyl-tRNA synthetase subunit alpha
1166	 32.93	0	1105014..1106012	+	332	159905562	-	MmarC6_1179	-	radical SAM family protein
1167	 28.69	-1	1106031..1106633	-	200	159905563	-	MmarC6_1180	-	hypothetical protein
1168	 33.56	0	1106716..1108059	-	447	159905564	-	MmarC6_1181	-	S-layer family protein
1169	 34.23	0	1108166..1108723	+	185	159905565	-	MmarC6_1182	-	orotate phosphoribosyltransferase
33.95	MEAN

3.79	STD DEV
