IslandPathversion 1.0

IslandPath Analysis: Methanococcus maripaludis C7

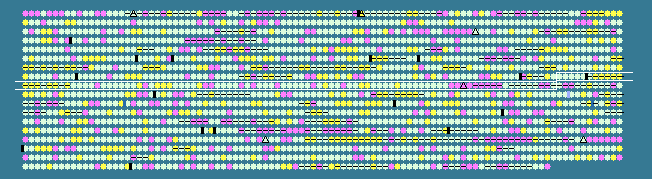

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
790	 36.28	0	773703..774278	-	191	150402720	-	MmarC7_0796	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
791	 32.47	0	774358..775164	+	268	150402721	-	MmarC7_0797	-	xylose isomerase domain-containing protein
792	 33.78	0	775186..775857	+	223	150402722	-	MmarC7_0798	-	NADPH-dependent F420 reductase
793	 35.85	0	775939..777291	-	450	150402723	-	MmarC7_0799	-	signal recognition particle protein Srp54
794	 32.44	0	777318..777875	-	185	150402724	-	MmarC7_0800	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
795	 33.56	0	778440..779750	-	436	150402725	-	MmarC7_0801	-	hypothetical protein
796	 40.84	+1	780010..781341	+	443	150402726	-	MmarC7_0802	-	coenzyme-B sulfoethylthiotransferase
797	 38.54	+1	781353..781832	+	159	150402727	-	MmarC7_0803	-	methyl-coenzyme M reductase, protein D
798	 40.37	+1	781841..782437	+	198	150402728	-	MmarC7_0804	-	methyl-coenzyme M reductase operon protein C
799	 40.36	+1	782448..783230	+	260	150402729	-	MmarC7_0805	-	methyl-coenzyme M reductase, gamma subunit
800	 42.36	+2	783277..784938	+	553	150402730	-	MmarC7_0806	-	coenzyme-B sulfoethylthiotransferase
801	 42.33	+2	785208..786107	+	299	150402731	-	MmarC7_0807	-	tetrahydromethanopterin S-methyltransferase subunit E
802	 44.21	+2	786134..786841	+	235	150402732	-	MmarC7_0808	-	tetrahydromethanopterin S-methyltransferase subunit D
803	 40.81	+1	786879..787667	+	262	150402733	-	MmarC7_0809	-	tetrahydromethanopterin S-methyltransferase subunit C
804	 36.39	0	787678..788004	+	108	150402734	-	MmarC7_0810	-	tetrahydromethanopterin S-methyltransferase subunit B
805	 39.31	+1	788026..788745	+	239	150402735	-	MmarC7_0811	-	tetrahydromethanopterin S-methyltransferase subunit A
806	 40.81	+1	788762..789523	+	253	150402736	-	MmarC7_0812	-	tetrahydromethanopterin S-methyltransferase subunit A
807	 36.89	0	789528..789752	+	74	150402737	-	MmarC7_0813	-	tetrahydromethanopterin S-methyltransferase subunit G
808	 40.62	+1	789777..790736	+	319	150402738	-	MmarC7_0814	-	tetrahydromethanopterin S-methyltransferase subunit H
809	 32.77	0	790821..791357	-	178	150402739	-	MmarC7_0815	-	hypothetical protein
810	 37.22	0	791332..791640	-	102	150402740	-	MmarC7_0816	-	hypothetical protein
811	 31.75	0	791651..792406	-	251	150402741	-	MmarC7_0817	-	TatD family hydrolase
812	 31.01	0	792415..793359	-	314	150402742	-	MmarC7_0818	-	nucleoside recognition domain-containing protein
813	 25.25	-2	793448..793744	+	98	150402743	-	MmarC7_0819	-	hypothetical protein
814	 31.37	0	793774..794334	-	186	150402744	-	MmarC7_0820	-	dethiobiotin synthase
815	 31.27	0	794409..795521	-	370	150402745	-	MmarC7_0821	-	8-amino-7-oxononanoate synthase
816	 31.02	0	795530..796264	-	244	150402746	-	MmarC7_0822	-	6-carboxyhexanoate--CoA ligase
817	 31.41	0	796450..796605	+	51	150402747	-	MmarC7_0823	-	hypothetical protein
818	 36.72	0	796619..798244	-	541	150402748	-	MmarC7_0824	-	ELP3 family histone acetyltransferase
819	 34.30	0	798376..798891	+	171	150402749	-	MmarC7_0825	-	nicotinamide-nucleotide adenylyltransferase
820	 37.94	+1	799021..799476	+	151	150402750	rps15p	MmarC7_0826	-	30S ribosomal protein S15P
821	 29.83	-1	799547..801118	-	523	150402751	-	MmarC7_0827	-	dihydropteroate synthase-related protein
822	 32.44	0	801238..803139	+	633	150402752	-	MmarC7_0828	-	putative DNA helicase
823	 42.22	+2	803321..803815	+	164	150402753	-	MmarC7_0829	-	pyruvoyl-dependent arginine decarboxylase
824	 41.46	+2	803943..804311	+	122	150402754	-	MmarC7_0830	-	S-adenosylmethionine decarboxylase related
825	 38.32	+1	804308..805150	+	280	150402755	-	MmarC7_0831	-	spermidine synthase
826	 36.16	0	805191..806039	+	282	150402756	-	MmarC7_0832	-	putative agmatinase
827	 33.74	0	806142..806384	+	80	150402757	-	MmarC7_0833	-	hypothetical protein
828	 35.27	0	806407..806820	-	137	150402758	-	MmarC7_0834	-	hypothetical protein
829	 37.34	0	806848..808419	-	523	150402759	-	MmarC7_0835	-	D-3-phosphoglycerate dehydrogenase
830	 38.06	+1	808564..809664	+	366	150402760	-	MmarC7_0836	-	carbamoyl phosphate synthase small subunit
831	 30.41	0	809751..810536	+	261	150402761	-	MmarC7_0837	-	ExsB family protein
832	 28.09	-1	810537..811508	-	323	150402762	-	MmarC7_0838	-	cobalamin (vitamin B12) biosynthesis CbiG protein
833	 36.31	0	811548..812621	-	357	150402763	-	MmarC7_0839	-	tryptophanyl-tRNA synthetase
834	 36.42	0	812649..813554	-	301	150402764	-	MmarC7_0840	-	hypothetical protein
835	 30.93	0	813566..814105	-	179	150402765	-	MmarC7_0841	-	hypothetical protein
836	 32.41	0	814167..815783	-	538	150402766	-	MmarC7_0842	-	PUA domain-containing protein
837	 28.09	-1	815861..816451	-	196	150402767	-	MmarC7_0843	-	hypothetical protein
838	 34.15	0	816470..816958	+	162	150402768	-	MmarC7_0844	-	phosphatidylglycerophosphatase A
839	 29.73	-1	817035..817589	+	184	150402769	-	MmarC7_0845	-	hypothetical protein
840	 37.39	0	817604..818269	+	221	150402770	-	MmarC7_0846	-	TrkA domain-containing protein
841	 30.62	0	818300..819109	-	269	150402771	-	MmarC7_0847	-	alpha-L-glutamate ligase
842	 32.44	0	819118..819900	-	260	150402772	-	MmarC7_0848	-	putative RNA methylase
843	 25.44	-2	820022..820249	-	75	150402773	-	MmarC7_0849	-	hypothetical protein
844	 34.62	0	820529..821695	+	388	150402774	-	MmarC7_0850	-	hypothetical protein
845	 31.26	0	821721..822590	-	289	150402775	-	MmarC7_0851	-	hypothetical protein
846	 31.51	0	822810..823688	-	292	150402776	-	MmarC7_0852	-	hypothetical protein
847	 30.51	0	823790..825133	+	447	150402777	-	MmarC7_0853	-	pyruvate kinase
848	 32.24	0	825164..826354	+	396	150402778	-	MmarC7_0854	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
849	 27.17	-1	826365..826916	+	183	150402779	-	MmarC7_0855	-	hypothetical protein
850	 36.89	0	827040..827348	+	102	150402780	-	MmarC7_0856	-	hypothetical protein
851	 40.48	+1	827650..828558	+	302	150402781	-	MmarC7_0857	-	tetrahydromethanopterin formyltransferase
852	 34.81	0	828625..829299	+	224	150402782	-	MmarC7_0858	-	hypothetical protein
853	 36.65	0	829318..830070	-	250	150402783	-	MmarC7_0859	-	hypothetical protein
854	 29.79	-1	830094..830771	-	225	150402784	-	MmarC7_0860	-	putative serine/threonine protein kinase
855	 36.30	0	830883..831152	+	89	150402785	-	MmarC7_0861	-	chromatin protein
856	 32.86	0	831179..832435	-	418	150402786	hisS	MmarC7_0862	-	histidyl-tRNA synthetase
857	 38.00	+1	832491..832790	-	99	150402787	-	MmarC7_0863	-	hypothetical protein
858	 37.89	+1	832878..834194	-	438	150402788	aspC	MmarC7_0864	-	aspartyl-tRNA synthetase
859	 35.20	0	834399..835364	-	321	150402789	-	MmarC7_0865	-	aIF-2BI family translation initiation factor
860	 34.33	0	835503..836711	+	402	150402790	-	MmarC7_0866	-	molybdenum cofactor synthesis domain-containing protein
861	 30.95	0	836724..837017	+	97	150402791	-	MmarC7_0867	-	hypothetical protein
862	 35.94	0	837077..838072	-	331	150402792	-	MmarC7_0868	-	energy conserving hydrogenase B integral membrane subunit
863	 40.99	+1	838081..838524	-	147	150402793	-	MmarC7_0869	-	NADH ubiquinone oxidoreductase 20 kDa subunit
864	 34.70	0	838534..839046	-	170	150402794	-	MmarC7_0870	-	ferredoxin
865	 35.27	0	839066..840511	-	481	150402795	-	MmarC7_0871	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
866	 31.80	0	840513..840773	-	86	150402796	-	MmarC7_0872	-	hypothetical protein
867	 34.51	0	840785..841546	-	253	150402797	-	MmarC7_0873	-	putative monovalent cation/H+ antiporter subunit B
868	 33.66	0	841556..841864	-	102	150402798	-	MmarC7_0874	-	hypothetical protein
869	 37.06	0	841882..843330	-	482	150402799	-	MmarC7_0875	-	hydrogenase subunit F
870	 34.73	0	843357..843713	-	118	150402800	-	MmarC7_0876	-	putative monovalent cation/H+ antiporter subunit C
871	 34.79	0	844327..845976	+	549	150402801	-	MmarC7_0877	-	ABC transporter related
872	 30.05	-1	845979..846527	-	182	150402802	-	MmarC7_0878	-	phosphoesterase PA-phosphatase related
873	 30.43	0	846667..847218	+	183	150402803	-	MmarC7_0879	-	hypothetical protein
874	 28.65	-1	847208..848083	+	291	150402804	-	MmarC7_0880	-	phage integrase family protein
875	 27.11	-1	848148..848870	-	240	150402805	-	MmarC7_0881	-	hypothetical protein
876	 25.25	-2	849035..849430	-	131	150402806	-	MmarC7_0882	-	hypothetical protein
877	 28.35	-1	849726..850748	-	340	150402807	-	MmarC7_0883	-	hypothetical protein
878	 26.82	-1	850919..851854	+	311	150402808	-	MmarC7_0884	-	hypothetical protein
879	 27.47	-1	851949..853961	-	670	150402809	-	MmarC7_0885	-	hypothetical protein
880	 24.93	-2	854078..854434	-	118	150402810	-	MmarC7_0886	-	hypothetical protein
881	 37.12	0	854673..854804	+	43	150402811	-	MmarC7_0887	-	hypothetical protein
882	 33.66	0	854805..855107	+	100	150402812	-	MmarC7_0888	-	hypothetical protein
883	 33.15	0	855100..855630	+	176	150402813	-	MmarC7_0889	-	hypothetical protein
884	 34.36	0	855647..857005	+	452	150402814	-	MmarC7_0890	-	hypothetical protein
885	 35.78	0	857017..857220	+	67	150402815	-	MmarC7_0891	-	hypothetical protein
886	 31.58	0	857192..857476	+	94	150402816	-	MmarC7_0892	-	hypothetical protein
887	 28.76	-1	857867..858325	+	152	150402817	-	MmarC7_0893	-	hypothetical protein
888	 25.76	-2	858345..858740	+	131	150402818	-	MmarC7_0894	-	hypothetical protein
889	 31.55	0	858746..859081	+	111	150402819	-	MmarC7_0895	-	hypothetical protein
33.95	MEAN

3.74	STD DEV
