IslandPath Analysis: Methanococcus maripaludis C7

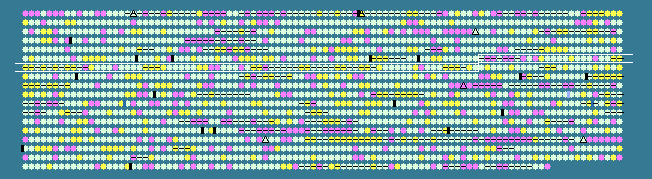

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
577	 36.67	0	586664..587143	+	159	150402507	-	MmarC7_0582	-	coenzyme F420-reducing hydrogenase delta subunit
578	 29.74	-1	587261..587455	+	64	150402508	-	MmarC7_0583	-	hypothetical protein
579	 29.38	-1	587467..588276	-	269	150402509	-	MmarC7_0584	-	hypothetical protein
580	 30.73	0	588369..589484	+	371	150402510	-	MmarC7_0585	-	metallophosphoesterase
581	 25.82	-2	589497..592478	+	993	150402511	-	MmarC7_0586	-	SMC domain-containing protein
582	 25.76	-2	592487..592882	+	131	150402512	-	MmarC7_0587	-	nucleotide binding protein PINc
583	 34.08	0	592898..593698	-	266	150402513	-	MmarC7_0588	-	hypothetical protein
584	 30.43	0	593710..594192	-	160	150402514	-	MmarC7_0589	-	hypothetical protein
585	 32.83	0	594182..594976	-	264	150402515	-	MmarC7_0590	-	undecaprenyl diphosphate synthase
586	 29.80	-1	594993..595727	-	244	150402516	-	MmarC7_0591	-	basic helix-loop-helix dimerization domain-containing protein
587	 41.29	+1	595855..596055	-	66	150402517	-	MmarC7_0592	-	transcription factor CBF/NF-Y histone
588	 31.49	0	596245..597327	-	360	150402518	-	MmarC7_0593	-	hypothetical protein
589	 36.04	0	597355..598131	-	258	150402519	-	MmarC7_0594	-	NAD+ synthetase
590	 32.95	0	598147..599460	-	437	150402520	-	MmarC7_0595	-	radical SAM domain-containing protein
591	 32.30	0	599466..599951	-	161	150402521	-	MmarC7_0596	-	ribosomal-protein-alanine acetyltransferase
592	 40.30	+1	600087..600875	-	262	150402522	-	MmarC7_0597	-	ribulose-1,5-biphosphate synthetase
593	 34.20	0	602079..603230	+	383	150402523	-	MmarC7_0599	-	thiamine biosynthesis/tRNA modification protein ThiI
594	 32.89	0	603245..603925	+	226	150402524	-	MmarC7_0600	-	hexapaptide repeat-containing transferase
595	 33.01	0	603943..604878	-	311	150402525	-	MmarC7_0601	-	PP-loop domain-containing protein
596	 27.84	-1	604894..605148	-	84	150402526	-	MmarC7_0602	-	thiamineS protein
597	 35.09	0	605192..605590	-	132	150402527	-	MmarC7_0603	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
598	 36.64	0	605604..607145	-	513	150402528	-	MmarC7_0604	-	hypothetical protein
599	 38.40	+1	607399..607635	+	78	150402529	rpoH	MmarC7_0605	-	DNA-directed RNA polymerase subunit H
600	 37.60	0	607719..609218	+	499	150402530	-	MmarC7_0606	-	DNA-directed RNA polymerase subunit beta''
601	 39.98	+1	609262..611097	+	611	150402531	-	MmarC7_0607	-	DNA-directed RNA polymerase subunit B'
602	 39.55	+1	611148..613817	+	889	150402532	-	MmarC7_0608	-	DNA-directed RNA polymerase subunit alpha
603	 36.86	0	613862..615022	+	386	150402533	-	MmarC7_0609	-	DNA-directed RNA polymerase subunit A''
604	 39.56	+1	615226..615546	+	106	150402534	-	MmarC7_0610	-	50S ribosomal protein L30e
605	 35.25	0	615563..616084	+	173	150402535	-	MmarC7_0611	-	transcription elongation factor NusA-like protein
606	 39.86	+1	616094..616537	+	147	150402536	rps12P	MmarC7_0612	-	30S ribosomal protein S12P
607	 35.63	0	616571..617137	+	188	150402537	-	MmarC7_0613	-	30S ribosomal protein S7P
608	 40.20	+1	617240..619423	+	727	150402538	-	MmarC7_0614	-	elongation factor EF-2
609	 39.94	+1	619508..620794	+	428	150402539	-	MmarC7_0615	-	elongation factor 1-alpha
610	 36.25	0	620843..621151	+	102	150402540	rps10p	MmarC7_0616	-	30S ribosomal protein S10P
611	 30.29	0	621436..622749	+	437	150402541	-	MmarC7_0617	-	phosphomannomutase
612	 39.13	+1	622817..623902	-	361	150402542	purP	MmarC7_0618	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase
613	 30.56	0	624020..624739	+	239	150402543	-	MmarC7_0619	-	ribonuclease HII
614	 34.59	0	624739..625611	+	290	150402544	-	MmarC7_0620	-	tRNA methyltransferase complex GCD14 subunit
615	 33.33	0	625701..625961	+	86	150402545	-	MmarC7_0621	-	phage shock protein C, PspC
616	 30.15	-1	625991..627058	+	355	150402546	-	MmarC7_0622	-	hypothetical protein
617	 35.03	0	627278..627454	+	58	150402547	-	MmarC7_0623	-	hypothetical protein
618	 32.07	0	627482..628114	-	210	150402548	thyA	MmarC7_0624	-	thymidylate synthase
619	 31.46	0	628188..629306	+	372	150402549	-	MmarC7_0625	-	chlorohydrolase
620	 37.27	0	629367..630635	+	422	150402550	-	MmarC7_0626	-	beta-lactamase domain-containing protein
621	 39.56	+1	630840..632012	+	390	150402551	-	MmarC7_0627	-	nickel-dependent hydrogenase large subunit
622	 37.71	+1	632185..632709	+	174	150402552	-	MmarC7_0628	-	coenzyme F420-reducing hydrogenase delta subunit
623	 39.01	+1	632724..633410	+	228	150402553	-	MmarC7_0629	-	coenzyme F420 hydrogenase
624	 39.69	+1	633444..634292	+	282	150402554	-	MmarC7_0630	-	coenzyme F420-reducing hydrogenase subunit beta
625	 32.04	0	634397..635404	+	335	150402555	-	MmarC7_0631	-	hypothetical protein
626	 36.14	0	635455..636309	+	284	150402556	-	MmarC7_0632	-	hypothetical protein
627	 31.71	0	636347..636592	-	81	150402557	-	MmarC7_0633	-	redox-active disulfide protein 2
628	 32.90	0	636642..637790	-	382	150402558	-	MmarC7_0634	-	major facilitator transporter
629	 36.26	0	637899..638069	-	56	150402559	-	MmarC7_0635	-	hypothetical protein
630	 38.30	+1	638204..639250	-	348	150402560	-	MmarC7_0636	-	aspartate-semialdehyde dehydrogenase
631	 39.71	+1	639326..640768	-	480	150402561	-	MmarC7_0637	-	hypothetical protein
632	 29.26	-1	640907..641323	+	138	150402562	-	MmarC7_0638	-	hypothetical protein
633	 29.98	-1	641326..641982	-	218	150402563	-	MmarC7_0639	-	3-dehydroquinate dehydratase, type I
634	 33.87	0	641992..644241	-	749	150402564	-	MmarC7_0640	-	Hef nuclease
635	 35.71	0	644393..645697	-	434	150402565	-	MmarC7_0641	-	aminotransferase
636	 32.66	0	646092..649661	+	1189	150402566	-	MmarC7_0642	-	chromosome segregation protein SMC
637	 29.65	-1	649695..650942	+	415	150402567	-	MmarC7_0643	-	succinyl-diaminopimelate desuccinylase
638	 32.39	0	650943..651581	+	212	150402568	-	MmarC7_0644	-	aspartate/glutamate/uridylate kinase
639	 38.79	+1	651599..651763	+	54	150402569	-	MmarC7_0645	-	hypothetical protein
640	 38.52	+1	651795..652064	+	89	150402570	ef1B	MmarC7_0646	-	elongation factor 1-beta
641	 28.10	-1	652156..652365	+	69	150402571	-	MmarC7_0647	-	hypothetical protein
642	 35.28	0	652385..652846	+	153	150402572	rpl22p	MmarC7_0648	-	50S ribosomal protein L22P
643	 36.16	0	652857..653492	+	211	150402573	rps3p	MmarC7_0649	-	30S ribosomal protein S3P
644	 36.11	0	653503..653718	+	71	150402574	-	MmarC7_0650	-	50S ribosomal protein L29
645	 36.25	0	653802..654110	+	102	150402575	-	MmarC7_0651	-	translation initiation factor Sui1
646	 31.31	0	654178..654474	+	98	150402576	-	MmarC7_0652	-	ribonuclease P protein component 1
647	 39.09	+1	654639..654968	+	109	150402577	rps17p	MmarC7_0653	-	30S ribosomal protein S17P
648	 38.85	+1	654989..655387	+	132	150402578	rpl14p	MmarC7_0654	-	50S ribosomal protein L14P
649	 31.94	0	655407..655766	+	119	150402579	rpl24p	MmarC7_0655	-	50S ribosomal protein L24P
650	 35.92	0	655778..656512	+	244	150402580	-	MmarC7_0656	-	30S ribosomal protein S4e
651	 36.81	0	656541..657086	+	181	150402581	rpl5p	MmarC7_0657	-	50S ribosomal protein L5P
652	 33.33	0	657096..657257	+	53	150402582	rps14P	MmarC7_0658	-	30S ribosomal protein S14P
653	 37.91	+1	657276..657668	+	130	150402583	rps8p	MmarC7_0659	-	30S ribosomal protein S8P
654	 37.52	0	657690..658238	+	182	150402584	rpl6p	MmarC7_0660	-	50S ribosomal protein L6P
655	 34.56	0	658248..658655	+	135	150402585	rpl32e	MmarC7_0661	-	50S ribosomal protein L32e
656	 36.89	0	658682..659131	+	149	150402586	rpl19e	MmarC7_0662	-	50S ribosomal protein L19e
657	 37.80	+1	659155..659736	+	193	150402587	rpl18p	MmarC7_0663	-	50S ribosomal protein L18P
658	 39.28	+1	659747..660436	+	229	150402588	rps5p	MmarC7_0664	-	30S ribosomal protein S5P
659	 36.34	0	660471..660935	+	154	150402589	rpl30p	MmarC7_0665	-	50S ribosomal protein L30P
660	 38.66	+1	660950..661381	+	143	150402590	rpl15p	MmarC7_0666	-	50S ribosomal protein L15P
661	 36.95	0	661609..662937	+	442	150402591	-	MmarC7_0667	-	preprotein translocase subunit SecY
662	 30.89	0	662968..663867	-	299	150402592	-	MmarC7_0668	-	glycosyl transferase family protein
663	 34.47	0	663966..666521	+	851	150402593	-	MmarC7_0669	-	oligosaccharyl transferase STT3 subunit
664	 36.30	0	666637..667176	+	179	150402594	-	MmarC7_0670	-	tRNA 2'-O-methylase
665	 34.94	0	667201..667821	+	206	150402595	-	MmarC7_0671	-	deoxycytidine triphosphate deaminase
666	 38.13	+1	667825..669201	+	458	150402596	-	MmarC7_0672	-	hypothetical protein
667	 30.25	0	669266..669427	+	53	150402597	-	MmarC7_0673	-	hypothetical protein
668	 37.11	0	669479..669796	-	105	150402598	-	MmarC7_0674	-	transcription termination factor Tfs
669	 33.06	0	669866..671308	-	480	150402599	-	MmarC7_0675	-	cation transporter
670	 35.68	0	671330..672268	-	312	150402600	-	MmarC7_0676	-	2-phosphoglycerate kinase
671	 38.94	+1	672346..673362	-	338	150402601	-	MmarC7_0677	-	adenylosuccinate synthetase
672	 37.71	+1	673471..673950	-	159	150402602	-	MmarC7_0678	-	ribosomal protein L11
673	 38.55	+1	674064..674504	-	146	150402603	nusG	MmarC7_0679	-	transcription antitermination protein NusG
674	 32.08	0	674639..674878	-	79	150402604	secE	MmarC7_0680	-	preprotein translocase subunit SecE
675	 38.72	+1	674910..676022	-	370	150402605	-	MmarC7_0681	-	cell division protein FtsZ
676	 36.16	0	676222..677319	+	365	150402606	-	MmarC7_0682	-	DNA topoisomerase VI subunit A
33.95	MEAN

3.74	STD DEV
