IslandPath Analysis: Methanococcus maripaludis C7

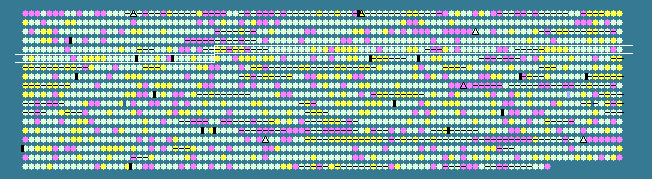

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
433	 38.19	+1	441956..442408	-	150	150402363	-	MmarC7_0437	-	peptidylprolyl isomerase FKBP-type
434	 38.79	+1	442599..443570	+	323	150402364	-	MmarC7_0438	-	N(5),N(10)-methenyltetrahydromethanopterin cyclohydrolase
435	 29.48	-1	443667..444782	+	371	150402365	-	MmarC7_0439	-	radical SAM domain-containing protein
436	 40.41	+1	445409..449947	+	1512	150402366	-	MmarC7_0440	-	hypothetical protein
437	 39.78	+1	450006..452051	+	681	150402367	-	MmarC7_0441	-	surface protein
438	 26.54	-1	452127..452435	+	102	150402368	-	MmarC7_0442	-	putative cytoplasmic protein
439	 33.88	0	452589..453137	+	182	150402369	-	MmarC7_0443	-	hypothetical protein
440	 35.70	0	453317..454078	+	253	150402370	-	MmarC7_0444	-	binding-protein-dependent transport systems inner membrane component
441	 35.29	0	454113..454877	+	254	150402371	-	MmarC7_0445	-	ABC transporter related
442	 31.81	0	454978..455832	+	284	150402372	-	MmarC7_0446	-	phosphate uptake regulator, PhoU
443	 35.93	0	455981..457291	+	436	150402373	-	MmarC7_0447	-	diaminopimelate decarboxylase
444	 31.88	0	457351..457902	-	183	150402374	-	MmarC7_0448	-	nuclease
445	 30.99	0	457910..458293	-	127	150402375	-	MmarC7_0449	-	hypothetical protein
446	 32.43	0	458298..459398	-	366	150402376	cbiD	MmarC7_0450	-	cobalt-precorrin-6A synthase
447	 30.49	0	459439..460458	-	339	150402377	-	MmarC7_0451	-	peptidase M24
448	 35.12	0	460524..461813	-	429	150402378	-	MmarC7_0452	-	3-phosphoshikimate 1-carboxyvinyltransferase
449	 39.67	+1	461982..463322	+	446	150402379	-	MmarC7_0453	-	glutamine synthetase, type I
450	 37.07	0	463533..463907	+	124	150402380	-	MmarC7_0454	-	30S ribosomal protein S6e
451	 38.44	+1	464068..465300	+	410	150402381	-	MmarC7_0455	-	translation initiation factor IF-2 subunit gamma
452	 27.32	-1	465338..466402	+	354	150402382	-	MmarC7_0456	-	hypothetical protein
453	 39.13	+1	466533..467222	+	229	150402383	-	MmarC7_0457	-	helix-turn-helix domain-containing protein
454	 41.52	+2	467284..468333	+	349	150402384	-	MmarC7_0458	-	hypothetical protein
455	 40.80	+1	468352..469530	+	392	150402385	-	MmarC7_0459	-	acetyl-CoA acetyltransferase
456	 40.71	+1	469568..469960	+	130	150402386	-	MmarC7_0460	-	hypothetical protein
457	 30.53	0	469975..470652	-	225	150402387	-	MmarC7_0461	-	hypothetical protein
458	 33.67	0	470753..472231	-	492	150402388	-	MmarC7_0462	-	cobyric acid synthase
459	 33.60	0	472361..473476	-	371	150402389	-	MmarC7_0463	-	histidinol-phosphate aminotransferase
460	 30.15	-1	473502..474161	-	219	150402390	-	MmarC7_0464	-	hypothetical protein
461	 36.46	0	474178..475425	-	415	150402391	-	MmarC7_0465	-	LOR/SDH bifunctional protein
462	 33.28	0	475514..477523	-	669	150402392	-	MmarC7_0466	-	helicase c2
463	 36.02	0	477650..479212	-	520	150402393	-	MmarC7_0467	-	alpha-glucan phosphorylase
464	 31.87	0	479309..479854	-	181	150402394	-	MmarC7_0468	-	precorrin-6Y C5,15-methyltransferase (decarboxylating), CbiT subunit
465	 37.87	+1	480003..480971	+	322	150402395	radA	MmarC7_0469	-	DNA repair and recombination protein RadA
466	 38.81	+1	481052..482530	-	492	150402396	-	MmarC7_0470	-	hypothetical protein
467	 35.03	0	482842..483606	+	254	150402397	-	MmarC7_0471	-	extracellular solute-binding protein
468	 32.38	0	483635..484792	-	385	150402398	-	MmarC7_0472	-	geranylgeranyl reductase
469	 28.39	-1	484905..485531	+	208	150402399	-	MmarC7_0473	-	cobalt-precorrin-6Y C(5)-methyltransferase
470	 27.96	-1	485545..486177	+	210	150402400	-	MmarC7_0474	-	hypothetical protein
471	 38.61	+1	486273..486575	+	100	150402401	-	MmarC7_0475	-	FUN14 family protein
472	 32.58	0	486612..487667	+	351	150402402	-	MmarC7_0476	-	DNA polymerase beta subunit
473	 29.33	-1	487695..488144	+	149	150402403	-	MmarC7_0477	-	HAD family hydrolase
474	 30.86	0	488167..489057	-	296	150402404	-	MmarC7_0478	-	PP-loop domain-containing protein
475	 31.91	0	489114..489815	-	233	150402405	-	MmarC7_0479	-	formate dehydrogenase family accessory protein FdhD
476	 32.50	0	489892..490611	+	239	150402406	-	MmarC7_0480	-	UBA/THIF-type NAD/FAD binding protein
477	 32.63	0	490604..491029	+	141	150402407	-	MmarC7_0481	-	molybdopterin biosynthesis MoaE protein
478	 34.54	0	491058..491801	+	247	150402408	-	MmarC7_0482	-	hypothetical protein
479	 32.35	0	491835..492038	+	67	150402409	-	MmarC7_0483	-	hypothetical protein
480	 28.25	-1	492113..493096	+	327	150402410	-	MmarC7_0484	-	biotin synthase
481	 28.57	-1	493093..493869	+	258	150402411	-	MmarC7_0485	-	ExsB family protein
482	 34.21	0	493897..495039	+	380	150402412	-	MmarC7_0486	-	Sep-tRNA:Cys-tRNA synthetase
483	 32.78	0	495044..495403	+	119	150402413	-	MmarC7_0487	-	hypothetical protein
484	 34.86	0	495415..496332	-	305	150402414	-	MmarC7_0488	-	quinolinate synthetase
485	 33.01	0	496391..497002	-	203	150402415	-	MmarC7_0489	-	UBA/THIF-type NAD/FAD binding protein
486	 37.14	0	497207..497653	+	148	150402416	-	MmarC7_0490	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
487	 37.68	0	497676..498734	+	352	150402417	-	MmarC7_0491	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
488	 40.33	+1	498757..498999	+	80	150402418	-	MmarC7_0492	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
489	 40.57	+1	499041..499427	+	128	150402419	-	MmarC7_0493	-	molydopterin dinucleotide-binding region
490	 39.55	+1	499448..501151	+	567	150402420	-	MmarC7_0494	-	amidohydrolase 3
491	 37.61	0	501184..502002	+	272	150402421	-	MmarC7_0495	-	formylmethanofuran dehydrogenase
492	 35.52	0	502095..502598	+	167	150402422	-	MmarC7_0496	-	6-pyruvoyl tetrahydropterin synthase
493	 36.90	0	502689..503249	+	186	150402423	-	MmarC7_0497	-	signal-transduction protein
494	 34.40	0	503273..504112	+	279	150402424	-	MmarC7_0498	-	CBS domain-containing protein
495	 32.33	0	504222..505118	+	298	150402425	-	MmarC7_0499	-	hypothetical protein
496	 34.48	0	505182..506231	+	349	150402426	-	MmarC7_0500	-	phosphoribosylaminoimidazole synthetase
497	 33.45	0	506274..507938	+	554	150402427	pheT	MmarC7_0501	-	phenylalanyl-tRNA synthetase subunit beta
498	 31.33	0	508000..508497	+	165	150402428	-	MmarC7_0502	-	hypothetical protein
499	 27.41	-1	508498..509172	-	224	150402429	-	MmarC7_0503	-	NERD domain-containing protein
500	 37.25	0	509202..510170	-	322	150402430	-	MmarC7_0504	-	delta-aminolevulinic acid dehydratase
501	 36.57	0	510313..511641	-	442	150402431	-	MmarC7_0505	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
502	 39.00	+1	512018..512794	-	258	150402432	-	MmarC7_0506	-	cobyrinic acid ac-diamide synthase
503	 35.86	0	513015..514163	-	382	150402433	-	MmarC7_0507	-	hypothetical protein
504	 35.60	0	514269..514841	-	190	150402434	-	MmarC7_0508	-	hypothetical protein
505	 32.35	0	515360..516169	-	269	150402435	-	MmarC7_0510	-	hypothetical protein
506	 33.40	0	516186..517679	-	497	150402436	-	MmarC7_0511	-	hypothetical protein
507	 36.08	0	517770..519665	-	631	150402437	-	MmarC7_0512	-	glutamyl-tRNA(Gln) amidotransferase subunit E
508	 33.97	0	519697..520953	-	418	150402438	-	MmarC7_0513	-	glutamyl-tRNA(Gln) amidotransferase subunit D
509	 28.27	-1	521047..521757	-	236	150402439	-	MmarC7_0514	-	hypothetical protein
510	 32.25	0	521895..522911	+	338	150402440	-	MmarC7_0515	-	domain of unkown function DUF1786 putative pyruvate format-lyase activating enzyme
511	 39.10	+1	522936..524252	-	438	150402441	-	MmarC7_0516	-	bifunctional hexulose-6-phosphate synthase/ribonuclease regulator
512	 38.40	+1	524338..525777	-	479	150402442	-	MmarC7_0517	-	pyruvate ferredoxin/flavodoxin oxidoreductase
513	 37.78	+1	525779..526834	-	351	150402443	-	MmarC7_0518	-	2-ketoisovalerate ferredoxin reductase
514	 37.98	+1	526845..527102	-	85	150402444	-	MmarC7_0519	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
515	 37.08	0	527164..528843	-	559	150402445	-	MmarC7_0520	-	AMP-dependent synthetase and ligase
516	 35.86	0	528882..529436	-	184	150402446	-	MmarC7_0521	-	cupin 2 domain-containing protein
517	 35.62	0	529678..531297	-	539	150402447	sdhA	MmarC7_0522	-	succinate dehydrogenase flavoprotein subunit
518	 33.33	0	531320..531649	-	109	150402448	-	MmarC7_0523	-	hypothetical protein
519	 33.06	0	531654..532022	-	122	150402449	-	MmarC7_0524	-	CrcB protein
520	 34.22	0	532276..532614	-	112	150402450	-	MmarC7_0525	-	hypothetical protein
521	 32.36	0	532686..533198	+	170	150402451	-	MmarC7_0526	-	GCN5-related N-acetyltransferase
522	 32.43	0	533214..533765	-	183	150402452	-	MmarC7_0527	-	hypothetical protein
523	 37.75	+1	533804..534007	-	67	150402453	-	MmarC7_0528	-	hypothetical protein
524	 32.06	0	534120..536555	+	811	150402454	-	MmarC7_0529	-	DEAD/DEAH box helicase domain-containing protein
525	 28.71	-1	536552..537352	-	266	150402455	-	MmarC7_0530	-	hypothetical protein
526	 35.45	0	537870..539189	+	439	150402456	-	MmarC7_0531	-	DNA primase
527	 34.35	0	539223..539516	+	97	150402457	-	MmarC7_0532	-	hypothetical protein
528	 34.43	0	539556..540833	+	425	150402458	-	MmarC7_0533	-	UbiD family decarboxylase
529	 38.12	+1	540893..541414	-	173	150402459	rpl10e	MmarC7_0534	-	50S ribosomal protein L10e
530	 33.92	0	541541..542224	-	227	150402460	-	MmarC7_0535	-	GTP-binding protein
531	 32.92	0	542238..543461	-	407	150402461	-	MmarC7_0536	-	Alpha-amylase
532	 34.62	0	543528..545393	-	621	150402462	-	MmarC7_0537	-	glycoside hydrolase 15-related
33.95	MEAN

3.74	STD DEV
