IslandPath Analysis: Methanococcus maripaludis C7

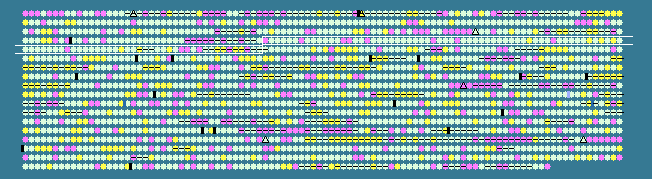

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
341	 26.62	-1	358545..358991	-	148	150402271	-	MmarC7_0345	-	phosphopantetheine adenylyltransferase
342	 35.79	0	359055..361331	-	758	150402272	-	MmarC7_0346	-	phosphoenolpyruvate synthase
343	 36.17	0	361574..362419	+	281	150402273	-	MmarC7_0347	-	phosphate binding protein
344	 36.53	0	362492..363367	+	291	150402274	-	MmarC7_0348	-	phosphate ABC transporter, inner membrane subunit PstC
345	 37.14	0	363377..364243	+	288	150402275	-	MmarC7_0349	-	phosphate ABC transporter, inner membrane subunit PstA
346	 34.39	0	364261..365016	+	251	150402276	-	MmarC7_0350	-	phosphate ABC transporter, ATPase subunit
347	 30.34	0	365047..365748	+	233	150402277	-	MmarC7_0351	-	phosphate uptake regulator, PhoU
348	 32.11	0	365745..366152	-	135	150402278	-	MmarC7_0352	-	transcriptional regulator, TrmB
349	 35.86	0	366370..367557	-	395	150402279	-	MmarC7_0353	-	acetylornithine aminotransferase
350	 30.56	0	367710..368285	+	191	150402280	-	MmarC7_0354	-	phospholipase D/transphosphatidylase
351	 30.54	0	368282..368926	+	214	150402281	-	MmarC7_0355	-	TfuA domain-containing protein
352	 31.54	0	368976..369422	+	148	150402282	-	MmarC7_0356	-	aspartate carbamoyltransferase regulatory subunit
353	 34.44	0	369475..370563	+	362	150402283	-	MmarC7_0357	-	succinyl-CoA synthetase, beta subunit
354	 24.76	-2	370576..370890	+	104	150402284	-	MmarC7_0358	-	hypothetical protein
355	 25.19	-2	370891..371160	-	89	150402285	-	MmarC7_0359	-	ribonucleoprotein complex SRP, Srp19 component
356	 31.23	0	371175..372125	-	316	150402286	-	MmarC7_0360	-	magnesium and cobalt transport protein CorA
357	 32.52	0	372136..373245	-	369	150402287	-	MmarC7_0361	-	hypothetical protein
358	 28.05	-1	373295..374449	-	384	150402288	-	MmarC7_0362	-	hypothetical protein
359	 32.59	0	374436..375509	-	357	150402289	-	MmarC7_0363	-	hypothetical protein
360	 32.67	0	375514..376269	-	251	150402290	-	MmarC7_0364	-	hypothetical protein
361	 35.46	0	376332..377270	-	312	150402291	-	MmarC7_0365	-	transketolase central region
362	 34.70	0	377331..377990	-	219	150402292	-	MmarC7_0366	-	ribulose-phosphate 3-epimerase
363	 36.11	0	378006..378833	-	275	150402293	-	MmarC7_0367	-	transketolase domain-containing protein
364	 36.56	0	379164..380216	+	350	150402294	-	MmarC7_0368	-	cellulase
365	 31.30	0	380297..380788	+	163	150402295	-	MmarC7_0369	-	hypothetical protein
366	 36.03	0	380800..381096	-	98	150402296	-	MmarC7_0370	-	hypothetical protein
367	 33.02	0	381233..382177	+	314	150402297	-	MmarC7_0371	-	hypothetical protein
368	 33.44	0	382304..384148	+	614	150402298	-	MmarC7_0372	-	integral membrane sensor signal transduction histidine kinase
369	 29.96	-1	384189..384752	-	187	150402299	-	MmarC7_0373	-	metal dependent phophohydrolase
370	 33.84	0	384795..385973	-	392	150402300	-	MmarC7_0374	-	translation-associated GTPase
371	 33.33	0	386001..387317	-	438	150402301	-	MmarC7_0375	-	radical SAM domain-containing protein
372	 33.02	0	387651..388598	+	315	150402302	-	MmarC7_0376	-	thiamine-monophosphate kinase
373	 25.58	-2	388592..389107	+	171	150402303	-	MmarC7_0377	-	hypothetical protein
374	 31.70	0	389145..389942	+	265	150402304	-	MmarC7_0378	-	NOL1/NOP2/sun family RNA methylase
375	 32.12	0	389994..392135	+	713	150402305	-	MmarC7_0379	-	RNA-binding S1 domain-containing protein
376	 36.33	0	392179..392778	-	199	150402306	-	MmarC7_0380	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
377	 35.17	0	392820..393308	-	162	150402307	-	MmarC7_0381	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
378	 32.83	0	393417..393815	-	132	150402308	-	MmarC7_0382	-	hypothetical protein
379	 36.27	0	393880..395139	-	419	150402309	-	MmarC7_0383	-	peptide chain release factor 1
380	 33.33	0	395329..395859	+	176	150402310	-	MmarC7_0384	-	tRNA-splicing endonuclease subunit alpha
381	 35.06	0	395878..396921	+	347	150402311	-	MmarC7_0385	-	malate/L-lactate dehydrogenase
382	 36.19	0	397044..398267	+	407	150402312	-	MmarC7_0386	-	beta-lactamase domain-containing protein
383	 36.19	0	398622..399041	+	139	150402313	-	MmarC7_0387	-	rubrerythrin
384	 33.10	0	399182..399604	-	140	150402314	-	MmarC7_0388	-	AsnC family transcriptional regulator
385	 37.70	+1	399814..400614	+	266	150402315	-	MmarC7_0389	-	hydroxyethylthiazole kinase
386	 33.49	0	400604..401227	+	207	150402316	thiE	MmarC7_0390	-	thiamine-phosphate pyrophosphorylase
387	 32.11	0	401404..401649	+	81	150402317	-	MmarC7_0391	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
388	 35.39	0	401853..404477	+	874	150402318	-	MmarC7_0392	-	ATP-dependent helicase
389	 29.40	-1	404480..405190	+	236	150402319	-	MmarC7_0393	-	metallophosphoesterase
390	 30.93	0	405242..405991	-	249	150402320	-	MmarC7_0394	-	bacitracin resistance protein BacA
391	 35.61	0	406143..406931	+	262	150402321	-	MmarC7_0395	-	cell division ATPase MinD
392	 35.94	0	406982..408361	-	459	150402322	-	MmarC7_0396	-	amidophosphoribosyltransferase
393	 35.38	0	408497..408691	-	64	150402323	rpl37e	MmarC7_0397	-	50S ribosomal protein L37e
394	 33.33	0	408769..408987	-	72	150402324	-	MmarC7_0398	-	like-Sm ribonucleoprotein core
395	 40.47	+1	409119..410393	+	424	150402325	-	MmarC7_0399	-	homoaconitate hydratase family protein
396	 33.06	0	410457..410819	-	120	150402326	-	MmarC7_0400	-	signal transduction protein
397	 38.48	+1	410865..411992	-	375	150402327	-	MmarC7_0401	-	NADH-ubiquinone oxidoreductase chain 49kDa
398	 36.44	0	412222..412800	+	192	150402328	-	MmarC7_0402	-	CoB--CoM heterodisulfide reductase
399	 39.76	+1	412813..413715	+	300	150402329	-	MmarC7_0403	-	CoB--CoM heterodisulfide reductase
400	 32.06	0	413757..414071	+	104	150402330	-	MmarC7_0404	-	carboxymuconolactone decarboxylase
401	 35.29	0	414085..414441	+	118	150402331	-	MmarC7_0405	-	desulfoferrodoxin ferrous iron-binding region
402	 31.46	0	414462..414728	+	88	150402332	-	MmarC7_0406	-	MTH865-like family protein
403	 36.74	0	414752..415279	+	175	150402333	-	MmarC7_0407	-	Ferritin Dps family protein
404	 36.51	0	415288..415476	+	62	150402334	-	MmarC7_0408	-	hypothetical protein
405	 33.62	0	415510..415860	+	116	150402335	-	MmarC7_0409	-	hypothetical protein
406	 32.13	0	415888..417051	+	387	150402336	-	MmarC7_0410	-	beta-lactamase domain-containing protein
407	 30.79	0	417070..417384	+	104	150402337	-	MmarC7_0411	-	CutA1 divalent ion tolerance protein
408	 25.00	-2	417504..417719	+	71	150402338	-	MmarC7_0412	-	heavy metal transport/detoxification protein
409	 33.29	0	417739..419910	+	723	150402339	-	MmarC7_0413	-	heavy metal translocating P-type ATPase
410	 36.53	0	420073..420666	+	197	150402340	-	MmarC7_0414	-	NADPH-dependent FMN reductase
411	 33.87	0	420669..421223	+	184	150402341	-	MmarC7_0415	-	archaeoflavoprotein AfpA
412	 35.88	0	421224..421970	+	248	150402342	-	MmarC7_0416	-	ABC transporter related
413	 37.08	0	421940..423166	+	408	150402343	-	MmarC7_0417	-	SufBD protein
414	 31.75	0	423311..424003	+	230	150402344	-	MmarC7_0418	-	glycosyl transferase family protein
415	 32.36	0	424015..424629	+	204	150402345	-	MmarC7_0419	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
416	 37.00	0	424699..425298	-	199	150402346	-	MmarC7_0420	-	hypothetical protein
417	 37.77	+1	425492..426145	+	217	150402347	-	MmarC7_0421	-	peroxiredoxin
418	 32.23	0	426288..427373	+	361	150402348	-	MmarC7_0422	-	hypothetical protein
419	 31.39	0	427513..428595	+	360	150402349	-	MmarC7_0423	-	hypothetical protein
420	 37.70	+1	428742..429863	+	373	150402350	-	MmarC7_0424	-	periplasmic binding protein
421	 37.16	0	430038..431135	+	365	150402351	-	MmarC7_0425	-	periplasmic binding protein
422	 36.26	0	431285..432412	+	375	150402352	-	MmarC7_0426	-	periplasmic binding protein
423	 36.99	0	432523..433644	+	373	150402353	-	MmarC7_0427	-	periplasmic binding protein
424	 36.79	0	433780..434907	+	375	150402354	-	MmarC7_0428	-	periplasmic binding protein
425	 37.82	+1	435014..436060	+	348	150402355	-	MmarC7_0429	-	transport system permease protein
426	 34.25	0	436078..436839	+	253	150402356	-	MmarC7_0430	-	ABC transporter related
427	 28.22	-1	436840..437367	-	175	150402357	-	MmarC7_0431	-	GCN5-related N-acetyltransferase
428	 28.89	-1	437485..438024	+	179	150402358	-	MmarC7_0432	-	hydrogenase maturation protease HycI
429	 35.21	0	438037..440115	+	692	150402359	-	MmarC7_0433	-	peptidase S16, Lon-like protease
430	 29.65	-1	440145..440687	+	180	150402360	-	MmarC7_0434	-	class II aldolase/adducin family protein
431	 34.06	0	440748..441023	-	91	150402361	-	MmarC7_0435	-	hypothetical protein
432	 36.94	0	441169..441888	-	239	150402362	-	MmarC7_0436	-	ribose 5-phosphate isomerase
433	 38.19	+1	441956..442408	-	150	150402363	-	MmarC7_0437	-	peptidylprolyl isomerase FKBP-type
434	 38.79	+1	442599..443570	+	323	150402364	-	MmarC7_0438	-	N(5),N(10)-methenyltetrahydromethanopterin cyclohydrolase
435	 29.48	-1	443667..444782	+	371	150402365	-	MmarC7_0439	-	radical SAM domain-containing protein
436	 40.41	+1	445409..449947	+	1512	150402366	-	MmarC7_0440	-	hypothetical protein
437	 39.78	+1	450006..452051	+	681	150402367	-	MmarC7_0441	-	surface protein
438	 26.54	-1	452127..452435	+	102	150402368	-	MmarC7_0442	-	putative cytoplasmic protein
439	 33.88	0	452589..453137	+	182	150402369	-	MmarC7_0443	-	hypothetical protein
440	 35.70	0	453317..454078	+	253	150402370	-	MmarC7_0444	-	binding-protein-dependent transport systems inner membrane component
33.95	MEAN

3.74	STD DEV
