IslandPath Analysis: Methanococcus maripaludis C7

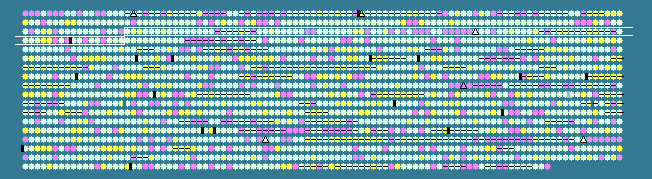

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
218	 36.99	0	231402..231866	-	154	150402148	-	MmarC7_0221	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
219	 37.99	+1	231871..233244	-	457	150402149	-	MmarC7_0222	-	acetyl-CoA decarbonylase/synthase complex subunit gamma
220	 38.61	+1	233258..234412	-	384	150402150	-	MmarC7_0223	-	acetyl-CoA decarbonylase/synthase complex subunit delta
221	 35.59	0	234427..235179	-	250	150402151	-	MmarC7_0224	-	cobyrinic acid ac-diamide synthase
222	 37.19	0	235189..236562	-	457	150402152	-	MmarC7_0225	-	acetyl-CoA decarbonylase/synthase complex subunit beta
223	 37.19	0	236574..237092	-	172	150402153	-	MmarC7_0226	-	acetyl-CoA decarbonylase/synthase complex subunit epsilon
224	 39.79	+1	237102..239438	-	778	150402154	-	MmarC7_0227	-	acetyl-CoA decarbonylase/synthase complex subunit alpha
225	 31.19	0	239724..240515	-	263	150402155	ksgA	MmarC7_0228	-	dimethyladenosine transferase
226	 32.77	0	240526..241413	-	295	150402156	-	MmarC7_0229	-	RNA methyltransferase related protein
227	 35.49	0	241544..243538	-	664	150402157	-	MmarC7_0230	-	DNA topoisomerase VI subunit B
228	 33.33	0	243871..244635	+	254	150402158	-	MmarC7_0231	-	hypothetical protein
229	 35.42	0	244722..245489	+	255	150402159	-	MmarC7_0232	-	1-(5-phosphoribosyl)-5-amino-4-imidazole-carboxylate (AIR) carboxylase
230	 30.62	0	245491..247074	+	527	150402160	-	MmarC7_0233	-	hypothetical protein
231	 32.57	0	247319..247840	+	173	150402161	-	MmarC7_0234	-	hypothetical protein
232	 33.83	0	247955..248155	-	66	150402162	-	MmarC7_0235	-	XRE family transcriptional regulator
233	 29.72	-1	248152..248538	-	128	150402163	-	MmarC7_0236	-	hypothetical protein
234	 34.49	0	248547..248978	-	143	150402164	-	MmarC7_0237	-	hypothetical protein
235	 34.72	0	249133..249276	-	47	150402165	-	MmarC7_0238	-	hypothetical protein
236	 35.37	0	249509..249802	-	97	150402166	-	MmarC7_0239	-	blue (type1) copper domain-containing protein
237	 37.81	+1	250226..250873	+	215	150402167	-	MmarC7_0240	-	hypothetical protein
238	 32.99	0	250967..251554	-	195	150402168	-	MmarC7_0241	-	protein of unknown function DUF340 membrane
239	 30.12	-1	251551..251799	-	82	150402169	-	MmarC7_0242	-	hypothetical protein
240	 36.04	0	252014..253234	+	406	150402170	-	MmarC7_0243	-	hypothetical protein
241	 36.41	0	253245..254024	-	259	150402171	trpA	MmarC7_0244	-	tryptophan synthase subunit alpha
242	 40.59	+1	254025..255209	-	394	150402172	-	MmarC7_0245	-	tryptophan synthase subunit beta
243	 32.70	0	255206..255832	-	208	150402173	-	MmarC7_0246	-	N-(5'-phosphoribosyl)anthranilate isomerase
244	 33.50	0	255847..256437	-	196	150402174	-	MmarC7_0247	-	anthranilate synthase component II
245	 37.05	0	256418..257737	-	439	150402175	-	MmarC7_0248	-	anthranilate synthase component I
246	 34.99	0	257730..258695	-	321	150402176	-	MmarC7_0249	-	anthranilate phosphoribosyltransferase
247	 32.46	0	258695..259384	-	229	150402177	trpC	MmarC7_0250	-	indole-3-glycerol-phosphate synthase
248	 29.99	-1	259717..260973	-	418	150402178	-	MmarC7_0251	-	dihydroorotase, multifunctional complex type
249	 28.09	-1	260994..261890	-	298	150402179	-	MmarC7_0252	-	RluA family pseudouridine synthase
250	 34.47	0	261998..263665	-	555	150402180	gltX	MmarC7_0253	-	glutamyl-tRNA synthetase
251	 33.47	0	263814..264563	-	249	150402181	-	MmarC7_0254	-	exodeoxyribonuclease III Xth
252	 37.31	0	264852..268097	+	1081	150402182	-	MmarC7_0255	-	carbamoyl-phosphate synthase, large subunit
253	 34.18	0	268162..269229	+	355	150402183	-	MmarC7_0256	-	radical SAM domain-containing protein
254	 31.67	0	269346..269645	+	99	150402184	-	MmarC7_0257	-	transcription factor CBF/NF-Y histone
255	 36.08	0	269851..271089	+	412	150402185	-	MmarC7_0258	-	signal transduction protein
256	 37.67	0	271135..272541	-	468	150402186	-	MmarC7_0259	-	aspartate kinase
257	 37.59	0	272696..274174	+	492	150402187	-	MmarC7_0260	-	(R)-citramalate synthase
258	 27.09	-1	274230..275030	+	266	150402188	-	MmarC7_0261	-	PEGA domain-containing protein
259	 34.83	0	275036..276040	-	334	150402189	-	MmarC7_0262	-	hypothetical protein
260	 34.80	0	276167..277732	-	521	150402190	-	MmarC7_0263	-	hypothetical protein
261	 38.17	+1	277734..278891	-	385	150402191	-	MmarC7_0264	-	MMPL domain-containing protein
262	 29.02	-1	278972..279574	-	200	150402192	-	MmarC7_0265	-	TetR family transcriptional regulator
263	 34.41	0	279686..281818	-	710	150402193	-	MmarC7_0266	-	MCM family protein
264	 30.36	0	281831..282334	-	167	150402194	-	MmarC7_0267	-	hypothetical protein
265	 34.45	0	282457..284157	-	566	150402195	argS	MmarC7_0268	-	arginyl-tRNA synthetase
266	 27.27	-1	285555..285950	-	131	150402196	-	MmarC7_0269	-	hypothetical protein
267	 29.49	-1	285964..286353	-	129	150402197	-	MmarC7_0270	-	hypothetical protein
268	 29.41	-1	286817..287122	-	101	150402198	-	MmarC7_0271	-	hypothetical protein
269	 32.18	0	287134..288348	-	404	150402199	-	MmarC7_0272	-	hypothetical protein
270	 32.88	0	288350..288790	-	146	150402200	-	MmarC7_0273	-	hypothetical protein
271	 27.57	-1	289394..289948	+	184	150402201	-	MmarC7_0274	-	regulatory protein MarR
272	 26.10	-2	290047..291705	+	552	150402202	-	MmarC7_0275	-	hypothetical protein
273	 24.42	-2	291924..292226	+	100	150402203	-	MmarC7_0276	-	hypothetical protein
274	 28.86	-1	293719..294120	-	133	150402204	-	MmarC7_0277	-	hypothetical protein
275	 23.57	-2	294113..294409	-	98	150402205	-	MmarC7_0278	-	hypothetical protein
276	 30.74	0	294485..295333	-	282	150402206	-	MmarC7_0279	-	phage integrase family protein
277	 31.64	0	295349..295879	-	176	150402207	-	MmarC7_0280	-	hypothetical protein
278	 31.13	0	296036..298078	+	680	150402208	-	MmarC7_0281	-	hypothetical protein
279	 26.11	-2	298167..298526	+	119	150402209	-	MmarC7_0282	-	hypothetical protein
280	 30.79	0	298530..299276	-	248	150402210	-	MmarC7_0283	-	extracellular solute-binding protein
281	 35.34	0	299445..300041	-	198	150402211	-	MmarC7_0284	-	hypothetical protein
282	 38.69	+1	300106..300684	-	192	150402212	-	MmarC7_0285	-	adenylate kinase
283	 33.28	0	300802..302727	-	641	150402213	-	MmarC7_0286	-	replication factor A
284	 31.73	0	302881..305811	+	976	150402214	-	MmarC7_0287	-	hypothetical protein
285	 31.83	0	305838..306437	+	199	150402215	-	MmarC7_0288	-	dTMP kinase
286	 37.92	+1	306511..306924	+	137	150402216	-	MmarC7_0289	-	hypothetical protein
287	 34.94	0	306974..307780	+	268	150402217	-	MmarC7_0290	-	band 7 protein
288	 27.92	-1	307860..308339	+	159	150402218	-	MmarC7_0291	-	hypothetical protein
289	 33.33	0	308596..308904	+	102	150402219	-	MmarC7_0292	-	A1A0 ATPase, subunit H
290	 37.51	0	308938..310998	+	686	150402220	-	MmarC7_0293	-	V-type ATP synthase subunit I
291	 44.54	+2	311052..311720	+	222	150402221	-	MmarC7_0294	-	V-type ATP synthase subunit K
292	 33.66	0	311781..312392	+	203	150402222	-	MmarC7_0295	-	H+transporting two-sector ATPase E subunit
293	 35.12	0	312403..313578	+	391	150402223	-	MmarC7_0296	-	V-type ATP synthase subunit C
294	 37.33	0	313600..313899	+	99	150402224	-	MmarC7_0297	-	V-type ATP synthase subunit F
295	 40.83	+1	313915..315675	+	586	150402225	-	MmarC7_0298	-	V-type ATP synthase subunit A
296	 40.96	+1	315710..317098	+	462	150402226	-	MmarC7_0299	-	V-type ATP synthase subunit B
297	 35.35	0	317145..317789	+	214	150402227	-	MmarC7_0300	-	V-type ATP synthase subunit D
298	 34.97	0	317811..318176	+	121	150402228	-	MmarC7_0301	-	hypothetical protein
299	 26.92	-1	318233..318622	+	129	150402229	-	MmarC7_0302	-	hypothetical protein
300	 32.59	0	318820..319089	+	89	150402230	-	MmarC7_0303	-	multiple resistance and pH regulation protein F
301	 35.65	0	319123..319770	-	215	150402231	-	MmarC7_0304	-	hypothetical protein
302	 35.97	0	319843..320637	-	264	150402232	-	MmarC7_0305	-	stationary-phase survival protein SurE
303	 33.46	0	321068..321877	+	269	150402233	-	MmarC7_0306	-	regulatory protein Crp
304	 39.91	+1	321910..322791	-	293	150402234	-	MmarC7_0307	-	CoB--CoM heterodisulfide reductase
305	 37.84	+1	322826..323380	-	184	150402235	-	MmarC7_0308	-	CoB--CoM heterodisulfide reductase
306	 26.47	-2	323512..323817	+	101	150402236	-	MmarC7_0309	-	hypothetical protein
307	 34.66	0	323841..325043	+	400	150402237	-	MmarC7_0310	-	hypothetical protein
308	 28.28	-1	325078..326046	+	322	150402238	-	MmarC7_0311	-	hypothetical protein
309	 35.61	0	326272..327723	+	483	150402239	-	MmarC7_0312	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
310	 31.94	0	327734..329164	+	476	150402240	cysS	MmarC7_0313	-	cysteinyl-tRNA synthetase
311	 30.26	0	329202..329819	+	205	150402241	-	MmarC7_0314	-	hypothetical protein
312	 33.33	0	329853..331697	+	614	150402242	-	MmarC7_0315	-	hypothetical protein
313	 36.89	0	331766..333310	+	514	150402243	-	MmarC7_0316	-	2-isopropylmalate synthase
314	 30.32	0	333414..333977	-	187	150402244	-	MmarC7_0317	-	putative adenylyl cyclase CyaB
315	 32.64	0	333974..334408	-	144	150402245	-	MmarC7_0318	-	BadM/Rrf2 family transcriptional regulator
316	 32.47	0	334507..334968	+	153	150402246	-	MmarC7_0319	-	putative molybdenum cofactor biosynthesis protein C
317	 35.82	0	334987..336471	-	494	150402247	-	MmarC7_0320	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
33.95	MEAN

3.74	STD DEV
