IslandPath Analysis: Methanococcus maripaludis C7

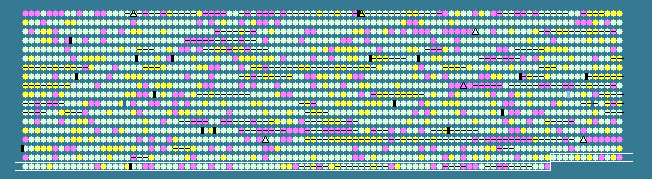

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1689	 34.04	0	1651251..1651817	-	188	150403619	-	MmarC7_1706	-	hypothetical protein
1690	 32.81	0	1651918..1653069	-	383	150403620	-	MmarC7_1707	-	signal recognition particle-docking protein FtsY
1691	 36.56	0	1653224..1653688	+	154	150403621	-	MmarC7_1708	-	heat shock protein HSP20
1692	 31.62	0	1653795..1654436	+	213	150403622	-	MmarC7_1709	-	SAM-binding motif-containing protein
1693	 40.17	+1	1654839..1655657	+	272	150403623	-	MmarC7_1710	-	fructose-bisphosphate aldolase
1694	 36.24	0	1655748..1656401	+	217	150403624	-	MmarC7_1711	-	triosephosphate isomerase
1695	 37.68	0	1656882..1657088	+	68	150403625	-	MmarC7_1712	-	FeoA family protein
1696	 33.23	0	1657229..1659166	+	645	150403626	-	MmarC7_1713	-	ferrous iron transport protein B
1697	 26.57	-1	1659224..1659430	+	68	150403627	-	MmarC7_1714	-	hypothetical protein
1698	 33.27	0	1659436..1661049	-	537	150403628	-	MmarC7_1715	-	O-phosphoseryl-tRNA synthetase
1699	 39.40	+1	1661145..1662446	+	433	150403629	-	MmarC7_1716	-	xanthine/uracil/vitamin C permease
1700	 28.92	-1	1662511..1663212	-	233	150403630	-	MmarC7_1717	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1701	 31.31	0	1663218..1663760	-	180	150403631	-	MmarC7_1718	-	hypothetical protein
1702	 32.55	0	1663846..1664736	-	296	150403632	-	MmarC7_1719	-	hypothetical protein
1703	 32.06	0	1664805..1665671	-	288	150403633	-	MmarC7_1720	-	aminoacyl-tRNA synthetase, class II
1704	 36.48	0	1665755..1667662	-	635	150403634	-	MmarC7_1721	-	beta-lactamase domain-containing protein
1705	 38.48	+1	1667799..1668458	-	219	150403635	-	MmarC7_1722	-	proteasome endopeptidase complex
1706	 33.98	0	1668556..1669938	-	460	150403636	-	MmarC7_1723	-	prolyl-tRNA synthetase
1707	 34.48	0	1670200..1673067	+	955	150403637	leuS	MmarC7_1724	-	leucyl-tRNA synthetase
1708	 31.76	0	1673094..1673411	+	105	150403638	-	MmarC7_1725	-	hypothetical protein
1709	 34.75	0	1673479..1674822	-	447	150403639	-	MmarC7_1726	-	MATE efflux family protein
1710	 30.56	0	1674843..1675382	-	179	150403640	-	MmarC7_1727	-	PadR-like family transcriptional regulator
1711	 33.78	0	1675582..1676025	+	147	150403641	-	MmarC7_1728	-	hypothetical protein
1712	 34.13	0	1676067..1676945	+	292	150403642	-	MmarC7_1729	-	alpha-L-glutamate ligase
1713	 28.64	-1	1676942..1677964	-	340	150403643	-	MmarC7_1730	-	hypothetical protein
1714	 38.05	+1	1678004..1678873	-	289	150403644	-	MmarC7_1731	-	cobyrinic acid ac-diamide synthase
1715	 31.06	0	1678965..1680065	-	366	150403645	-	MmarC7_1732	-	UDP-N-acetylglucosamine 2-epimerase
1716	 33.88	0	1680070..1681353	-	427	150403646	-	MmarC7_1733	-	UDP-glucose/GDP-mannose dehydrogenase
1717	 36.68	0	1681366..1682619	-	417	150403647	-	MmarC7_1734	-	sodium/hydrogen exchanger
1718	 38.12	+1	1682824..1683534	+	236	150403648	-	MmarC7_1735	-	hypothetical protein
1719	 34.67	0	1683974..1684570	+	198	150403649	-	MmarC7_1736	-	hypothetical protein
1720	 34.45	0	1684737..1687517	+	926	150403650	-	MmarC7_1737	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
1721	 29.65	-1	1687526..1688584	+	352	150403651	-	MmarC7_1738	-	magnesium and cobalt transport protein CorA
1722	 28.92	-1	1688674..1689420	+	248	150403652	-	MmarC7_1739	-	extracellular solute-binding protein
1723	 36.10	0	1689896..1691632	+	578	150403653	-	MmarC7_1740	-	thiamine pyrophosphate binding domain-containing protein
1724	 34.92	0	1691632..1692198	+	188	150403654	-	MmarC7_1741	-	indolepyruvate oxidoreductase subunit B
1725	 37.11	0	1692209..1693507	+	432	150403655	-	MmarC7_1742	-	phenylacetate--CoA ligase
1726	 32.39	0	1693521..1693946	+	141	150403656	-	MmarC7_1743	-	amino acid-binding ACT domain-containing protein
1727	 29.80	-1	1693949..1694485	-	178	150403657	-	MmarC7_1744	-	hypothetical protein
1728	 34.19	0	1694871..1695221	+	116	150403658	-	MmarC7_1745	-	hypothetical protein
1729	 25.06	-2	1695436..1695870	+	144	150403659	-	MmarC7_1746	-	hypothetical protein
1730	 31.18	0	1695874..1696431	-	185	150403660	-	MmarC7_1747	-	hypothetical protein
1731	 34.98	0	1696526..1698466	-	646	150403661	-	MmarC7_1748	-	excinuclease ABC subunit B
1732	 30.18	-1	1698463..1700046	-	527	150403662	uvrC	MmarC7_1749	-	excinuclease ABC subunit C
1733	 35.19	0	1700054..1702909	-	951	150403663	-	MmarC7_1750	-	excinuclease ABC, A subunit
1734	 30.95	0	1703036..1703455	-	139	150403664	-	MmarC7_1751	-	hypothetical protein
1735	 28.43	-1	1703465..1703668	-	67	150403665	-	MmarC7_1752	-	exodeoxyribonuclease VII small subunit
1736	 30.64	0	1703689..1704912	-	407	150403666	xseA	MmarC7_1753	-	exodeoxyribonuclease VII large subunit
1737	 32.01	0	1705007..1706365	-	452	150403667	-	MmarC7_1754	-	multi anti extrusion protein MatE
1738	 31.45	0	1706485..1706802	+	105	150403668	-	MmarC7_1755	-	hypothetical protein
1739	 30.73	0	1706877..1707797	+	306	150403669	-	MmarC7_1756	-	site-specific DNA-methyltransferase (adenine-specific)
1740	 31.76	0	1708111..1708365	+	84	150403670	-	MmarC7_1757	-	PRC-barrel domain-containing protein
1741	 35.07	0	1708389..1709192	+	267	150403671	-	MmarC7_1758	-	L-aspartate dehydrogenase
1742	 33.66	0	1709245..1710174	-	309	150403672	-	MmarC7_1759	-	elongation factor Tu domain-containing protein
1743	 36.96	0	1710459..1711010	-	183	150403673	-	MmarC7_1760	-	DNA protection protein DPS
1744	 38.15	+1	1711139..1711948	-	269	150403674	-	MmarC7_1761	-	zinc/iron permease
1745	 37.61	0	1712144..1712797	+	217	150403675	-	MmarC7_1762	-	peroxiredoxin
1746	 28.57	-1	1713622..1713852	+	76	150403676	-	MmarC7_1763	-	hypothetical protein
1747	 35.25	0	1715076..1717265	+	729	150403677	-	MmarC7_1764	-	methyl-accepting chemotaxis sensory transducer
1748	 34.88	0	1717431..1718075	-	214	150403678	-	MmarC7_1765	-	hypothetical protein
1749	 37.95	+1	1718444..1718746	-	100	150403679	-	MmarC7_1766	-	hypothetical protein
1750	 30.41	0	1718743..1719255	-	170	150403680	-	MmarC7_1767	-	hypothetical protein
1751	 37.17	0	1719257..1719673	-	138	150403681	-	MmarC7_1768	-	hypothetical protein
1752	 38.75	+1	1719808..1725213	-	1801	150403682	-	MmarC7_1769	-	cobaltochelatase
1753	 37.68	0	1725588..1726370	+	260	150403683	-	MmarC7_1770	-	chymotrypsin serine protease
1754	 36.52	0	1726487..1727146	-	219	150403684	-	MmarC7_1771	-	putative ATP binding protein
1755	 35.38	0	1727263..1728042	-	259	150403685	-	MmarC7_1772	-	chymotrypsin serine protease
1756	 33.70	0	1728216..1730372	+	718	150403686	-	MmarC7_1773	-	hypothetical protein
1757	 33.33	0	1730572..1731174	+	200	150403687	-	MmarC7_1774	-	hypothetical protein
1758	 32.01	0	1731369..1732124	+	251	150403688	-	MmarC7_1775	-	extracellular solute-binding protein
1759	 38.04	+1	1732528..1733589	-	353	150403689	-	MmarC7_1776	-	hypothetical protein
1760	 32.01	0	1734051..1734428	-	125	150403690	-	MmarC7_1777	-	hypothetical protein
1761	 33.22	0	1735056..1735964	-	302	150403691	-	MmarC7_1778	-	aminoglycoside phosphotransferase
1762	 30.08	-1	1736063..1737016	-	317	150403692	-	MmarC7_1779	-	nucleoside recognition domain-containing protein
1763	 39.49	+1	1737300..1738079	-	259	150403693	-	MmarC7_1780	-	cobyrinic acid ac-diamide synthase
1764	 36.13	0	1738307..1739164	-	285	150403694	-	MmarC7_1781	-	methyltransferase type 11
1765	 32.44	0	1740454..1742238	-	594	150403695	-	MmarC7_1783	-	lysine 2,3-aminomutase YodO family protein
1766	 32.71	0	1743101..1744063	+	320	150403696	-	MmarC7_1784	-	CaCA family Na(+)/Ca(+) antiporter
1767	 32.39	0	1744437..1745069	-	210	150403697	-	MmarC7_1785	-	NADPH-dependent FMN reductase
1768	 31.54	0	1746251..1747810	+	519	150403698	-	MmarC7_1786	-	putative transcriptional regulator
1769	 27.20	-1	1749574..1750062	-	162	150403699	-	MmarC7_1788	-	hypothetical protein
1770	 34.25	0	1750094..1752283	-	729	150403700	-	MmarC7_1789	-	methyl-accepting chemotaxis sensory transducer
1771	 27.71	-1	1752538..1753035	+	165	150403701	-	MmarC7_1790	-	MarR family transcriptional regulator
1772	 32.39	0	1753553..1754191	-	212	150403702	-	MmarC7_1791	-	GCN5-related N-acetyltransferase
1773	 34.51	0	1754985..1756178	+	397	150403703	-	MmarC7_1792	-	hypothetical protein
1774	 28.55	-1	1756224..1757060	+	278	150403704	-	MmarC7_1793	-	hypothetical protein
1775	 28.72	-1	1757142..1757618	+	158	150403705	-	MmarC7_1794	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
1776	 29.04	-1	1757673..1759373	+	566	150403706	-	MmarC7_1795	-	sodium/hydrogen exchanger
1777	 32.96	0	1759547..1760893	-	448	150403707	-	MmarC7_1796	-	MATE efflux family protein
1778	 32.97	0	1761404..1761679	-	91	150403708	-	MmarC7_1798	-	hypothetical protein
1779	 33.03	0	1761797..1762126	+	109	150403709	-	MmarC7_1799	-	sodium/calcium exchanger membrane region
1780	 29.90	-1	1763030..1763320	+	96	150403710	-	MmarC7_1800	-	hypothetical protein
1781	 22.88	-2	1763372..1763677	+	101	150403711	-	MmarC7_1801	-	hypothetical protein
1782	 34.90	0	1764719..1765993	-	424	150403712	-	MmarC7_1802	-	hypothetical protein
1783	 31.99	0	1766005..1767789	-	594	150403713	-	MmarC7_1803	-	parallel beta-helix repeat-containing protein
1784	 33.74	0	1767925..1768170	-	81	150403714	-	MmarC7_1804	-	hypothetical protein
1785	 31.31	0	1768192..1768932	-	246	150403715	-	MmarC7_1805	-	extracellular solute-binding protein
1786	 30.97	0	1769552..1770313	-	253	150403716	-	MmarC7_1806	-	extracellular solute-binding protein
1787	 34.16	0	1770623..1771228	+	201	150403717	-	MmarC7_1807	-	resolvase domain-containing protein
1788	 29.53	-1	1771234..1772601	-	455	150403718	-	MmarC7_1808	-	hypothetical protein
33.95	MEAN

3.74	STD DEV
