IslandPath Analysis: Methanococcus maripaludis C7

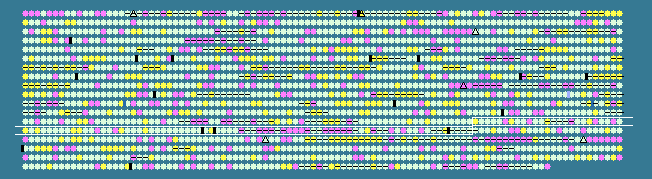

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1276	 38.57	+1	1252263..1252682	+	139	150403206	-	MmarC7_1286	-	nucleoside-diphosphate kinase
1277	 35.89	0	1252842..1254638	+	598	150403207	-	MmarC7_1287	-	translation initiation factor IF-2
1278	 34.50	0	1254773..1256233	+	486	150403208	-	MmarC7_1288	-	TrkA domain-containing protein
1279	 31.17	0	1256246..1256476	+	76	150403209	-	MmarC7_1289	-	hypothetical protein
1280	 34.09	0	1256482..1257276	+	264	150403210	-	MmarC7_1290	-	CBS domain-containing protein
1281	 26.29	-2	1257316..1258053	+	245	150403211	-	MmarC7_1291	-	hypothetical protein
1282	 37.49	0	1258075..1259157	-	360	150403212	-	MmarC7_1292	-	hydrogenase expression/formation protein HypD
1283	 34.91	0	1259408..1259788	+	126	150403213	nac	MmarC7_1293	-	nascent polypeptide-associated complex protein
1284	 37.28	0	1259851..1261194	+	447	150403214	-	MmarC7_1294	-	AIR synthase-like protein
1285	 26.34	-2	1261191..1261376	-	61	150403215	-	MmarC7_1295	-	hypothetical protein
1286	 34.63	0	1261388..1262314	-	308	150403216	-	MmarC7_1296	-	aldolase
1287	 36.95	0	1262473..1263441	+	322	150403217	-	MmarC7_1297	-	Pyrrolo-quinoline quinone
1288	 38.19	+1	1263564..1264469	+	301	150403218	-	MmarC7_1298	-	homoserine kinase
1289	 36.73	0	1264494..1265582	-	362	150403219	-	MmarC7_1299	-	hypothetical protein
1290	 36.69	0	1265639..1266055	-	138	150403220	-	MmarC7_1300	-	translation initiation factor IF-2 subunit beta
1291	 36.92	0	1266282..1266866	+	194	150403221	-	MmarC7_1301	-	50S ribosomal protein L15e
1292	 30.30	0	1267010..1267471	+	153	150403222	-	MmarC7_1302	-	hypothetical protein
1293	 34.38	0	1267471..1267851	+	126	150403223	-	MmarC7_1303	-	hydrogenase nickel insertion protein HypA
1294	 32.78	0	1268053..1268412	+	119	150403224	-	MmarC7_1304	-	hypothetical protein
1295	 40.74	+1	1268418..1268552	-	44	150403225	-	MmarC7_1305	-	rubredoxin-type Fe(Cys)4 protein
1296	 28.19	-1	1268619..1269377	-	252	150403226	-	MmarC7_1306	-	N-glycosylase/DNA lyase
1297	 35.42	0	1269429..1270289	-	286	150403227	-	MmarC7_1307	-	2-oxoacid ferredoxin oxidoreductase subunit beta
1298	 32.63	0	1270295..1272007	-	570	150403228	-	MmarC7_1308	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
1299	 29.13	-1	1272080..1272769	+	229	150403229	-	MmarC7_1309	-	zinc finger SWIM domain-containing protein
1300	 31.46	0	1272926..1273138	+	70	150403230	-	MmarC7_1310	-	SirA family protein
1301	 38.84	+1	1273148..1273492	+	114	150403231	-	MmarC7_1311	-	DsrE family protein
1302	 31.11	0	1273606..1274190	+	194	150403232	-	MmarC7_1312	-	hypothetical protein
1303	 37.50	0	1274245..1274628	+	127	150403233	-	MmarC7_1313	-	hypothetical protein
1304	 36.64	0	1274649..1275101	+	150	150403234	-	MmarC7_1314	-	hypothetical protein
1305	 31.36	0	1275103..1275558	+	151	150403235	-	MmarC7_1315	-	hypothetical protein
1306	 36.79	0	1275845..1277089	-	414	150403236	-	MmarC7_1316	-	phenylacetate--CoA ligase
1307	 34.81	0	1277079..1277687	-	202	150403237	-	MmarC7_1317	-	indolepyruvate oxidoreductase subunit B
1308	 34.48	0	1277684..1279522	-	612	150403238	-	MmarC7_1318	-	thiamine pyrophosphate binding domain-containing protein
1309	 39.67	+1	1279888..1281039	+	383	150403239	-	MmarC7_1319	-	hypothetical protein
1310	 38.35	+1	1281114..1282766	-	550	150403240	-	MmarC7_1320	-	dihydroxy-acid dehydratase
1311	 31.88	0	1282845..1283531	-	228	150403241	-	MmarC7_1321	-	precorrin-2 C20-methyltransferase
1312	 34.86	0	1283552..1284403	-	283	150403242	-	MmarC7_1322	-	shikimate kinase
1313	 30.22	0	1284523..1285068	+	181	150403243	-	MmarC7_1323	-	hypothetical protein
1314	 36.30	0	1285069..1286517	+	482	150403244	-	MmarC7_1324	-	replication factor C large subunit
1315	 31.39	0	1286535..1287563	-	342	150403245	-	MmarC7_1325	-	protein of unknown function Met10
1316	 29.40	-1	1287597..1287977	-	126	150403246	-	MmarC7_1326	-	hypothetical protein
1317	 38.42	+1	1288047..1289069	-	340	150403247	-	MmarC7_1327	-	glyceraldehyde-3-phosphate dehydrogenase
1318	 36.09	0	1289277..1291268	+	663	150403248	metG	MmarC7_1328	-	methionyl-tRNA synthetase
1319	 36.69	0	1291404..1292921	+	505	150403249	-	MmarC7_1329	-	thymidine phosphorylase
1320	 32.71	0	1293015..1293821	+	268	150403250	-	MmarC7_1330	-	hypothetical protein
1321	 37.80	+1	1293838..1294128	+	96	150403251	-	MmarC7_1331	-	hypothetical protein
1322	 34.27	0	1294137..1294775	+	212	150403252	cbiC	MmarC7_1332	-	precorrin-8X methylmutase
1323	 34.86	0	1294816..1295208	-	130	150403253	-	MmarC7_1333	-	histidine triad (HIT) protein
1324	 35.15	0	1295648..1296361	+	237	150403254	-	MmarC7_1334	-	hypothetical protein
1325	 33.90	0	1296539..1297243	+	234	150403255	-	MmarC7_1335	-	RNA methyltransferase
1326	 32.37	0	1297315..1297728	+	137	150403256	-	MmarC7_1336	-	hypothetical protein
1327	 32.35	0	1297775..1298182	-	135	150403257	-	MmarC7_1337	-	resolvase, Holliday junction-type
1328	 34.68	0	1298198..1298644	-	148	150403258	-	MmarC7_1338	-	hypothetical protein
1329	 35.45	0	1298674..1299762	-	362	150403259	-	MmarC7_1339	-	hypothetical protein
1330	 31.20	0	1299846..1300361	+	171	150403260	-	MmarC7_1340	-	NUDIX hydrolase
1331	 36.08	0	1300869..1302578	+	569	150403261	-	MmarC7_1341	-	pyruvate carboxylase subunit B
1332	 37.78	+1	1302624..1304108	+	494	150403262	-	MmarC7_1342	-	pyruvate carboxylase subunit A
1333	 30.77	0	1304422..1304850	+	142	150403263	-	MmarC7_1343	-	putative flagellar protein FlaF
1334	 32.29	0	1304851..1305522	-	223	150403264	-	MmarC7_1344	-	putative ATP binding protein
1335	 34.47	0	1305575..1306456	-	293	150403265	-	MmarC7_1345	-	hypothetical protein
1336	 33.96	0	1306591..1307712	-	373	150403266	-	MmarC7_1346	-	2-hydroxyglutaryl-CoA dehydratase D-component
1337	 28.72	-1	1307980..1308261	-	93	150403267	-	MmarC7_1347	-	hypothetical protein
1338	 35.19	0	1308351..1308944	-	197	150403268	-	MmarC7_1348	-	GPR1/FUN34/yaaH family protein
1339	 33.33	0	1309077..1309805	-	242	150403269	-	MmarC7_1349	-	putative CoA-substrate-specific enzyme activase
1340	 30.02	-1	1309839..1311164	-	441	150403270	-	MmarC7_1350	-	UDP-glucose 6-dehydrogenase
1341	 21.38	-2	1311161..1311712	-	183	150403271	-	MmarC7_1351	-	hypothetical protein
1342	 26.65	-1	1311709..1313010	-	433	150403272	-	MmarC7_1352	-	hypothetical protein
1343	 31.72	0	1313024..1313953	-	309	150403273	-	MmarC7_1353	-	ATPase
1344	 25.73	-2	1313928..1314926	-	332	150403274	-	MmarC7_1354	-	hypothetical protein
1345	 25.08	-2	1314926..1316779	-	617	150403275	-	MmarC7_1355	-	hypothetical protein
1346	 28.04	-1	1316798..1317553	+	251	150403276	-	MmarC7_1356	-	hypothetical protein
1347	 28.33	-1	1317566..1317805	+	79	150403277	-	MmarC7_1357	-	hypothetical protein
1348	 30.40	0	1317815..1318360	+	181	150403278	-	MmarC7_1358	-	hypothetical protein
1349	 37.27	0	1318445..1320451	+	668	150403279	-	MmarC7_1359	-	hypothetical protein
1350	 31.91	0	1320489..1321892	+	467	150403280	-	MmarC7_1360	-	hypothetical protein
1351	 25.12	-2	1321983..1323224	+	413	150403281	-	MmarC7_1361	-	polysaccharide biosynthesis protein
1352	 27.45	-1	1323256..1324428	-	390	150403282	-	MmarC7_1362	-	hypothetical protein
1353	 27.82	-1	1324559..1326790	-	743	150403283	-	MmarC7_1363	-	hypothetical protein
1354	 27.32	-1	1327441..1328487	+	348	150403284	-	MmarC7_1364	-	glycosyl transferase family protein
1355	 29.56	-1	1328664..1329908	-	414	150403285	-	MmarC7_1365	-	glycosyl transferase group 1
1356	 31.15	0	1329929..1330615	-	228	150403286	-	MmarC7_1366	-	glycosyl transferase family protein
1357	 31.99	0	1330719..1331390	+	223	150403287	-	MmarC7_1367	-	hypothetical protein
1358	 39.21	+1	1331472..1332305	-	277	150403288	-	MmarC7_1368	-	F420-dependent methylenetetrahydromethanopterin dehydrogenase
1359	 29.72	-1	1332509..1332757	+	82	150403289	-	MmarC7_1369	-	hypothetical protein
1360	 31.83	0	1332789..1333319	-	176	150403290	-	MmarC7_1370	-	hypothetical protein
1361	 33.55	0	1333404..1334777	+	457	150403291	-	MmarC7_1371	-	radical SAM domain-containing protein
1362	 29.91	-1	1335013..1335246	-	77	150403292	-	MmarC7_1372	-	hypothetical protein
1363	 32.52	0	1335285..1335530	-	81	150403293	-	MmarC7_1373	-	hypothetical protein
1364	 29.87	-1	1335958..1337142	-	394	150403294	-	MmarC7_1374	-	ATP dependent DNA ligase
1365	 36.43	0	1337148..1337792	-	214	150403295	-	MmarC7_1375	-	phosphotransferase domain-containing protein
1366	 31.62	0	1337823..1339106	-	427	150403296	-	MmarC7_1376	-	amidohydrolase
1367	 27.47	-1	1339112..1339435	-	107	150403297	-	MmarC7_1377	-	hypothetical protein
1368	 31.46	0	1339440..1341782	-	780	150403298	-	MmarC7_1378	-	DNA polymerase Pol2
1369	 35.80	0	1341951..1342436	+	161	150403299	-	MmarC7_1379	-	3-isopropylmalate dehydratase, small subunit
1370	 36.72	0	1342475..1344247	+	590	150403300	-	MmarC7_1380	-	putative ATPase RIL
1371	 40.20	+1	1344690..1346378	+	562	150403301	-	MmarC7_1381	-	S-layer protein
1372	 31.69	0	1347005..1347187	-	60	150403302	-	MmarC7_1382	-	hypothetical protein
1373	 35.25	0	1347443..1348120	-	225	150403303	-	MmarC7_1383	-	uridylate kinase, putative
1374	 35.29	0	1348366..1348569	-	67	150403304	-	MmarC7_1384	-	transcription factor CBF/NF-Y histone
1375	 34.89	0	1348757..1349398	+	213	150403305	-	MmarC7_1385	-	microsomal signal peptidase 21 KD subunit
33.95	MEAN

3.74	STD DEV
