IslandPath Analysis: Methanococcus maripaludis C7

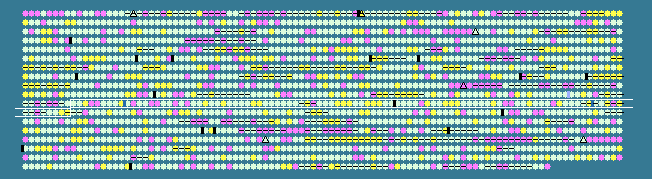

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1009	 31.08	0	983437..984279	+	280	150402939	-	MmarC7_1015	-	LysR family transcriptional regulator
1010	 35.66	0	984398..984526	-	42	150402940	-	MmarC7_1016	-	hypothetical protein
1011	 39.91	+1	984627..985052	-	141	150402941	-	MmarC7_1017	-	nickel responsive regulator
1012	 30.25	0	985171..986046	+	291	150402942	-	MmarC7_1018	-	hypothetical protein
1013	 28.87	-1	986051..986386	-	111	150402943	-	MmarC7_1019	-	hypothetical protein
1014	 36.36	0	986383..987207	-	274	150402944	-	MmarC7_1020	-	hypothetical protein
1015	 34.32	0	987373..988488	+	371	150402945	-	MmarC7_1021	-	ATPase central domain-containing protein
1016	 35.16	0	988521..988793	-	90	150402946	-	MmarC7_1022	-	hypothetical protein
1017	 37.49	0	988860..992255	-	1131	150402947	-	MmarC7_1023	-	DNA polymerase II large subunit
1018	 32.84	0	998041..999048	-	335	150402948	-	MmarC7_1024	-	TrkA domain-containing protein
1019	 28.03	-1	999120..1000571	+	483	150402949	-	MmarC7_1025	-	cobyrinic acid a,c-diamide synthase
1020	 31.61	0	1000619..1001257	-	212	150402950	-	MmarC7_1026	-	hypothetical protein
1021	 32.00	0	1001460..1003490	+	676	150402951	-	MmarC7_1027	-	MCM family protein
1022	 23.65	-2	1003507..1004580	+	357	150402952	-	MmarC7_1028	-	regulatory protein, ArsR
1023	 24.47	-2	1005172..1005690	-	172	150402953	-	MmarC7_1029	-	transcription regulator ArsR
1024	 33.01	0	1006300..1007526	+	408	150402954	-	MmarC7_1030	-	regulatory protein ArsR
1025	 34.92	0	1007547..1008494	+	315	150402955	-	MmarC7_1031	-	GTP cyclohydrolase
1026	 29.90	-1	1008520..1009569	+	349	150402956	-	MmarC7_1032	-	hypothetical protein
1027	 31.36	0	1009573..1010130	+	185	150402957	-	MmarC7_1033	-	transcription initiation factor E subunit alpha
1028	 25.81	-2	1010140..1010724	+	194	150402958	-	MmarC7_1034	-	metal dependent phosphohydrolase
1029	 32.66	0	1010726..1011622	-	298	150402959	-	MmarC7_1035	-	type II secretion system protein
1030	 35.62	0	1012696..1014354	-	552	150402960	-	MmarC7_1037	-	type II secretion system protein E
1031	 38.14	+1	1014364..1015383	-	339	150402961	tfb	MmarC7_1038	-	transcription initiation factor IIB
1032	 31.21	0	1015402..1015683	-	93	150402962	-	MmarC7_1039	-	H/ACA RNA-protein complex component Gar1
1033	 36.42	0	1016171..1017238	+	355	150402963	-	MmarC7_1040	-	isopentenyl pyrophosphate isomerase
1034	 37.71	+1	1017311..1018657	+	448	150402964	-	MmarC7_1041	-	beta-lactamase domain-containing protein
1035	 34.28	0	1018671..1019624	+	317	150402965	-	MmarC7_1042	-	polyprenyl synthetase
1036	 31.57	0	1019675..1020127	+	150	150402966	-	MmarC7_1043	-	hypothetical protein
1037	 31.89	0	1020132..1021241	-	369	150402967	-	MmarC7_1044	-	radical SAM domain-containing protein
1038	 32.60	0	1021299..1021571	+	90	150402968	-	MmarC7_1045	-	hypothetical protein
1039	 38.49	+1	1021601..1022065	+	154	150402969	-	MmarC7_1046	-	carbonic anhydrase
1040	 38.65	+1	1022114..1022527	+	137	150402970	ribH	MmarC7_1047	-	riboflavin synthase subunit beta
1041	 32.30	0	1022566..1022856	+	96	150402971	hisE	MmarC7_1048	-	phosphoribosyl-ATP pyrophosphatase
1042	 33.77	0	1022858..1023769	-	303	150402972	-	MmarC7_1049	-	signal transduction protein
1043	 31.17	0	1023900..1024640	-	246	150402973	-	MmarC7_1050	-	hypothetical protein
1044	 31.36	0	1024637..1025245	-	202	150402974	-	MmarC7_1051	-	putative methylase
1045	 34.17	0	1025259..1025738	-	159	150402975	-	MmarC7_1052	-	PUA domain-containing protein
1046	 35.58	0	1025845..1026957	-	370	150402976	-	MmarC7_1053	-	FO synthase subunit 2
1047	 34.91	0	1027042..1028118	-	358	150402977	-	MmarC7_1054	-	FO synthase subunit 2
1048	 40.71	+1	1028350..1029312	+	320	150402978	-	MmarC7_1055	-	methylenetetrahydromethanopterin reductase
1049	 28.61	-1	1029377..1029799	-	140	150402979	-	MmarC7_1056	-	hypothetical protein
1050	 33.33	0	1029911..1030141	-	76	150402980	-	MmarC7_1057	-	ribosomal LX protein
1051	 36.55	0	1030160..1030843	-	227	150402981	-	MmarC7_1058	-	translation initiation factor IF-6
1052	 32.54	0	1030880..1031131	-	83	150402982	-	MmarC7_1059	-	50S ribosomal protein L31e
1053	 38.64	+1	1031227..1032111	+	294	150402983	-	MmarC7_1060	-	acetylglutamate kinase
1054	 37.46	0	1032511..1032849	+	112	150402984	-	MmarC7_1061	-	nitrogen regulatory protein P-II
1055	 43.19	+2	1032876..1034102	+	408	150402985	-	MmarC7_1062	-	ammonium transporter
1056	 35.40	0	1034211..1034549	+	112	150402986	-	MmarC7_1063	-	nitrogen regulatory protein P-II
1057	 34.51	0	1034758..1035096	+	112	150402987	-	MmarC7_1064	-	nitrogen regulatory protein P-II
1058	 40.21	+1	1035115..1036350	+	411	150402988	-	MmarC7_1065	-	ammonium transporter
1059	 38.94	+1	1036558..1036896	+	112	150402989	-	MmarC7_1066	-	nitrogen regulatory protein P-II
1060	 39.72	+1	1036923..1038158	+	411	150402990	-	MmarC7_1067	-	ammonium transporter
1061	 31.00	0	1038218..1038517	+	99	150402991	-	MmarC7_1068	-	methylated-DNA--protein-cysteine methyltransferase
1062	 31.10	0	1038786..1039724	+	312	150402992	-	MmarC7_1069	-	glutamate synthase alpha subunit
1063	 33.33	0	1040246..1041337	-	363	150402993	-	MmarC7_1070	-	putative DNA primase, small subunit
1064	 34.96	0	1041458..1042441	+	327	150402994	-	MmarC7_1071	-	hydantoinase/oxoprolinase
1065	 36.85	0	1042573..1043766	+	397	150402995	-	MmarC7_1072	-	argininosuccinate synthase
1066	 36.69	0	1043836..1044192	+	118	150402996	-	MmarC7_1073	-	hypothetical protein
1067	 30.24	0	1044181..1045149	-	322	150402997	-	MmarC7_1074	-	abortive infection protein
1068	 38.57	+1	1045219..1045428	-	69	150402998	-	MmarC7_1075	-	deoxyribonuclease
1069	 35.39	0	1045573..1046301	+	242	150402999	-	MmarC7_1076	-	radical SAM domain-containing protein
1070	 34.30	0	1046444..1047061	+	205	150403000	-	MmarC7_1077	-	orotate phosphoribosyltransferase
1071	 38.64	+1	1047208..1048299	+	363	150403001	-	MmarC7_1078	-	glutamine amidotransferase class-II
1072	 40.25	+1	1048327..1049859	+	510	150403002	-	MmarC7_1079	-	glutamate synthase (NADPH)
1073	 37.88	+1	1049859..1050650	+	263	150403003	-	MmarC7_1080	-	glutamate synthase alpha subunit
1074	 35.83	0	1050683..1051762	+	359	150403004	-	MmarC7_1081	-	coenzyme F420 hydrogenase/dehydrogenase beta subunit
1075	 35.57	0	1051861..1054053	-	730	150403005	-	MmarC7_1082	-	methyl-accepting chemotaxis sensory transducer
1076	 32.25	0	1054436..1055176	-	246	150403006	-	MmarC7_1083	-	hypothetical protein
1077	 33.91	0	1055185..1056231	-	348	150403007	-	MmarC7_1084	-	putative translation factor pelota
1078	 34.93	0	1056249..1056686	-	145	150403008	-	MmarC7_1085	-	putative transcriptional regulator
1079	 37.98	+1	1056805..1058031	-	408	150403009	-	MmarC7_1086	-	3-hydroxy-3-methylglutaryl coenzyme A reductase
1080	 33.68	0	1058021..1059169	-	382	150403010	hemA	MmarC7_1087	-	glutamyl-tRNA reductase
1081	 27.89	-1	1059174..1059779	-	201	150403011	-	MmarC7_1088	-	siroheme synthase
1082	 27.90	-1	1059794..1060861	-	355	150403012	-	MmarC7_1089	-	glycosyl transferase group 1
1083	 34.19	0	1060881..1061465	-	194	150403013	-	MmarC7_1090	-	hypothetical protein
1084	 33.02	0	1061567..1061890	-	107	150403014	-	MmarC7_1091	-	RNA polymerase Rpb4
1085	 38.44	+1	1061939..1062232	-	97	150403015	-	MmarC7_1092	-	50S ribosomal protein L21e
1086	 34.33	0	1062318..1063727	-	469	150403016	-	MmarC7_1093	-	THUMP domain-containing protein
1087	 35.78	0	1063749..1064933	+	394	150403017	-	MmarC7_1094	-	phosphotransferase domain-containing protein
1088	 34.18	0	1064952..1066139	-	395	150403018	-	MmarC7_1095	-	GntR family transcriptional regulator
1089	 30.42	0	1066261..1066809	+	182	150403019	-	MmarC7_1096	-	helix-turn-helix domain-containing protein
1090	 42.94	+2	1066854..1067030	-	58	150403020	-	MmarC7_1097	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1091	 33.59	0	1067173..1068330	+	385	150403021	-	MmarC7_1098	-	major facilitator transporter
1092	 36.73	0	1068333..1069511	-	392	150403022	-	MmarC7_1099	-	sodium/hydrogen exchanger
1093	 33.13	0	1069530..1070012	-	160	150403023	-	MmarC7_1100	-	CBS domain-containing protein
1094	 37.09	0	1070093..1070731	+	212	150403024	-	MmarC7_1101	-	protein-L-isoaspartate O-methyltransferase
1095	 42.11	+2	1070853..1071752	+	299	150403025	-	MmarC7_1102	-	pyridoxine biosynthesis protein
1096	 30.76	0	1072784..1073404	+	206	150403026	-	MmarC7_1103	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1097	 33.69	0	1073484..1074044	+	186	150403027	-	MmarC7_1104	-	hypothetical protein
1098	 38.32	+1	1074146..1074706	+	186	150403028	-	MmarC7_1105	-	hypothetical protein
1099	 28.19	-1	1074715..1075239	+	174	150403029	-	MmarC7_1106	-	cobalt transport protein
1100	 39.63	+1	1075348..1076379	+	343	150403030	-	MmarC7_1107	-	extracellular solute-binding protein
1101	 33.70	0	1076411..1078048	+	545	150403031	-	MmarC7_1108	-	binding-protein-dependent transport systems inner membrane component
1102	 33.54	0	1078039..1079010	+	323	150403032	-	MmarC7_1109	-	ABC transporter related
1103	 24.72	-2	1079017..1079550	-	177	150403033	-	MmarC7_1110	-	hypothetical protein
1104	 31.46	0	1079560..1080840	-	426	150403034	-	MmarC7_1111	-	phosphonopyruvate decarboxylase-related protein
1105	 30.62	0	1080851..1081660	-	269	150403035	-	MmarC7_1112	-	hypothetical protein
1106	 31.35	0	1081693..1082349	-	218	150403036	-	MmarC7_1113	-	xylose isomerase domain-containing protein
1107	 41.76	+2	1082519..1083040	+	173	150403037	-	MmarC7_1114	-	nitroreductase
1108	 37.89	+1	1083163..1084194	+	343	150403038	argC	MmarC7_1115	-	N-acetyl-gamma-glutamyl-phosphate reductase
33.95	MEAN

3.74	STD DEV
