IslandPath Analysis: Methanococcus maripaludis C7

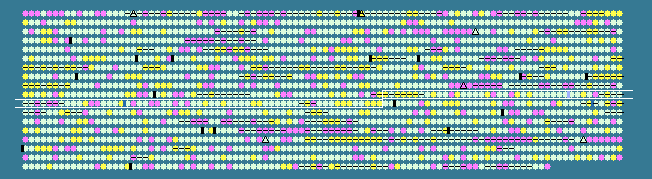

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.74
Methanococcus maripaludis C7, complete genome - 1..1772694
1788 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
961	 39.90	+1	927204..928391	-	395	150402891	-	MmarC7_0967	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
962	 36.30	0	928480..928614	-	44	150402892	-	MmarC7_0968	-	F420 non-reducing hydrogenase subunit
963	 39.70	+1	928629..929885	-	418	150402893	-	MmarC7_0969	-	nickel-dependent hydrogenase large subunit
964	 41.64	+2	929926..930792	-	288	150402894	-	MmarC7_0970	-	NADH ubiquinone oxidoreductase 20 kDa subunit
965	 40.99	+1	930891..931295	-	134	150402895	-	MmarC7_0971	-	methyl-viologen-reducing hydrogenase delta subunit
966	 42.44	+2	931484..933460	-	658	150402896	-	MmarC7_0972	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
967	 33.89	0	934170..934706	+	178	150402897	-	MmarC7_0973	-	hypothetical protein
968	 36.98	0	935045..935236	+	63	150402898	-	MmarC7_0974	-	hypothetical protein
969	 39.33	+1	935237..936838	+	533	150402899	-	MmarC7_0975	-	SSS family solute/sodium (Na+) symporter
970	 34.58	0	936999..937481	+	160	150402900	-	MmarC7_0976	-	amino acid-binding ACT domain-containing protein
971	 35.70	0	937492..938505	+	337	150402901	-	MmarC7_0977	-	homoserine dehydrogenase
972	 27.54	-1	938711..939607	+	298	150402902	-	MmarC7_0978	-	hypothetical protein
973	 38.38	+1	939604..940059	-	151	150402903	-	MmarC7_0979	-	hypothetical protein
974	 32.88	0	940069..940734	-	221	150402904	-	MmarC7_0980	-	creatininase
975	 33.97	0	940740..940895	-	51	150402905	-	MmarC7_0981	-	H/ACA RNA-protein complex component Nop10p
976	 37.22	0	940904..941701	-	265	150402906	-	MmarC7_0982	-	translation initiation factor IF-2 subunit alpha
977	 34.41	0	941815..942000	-	61	150402907	rps27e	MmarC7_0983	-	30S ribosomal protein S27e
978	 37.59	0	942023..942304	-	93	150402908	rpl44e	MmarC7_0984	-	50S ribosomal protein L44e
979	 29.42	-1	942261..942848	-	195	150402909	-	MmarC7_0985	-	hypothetical protein
980	 34.93	0	942884..943636	-	250	150402910	-	MmarC7_0986	-	proliferating cell nuclear antigen PcnA
981	 35.02	0	943712..944602	-	296	150402911	-	MmarC7_0987	-	LysR family transcriptional regulator
982	 29.49	-1	944667..945680	+	337	150402912	-	MmarC7_0988	-	hypothetical protein
983	 38.55	+1	945850..946194	-	114	150402913	-	MmarC7_0989	-	roadblock/LC7 family protein
984	 33.33	0	946209..946682	-	157	150402914	-	MmarC7_0990	-	small GTP-binding protein
985	 37.82	+1	946693..947718	-	341	150402915	-	MmarC7_0991	-	H(2)-dependent methylenetetrahydromethanopterin dehydrogenase-related protein
986	 31.67	0	947772..948854	-	360	150402916	-	MmarC7_0992	-	methyltransferase type 12
987	 36.16	0	948859..949176	-	105	150402917	-	MmarC7_0993	-	hypothetical protein
988	 33.03	0	949352..952006	-	884	150402918	-	MmarC7_0994	-	hypothetical protein
989	 32.77	0	952190..953980	+	596	150402919	-	MmarC7_0995	-	hypothetical protein
990	 34.46	0	953992..954789	+	265	150402920	-	MmarC7_0996	-	hypothetical protein
991	 35.65	0	954822..955640	+	272	150402921	-	MmarC7_0997	-	imidazoleglycerol phosphate synthase, cyclase subunit
992	 36.92	0	965748..966026	+	92	150402922	-	MmarC7_0998	-	hypothetical protein
993	 34.18	0	966054..967118	+	354	150402923	-	MmarC7_0999	-	L-seryl-tRNA selenium transferase
994	 39.74	+1	967144..968235	-	363	150402924	-	MmarC7_1000	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
995	 34.34	0	968274..969170	-	298	150402925	-	MmarC7_1001	-	protein of unknown function RIO1
996	 29.01	-1	969264..970859	-	531	150402926	-	MmarC7_1002	-	hypothetical protein
997	 35.64	0	970973..972058	+	361	150402927	-	MmarC7_1003	-	3-dehydroquinate synthase
998	 37.61	0	972480..973250	+	256	150402928	-	MmarC7_1004	-	geranylgeranylglyceryl phosphate synthase-like protein
999	 35.06	0	973268..975004	-	578	150402929	-	MmarC7_1005	-	DNA polymerase II small subunit
1000	 33.78	0	975015..976124	-	369	150402930	-	MmarC7_1006	-	DNA primase, large subunit
1001	 34.51	0	976153..976578	-	141	150402931	-	MmarC7_1007	-	hypothetical protein
1002	 33.61	0	976605..977708	-	367	150402932	-	MmarC7_1008	-	DNA-cytosine methyltransferase
1003	 26.67	-1	977746..978195	+	149	150402933	-	MmarC7_1009	-	CoA-binding domain-containing protein
1004	 35.68	0	978237..979682	+	481	150402934	-	MmarC7_1010	-	argininosuccinate lyase
1005	 28.21	-1	979695..980864	-	389	150402935	truD	MmarC7_1011	-	tRNA pseudouridine synthase D
1006	 29.60	-1	980873..981676	-	267	150402936	-	MmarC7_1012	-	hypothetical protein
1007	 34.15	0	981690..982181	-	163	150402937	-	MmarC7_1013	-	hypothetical protein
1008	 32.95	0	982316..983368	-	350	150402938	-	MmarC7_1014	-	hypothetical protein
1009	 31.08	0	983437..984279	+	280	150402939	-	MmarC7_1015	-	LysR family transcriptional regulator
1010	 35.66	0	984398..984526	-	42	150402940	-	MmarC7_1016	-	hypothetical protein
1011	 39.91	+1	984627..985052	-	141	150402941	-	MmarC7_1017	-	nickel responsive regulator
1012	 30.25	0	985171..986046	+	291	150402942	-	MmarC7_1018	-	hypothetical protein
1013	 28.87	-1	986051..986386	-	111	150402943	-	MmarC7_1019	-	hypothetical protein
1014	 36.36	0	986383..987207	-	274	150402944	-	MmarC7_1020	-	hypothetical protein
1015	 34.32	0	987373..988488	+	371	150402945	-	MmarC7_1021	-	ATPase central domain-containing protein
1016	 35.16	0	988521..988793	-	90	150402946	-	MmarC7_1022	-	hypothetical protein
1017	 37.49	0	988860..992255	-	1131	150402947	-	MmarC7_1023	-	DNA polymerase II large subunit
1018	 32.84	0	998041..999048	-	335	150402948	-	MmarC7_1024	-	TrkA domain-containing protein
1019	 28.03	-1	999120..1000571	+	483	150402949	-	MmarC7_1025	-	cobyrinic acid a,c-diamide synthase
1020	 31.61	0	1000619..1001257	-	212	150402950	-	MmarC7_1026	-	hypothetical protein
1021	 32.00	0	1001460..1003490	+	676	150402951	-	MmarC7_1027	-	MCM family protein
1022	 23.65	-2	1003507..1004580	+	357	150402952	-	MmarC7_1028	-	regulatory protein, ArsR
1023	 24.47	-2	1005172..1005690	-	172	150402953	-	MmarC7_1029	-	transcription regulator ArsR
1024	 33.01	0	1006300..1007526	+	408	150402954	-	MmarC7_1030	-	regulatory protein ArsR
1025	 34.92	0	1007547..1008494	+	315	150402955	-	MmarC7_1031	-	GTP cyclohydrolase
1026	 29.90	-1	1008520..1009569	+	349	150402956	-	MmarC7_1032	-	hypothetical protein
1027	 31.36	0	1009573..1010130	+	185	150402957	-	MmarC7_1033	-	transcription initiation factor E subunit alpha
1028	 25.81	-2	1010140..1010724	+	194	150402958	-	MmarC7_1034	-	metal dependent phosphohydrolase
1029	 32.66	0	1010726..1011622	-	298	150402959	-	MmarC7_1035	-	type II secretion system protein
1030	 35.62	0	1012696..1014354	-	552	150402960	-	MmarC7_1037	-	type II secretion system protein E
1031	 38.14	+1	1014364..1015383	-	339	150402961	tfb	MmarC7_1038	-	transcription initiation factor IIB
1032	 31.21	0	1015402..1015683	-	93	150402962	-	MmarC7_1039	-	H/ACA RNA-protein complex component Gar1
1033	 36.42	0	1016171..1017238	+	355	150402963	-	MmarC7_1040	-	isopentenyl pyrophosphate isomerase
1034	 37.71	+1	1017311..1018657	+	448	150402964	-	MmarC7_1041	-	beta-lactamase domain-containing protein
1035	 34.28	0	1018671..1019624	+	317	150402965	-	MmarC7_1042	-	polyprenyl synthetase
1036	 31.57	0	1019675..1020127	+	150	150402966	-	MmarC7_1043	-	hypothetical protein
1037	 31.89	0	1020132..1021241	-	369	150402967	-	MmarC7_1044	-	radical SAM domain-containing protein
1038	 32.60	0	1021299..1021571	+	90	150402968	-	MmarC7_1045	-	hypothetical protein
1039	 38.49	+1	1021601..1022065	+	154	150402969	-	MmarC7_1046	-	carbonic anhydrase
1040	 38.65	+1	1022114..1022527	+	137	150402970	ribH	MmarC7_1047	-	riboflavin synthase subunit beta
1041	 32.30	0	1022566..1022856	+	96	150402971	hisE	MmarC7_1048	-	phosphoribosyl-ATP pyrophosphatase
1042	 33.77	0	1022858..1023769	-	303	150402972	-	MmarC7_1049	-	signal transduction protein
1043	 31.17	0	1023900..1024640	-	246	150402973	-	MmarC7_1050	-	hypothetical protein
1044	 31.36	0	1024637..1025245	-	202	150402974	-	MmarC7_1051	-	putative methylase
1045	 34.17	0	1025259..1025738	-	159	150402975	-	MmarC7_1052	-	PUA domain-containing protein
1046	 35.58	0	1025845..1026957	-	370	150402976	-	MmarC7_1053	-	FO synthase subunit 2
1047	 34.91	0	1027042..1028118	-	358	150402977	-	MmarC7_1054	-	FO synthase subunit 2
1048	 40.71	+1	1028350..1029312	+	320	150402978	-	MmarC7_1055	-	methylenetetrahydromethanopterin reductase
1049	 28.61	-1	1029377..1029799	-	140	150402979	-	MmarC7_1056	-	hypothetical protein
1050	 33.33	0	1029911..1030141	-	76	150402980	-	MmarC7_1057	-	ribosomal LX protein
1051	 36.55	0	1030160..1030843	-	227	150402981	-	MmarC7_1058	-	translation initiation factor IF-6
1052	 32.54	0	1030880..1031131	-	83	150402982	-	MmarC7_1059	-	50S ribosomal protein L31e
1053	 38.64	+1	1031227..1032111	+	294	150402983	-	MmarC7_1060	-	acetylglutamate kinase
1054	 37.46	0	1032511..1032849	+	112	150402984	-	MmarC7_1061	-	nitrogen regulatory protein P-II
1055	 43.19	+2	1032876..1034102	+	408	150402985	-	MmarC7_1062	-	ammonium transporter
1056	 35.40	0	1034211..1034549	+	112	150402986	-	MmarC7_1063	-	nitrogen regulatory protein P-II
1057	 34.51	0	1034758..1035096	+	112	150402987	-	MmarC7_1064	-	nitrogen regulatory protein P-II
1058	 40.21	+1	1035115..1036350	+	411	150402988	-	MmarC7_1065	-	ammonium transporter
1059	 38.94	+1	1036558..1036896	+	112	150402989	-	MmarC7_1066	-	nitrogen regulatory protein P-II
1060	 39.72	+1	1036923..1038158	+	411	150402990	-	MmarC7_1067	-	ammonium transporter
33.95	MEAN

3.74	STD DEV
