IslandPath Analysis: Methanospirillum hungatei JF-1

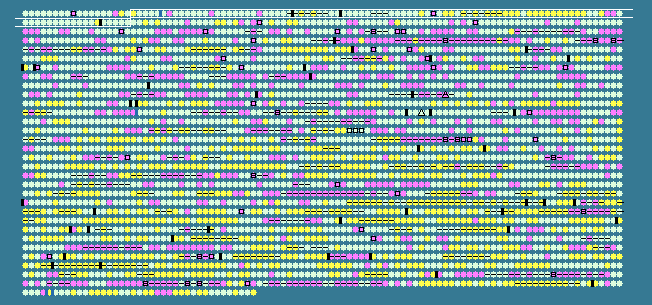

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.77 STD DEV: 5.02
Methanospirillum hungatei JF-1, complete genome - 1..3544738
3139 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
19	 49.88	0	32476..33315	-	279	88601341	-	Mhun_0022	-	methenyltetrahydrofolate cyclohydrolase
20	 47.44	0	33312..34622	-	436	88601342	-	Mhun_0023	-	serine hydroxymethyltransferase
21	 48.65	0	34729..35172	+	147	88601343	-	Mhun_0024	-	hypothetical protein
22	 46.73	0	35214..38654	+	1146	88601344	-	Mhun_0025	-	chromosome segregation protein SMC
23	 48.98	0	38647..39381	+	244	88601345	-	Mhun_0026	-	chromosome segregation and condensation protein ScpA
24	 42.62	0	45012..45851	+	279	88601346	-	Mhun_0027	-	hypothetical protein
25	 40.79	0	45870..46526	-	218	88601347	-	Mhun_0028	-	amino acid ABC transporter permease
26	 43.29	0	46536..47288	-	250	88601348	-	Mhun_0029	-	ABC transporter related
27	 45.24	0	47293..47964	-	223	88601349	-	Mhun_0030	-	amino acid ABC transporter permease
28	 46.15	0	48086..48904	-	272	88601350	-	Mhun_0031	-	extracellular solute-binding protein
29	 43.08	0	49051..49881	+	276	88601351	-	Mhun_0032	-	extracellular solute-binding protein
30	 44.96	0	49961..51052	+	363	88601352	-	Mhun_0033	-	hypothetical protein
31	 45.04	0	51100..52995	+	631	88601353	-	Mhun_0034	-	peptidyl-arginine deiminase
32	 39.45	-1	53027..53353	+	108	88601354	-	Mhun_0035	-	large conductance mechanosensitive channel protein
33	 44.63	0	53356..53886	+	176	88601355	-	Mhun_0036	-	hypothetical protein
34	 46.48	0	53918..54655	+	245	88601356	-	Mhun_0037	-	hypothetical protein
35	 44.35	0	54652..55005	+	117	88601357	-	Mhun_0038	-	zinc finger, SWIM-type
36	 48.35	0	55025..57775	+	916	88601358	alaS	Mhun_0039	-	alanyl-tRNA synthetase
37	 48.74	0	57768..58442	+	224	88601359	-	Mhun_0040	-	putative transcriptional regulator
38	 43.23	0	58695..59573	-	292	88601360	-	Mhun_0041	-	hypothetical protein
39	 45.56	0	59600..59959	-	119	88601361	-	Mhun_0042	-	hypothetical protein
40	 42.28	0	60009..60746	+	245	88601362	-	Mhun_0043	-	hypothetical protein
41	 44.51	0	60775..61302	-	175	88601363	-	Mhun_0044	-	Ferritin and Dps
42	 49.25	0	61557..63146	+	529	88601364	-	Mhun_0045	-	ferredoxin-dependent glutamate synthase
43	 43.78	0	63530..63730	+	66	88601365	-	Mhun_0046	-	hypothetical protein
44	 45.70	0	63922..65118	+	398	88601366	-	Mhun_0047	-	hypothetical protein
45	 45.58	0	65248..66423	-	391	88601367	-	Mhun_0048	-	hypothetical protein
46	 43.65	0	66843..67094	+	83	88601368	rpoH	Mhun_0049	-	DNA-directed RNA polymerase subunit H
47	 50.10	0	67113..68669	+	518	88601369	-	Mhun_0050	-	DNA-directed RNA polymerase subunit beta''
48	 48.43	0	68669..70489	+	606	88601370	-	Mhun_0051	-	DNA-directed RNA polymerase subunit B'
49	 51.41	+1	70504..73164	+	886	88601371	-	Mhun_0052	-	DNA-directed RNA polymerase subunit alpha
50	 48.17	0	73164..75125	+	653	88601372	-	Mhun_0053	-	DNA-directed RNA polymerase, subunit A''
51	 48.61	0	75137..75424	+	95	88601373	-	Mhun_0054	-	ribosomal protein L7Ae/L30e/S12e/Gadd45
52	 44.99	0	75434..75862	+	142	88601374	-	Mhun_0055	-	NusA family protein
53	 45.29	0	75926..76711	+	261	88601375	-	Mhun_0056	-	hypothetical protein
54	 44.19	0	76877..77272	-	131	88601376	-	Mhun_0057	-	hypothetical protein
55	 46.80	0	77278..78012	-	244	88601377	-	Mhun_0058	-	hypothetical protein
56	 46.19	0	78113..78571	+	152	88601378	-	Mhun_0059	-	hypothetical protein
57	 46.35	0	78586..80706	+	706	88601379	-	Mhun_0060	-	serine phosphatase
58	 43.46	0	80711..82429	-	572	88601380	-	Mhun_0061	-	hypothetical protein
59	 44.16	0	82520..82870	+	116	88601381	-	Mhun_0062	-	anti-sigma-factor antagonist domain-containing protein
60	 43.03	0	82894..83316	+	140	88601382	-	Mhun_0063	-	putative anti-sigma regulatory factor (serine/threonine protein kinase)
61	 48.20	0	83363..84169	+	268	88601383	-	Mhun_0064	-	hypothetical protein
62	 46.43	0	84323..84826	+	167	88601384	-	Mhun_0065	-	hypothetical protein
63	 45.91	0	84949..85449	+	166	88601385	-	Mhun_0066	-	hypothetical protein
64	 45.57	0	85562..86035	-	157	88601386	-	Mhun_0067	-	superfamily II helicase-like protein
65	 43.80	0	86233..87780	-	515	88601387	-	Mhun_0068	-	hypothetical protein
66	 45.23	0	88206..88844	-	212	88601388	-	Mhun_0069	-	hypothetical protein
67	 49.74	0	88986..90149	+	387	88601389	-	Mhun_0070	-	thiamine biosynthesis protein
68	 47.72	0	90155..91336	-	393	88601390	-	Mhun_0071	-	Sep-tRNA:Cys-tRNA synthetase
69	 34.82	-2	91462..93072	-	536	88601391	-	Mhun_0072	-	transposase, IS4
70	 49.04	0	93392..94333	-	313	88601392	-	Mhun_0073	-	hypothetical protein
71	 50.74	0	94371..95858	+	495	88601393	-	Mhun_0074	-	hypothetical protein
72	 50.99	+1	95860..96720	-	286	88601394	-	Mhun_0075	-	formate/nitrite transporter
73	 48.71	0	96787..98529	-	580	88601395	-	Mhun_0076	-	hypothetical protein
74	 51.44	+1	98547..99446	-	299	88601396	-	Mhun_0077	-	PfkB
75	 45.43	0	99443..99781	-	112	88601397	-	Mhun_0078	-	hypothetical protein
76	 49.62	0	99805..100332	-	175	88601398	-	Mhun_0079	-	nitroreductase
77	 42.86	0	100319..100675	-	118	88601399	-	Mhun_0080	-	hypothetical protein
78	 56.05	+2	100865..101203	-	112	88601400	-	Mhun_0081	-	hypothetical protein
79	 50.46	0	101277..103121	-	614	88601401	-	Mhun_0082	-	glutamyl-tRNA(Gln) amidotransferase subunit E
80	 51.50	+1	103118..104350	-	410	88601402	-	Mhun_0083	-	glutamyl-tRNA(Gln) amidotransferase subunit D
81	 51.28	+1	104347..105828	-	493	88601403	-	Mhun_0084	-	argininosuccinate lyase
82	 49.48	0	105995..107047	+	350	88601404	-	Mhun_0085	-	ABC transporter, substrate-binding protein, aliphatic sulphonates
83	 49.75	0	107137..107922	+	261	88601405	-	Mhun_0086	-	binding-protein-dependent transport systems inner membrane component
84	 48.11	0	107924..108715	+	263	88601406	-	Mhun_0087	-	ABC transporter related
85	 49.71	0	108746..109258	+	170	88601407	rpl10e	Mhun_0088	-	50S ribosomal protein L10e
86	 50.78	0	109328..110164	+	278	88601408	-	Mhun_0089	-	tartrate/fumarate subfamily Fe-S type hydro-lyase alpha subunit
87	 53.41	+1	110161..110718	+	185	88601409	-	Mhun_0090	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
88	 52.75	+1	110715..110987	+	90	88601410	-	Mhun_0091	-	4Fe-4S ferredoxin, iron-sulfur binding
89	 51.23	+1	111001..112095	+	364	88601411	-	Mhun_0092	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
90	 49.37	0	112092..112883	+	263	88601412	-	Mhun_0093	-	thiamine pyrophosphate enzyme-like TPP-binding
91	 51.48	+1	112873..113412	+	179	88601413	-	Mhun_0094	-	2-oxoacid:acceptor oxidoreductase, gamma subunit, pyruvate/2-ketoisovalerate
92	 49.91	0	113409..114488	+	359	88601414	-	Mhun_0095	-	succinyl-CoA synthetase, beta subunit
93	 55.13	+1	114485..115351	+	288	88601415	-	Mhun_0096	-	succinyl-CoA synthetase, alpha subunit
94	 51.41	+1	115352..116341	+	329	88601416	-	Mhun_0097	-	hypothetical protein
95	 48.71	0	116348..117082	+	244	88601417	-	Mhun_0098	-	hypothetical protein
96	 44.54	0	117084..117815	-	243	88601418	-	Mhun_0099	-	TPR repeat-containing protein
97	 49.78	0	118095..118988	+	297	88601419	-	Mhun_0100	-	hypothetical protein
98	 40.99	0	118997..119479	+	160	88601420	-	Mhun_0101	-	hypothetical protein
99	 32.92	-2	119487..119969	+	160	88601421	-	Mhun_0102	-	hypothetical protein
100	 45.78	0	120066..120836	+	256	88601422	-	Mhun_0103	-	flagellar accessory protein FlaH
101	 47.45	0	120839..122701	+	620	88601423	-	Mhun_0104	-	type II secretion system protein E
102	 44.98	0	122705..124309	+	534	88601424	-	Mhun_0105	-	flagellar assembly protein J
103	 45.90	0	124313..125410	+	365	88601425	-	Mhun_0106	-	hypothetical protein
104	 47.45	0	125441..126262	+	273	88601426	-	Mhun_0107	-	hypothetical protein
105	 46.28	0	126329..126691	+	120	88601427	-	Mhun_0108	-	response regulator receiver domain-containing protein
106	 46.55	0	126695..127723	+	342	88601428	-	Mhun_0109	-	response regulator receiver (CheY-like) modulated CheB methylesterase
107	 47.77	0	127727..130759	+	1010	88601429	-	Mhun_0110	-	CheA signal transduction histidine kinases
108	 47.11	0	130765..131265	+	166	88601430	-	Mhun_0111	-	chemoreceptor glutamine deamidase CheD
109	 46.44	0	131272..132912	-	546	88601431	-	Mhun_0112	-	CheC, inhibitor of MCP methylation
110	 49.08	0	133031..133576	-	181	88601432	-	Mhun_0113	-	pyruvoyl-dependent arginine decarboxylase
111	 48.77	0	133761..134816	+	351	88601433	-	Mhun_0114	-	carbamoyl-phosphate synthase, small subunit
112	 48.53	0	134816..137986	+	1056	88601434	carB	Mhun_0115	-	carbamoyl phosphate synthase large subunit
113	 49.41	0	138067..139254	+	395	88601435	-	Mhun_0116	-	argininosuccinate synthase
114	 44.11	0	139845..140642	-	265	88601436	-	Mhun_0118	-	putative PAS/PAC sensor protein
115	 46.49	0	140733..141431	-	232	88601437	-	Mhun_0119	-	glycosyl transferase family protein
116	 47.03	0	141428..142405	-	325	88601438	-	Mhun_0120	-	glycosyl transferase, group 1
117	 46.00	0	142402..143712	-	436	88601439	-	Mhun_0121	-	amine oxidase
118	 42.72	0	143862..144500	-	212	88601440	-	Mhun_0122	-	beta-lactamase-like
45.77	MEAN

5.02	STD DEV
