IslandPath Analysis: Methanospirillum hungatei JF-1

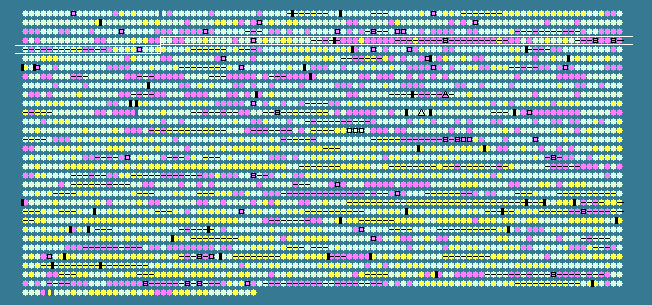

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.77 STD DEV: 5.02
Methanospirillum hungatei JF-1, complete genome - 1..3544738
3139 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
324	 48.40	0	377214..378122	+	302	88601646	-	Mhun_0335	-	hypothetical protein
325	 46.78	0	378254..379108	+	284	88601647	-	Mhun_0336	-	hypothetical protein
326	 40.63	-1	379407..380105	+	232	88601648	-	Mhun_0337	-	hypothetical protein
327	 40.76	-1	380102..380842	+	246	88601649	-	Mhun_0338	-	hypothetical protein
328	 47.13	0	380832..381179	+	115	88601650	-	Mhun_0339	-	nitrogen regulatory protein P-II (GlnB, GlnK)
329	 44.58	0	381285..382013	-	242	88601651	-	Mhun_0340	-	regulatory protein, Crp
330	 44.18	0	382434..383309	-	291	88601652	-	Mhun_0341	-	heat shock protein HtpX
331	 50.44	0	383382..386024	+	880	88601653	-	Mhun_0342	-	calcium-translocating P-type ATPase, PMCA-type
332	 44.06	0	386019..387332	-	437	88601654	-	Mhun_0343	-	hypothetical protein
333	 45.31	0	387414..388448	+	344	88601655	-	Mhun_0344	-	cation diffusion facilitator family transporter
334	 43.18	0	388485..388748	+	87	88601656	-	Mhun_0345	-	hypothetical protein
335	 47.71	0	388764..391058	+	764	88601657	-	Mhun_0346	-	peptidase S9B, dipeptidylpeptidase IV-like
336	 42.01	0	391106..393226	-	706	88601658	-	Mhun_0347	-	methyl-accepting chemotaxis sensory transducer
337	 44.93	0	393572..394123	-	183	88601659	-	Mhun_0348	-	hypothetical protein
338	 45.05	0	394211..394756	-	181	88601660	-	Mhun_0349	-	Signal transduction histidine kinase-like
339	 34.82	-2	394869..396479	-	536	88601661	-	Mhun_0350	-	transposase, IS4
340	 43.94	0	396781..397440	+	219	88601662	-	Mhun_0351	-	hypothetical protein
341	 51.27	+1	397686..399575	-	629	88601663	-	Mhun_0352	-	acetate--CoA ligase
342	 46.42	0	400048..401247	-	399	88601664	-	Mhun_0353	-	peptidase M24
343	 47.03	0	401339..403783	+	814	88601665	-	Mhun_0354	-	methyl-accepting chemotaxis sensory transducer
344	 50.25	0	403857..404654	+	265	88601666	-	Mhun_0355	-	4Fe-4S ferredoxin, iron-sulfur binding
345	 50.00	0	405005..405316	+	103	88601667	-	Mhun_0356	-	RNA recognition motif-containing protein
346	 45.88	0	405373..406161	-	262	88601668	-	Mhun_0357	-	ABC transporter related
347	 44.64	0	406166..407881	-	571	88601669	-	Mhun_0358	-	multi-sensor signal transduction histidine kinase
348	 45.30	0	408043..409095	+	350	88601670	-	Mhun_0359	-	hypothetical protein
349	 48.59	0	409190..409615	+	141	88601671	-	Mhun_0360	-	hypothetical protein
350	 45.35	0	409599..410039	-	146	88601672	-	Mhun_0361	-	hypothetical protein
351	 40.82	0	411361..411507	+	48	88601673	-	Mhun_0364	-	hypothetical protein
352	 47.34	0	412171..412377	+	68	88601674	-	Mhun_0365	-	transcription factor CBF/NF-Y histone
353	 32.84	-2	412885..413490	-	201	88601675	-	Mhun_0366	-	hypothetical protein
354	 36.45	-1	413454..413870	-	138	88601676	-	Mhun_0367	-	hypothetical protein
355	 36.42	-1	414108..414755	-	215	88601677	-	Mhun_0368	-	hypothetical protein
356	 33.73	-2	415059..415556	+	165	88601678	-	Mhun_0369	-	hypothetical protein
357	 50.28	0	415615..415974	+	119	88601679	-	Mhun_0370	-	UDP-N-acetylglucosamine 2-epimerase
358	 37.75	-1	416080..416328	+	82	88601680	-	Mhun_0371	-	hypothetical protein
359	 31.62	-2	416835..417185	+	116	88601681	-	Mhun_0372	-	hypothetical protein
360	 34.71	-2	417187..417477	+	96	88601682	-	Mhun_0373	-	plasmid stabilization system protein
361	 37.81	-1	418354..418554	+	66	88601683	-	Mhun_0375	-	hypothetical protein
362	 39.64	-1	419792..420013	-	73	88601684	-	Mhun_0377	-	YcfA-like
363	 36.53	-1	420010..420228	-	72	88601685	-	Mhun_0378	-	hypothetical protein
364	 36.43	-1	420972..421262	+	96	88601686	-	Mhun_0380	-	hypothetical protein
365	 34.23	-2	421249..421692	+	147	88601687	-	Mhun_0381	-	hypothetical protein
366	 51.17	+1	421723..422793	+	356	88601688	-	Mhun_0382	-	UDP-N-acetylglucosamine 2-epimerase
367	 39.36	-1	422783..423811	+	342	88601689	-	Mhun_0383	-	hypothetical protein
368	 29.59	-2	423926..424966	+	346	88601690	-	Mhun_0384	-	ATP-grasp enzyme-like
369	 28.36	-2	424956..425639	+	227	88601691	-	Mhun_0385	-	PHP-like
370	 29.90	-2	425626..426585	-	319	88601692	-	Mhun_0386	-	hypothetical protein
371	 34.82	-2	426614..428224	-	536	88601693	-	Mhun_0387	-	transposase, IS4
372	 32.90	-2	428466..429857	-	463	88601694	-	Mhun_0388	-	polysaccharide biosynthesis protein
373	 36.05	-1	430390..431124	-	244	88601695	-	Mhun_0389	-	hypothetical protein
374	 26.15	-2	431815..433011	+	398	88601696	-	Mhun_0390	-	hypothetical protein
375	 31.80	-2	433027..434136	-	369	88601697	-	Mhun_0391	-	glycosyl transferase, group 1
376	 28.94	-2	434208..435641	-	477	88601698	-	Mhun_0392	-	hypothetical protein
377	 36.45	-1	435859..436275	+	138	88601699	-	Mhun_0393	-	hypothetical protein
378	 32.84	-2	436239..436844	+	201	88601700	-	Mhun_0394	-	hypothetical protein
379	 28.72	-2	437237..438427	-	396	88601701	-	Mhun_0395	-	glycosyl transferase, group 1
380	 50.27	0	438460..439563	-	367	88601702	-	Mhun_0396	-	UDP-N-acetylglucosamine 2-epimerase
381	 30.11	-2	440758..441129	-	123	88601703	-	Mhun_0397	-	PilT protein-like
382	 38.89	-1	441743..441958	+	71	88601704	-	Mhun_0398	-	hypothetical protein
383	 37.33	-1	441955..442179	+	74	88601705	-	Mhun_0399	-	YcfA-like
384	 46.09	0	444804..445838	-	344	88601706	-	Mhun_0400	-	glycosyl transferase family protein
385	 41.95	0	446177..446443	+	88	88601707	-	Mhun_0401	-	hypothetical protein
386	 48.36	0	446440..448203	+	587	88601708	-	Mhun_0402	-	hypothetical protein
387	 45.21	0	448193..449101	+	302	88601709	-	Mhun_0403	-	hypothetical protein
388	 51.50	+1	449138..450139	+	333	88601710	-	Mhun_0404	-	ATPase
389	 47.74	0	450143..451447	+	434	88601711	-	Mhun_0405	-	hypothetical protein
390	 46.67	0	451447..451926	+	159	88601712	-	Mhun_0406	-	hypothetical protein
391	 49.48	0	451923..452696	+	257	88601713	-	Mhun_0407	-	hypothetical protein
392	 46.75	0	452700..453206	-	168	88601714	-	Mhun_0408	-	hypothetical protein
393	 45.15	0	453289..454278	+	329	88601715	-	Mhun_0409	-	hypothetical protein
394	 36.47	-1	454346..456064	-	572	88601716	-	Mhun_0410	-	hypothetical protein
395	 38.43	-1	456609..457040	-	143	88601717	-	Mhun_0411	-	hypothetical protein
396	 34.82	-2	457196..458806	+	536	88601718	-	Mhun_0412	-	transposase, IS4
397	 41.39	0	459830..461008	+	392	88601719	-	Mhun_0414	-	AAA family ATPase
398	 40.53	-1	461180..462610	+	476	88601720	-	Mhun_0415	-	ATPase
399	 37.30	-1	463008..464645	-	545	88601721	-	Mhun_0416	-	transposase
400	 40.82	0	464804..466552	+	582	88601722	-	Mhun_0417	-	PKD
401	 44.23	0	466810..468690	+	626	88601723	-	Mhun_0418	-	PKD
402	 37.13	-1	468725..470461	-	578	88601724	-	Mhun_0419	-	hypothetical protein
403	 43.76	0	470709..474419	+	1236	88601725	-	Mhun_0420	-	PKD
404	 39.42	-1	474800..477658	+	952	88601726	-	Mhun_0421	-	PKD
405	 37.06	-1	477806..480595	+	929	88601727	-	Mhun_0422	-	PKD
406	 45.74	0	480850..484137	+	1095	88601728	-	Mhun_0423	-	PKD
407	 48.16	0	484665..488543	+	1292	88601729	-	Mhun_0424	-	PKD
408	 48.59	0	488545..492240	+	1231	88601730	-	Mhun_0425	-	PKD
409	 50.51	0	492247..494697	+	816	88601731	-	Mhun_0426	-	PKD
410	 52.28	+1	494733..495302	+	189	88601732	-	Mhun_0427	-	hypothetical protein
411	 37.23	-1	495362..495823	+	153	88601733	-	Mhun_0428	-	DNA polymerase, beta-like region
412	 36.62	-1	495823..496248	+	141	88601734	-	Mhun_0429	-	hypothetical protein
413	 46.73	0	499045..500022	-	325	88601735	-	Mhun_0431	-	alpha/beta hydrolase fold
414	 41.21	0	500228..503236	-	1002	88601736	-	Mhun_0432	-	hypothetical protein
415	 41.19	0	504957..505529	-	190	88601737	-	Mhun_0434	-	hypothetical protein
416	 49.41	0	505608..507374	-	588	88601738	-	Mhun_0435	-	putative ATPase RIL
417	 48.51	0	507381..507749	-	122	88601739	-	Mhun_0436	-	hypothetical protein
418	 50.53	0	507805..509688	+	627	88601740	-	Mhun_0437	-	hypothetical protein
419	 51.46	+1	509685..510710	+	341	88601741	-	Mhun_0438	-	putative translation factor pelota
420	 34.82	-2	510992..512602	-	536	88601742	-	Mhun_0439	-	transposase, IS4
421	 47.65	0	512664..514724	+	686	88601743	-	Mhun_0440	-	putative PAS/PAC sensor protein
422	 48.18	0	514734..515528	-	264	88601744	-	Mhun_0441	-	exodeoxyribonuclease III (xth)
423	 50.90	+1	515533..516255	-	240	88601745	-	Mhun_0442	-	hypothetical protein
45.77	MEAN

5.02	STD DEV
