IslandPathversion 1.0

IslandPath Analysis: Methanospirillum hungatei JF-1

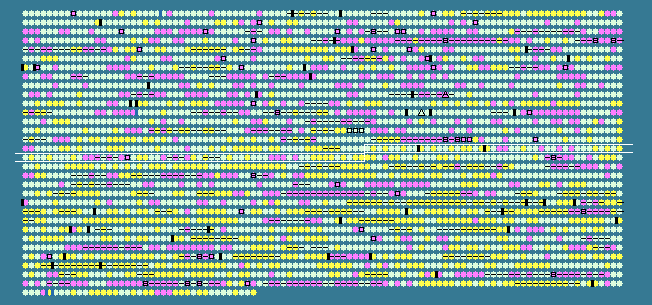

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.77 STD DEV: 5.02
Methanospirillum hungatei JF-1, complete genome - 1..3544738
3139 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1558	 46.89	0	1830190..1830978	-	262	88602880	-	Mhun_1608	-	cobalt transport protein
1559	 52.96	+1	1830975..1832411	-	478	88602881	-	Mhun_1609	-	ABC transporter related
1560	 48.72	0	1832408..1832953	-	181	88602882	-	Mhun_1610	-	hypothetical protein
1561	 50.62	0	1833155..1833877	-	240	88602883	-	Mhun_1611	-	hypothetical protein
1562	 46.09	0	1833980..1835476	+	498	88602884	-	Mhun_1612	-	hypothetical protein
1563	 48.11	0	1835489..1836124	-	211	88602885	-	Mhun_1613	-	response regulator receiver domain-containing protein
1564	 49.45	0	1836198..1837283	-	361	88602886	-	Mhun_1614	-	band 7 protein
1565	 47.37	0	1837284..1837739	-	151	88602887	-	Mhun_1615	-	hypothetical protein
1566	 47.25	0	1837799..1838653	-	284	88602888	-	Mhun_1616	-	hypothetical protein
1567	 50.28	0	1838972..1839331	+	119	88602889	-	Mhun_1617	-	roadblock/LC7 domain-contain protein
1568	 46.25	0	1839331..1839957	+	208	88602890	-	Mhun_1618	-	response regulator receiver domain-containing protein
1569	 51.20	+1	1840034..1841242	+	402	88602891	-	Mhun_1619	-	threonine synthase
1570	 47.52	0	1841365..1841787	+	140	88602892	-	Mhun_1620	-	hypothetical protein
1571	 45.80	0	1842306..1842746	+	146	88602893	-	Mhun_1621	-	hypothetical protein
1572	 51.67	+1	1842810..1843349	-	179	88602894	-	Mhun_1622	-	ThiJ/PfpI
1573	 43.68	0	1843432..1843866	-	144	88602895	-	Mhun_1623	-	amino acid-binding ACT
1574	 50.00	0	1843866..1845167	-	433	88602896	-	Mhun_1624	-	phenylacetate--CoA ligase
1575	 50.39	0	1845167..1846456	-	429	88602897	-	Mhun_1625	-	phenylacetate--CoA ligase
1576	 47.96	0	1846726..1847388	+	220	88602898	-	Mhun_1626	-	NADPH-dependent FMN reductase
1577	 50.41	0	1847399..1849114	-	571	88602899	-	Mhun_1627	-	AMP-dependent synthetase and ligase
1578	 51.78	+1	1849451..1850632	+	393	88602900	-	Mhun_1628	-	bifunctional formaldehyde-activating enzyme/3-hexulose-6-phosphate synthase
1579	 46.79	0	1850720..1852324	+	534	88602901	-	Mhun_1629	-	hypothetical protein
1580	 39.42	-1	1852337..1852681	-	114	88602902	-	Mhun_1630	-	transcriptional modulator of MazE/toxin, MazF
1581	 37.73	-1	1852681..1852953	-	90	88602903	-	Mhun_1631	-	hypothetical protein
1582	 42.64	0	1853141..1853806	+	221	88602904	-	Mhun_1632	-	hypothetical protein
1583	 47.10	0	1853958..1855388	+	476	88602905	-	Mhun_1633	-	general substrate transporter
1584	 50.89	+1	1855443..1855835	+	130	88602906	-	Mhun_1634	-	hypothetical protein
1585	 46.91	0	1855844..1856491	+	215	88602907	-	Mhun_1635	-	hypothetical protein
1586	 45.00	0	1856475..1856714	+	79	88602908	-	Mhun_1636	-	hypothetical protein
1587	 41.96	0	1857065..1857319	+	84	88602909	-	Mhun_1637	-	hypothetical protein
1588	 43.97	0	1857389..1857952	+	187	88602910	-	Mhun_1638	-	NADPH-dependent FMN reductase
1589	 42.49	0	1858232..1859236	-	334	88602911	-	Mhun_1639	-	hypothetical protein
1590	 41.14	0	1859524..1859856	-	110	88602912	-	Mhun_1640	-	nitrogen regulatory protein P-II (GlnB, GlnK)
1591	 45.18	0	1860033..1862615	+	860	88602913	-	Mhun_1641	-	methyl-accepting chemotaxis sensory transducer with Pas/Pac sensor
1592	 40.53	-1	1862759..1863133	+	124	88602914	-	Mhun_1642	-	CheW protein
1593	 43.95	0	1863145..1863747	+	200	88602915	-	Mhun_1643	-	response regulator receiver domain-containing protein
1594	 47.43	0	1863808..1864701	+	297	88602916	-	Mhun_1644	-	ArsR family transcriptional regulator
1595	 49.21	0	1864698..1864949	+	83	88602917	-	Mhun_1645	-	hypothetical protein
1596	 50.41	0	1864942..1866048	+	368	88602918	-	Mhun_1646	-	radical SAM family protein
1597	 43.30	0	1866059..1867975	-	638	88602919	-	Mhun_1647	-	PAS/PAC sensor signal transduction histidine kinase
1598	 50.46	0	1868063..1870468	-	801	88602920	-	Mhun_1648	-	methyl-accepting chemotaxis sensory transducer
1599	 47.07	0	1870458..1872110	-	550	88602921	-	Mhun_1649	-	response regulator receiver sensor signal transduction histidine kinase
1600	 49.78	0	1872116..1872346	-	76	88602922	-	Mhun_1650	-	hypothetical protein
1601	 45.47	0	1872367..1873182	-	271	88602923	-	Mhun_1651	-	histidine kinase, HAMP region
1602	 50.18	0	1873409..1874263	+	284	88602924	-	Mhun_1652	-	phosphate binding protein
1603	 49.20	0	1874328..1875014	-	228	88602925	-	Mhun_1653	-	ABC transporter related
1604	 45.42	0	1875011..1876210	-	399	88602926	-	Mhun_1654	-	hypothetical protein
1605	 51.54	+1	1876207..1877502	-	431	88602927	-	Mhun_1655	-	S-layer-like domain-containing protein
1606	 45.35	0	1877587..1878177	+	196	88602928	-	Mhun_1656	-	TetR family transcriptional regulator
1607	 44.28	0	1878195..1878806	+	203	88602929	-	Mhun_1657	-	hypothetical protein
1608	 47.19	0	1878994..1881078	-	694	88602930	-	Mhun_1658	-	hypothetical protein
1609	 53.23	+1	1881075..1882049	-	324	88602931	-	Mhun_1659	-	hypothetical protein
1610	 45.19	0	1882326..1883219	+	297	88602932	-	Mhun_1660	-	hypothetical protein
1611	 37.35	-1	1883409..1884704	-	431	88602933	-	Mhun_1661	-	hypothetical protein
1612	 35.14	-2	1885613..1885888	+	91	88602934	-	Mhun_1662	-	hypothetical protein
1613	 34.16	-2	1885878..1886240	+	120	88602935	-	Mhun_1663	-	PilT protein-like
1614	 47.62	0	1886790..1886999	+	69	88602936	-	Mhun_1664	-	type I site-specific deoxyribonuclease
1615	 41.57	0	1889158..1889655	+	165	88602937	-	Mhun_1666	-	hypothetical protein
1616	 46.95	0	1889645..1890415	+	256	88602938	-	Mhun_1667	-	hypothetical protein
1617	 40.42	-1	1890418..1890657	+	79	88602939	-	Mhun_1668	-	hypothetical protein
1618	 32.40	-2	1891256..1892002	+	248	88602940	-	Mhun_1670	-	transposase, putative
1619	 45.96	0	1892971..1893366	-	131	88602941	-	Mhun_1672	-	zinc finger, SWIM-type
1620	 49.48	0	1893513..1896659	+	1048	88602942	-	Mhun_1673	-	SNF2-related
1621	 49.33	0	1896656..1897549	+	297	88602943	-	Mhun_1674	-	zinc finger, SWIM-type
1622	 43.94	0	1897868..1899112	+	414	88602944	-	Mhun_1675	-	hypothetical protein
1623	 42.76	0	1899176..1899886	+	236	88602945	-	Mhun_1676	-	alpha/beta hydrolase
1624	 41.88	0	1900164..1900736	+	190	88602946	-	Mhun_1677	-	hypothetical protein
1625	 42.98	0	1900911..1902362	-	483	88602947	-	Mhun_1678	-	adenosine/AMP deaminase
1626	 40.59	-1	1902457..1902759	-	100	88602948	-	Mhun_1679	-	hypothetical protein
1627	 42.56	0	1902870..1903259	-	129	88602949	-	Mhun_1680	-	HEPN
1628	 36.11	-1	1903267..1903590	-	107	88602950	-	Mhun_1681	-	DNA polymerase, beta-like region
1629	 52.04	+1	1904719..1905354	-	211	88602951	-	Mhun_1683	-	PKD
1630	 47.67	0	1906023..1906817	-	264	88602952	-	Mhun_1685	-	hypothetical protein
1631	 50.81	+1	1906937..1907428	-	163	88602953	-	Mhun_1686	-	HNH endonuclease
1632	 46.98	0	1907552..1908445	+	297	88602954	-	Mhun_1687	-	metal dependent phosphohydrolase
1633	 42.52	0	1908603..1909157	+	184	88602955	-	Mhun_1688	-	hypothetical protein
1634	 42.97	0	1909330..1909962	-	210	88602956	-	Mhun_1689	-	hypothetical protein
1635	 52.93	+1	1909976..1910674	-	232	88602957	-	Mhun_1690	-	hypothetical protein
1636	 45.44	0	1910786..1911727	-	313	88602958	-	Mhun_1691	-	hypothetical protein
1637	 47.55	0	1911965..1913884	+	639	88602959	-	Mhun_1692	-	peptidase U34, dipeptidase
1638	 49.39	0	1913899..1915698	+	599	88602960	-	Mhun_1693	-	hypothetical protein
1639	 47.50	0	1915768..1916487	+	239	88602961	-	Mhun_1694	-	iron-sulfur cluster binding protein
1640	 46.78	0	1916484..1916825	+	113	88602962	-	Mhun_1695	-	4Fe-4S ferredoxin, iron-sulfur binding
1641	 43.19	0	1917012..1918097	+	361	88602963	-	Mhun_1696	-	hypothetical protein
1642	 41.14	0	1918208..1918963	+	251	88602964	-	Mhun_1697	-	acylphosphatase-like protein
1643	 39.22	-1	1921029..1921283	+	84	88602965	-	Mhun_1699	-	hypothetical protein
1644	 34.75	-2	1921289..1921570	+	93	88602966	-	Mhun_1700	-	hypothetical protein
1645	 42.93	0	1922441..1923034	+	197	88602967	-	Mhun_1702	-	hypothetical protein
1646	 41.78	0	1923146..1923370	+	74	88602968	-	Mhun_1703	-	hypothetical protein
1647	 47.42	0	1923600..1924259	-	219	88602969	-	Mhun_1705	-	beta-lactamase-like
1648	 48.37	0	1924267..1924878	-	203	88602970	-	Mhun_1706	-	response regulator receiver domain-containing protein
1649	 53.05	+1	1925131..1926849	+	572	88602971	-	Mhun_1707	-	glycyl-tRNA synthetase
1650	 52.24	+1	1926849..1929101	+	750	88602972	-	Mhun_1708	-	Hef nuclease
1651	 52.53	+1	1929071..1929466	-	131	88602973	-	Mhun_1709	-	hypothetical protein
1652	 50.38	0	1929530..1929793	+	87	88602974	-	Mhun_1710	-	hypothetical protein
1653	 48.97	0	1929868..1930353	-	161	88602975	-	Mhun_1711	-	hypothetical protein
1654	 52.07	+1	1930346..1931626	-	426	88602976	-	Mhun_1712	-	thiamine biosynthesis protein ThiC
1655	 48.88	0	1931850..1932518	+	222	88602977	-	Mhun_1713	-	radical SAM family protein
1656	 53.83	+1	1932496..1933017	+	173	88602978	-	Mhun_1714	-	hypothetical protein
1657	 49.55	0	1933014..1933784	+	256	88602979	-	Mhun_1715	-	xylose isomerase-like TIM barrel
45.77	MEAN

5.02	STD DEV
