IslandPath Analysis: Methanospirillum hungatei JF-1

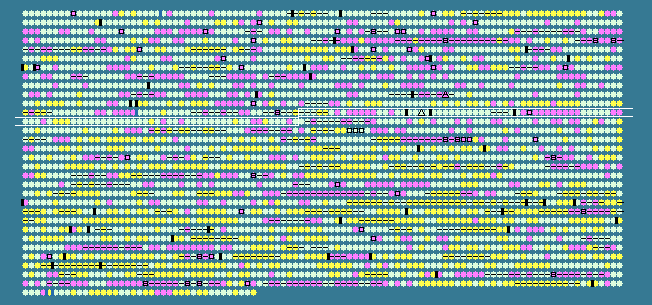

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.77 STD DEV: 5.02
Methanospirillum hungatei JF-1, complete genome - 1..3544738
3139 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1147	 48.26	0	1343115..1343690	+	191	88602469	-	Mhun_1180	-	H+-transporting two-sector ATPase, E subunit
1148	 47.92	0	1343709..1344764	+	351	88602470	-	Mhun_1181	-	V-type ATP synthase subunit C
1149	 46.53	0	1344766..1345068	+	100	88602471	-	Mhun_1182	-	V-type ATP synthase subunit F
1150	 50.89	+1	1345059..1346807	+	582	88602472	-	Mhun_1183	-	V-type ATP synthase subunit A
1151	 50.47	0	1346808..1348190	+	460	88602473	-	Mhun_1184	-	V-type ATP synthase subunit B
1152	 46.35	0	1348197..1348826	+	209	88602474	-	Mhun_1185	-	V-type ATP synthase subunit D
1153	 41.89	0	1349007..1349228	+	73	88602475	-	Mhun_1186	-	AbrB family transcriptional regulator
1154	 44.32	0	1350442..1351524	+	360	88602476	-	Mhun_1187	-	hypothetical protein
1155	 39.44	-1	1351448..1353067	-	539	88602477	-	Mhun_1188	-	hypothetical protein
1156	 35.63	-2	1353555..1353815	+	86	88602478	-	Mhun_1189	-	hypothetical protein
1157	 39.24	-1	1353875..1354297	+	140	88602479	-	Mhun_1190	-	hypothetical protein
1158	 40.00	-1	1354547..1356151	+	534	88602480	-	Mhun_1191	-	hypothetical protein
1159	 42.07	0	1358193..1359761	-	522	88602481	-	Mhun_1193	-	hypothetical protein
1160	 46.45	0	1359932..1361158	+	408	88602482	-	Mhun_1194	-	phosphoglycerate kinase
1161	 46.19	0	1361223..1362140	+	305	88602483	-	Mhun_1195	-	glyoxalase/bleomycin resistance protein/dioxygenase
1162	 41.01	0	1362194..1363105	+	303	88602484	-	Mhun_1196	-	CRISPR-associated Cas1 family protein
1163	 46.92	0	1363300..1364661	-	453	88602485	-	Mhun_1197	-	phosphoglucomutase/phosphomannomutase alpha/beta/subunit
1164	 45.48	0	1364648..1365256	-	202	88602486	-	Mhun_1198	-	hypothetical protein
1165	 43.45	0	1365445..1368351	-	968	88602487	-	Mhun_1199	-	multi-sensor signal transduction histidine kinase
1166	 44.71	0	1368406..1369152	-	248	88602488	-	Mhun_1200	-	response regulator receiver domain-containing protein
1167	 48.01	0	1369370..1370275	+	301	88602489	-	Mhun_1201	-	phage integrase
1168	 44.64	0	1370272..1370616	+	114	88602490	-	Mhun_1202	-	hypothetical protein
1169	 46.03	0	1370887..1373076	+	729	88602491	-	Mhun_1203	-	Alpha-glucan phosphorylase
1170	 45.53	0	1373081..1373449	-	122	88602492	-	Mhun_1204	-	hypothetical protein
1171	 42.50	0	1373458..1373697	-	79	88602493	-	Mhun_1205	-	like-Sm ribonucleoprotein, core
1172	 44.87	0	1373758..1374693	-	311	88602494	-	Mhun_1206	-	inositol phosphatase/fructose-1,6-bisphosphatase
1173	 43.04	0	1375335..1376807	+	490	88602495	-	Mhun_1207	-	RNA-directed DNA polymerase
1174	 44.89	0	1376910..1378769	+	619	88602496	-	Mhun_1208	-	multi-sensor signal transduction histidine kinase
1175	 48.37	0	1378794..1378946	+	50	88602497	-	Mhun_1209	-	rubredoxin-type Fe(Cys)4 protein
1176	 46.03	0	1378948..1380570	-	540	88602498	-	Mhun_1210	-	putative PAS/PAC sensor protein
1177	 48.66	0	1380699..1380959	+	86	88602499	-	Mhun_1211	-	acylphosphatase
1178	 46.84	0	1380993..1381466	+	157	88602500	-	Mhun_1212	-	hypothetical protein
1179	 44.07	0	1381548..1382078	+	176	88602501	-	Mhun_1213	-	RDD
1180	 45.76	0	1382083..1382589	-	168	88602502	-	Mhun_1214	-	hypothetical protein
1181	 47.49	0	1382672..1383964	-	430	88602503	-	Mhun_1215	-	peptidase M50
1182	 46.95	0	1384014..1384652	-	212	88602504	-	Mhun_1216	-	ribonuclease HII
1183	 44.19	0	1388659..1389045	+	128	88602505	-	Mhun_1218	-	hypothetical protein
1184	 41.86	0	1389215..1389601	+	128	88602506	-	Mhun_1219	-	hypothetical protein
1185	 40.71	-1	1389957..1390892	-	311	88602507	-	Mhun_1220	-	transposase IS66
1186	 41.55	0	1392129..1393163	-	344	88602508	-	Mhun_1221	-	hypothetical protein
1187	 41.67	0	1393278..1394261	-	327	88602509	-	Mhun_1222	-	hypothetical protein
1188	 42.16	0	1394376..1395395	-	339	88602510	-	Mhun_1223	-	hypothetical protein
1189	 41.57	0	1395510..1396517	-	335	88602511	-	Mhun_1224	-	hypothetical protein
1190	 41.96	0	1396617..1397636	-	339	88602512	-	Mhun_1225	-	hypothetical protein
1191	 41.57	0	1397756..1398775	-	339	88602513	-	Mhun_1226	-	hypothetical protein
1192	 40.77	0	1398891..1399979	-	362	88602514	-	Mhun_1227	-	hypothetical protein
1193	 38.42	-1	1400062..1400670	-	202	88602515	-	Mhun_1228	-	hypothetical protein
1194	 42.85	0	1400783..1403356	-	857	88602516	-	Mhun_1229	-	hypothetical protein
1195	 45.51	0	1403464..1404309	-	281	88602517	-	Mhun_1230	-	hypothetical protein
1196	 43.31	0	1404446..1405918	+	490	88602518	-	Mhun_1231	-	phospholipase D/transphosphatidylase
1197	 44.63	0	1405904..1406824	-	306	88602519	-	Mhun_1232	-	PHP-like
1198	 42.74	0	1406885..1407490	-	201	88602520	-	Mhun_1233	-	hypothetical protein
1199	 40.51	-1	1407560..1409218	+	552	88602521	-	Mhun_1234	-	multi-sensor signal transduction histidine kinase
1200	 42.12	0	1409215..1410102	+	295	88602522	-	Mhun_1235	-	beta-lactamase-like
1201	 42.64	0	1410108..1410698	-	196	88602523	-	Mhun_1236	-	TetR family transcriptional regulator
1202	 43.70	0	1410721..1411926	-	401	88602524	-	Mhun_1237	-	aldo/keto reductase
1203	 46.01	0	1412066..1412341	+	91	88602525	-	Mhun_1238	-	flagellin (flaB1-1)
1204	 40.65	-1	1413026..1413736	-	236	88602526	-	Mhun_1240	-	hypothetical protein
1205	 47.02	0	1414021..1414524	-	167	88602527	-	Mhun_1241	-	acetolactate synthase 3 regulatory subunit
1206	 50.59	0	1414526..1416217	-	563	88602528	-	Mhun_1242	-	acetolactate synthase, large subunit, biosynthetic type
1207	 51.22	+1	1416189..1417703	-	504	88602529	-	Mhun_1243	-	isopropylmalate/citramalate/homocitrate synthase
1208	 49.57	0	1417858..1418553	-	231	88602530	-	Mhun_1244	-	hypothetical protein
1209	 48.59	0	1418756..1419751	+	331	88602531	-	Mhun_1245	-	ketol-acid reductoisomerase
1210	 48.90	0	1419779..1421005	-	408	88602532	-	Mhun_1246	-	CRISPR-associated TM1812 family protein
1211	 47.19	0	1421026..1422201	+	391	88602533	-	Mhun_1247	-	glycosyl transferase, group 1
1212	 42.54	0	1422218..1422532	+	104	88602534	-	Mhun_1248	-	hypothetical protein
1213	 45.81	0	1422581..1423045	+	154	88602535	-	Mhun_1249	-	hypothetical protein
1214	 42.52	0	1423064..1423858	-	264	88602536	-	Mhun_1250	-	hypothetical protein
1215	 46.74	0	1424982..1425272	-	96	88602537	-	Mhun_1252	-	hypothetical protein
1216	 49.12	0	1425426..1427123	-	565	88602538	-	Mhun_1253	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1217	 45.57	0	1427203..1427856	+	217	88602539	-	Mhun_1254	-	hypothetical protein
1218	 46.80	0	1427866..1428303	-	145	88602540	-	Mhun_1255	-	hypothetical protein
1219	 43.43	0	1428356..1429078	-	240	88602541	-	Mhun_1256	-	glycosyl transferase family protein
1220	 46.05	0	1429169..1430269	+	366	88602542	-	Mhun_1257	-	hypothetical protein
1221	 48.89	0	1430294..1431013	-	239	88602543	-	Mhun_1258	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1222	 49.55	0	1431010..1431675	-	221	88602544	-	Mhun_1259	-	hypothetical protein
1223	 44.84	0	1431902..1432327	+	141	88602545	-	Mhun_1260	-	hypothetical protein
1224	 40.35	-1	1432933..1433559	-	208	88602546	-	Mhun_1262	-	GCN5-related N-acetyltransferase
1225	 43.50	0	1433603..1433956	-	117	88602547	-	Mhun_1263	-	4Fe-4S ferredoxin, iron-sulfur binding
1226	 44.17	0	1433935..1434423	-	162	88602548	-	Mhun_1264	-	hypothetical protein
1227	 37.54	-1	1435368..1435652	-	94	88602549	-	Mhun_1265	-	hypothetical protein
1228	 43.64	0	1435733..1436392	-	219	88602550	-	Mhun_1266	-	methyltransferase type 11
1229	 42.98	0	1436558..1439107	-	849	88602551	-	Mhun_1267	-	putative PAS/PAC sensor protein
1230	 43.75	0	1439360..1440031	+	223	88602552	-	Mhun_1268	-	hypothetical protein
1231	 44.98	0	1440232..1440789	+	185	88602553	-	Mhun_1269	-	hypothetical protein
1232	 45.55	0	1441475..1443439	+	654	88602554	-	Mhun_1270	-	beta-lactamase-like
1233	 47.52	0	1443568..1444173	+	201	88602555	-	Mhun_1271	-	4Fe-4S ferredoxin, iron-sulfur binding
1234	 47.48	0	1444189..1446075	+	628	88602556	-	Mhun_1272	-	carbon-monoxide dehydrogenase, catalytic subunit
1235	 45.76	0	1446096..1446578	+	160	88602557	-	Mhun_1273	-	NADH dehydrogenase (ubiquinone), 24 kDa subunit
1236	 49.50	0	1446575..1448263	+	562	88602558	-	Mhun_1274	-	NADH dehydrogenase (quinone)
1237	 47.11	0	1448265..1449077	+	270	88602559	-	Mhun_1275	-	ferredoxin
1238	 47.62	0	1449118..1449936	+	272	88602560	-	Mhun_1276	-	cobyrinic acid a,c-diamide synthase
1239	 42.20	0	1450028..1450309	+	93	88602561	-	Mhun_1277	-	prevent-host-death protein
1240	 41.20	0	1450217..1450699	-	160	88602562	-	Mhun_1278	-	hypothetical protein
1241	 50.18	0	1450776..1451624	-	282	88602563	-	Mhun_1279	-	Pirin-like
1242	 44.02	0	1451736..1452446	-	236	88602564	-	Mhun_1280	-	4Fe-4S ferredoxin, iron-sulfur binding
1243	 43.89	0	1452629..1453291	+	220	88602565	-	Mhun_1281	-	carbonate dehydratase
1244	 44.58	0	1453357..1453596	-	79	88602566	-	Mhun_1282	-	hypothetical protein
1245	 41.67	0	1453719..1453946	-	75	88602567	-	Mhun_1283	-	hypothetical protein
1246	 44.92	0	1453943..1454434	-	163	88602568	-	Mhun_1284	-	hypothetical protein
45.77	MEAN

5.02	STD DEV
