IslandPathversion 1.0

IslandPath Analysis: Methanospirillum hungatei JF-1

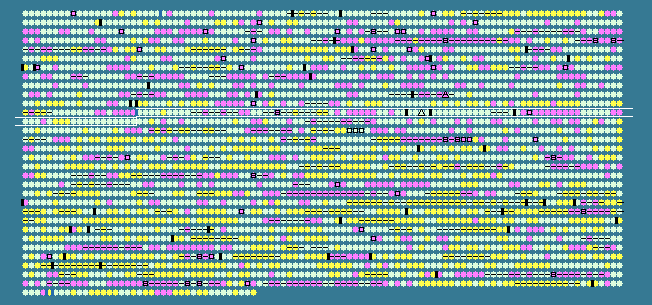

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.77 STD DEV: 5.02
Methanospirillum hungatei JF-1, complete genome - 1..3544738
3139 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1120	 47.77	0	1303164..1303925	-	253	88602442	-	Mhun_1153	-	dihydroorotate dehydrogenase electron transfer subunit
1121	 48.87	0	1303918..1304805	-	295	88602443	-	Mhun_1154	-	dihydroorotate dehydrogenase 1B
1122	 44.22	0	1304862..1305734	+	290	88602444	-	Mhun_1155	-	lactate/malate dehydrogenase
1123	 44.81	0	1305745..1308201	+	818	88602445	-	Mhun_1156	-	DNA polymerase B region
1124	 49.52	0	1308209..1309561	+	450	88602446	-	Mhun_1157	-	cobyrinic acid a,c-diamide synthase
1125	 46.19	0	1309565..1311190	-	541	88602447	-	Mhun_1158	-	putative manganese-dependent inorganic pyrophosphatase
1126	 42.74	0	1311283..1311909	+	208	88602448	-	Mhun_1159	-	hypothetical protein
1127	 48.04	0	1312122..1314983	+	953	88602449	-	Mhun_1160	-	excinuclease ABC, A subunit
1128	 44.27	0	1314985..1316547	+	520	88602450	uvrC	Mhun_1161	-	excinuclease ABC subunit C
1129	 44.53	0	1316544..1318472	+	642	88602451	-	Mhun_1162	-	excinuclease ABC subunit B
1130	 44.31	0	1318487..1322056	-	1189	88602452	-	Mhun_1163	-	PKD
1131	 38.34	-1	1322319..1325354	-	1011	88602453	-	Mhun_1164	-	PKD
1132	 43.95	0	1325601..1326071	+	156	88602454	-	Mhun_1165	-	peptidylprolyl isomerase
1133	 44.30	0	1326075..1326758	-	227	88602455	-	Mhun_1166	-	peptidylprolyl isomerase, FKBP-type
1134	 40.91	0	1326809..1327336	+	175	88602456	-	Mhun_1167	-	adenylyl cyclase CyaB, putative
1135	 47.98	0	1327326..1327967	-	213	88602457	-	Mhun_1168	-	metallophosphoesterase
1136	 47.81	0	1327974..1329092	-	372	88602458	-	Mhun_1169	-	radical SAM family protein
1137	 40.76	0	1329095..1329808	-	237	88602459	-	Mhun_1170	-	putative circadian clock protein, KaiC
1138	 40.95	0	1329805..1330671	-	288	88602460	-	Mhun_1171	-	HTR-like protein
1139	 42.54	0	1330877..1332799	+	640	88602461	-	Mhun_1172	-	type II secretion system protein E
1140	 43.30	0	1332796..1334721	+	641	88602462	-	Mhun_1173	-	type II secretion system protein
1141	 42.85	0	1334741..1336789	-	682	88602463	-	Mhun_1174	-	hypothetical protein
1142	 45.60	0	1336951..1338531	-	526	88602464	-	Mhun_1175	-	methyl-accepting chemotaxis sensory transducer
1143	 37.42	-1	1338705..1340342	+	545	88602465	-	Mhun_1176	-	transposase
1144	 45.76	0	1340477..1340806	+	109	88602466	-	Mhun_1177	-	V-type H+-transporting ATPase subunit E
1145	 45.88	0	1340793..1342817	+	674	88602467	-	Mhun_1178	-	V-type ATP synthase subunit I
1146	 53.49	+1	1342843..1343100	+	85	88602468	-	Mhun_1179	-	H+-transporting two-sector ATPase, C subunit
1147	 48.26	0	1343115..1343690	+	191	88602469	-	Mhun_1180	-	H+-transporting two-sector ATPase, E subunit
1148	 47.92	0	1343709..1344764	+	351	88602470	-	Mhun_1181	-	V-type ATP synthase subunit C
1149	 46.53	0	1344766..1345068	+	100	88602471	-	Mhun_1182	-	V-type ATP synthase subunit F
1150	 50.89	+1	1345059..1346807	+	582	88602472	-	Mhun_1183	-	V-type ATP synthase subunit A
1151	 50.47	0	1346808..1348190	+	460	88602473	-	Mhun_1184	-	V-type ATP synthase subunit B
1152	 46.35	0	1348197..1348826	+	209	88602474	-	Mhun_1185	-	V-type ATP synthase subunit D
1153	 41.89	0	1349007..1349228	+	73	88602475	-	Mhun_1186	-	AbrB family transcriptional regulator
1154	 44.32	0	1350442..1351524	+	360	88602476	-	Mhun_1187	-	hypothetical protein
1155	 39.44	-1	1351448..1353067	-	539	88602477	-	Mhun_1188	-	hypothetical protein
1156	 35.63	-2	1353555..1353815	+	86	88602478	-	Mhun_1189	-	hypothetical protein
1157	 39.24	-1	1353875..1354297	+	140	88602479	-	Mhun_1190	-	hypothetical protein
1158	 40.00	-1	1354547..1356151	+	534	88602480	-	Mhun_1191	-	hypothetical protein
1159	 42.07	0	1358193..1359761	-	522	88602481	-	Mhun_1193	-	hypothetical protein
1160	 46.45	0	1359932..1361158	+	408	88602482	-	Mhun_1194	-	phosphoglycerate kinase
1161	 46.19	0	1361223..1362140	+	305	88602483	-	Mhun_1195	-	glyoxalase/bleomycin resistance protein/dioxygenase
1162	 41.01	0	1362194..1363105	+	303	88602484	-	Mhun_1196	-	CRISPR-associated Cas1 family protein
1163	 46.92	0	1363300..1364661	-	453	88602485	-	Mhun_1197	-	phosphoglucomutase/phosphomannomutase alpha/beta/subunit
1164	 45.48	0	1364648..1365256	-	202	88602486	-	Mhun_1198	-	hypothetical protein
1165	 43.45	0	1365445..1368351	-	968	88602487	-	Mhun_1199	-	multi-sensor signal transduction histidine kinase
1166	 44.71	0	1368406..1369152	-	248	88602488	-	Mhun_1200	-	response regulator receiver domain-containing protein
1167	 48.01	0	1369370..1370275	+	301	88602489	-	Mhun_1201	-	phage integrase
1168	 44.64	0	1370272..1370616	+	114	88602490	-	Mhun_1202	-	hypothetical protein
1169	 46.03	0	1370887..1373076	+	729	88602491	-	Mhun_1203	-	Alpha-glucan phosphorylase
1170	 45.53	0	1373081..1373449	-	122	88602492	-	Mhun_1204	-	hypothetical protein
1171	 42.50	0	1373458..1373697	-	79	88602493	-	Mhun_1205	-	like-Sm ribonucleoprotein, core
1172	 44.87	0	1373758..1374693	-	311	88602494	-	Mhun_1206	-	inositol phosphatase/fructose-1,6-bisphosphatase
1173	 43.04	0	1375335..1376807	+	490	88602495	-	Mhun_1207	-	RNA-directed DNA polymerase
1174	 44.89	0	1376910..1378769	+	619	88602496	-	Mhun_1208	-	multi-sensor signal transduction histidine kinase
1175	 48.37	0	1378794..1378946	+	50	88602497	-	Mhun_1209	-	rubredoxin-type Fe(Cys)4 protein
1176	 46.03	0	1378948..1380570	-	540	88602498	-	Mhun_1210	-	putative PAS/PAC sensor protein
1177	 48.66	0	1380699..1380959	+	86	88602499	-	Mhun_1211	-	acylphosphatase
1178	 46.84	0	1380993..1381466	+	157	88602500	-	Mhun_1212	-	hypothetical protein
1179	 44.07	0	1381548..1382078	+	176	88602501	-	Mhun_1213	-	RDD
1180	 45.76	0	1382083..1382589	-	168	88602502	-	Mhun_1214	-	hypothetical protein
1181	 47.49	0	1382672..1383964	-	430	88602503	-	Mhun_1215	-	peptidase M50
1182	 46.95	0	1384014..1384652	-	212	88602504	-	Mhun_1216	-	ribonuclease HII
1183	 44.19	0	1388659..1389045	+	128	88602505	-	Mhun_1218	-	hypothetical protein
1184	 41.86	0	1389215..1389601	+	128	88602506	-	Mhun_1219	-	hypothetical protein
1185	 40.71	-1	1389957..1390892	-	311	88602507	-	Mhun_1220	-	transposase IS66
1186	 41.55	0	1392129..1393163	-	344	88602508	-	Mhun_1221	-	hypothetical protein
1187	 41.67	0	1393278..1394261	-	327	88602509	-	Mhun_1222	-	hypothetical protein
1188	 42.16	0	1394376..1395395	-	339	88602510	-	Mhun_1223	-	hypothetical protein
1189	 41.57	0	1395510..1396517	-	335	88602511	-	Mhun_1224	-	hypothetical protein
1190	 41.96	0	1396617..1397636	-	339	88602512	-	Mhun_1225	-	hypothetical protein
1191	 41.57	0	1397756..1398775	-	339	88602513	-	Mhun_1226	-	hypothetical protein
1192	 40.77	0	1398891..1399979	-	362	88602514	-	Mhun_1227	-	hypothetical protein
1193	 38.42	-1	1400062..1400670	-	202	88602515	-	Mhun_1228	-	hypothetical protein
1194	 42.85	0	1400783..1403356	-	857	88602516	-	Mhun_1229	-	hypothetical protein
1195	 45.51	0	1403464..1404309	-	281	88602517	-	Mhun_1230	-	hypothetical protein
1196	 43.31	0	1404446..1405918	+	490	88602518	-	Mhun_1231	-	phospholipase D/transphosphatidylase
1197	 44.63	0	1405904..1406824	-	306	88602519	-	Mhun_1232	-	PHP-like
1198	 42.74	0	1406885..1407490	-	201	88602520	-	Mhun_1233	-	hypothetical protein
1199	 40.51	-1	1407560..1409218	+	552	88602521	-	Mhun_1234	-	multi-sensor signal transduction histidine kinase
1200	 42.12	0	1409215..1410102	+	295	88602522	-	Mhun_1235	-	beta-lactamase-like
1201	 42.64	0	1410108..1410698	-	196	88602523	-	Mhun_1236	-	TetR family transcriptional regulator
1202	 43.70	0	1410721..1411926	-	401	88602524	-	Mhun_1237	-	aldo/keto reductase
1203	 46.01	0	1412066..1412341	+	91	88602525	-	Mhun_1238	-	flagellin (flaB1-1)
1204	 40.65	-1	1413026..1413736	-	236	88602526	-	Mhun_1240	-	hypothetical protein
1205	 47.02	0	1414021..1414524	-	167	88602527	-	Mhun_1241	-	acetolactate synthase 3 regulatory subunit
1206	 50.59	0	1414526..1416217	-	563	88602528	-	Mhun_1242	-	acetolactate synthase, large subunit, biosynthetic type
1207	 51.22	+1	1416189..1417703	-	504	88602529	-	Mhun_1243	-	isopropylmalate/citramalate/homocitrate synthase
1208	 49.57	0	1417858..1418553	-	231	88602530	-	Mhun_1244	-	hypothetical protein
1209	 48.59	0	1418756..1419751	+	331	88602531	-	Mhun_1245	-	ketol-acid reductoisomerase
1210	 48.90	0	1419779..1421005	-	408	88602532	-	Mhun_1246	-	CRISPR-associated TM1812 family protein
1211	 47.19	0	1421026..1422201	+	391	88602533	-	Mhun_1247	-	glycosyl transferase, group 1
1212	 42.54	0	1422218..1422532	+	104	88602534	-	Mhun_1248	-	hypothetical protein
1213	 45.81	0	1422581..1423045	+	154	88602535	-	Mhun_1249	-	hypothetical protein
1214	 42.52	0	1423064..1423858	-	264	88602536	-	Mhun_1250	-	hypothetical protein
1215	 46.74	0	1424982..1425272	-	96	88602537	-	Mhun_1252	-	hypothetical protein
1216	 49.12	0	1425426..1427123	-	565	88602538	-	Mhun_1253	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1217	 45.57	0	1427203..1427856	+	217	88602539	-	Mhun_1254	-	hypothetical protein
1218	 46.80	0	1427866..1428303	-	145	88602540	-	Mhun_1255	-	hypothetical protein
1219	 43.43	0	1428356..1429078	-	240	88602541	-	Mhun_1256	-	glycosyl transferase family protein
45.77	MEAN

5.02	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
