IslandPath Analysis: Methylobacterium extorquens PA1

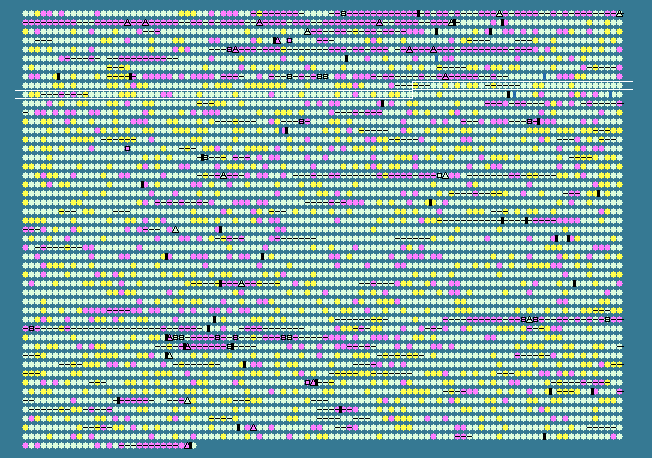

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.64   STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
866	 73.05	+1	965432..966637	+	401	163850323	-	Mext_0890	-	major facilitator transporter
867	 70.15	0	966821..967969	+	382	163850324	-	Mext_0891	-	hypothetical protein
868	 67.50	0	968003..968839	+	278	163850325	-	Mext_0892	-	ABC transporter related
869	 69.90	0	968911..969993	+	360	163850326	-	Mext_0893	-	hypothetical protein
870	 71.63	0	970114..970737	+	207	163850327	-	Mext_0894	-	hypothetical protein
871	 73.99	+1	970802..971620	-	272	163850328	-	Mext_0895	-	inositol monophosphatase
872	 71.66	0	971986..972486	+	166	163850329	-	Mext_0896	-	hypothetical protein
873	 72.13	0	972733..973683	-	316	163850330	-	Mext_0897	-	4-hydroxybenzoate polyprenyl transferase
874	 67.83	0	973719..974321	-	200	163850331	-	Mext_0898	-	putative signal peptide
875	 72.24	0	974629..975381	+	250	163850332	-	Mext_0899	-	hypothetical protein
876	 72.26	0	975411..976394	+	327	163850333	-	Mext_0900	-	asparaginase/glutaminase
877	 70.02	0	976581..977951	+	456	163850334	-	Mext_0901	-	glutamate--cysteine ligase
878	 71.05	0	978063..978473	+	136	163850335	-	Mext_0902	-	hypothetical protein
879	 74.74	+1	978535..978819	+	94	163850336	-	Mext_0903	-	SirA family protein
880	 70.19	0	978859..979425	+	188	163850337	-	Mext_0904	-	NUDIX hydrolase
881	 66.67	0	979882..980280	+	132	163850338	-	Mext_0905	-	hypothetical protein
882	 70.98	0	980430..980870	-	146	163850339	-	Mext_0906	-	hypothetical protein
883	 70.85	0	981116..981808	-	230	163850340	-	Mext_0907	-	putative transmembrane signal peptide protein
884	 71.36	0	981805..982017	-	70	163850341	-	Mext_0908	-	hypothetical protein
885	 69.62	0	982072..982749	-	225	163850342	-	Mext_0909	-	hypothetical protein
886	 74.88	+1	982764..983591	-	275	163850343	-	Mext_0910	-	cobalamin 5'-phosphate synthase
887	 73.22	+1	983759..984796	+	345	163850344	-	Mext_0911	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
888	 69.91	0	984803..986344	-	513	163850345	-	Mext_0912	-	ATPase domain-containing protein
889	 68.86	0	986687..987142	+	151	163850346	-	Mext_0913	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
890	 71.13	0	987178..989373	+	731	163850347	-	Mext_0914	-	aldehyde oxidase and xanthine dehydrogenase molybdopterin binding
891	 70.08	0	989554..992952	+	1132	163850348	-	Mext_0915	-	PAS sensor protein
892	 74.48	+1	993040..994281	-	413	163850349	-	Mext_0916	-	amidase
893	 70.61	0	994389..995378	+	329	163850350	-	Mext_0917	-	extensin family protein
894	 69.23	0	995559..996026	+	155	163850351	-	Mext_0918	-	hypothetical protein
895	 71.56	0	996126..996800	+	224	163850352	-	Mext_0919	-	ribonuclease T2
896	 69.89	0	997278..998084	+	268	163850353	-	Mext_0920	-	hypothetical protein
897	 69.63	0	998101..998370	-	89	163850354	-	Mext_0921	-	hypothetical protein
898	 71.43	0	998385..998615	-	76	163850355	-	Mext_0922	-	hypothetical protein
899	 68.27	0	998720..1000153	-	477	163850356	-	Mext_0923	-	FAD linked oxidase domain-containing protein
900	 66.12	0	1000469..1000831	+	120	163850357	-	Mext_0924	-	cytochrome c class I
901	 67.01	0	1000928..1001515	-	195	163850358	-	Mext_0925	-	regulatory protein MarR
902	 73.10	+1	1001959..1002564	-	201	163850359	-	Mext_0926	-	hypothetical protein
903	 74.04	+1	1002561..1003292	-	243	163850360	-	Mext_0927	-	hypothetical protein
904	 67.05	0	1003303..1005657	-	784	163850361	-	Mext_0928	-	1A family penicillin-binding protein
905	 71.83	0	1005911..1006375	+	154	163850362	-	Mext_0929	-	hypothetical protein
906	 71.84	0	1006385..1007041	-	218	163850363	-	Mext_0930	-	GCN5-related N-acetyltransferase
907	 59.42	-2	1007319..1007870	+	183	163850364	-	Mext_0931	-	TadE family protein
908	 66.91	0	1007870..1008703	+	277	163850365	-	Mext_0932	-	hypothetical protein
909	 58.16	-2	1008700..1010121	+	473	163850366	-	Mext_0933	-	hypothetical protein
910	 69.71	0	1010378..1011592	+	404	163850367	-	Mext_0934	-	AFG1 family ATPase
911	 72.57	0	1011589..1012215	-	208	163850368	-	Mext_0935	-	DNA-3-methyladenine glycosylase
912	 71.76	0	1012288..1012974	-	228	163850369	-	Mext_0936	-	ribonuclease H
913	 70.61	0	1013027..1013812	-	261	163850370	-	Mext_0937	-	hypothetical protein
914	 70.55	0	1014525..1014833	+	102	163850371	-	Mext_0938	-	hypothetical protein
915	 68.02	0	1015136..1016098	+	320	163850372	-	Mext_0939	-	glutathione synthetase
916	 71.23	0	1016970..1018547	-	525	163850373	-	Mext_0940	-	sodium/hydrogen exchanger
917	 72.24	0	1018645..1019397	-	250	163850374	-	Mext_0941	-	N-acetylmuramoyl-L-alanine amidase
918	 73.69	+1	1019394..1020119	-	241	163850375	-	Mext_0942	-	heat shock protein DnaJ domain-containing protein
919	 75.19	+1	1020322..1020591	-	89	163850376	-	Mext_0943	-	hypothetical protein
920	 68.86	0	1020823..1021461	+	212	163850377	-	Mext_0944	-	UreE urease accessory domain-containing protein
921	 65.52	0	1021495..1021755	-	86	163850378	-	Mext_0945	-	hypothetical protein
922	 70.05	0	1022583..1023647	+	354	163850379	-	Mext_0946	-	tRNA-dihydrouridine synthase A
923	 69.51	0	1023687..1025831	-	714	163850380	-	Mext_0947	-	diguanylate cyclase
924	 64.46	-1	1026146..1026598	-	150	163850381	-	Mext_0948	-	response regulator receiver
925	 61.54	-1	1026660..1027127	-	155	163850382	-	Mext_0949	-	BLUF domain-containing protein
926	 65.51	0	1027362..1028744	+	460	163850383	-	Mext_0950	-	hypothetical protein
927	 71.88	0	1028771..1030669	+	632	163850384	-	Mext_0951	-	flagellar hook-associated protein FlgK
928	 69.73	0	1030684..1032477	+	597	163850385	-	Mext_0952	-	hypothetical protein
929	 70.70	0	1032577..1033890	-	437	163850386	-	Mext_0953	-	hypothetical protein
930	 73.18	+1	1034415..1035305	-	296	163850387	-	Mext_0954	-	protein-(glutamine-N5) methyltransferase, release factor-specific
931	 69.06	0	1035320..1036405	-	361	163850388	-	Mext_0955	-	peptide chain release factor 1
932	 71.21	0	1036600..1037259	-	219	163850389	-	Mext_0956	-	hypothetical protein
933	 70.11	0	1037305..1039566	-	753	163850390	-	Mext_0957	-	phosphoenolpyruvate-protein phosphotransferase
934	 67.39	0	1039638..1040873	-	411	163850391	-	Mext_0958	-	aspartate kinase
935	 69.51	0	1041254..1041991	+	245	163850392	-	Mext_0959	-	ubiquinone biosynthesis O-methyltransferase
936	 73.30	+1	1042067..1042639	+	190	163850393	-	Mext_0960	-	PEBP family protein
937	 71.05	0	1042776..1043756	+	326	163850394	-	Mext_0961	-	alcohol dehydrogenase
938	 71.75	0	1043998..1044567	-	189	163850395	-	Mext_0962	-	crossover junction endodeoxyribonuclease RuvC
939	 65.58	0	1044657..1045298	-	213	163850396	-	Mext_0963	-	YceI family protein
940	 70.65	0	1045385..1046011	+	208	163850397	-	Mext_0964	-	Holliday junction DNA helicase motor protein
941	 67.00	0	1046028..1046324	-	98	163850398	-	Mext_0965	-	hypothetical protein
942	 54.07	-2	1046402..1046782	+	126	163850399	-	Mext_0966	-	response regulator receiver
943	 69.51	0	1046838..1048211	+	457	163850400	-	Mext_0967	-	diguanylate cyclase
944	 70.89	0	1048229..1048702	-	157	163850401	-	Mext_0968	-	rrf2 family transcriptional regulator
945	 68.47	0	1048770..1050041	+	423	163850402	-	Mext_0969	-	nitric oxide dioxygenase
946	 68.48	0	1050069..1050233	-	54	163850403	-	Mext_0970	-	hypothetical protein
947	 75.84	+1	1050276..1050602	-	108	163850404	-	Mext_0971	-	hypothetical protein
948	 70.12	0	1050592..1050996	-	134	163850405	-	Mext_0972	-	hypothetical protein
949	 67.99	0	1051088..1052068	-	326	163850406	-	Mext_0973	-	cysteine synthase A
950	 71.75	0	1052424..1052600	-	58	163850407	-	Mext_0974	-	hypothetical protein
951	 68.25	0	1052779..1053282	-	167	163850408	-	Mext_0975	-	protein of unknown function DUF306 Meta and HslJ
952	 70.34	0	1053679..1054005	+	108	163850409	-	Mext_0976	-	hypothetical protein
953	 72.46	0	1054015..1055256	-	413	163850410	-	Mext_0977	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
954	 70.00	0	1055253..1056242	-	329	163850411	-	Mext_0978	-	LysR substrate-binding
955	 70.20	0	1056451..1057497	+	348	163850412	-	Mext_0979	-	inositol phosphatase/fructose-16-bisphosphatase
956	 65.16	0	1057645..1058505	+	286	163850413	-	Mext_0980	-	phosphoribulokinase
957	 69.17	0	1058577..1059536	-	319	163850414	-	Mext_0981	-	hypothetical protein
958	 67.30	0	1059652..1060446	-	264	163850415	-	Mext_0982	-	hypothetical protein
959	 72.28	0	1060672..1060938	+	88	163850416	-	Mext_0983	-	hypothetical protein
960	 69.62	0	1060886..1061698	-	270	163850417	-	Mext_0984	-	beta-lactamase-like protein
961	 70.48	0	1062130..1062444	+	104	163850418	-	Mext_0985	-	hypothetical protein
962	 73.49	+1	1062466..1063608	-	380	163850419	-	Mext_0986	-	hypothetical protein
963	 73.71	+1	1063608..1064984	-	458	163850420	-	Mext_0987	-	polysaccharide biosynthesis protein
964	 69.30	0	1065104..1066090	-	328	163850421	-	Mext_0988	-	hypothetical protein
965	 66.75	0	1066009..1067148	-	379	163850422	-	Mext_0989	-	OpgC protein
68.64	MEAN

4.16	STD DEV
