IslandPathversion 1.0

IslandPath Analysis: Methylobacterium extorquens PA1

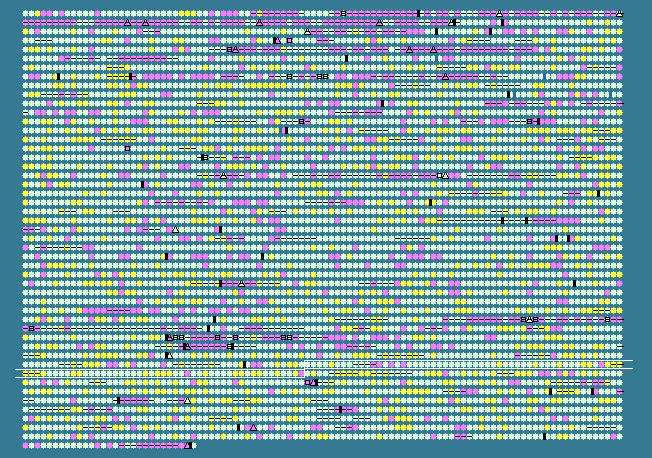

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.64 STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3948	 70.63	0	4446365..4447372	-	335	163853405	-	Mext_4006	-	biotin synthase
3949	 65.37	0	4447566..4447952	+	128	163853406	-	Mext_4007	-	hypothetical protein
3950	 68.93	0	4448203..4449087	-	294	163853407	-	Mext_4008	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
3951	 69.98	0	4449341..4450666	+	441	163853408	-	Mext_4009	-	membrane protein involved in aromatic hydrocarbon degradation
3952	 73.28	+1	4450824..4451624	-	266	163853409	-	Mext_4010	-	prephenate dehydrogenase
3953	 71.11	0	4452025..4454478	+	817	163853410	-	Mext_4011	-	diguanylate cyclase
3954	 67.34	0	4454579..4456222	-	547	163853411	-	Mext_4012	-	radical SAM domain-containing protein
3955	 67.93	0	4456997..4458505	+	502	163853412	-	Mext_4013	-	phosphate-selective porin O and P
3956	 66.86	0	4459372..4459890	+	172	163853413	-	Mext_4015	-	ribosomal protein L10
3957	 67.72	0	4459948..4460325	+	125	163853414	-	Mext_4016	-	50S ribosomal protein L7/L12
3958	 66.16	0	4460587..4464717	+	1376	163853415	-	Mext_4017	-	DNA-directed RNA polymerase subunit beta
3959	 65.10	0	4464896..4469113	+	1405	163853416	-	Mext_4018	-	DNA-directed RNA polymerase subunit beta'
3960	 64.49	0	4469347..4470450	-	367	163853417	-	Mext_4019	-	extracellular solute-binding protein
3961	 68.89	0	4470447..4470806	-	119	163853418	-	Mext_4020	-	endoribonuclease L-PSP
3962	 64.42	-1	4471057..4471323	+	88	163853419	-	Mext_4021	-	transglycosylase-associated protein
3963	 68.68	0	4471433..4472326	-	297	163853420	-	Mext_4022	-	NmrA family protein
3964	 64.23	-1	4472404..4472895	+	163	163853421	-	Mext_4023	-	helix-turn-helix HxlR type
3965	 71.67	0	4472952..4473191	-	79	163853422	-	Mext_4024	-	hypothetical protein
3966	 69.78	0	4473267..4473908	-	213	163853423	-	Mext_4025	-	glutathione S-transferase domain-containing protein
3967	 65.78	0	4474001..4476268	-	755	163853424	-	Mext_4026	-	TonB-dependent siderophore receptor
3968	 67.73	0	4476489..4478747	-	752	163853425	-	Mext_4027	-	polynucleotide phosphorylase/polyadenylase
3969	 65.19	0	4478996..4479265	-	89	163853426	-	Mext_4028	-	ribosomal protein S15
3970	 70.82	0	4479565..4481031	+	488	163853427	-	Mext_4029	-	amino acid permease-associated region
3971	 68.64	0	4481277..4482086	-	269	163853428	-	Mext_4030	-	exodeoxyribonuclease III Xth
3972	 70.92	0	4482155..4482601	-	148	163853429	-	Mext_4031	-	BLUF domain-containing protein
3973	 72.12	0	4482618..4484303	-	561	163853430	-	Mext_4032	-	diguanylate cyclase
3974	 69.73	0	4484522..4485469	-	315	163853431	-	Mext_4033	-	outer membrane lipoprotein carrier protein LolA
3975	 71.89	0	4485669..4489073	-	1134	163853432	-	Mext_4034	-	cell divisionFtsK/SpoIIIE
3976	 70.62	0	4489382..4491454	+	690	163853433	-	Mext_4035	-	NAD synthetase
3977	 71.83	0	4491479..4491943	-	154	163853434	-	Mext_4036	-	response regulator
3978	 68.94	0	4492077..4493177	-	366	163853435	-	Mext_4037	-	PAS sensor protein
3979	 70.46	0	4493569..4495017	+	482	163853436	-	Mext_4038	-	major facilitator transporter
3980	 74.11	+1	4495014..4495940	+	308	163853437	-	Mext_4039	-	hypothetical protein
3981	 71.90	0	4495950..4497134	-	394	163853438	-	Mext_4040	-	hypothetical protein
3982	 69.97	0	4497215..4497820	+	201	163853439	-	Mext_4041	-	NnrU family protein
3983	 71.31	0	4498210..4498920	+	236	163853440	-	Mext_4042	-	hypothetical protein
3984	 70.62	0	4499007..4500347	+	446	163853441	-	Mext_4043	-	small GTP-binding protein
3985	 71.68	0	4500501..4501418	+	305	163853442	-	Mext_4044	-	hypothetical protein
3986	 72.18	0	4501422..4502546	-	374	163853443	-	Mext_4045	-	glutamate--cysteine ligase GCS2
3987	 70.78	0	4502787..4503686	+	299	163853444	-	Mext_4046	-	formamidopyrimidine-DNA glycosylase
3988	 71.71	0	4503853..4504110	+	85	163853445	-	Mext_4047	-	hypothetical protein
3989	 69.68	0	4504256..4504720	+	154	163853446	-	Mext_4048	-	hypothetical protein
3990	 72.17	0	4504710..4505618	+	302	163853447	-	Mext_4049	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
3991	 69.68	0	4505907..4507466	+	519	163853448	-	Mext_4050	-	beta-lactamase
3992	 71.98	0	4507558..4509909	-	783	163853449	-	Mext_4051	-	PAS sensor protein
3993	 70.78	0	4510015..4510743	-	242	163853450	-	Mext_4052	-	glutathione S-transferase-like protein
3994	 73.30	+1	4510763..4511440	-	225	163853451	-	Mext_4053	-	hypothetical protein
3995	 72.44	0	4511530..4511841	-	103	163853452	-	Mext_4054	-	hypothetical protein
3996	 67.80	0	4511959..4514685	-	908	163853453	-	Mext_4055	-	excinuclease ABC subunit B
3997	 63.82	-1	4515053..4515439	+	128	163853454	-	Mext_4056	-	PilT domain-containing protein
3998	 72.65	0	4515446..4516063	-	205	163853455	-	Mext_4057	-	LysR substrate-binding
3999	 74.27	+1	4516186..4516356	-	56	163853456	-	Mext_4058	-	hypothetical protein
4000	 72.73	0	4516478..4516873	+	131	163853457	-	Mext_4059	-	DoxX family protein
4001	 72.29	0	4516899..4517396	+	165	163853458	-	Mext_4060	-	glyoxalase/bleomycin resistance protein/dioxygenase
4002	 72.97	+1	4517475..4518140	+	221	163853459	-	Mext_4061	-	hypothetical protein
4003	 72.52	0	4518127..4518570	+	147	163853460	-	Mext_4062	-	hypothetical protein
4004	 74.12	+1	4518642..4519352	+	236	163853461	-	Mext_4063	-	undecaprenyl diphosphate synthase
4005	 70.60	0	4519442..4520968	+	508	163853462	-	Mext_4064	-	magnesium-protoporphyrin IX monomethyl ester anaerobic oxidative cyclase
4006	 70.09	0	4520995..4521579	+	194	163853463	-	Mext_4065	-	ankyrin
4007	 70.52	0	4521667..4523172	+	501	163853464	-	Mext_4066	-	glycerol kinase
4008	 69.07	0	4523172..4524335	+	387	163853465	-	Mext_4067	-	hypothetical protein
4009	 72.58	0	4524451..4526226	+	591	163853466	-	Mext_4068	-	chemotaxis sensory transducer
4010	 74.02	+1	4526292..4527053	-	253	163853467	-	Mext_4069	-	glycerophosphoryl diester phosphodiesterase
4011	 70.55	0	4527050..4527538	-	162	163853468	-	Mext_4070	-	endoribonuclease L-PSP
4012	 70.26	0	4527603..4529774	-	723	163853469	-	Mext_4071	-	ABC transporter related
4013	 71.71	0	4529771..4531060	-	429	163853470	-	Mext_4072	-	secretion protein HlyD family protein
4014	 67.02	0	4531441..4532007	-	188	163853471	-	Mext_4073	-	hypothetical protein
4015	 71.32	0	4532070..4532972	+	300	163853472	-	Mext_4074	-	helix-turn-helix domain-containing protein
4016	 71.12	0	4533186..4534376	+	396	163853473	-	Mext_4075	-	acetylornithine and succinylornithine aminotransferase
4017	 69.49	0	4534363..4535355	+	330	163853474	-	Mext_4076	-	ornithine carbamoyltransferase
4018	 69.66	0	4535792..4536259	-	155	163853475	-	Mext_4077	-	activator of Hsp90 ATPase 1 family protein
4019	 68.92	0	4536279..4536722	-	147	163853476	-	Mext_4078	-	glyoxalase/bleomycin resistance protein/dioxygenase
4020	 68.28	0	4536988..4537794	+	268	163853477	-	Mext_4079	-	short-chain dehydrogenase/reductase SDR
4021	 72.67	0	4537798..4539180	+	460	163853478	-	Mext_4080	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
4022	 70.50	0	4539344..4542031	+	895	163853479	-	Mext_4081	-	histidine kinase dimerisation/phosphoacceptor
4023	 74.73	+1	4542039..4542596	+	185	163853480	-	Mext_4082	-	heme oxygenase
4024	 75.00	+1	4542662..4543825	-	387	163853481	-	Mext_4083	-	hypothetical protein
4025	 73.09	+1	4543818..4544222	-	134	163853482	-	Mext_4084	-	hypothetical protein
4026	 66.89	0	4544568..4545914	+	448	163853483	-	Mext_4085	-	capsule polysaccharide export protein-like protein
4027	 67.02	0	4546069..4546353	+	94	163853484	-	Mext_4086	-	hypothetical protein
4028	 64.12	-1	4546545..4547525	+	326	163853485	-	Mext_4087	-	hypothetical protein
4029	 71.54	0	4547558..4548931	-	457	163853486	-	Mext_4088	-	sigma-54 factor interaction domain-containing protein
4030	 68.39	0	4549085..4549432	-	115	163853487	-	Mext_4089	-	flagellar motor switch protein FliN
4031	 76.71	+1	4549438..4550064	-	208	163853488	-	Mext_4090	-	flagellar assembly protein H
4032	 66.00	0	4550061..4551116	-	351	163853489	-	Mext_4091	-	flagellar motor switch protein G
4033	 70.30	0	4551160..4552782	-	540	163853490	-	Mext_4092	-	flagellar MS-ring protein
4034	 66.30	0	4553043..4553318	-	91	163853491	-	Mext_4093	-	hypothetical protein
4035	 67.11	0	4553460..4554140	-	226	163853492	-	Mext_4094	-	flagellar hook capping protein
4036	 75.00	+1	4554150..4555541	-	463	163853493	-	Mext_4095	-	flagellar hook-length control protein
4037	 72.51	0	4555800..4557032	+	410	163853494	-	Mext_4096	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
4038	 70.93	0	4557288..4557944	+	218	163853495	-	Mext_4097	-	phosphatidylethanolamine N-methyltransferase
4039	 72.56	0	4557983..4558831	+	282	163853496	-	Mext_4098	-	SNARE associated Golgi protein
4040	 73.50	+1	4558954..4560489	+	511	163853497	-	Mext_4099	-	ATPase domain-containing protein
4041	 68.15	0	4560554..4561294	-	246	163853498	-	Mext_4100	-	carbonic anhydrase
4042	 66.86	0	4561604..4563181	-	525	163853499	-	Mext_4101	-	EmrB/QacA family drug resistance transporter
4043	 73.63	+1	4563377..4564582	-	401	163853500	-	Mext_4102	-	secretion protein HlyD family protein
4044	 68.63	0	4564723..4565385	+	220	163853501	-	Mext_4103	-	regulatory protein TetR
4045	 71.54	0	4565392..4567155	-	587	163853502	-	Mext_4104	-	acyl-CoA dehydrogenase domain-containing protein
4046	 76.06	+1	4567266..4568255	+	329	163853503	-	Mext_4105	-	Sua5/YciO/YrdC/YwlC family protein
4047	 59.92	-2	4568299..4568802	-	167	163853504	-	Mext_4106	-	hypothetical protein
68.64	MEAN

4.16	STD DEV
