IslandPath Analysis: Methylobacterium extorquens PA1

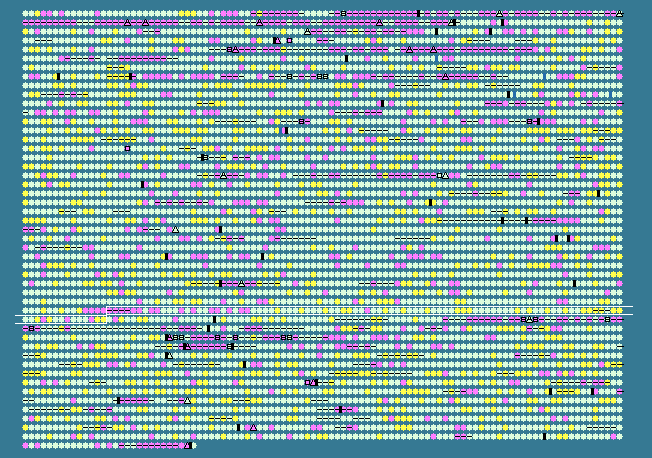

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.64 STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3315	 62.14	-1	3722801..3723286	+	161	163852772	-	Mext_3358	-	hypothetical protein
3316	 62.86	-1	3723581..3724027	-	148	163852773	-	Mext_3359	-	hypothetical protein
3317	 62.60	-1	3724112..3724357	-	81	163852774	-	Mext_3360	-	hypothetical protein
3318	 64.06	-1	3724354..3724698	-	114	163852775	-	Mext_3361	-	hypothetical protein
3319	 63.38	-1	3725376..3727412	+	678	163852776	-	Mext_3362	-	PAS sensor protein
3320	 63.25	-1	3727493..3727873	-	126	163852777	-	Mext_3363	-	response regulator receiver
3321	 68.15	0	3727933..3728268	+	111	163852778	-	Mext_3364	-	signal transduction histidine kinase
3322	 64.80	0	3728490..3729452	-	320	163852779	-	Mext_3365	-	LysR substrate-binding
3323	 62.56	-1	3729755..3730948	+	397	163852780	-	Mext_3366	-	extracellular ligand-binding receptor
3324	 66.21	0	3731075..3731950	+	291	163852781	-	Mext_3367	-	inner-membrane translocator
3325	 67.56	0	3731947..3733728	+	593	163852782	-	Mext_3368	-	ABC transporter related
3326	 69.11	0	3733728..3734465	+	245	163852783	-	Mext_3369	-	ABC transporter related
3327	 64.39	-1	3734547..3735248	+	233	163852784	-	Mext_3370	-	cyclase family protein
3328	 70.35	0	3735303..3736712	+	469	163852785	-	Mext_3371	-	amidase
3329	 63.82	-1	3737251..3738303	-	350	163852786	-	Mext_3372	-	acylamide amidohydrolase
3330	 65.71	0	3738378..3739838	-	486	163852787	-	Mext_3373	-	carbohydrate-selective porin OprB
3331	 71.07	0	3740005..3740322	-	105	163852788	-	Mext_3374	-	FmdB family regulatory protein
3332	 64.63	0	3740387..3741616	-	409	163852789	-	Mext_3375	-	formamidase
3333	 63.91	-1	3741780..3742796	-	338	163852790	-	Mext_3376	-	hypothetical protein
3334	 65.33	0	3742808..3743554	-	248	163852791	-	Mext_3377	-	urea ABC transporter, ATP-binding protein UrtE
3335	 63.88	-1	3743568..3744356	-	262	163852792	-	Mext_3378	-	urea ABC transporter, ATP-binding protein UrtD
3336	 65.23	0	3744368..3745549	-	393	163852793	-	Mext_3379	-	urea ABC transporter, permease protein UrtC
3337	 64.62	0	3745563..3746489	-	308	163852794	-	Mext_3380	-	urea ABC transporter, permease protein UrtB
3338	 63.80	-1	3746599..3747852	-	417	163852795	-	Mext_3381	-	ABC transporter substrate-binding protein
3339	 70.02	0	3748310..3751525	+	1071	163852796	-	Mext_3382	-	ATPase domain-containing protein
3340	 71.10	0	3751518..3752420	+	300	163852797	-	Mext_3383	-	response regulator receiver
3341	 69.78	0	3752936..3753739	+	267	163852798	-	Mext_3384	-	invasion associated locus B family protein
3342	 70.36	0	3754290..3755048	+	252	163852799	-	Mext_3385	-	precorrin 6A synthase
3343	 74.27	+1	3755270..3756610	+	446	163852800	-	Mext_3386	-	hypothetical protein
3344	 71.11	0	3756630..3757259	-	209	163852801	-	Mext_3387	-	hypothetical protein
3345	 67.10	0	3757557..3758246	+	229	163852802	-	Mext_3388	-	cobyrinic acid ac-diamide synthase
3346	 70.90	0	3758230..3758583	+	117	163852803	-	Mext_3389	-	hypothetical protein
3347	 72.91	+1	3758849..3760273	+	474	163852804	-	Mext_3390	-	rare lipoprotein A
3348	 71.93	0	3760449..3762347	-	632	163852805	-	Mext_3391	-	hypothetical protein
3349	 66.36	0	3762540..3762866	-	108	163852806	-	Mext_3392	-	iron-sulfur cluster assembly accessory protein
3350	 70.49	0	3762993..3764246	+	417	163852807	-	Mext_3393	-	deoxyguanosinetriphosphate triphosphohydrolase
3351	 72.89	+1	3764274..3764819	-	181	163852808	-	Mext_3394	-	hypothetical protein
3352	 70.78	0	3764964..3765425	+	153	163852809	-	Mext_3395	-	thioesterase superfamily protein
3353	 67.12	0	3765520..3767277	+	585	163852810	-	Mext_3396	-	arginyl-tRNA synthetase
3354	 74.35	+1	3767307..3768725	+	472	163852811	-	Mext_3397	-	sporulation domain-containing protein
3355	 72.19	0	3768935..3769966	+	343	163852812	-	Mext_3398	-	Beta-N-acetylhexosaminidase
3356	 69.79	0	3770232..3770519	+	95	163852813	-	Mext_3399	-	twin arginine-targeting protein translocase
3357	 69.26	0	3770664..3771125	+	153	163852814	-	Mext_3400	-	twin-arginine translocation protein, TatB subunit
3358	 63.30	-1	3771122..3771922	+	266	163852815	-	Mext_3401	-	Sec-independent protein translocase, TatC subunit
3359	 68.81	0	3772072..3772770	+	232	163852816	-	Mext_3402	-	hypothetical protein
3360	 71.77	0	3772777..3773952	-	391	163852817	-	Mext_3403	-	major facilitator transporter
3361	 72.63	0	3774385..3774954	+	189	163852818	-	Mext_3404	-	NADPH-dependent FMN reductase
3362	 71.75	0	3774956..3775939	+	327	163852819	-	Mext_3405	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
3363	 68.99	0	3775936..3776796	+	286	163852820	-	Mext_3406	-	binding-protein-dependent transport systems inner membrane component
3364	 73.86	+1	3776836..3777627	+	263	163852821	-	Mext_3407	-	ABC transporter related
3365	 69.73	0	3777656..3778831	+	391	163852822	-	Mext_3408	-	alkanesulfonate monooxygenase
3366	 69.85	0	3778850..3779824	+	324	163852823	-	Mext_3409	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
3367	 70.61	0	3779924..3780886	+	320	163852824	-	Mext_3410	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
3368	 74.98	+1	3780921..3782303	+	460	163852825	-	Mext_3411	-	pyridine nucleotide-disulfide oxidoreductase family protein
3369	 69.52	0	3782638..3782847	+	69	163852826	-	Mext_3412	-	hypothetical protein
3370	 71.28	0	3783087..3783779	+	230	163852827	-	Mext_3413	-	hypothetical protein
3371	 67.87	0	3783895..3785055	-	386	163852828	-	Mext_3414	-	hypothetical protein
3372	 70.61	0	3785236..3788586	+	1116	163852829	-	Mext_3415	-	transglutaminase domain-containing protein
3373	 74.31	+1	3788583..3791186	+	867	163852830	-	Mext_3416	-	hypothetical protein
3374	 73.42	+1	3791183..3792085	+	300	163852831	-	Mext_3417	-	transglutaminase domain-containing protein
3375	 73.84	+1	3792099..3792767	-	222	163852832	-	Mext_3418	-	regulatory protein TetR
3376	 70.45	0	3792849..3793589	+	246	163852833	-	Mext_3419	-	short-chain dehydrogenase/reductase SDR
3377	 69.87	0	3793629..3794906	-	425	163852834	-	Mext_3420	-	major facilitator transporter
3378	 68.88	0	3795125..3795712	-	195	163852835	-	Mext_3421	-	hypothetical protein
3379	 72.05	0	3795957..3797738	+	593	163852836	-	Mext_3422	-	beta-lactamase
3380	 66.73	0	3797926..3799449	+	507	163852837	-	Mext_3423	-	aldehyde dehydrogenase
3381	 66.19	0	3799939..3801615	+	558	163852838	-	Mext_3424	-	chemotaxis sensory transducer
3382	 71.99	0	3801726..3803021	-	431	163852839	-	Mext_3425	-	Orn/DAP/Arg decarboxylase 2
3383	 72.13	0	3803307..3804824	-	505	163852840	-	Mext_3426	-	AMP-dependent synthetase and ligase
3384	 65.53	0	3804844..3805107	-	87	163852841	-	Mext_3427	-	hypothetical protein
3385	 74.24	+1	3805317..3805844	+	175	163852842	-	Mext_3428	-	DoxX family protein
3386	 70.24	0	3805801..3807282	-	493	163852843	-	Mext_3429	-	major facilitator transporter
3387	 72.07	0	3807612..3808499	+	295	163852844	-	Mext_3430	-	hypothetical protein
3388	 72.15	0	3808583..3810388	-	601	163852845	-	Mext_3431	-	adenine deaminase
3389	 70.69	0	3810473..3811192	-	239	163852846	-	Mext_3432	-	ribosomal RNA methyltransferase RrmJ/FtsJ
3390	 71.54	0	3811335..3812462	-	375	163852847	-	Mext_3433	-	Ppx/GppA phosphatase
3391	 73.47	+1	3812609..3813769	-	386	163852848	-	Mext_3434	-	glycosyl transferase family protein
3392	 72.06	0	3813766..3814581	-	271	163852849	-	Mext_3435	-	phospholipid/glycerol acyltransferase
3393	 67.71	0	3814593..3816131	-	512	163852850	-	Mext_3436	-	phytoene desaturase
3394	 72.66	0	3816230..3817147	-	305	163852851	-	Mext_3437	-	glutamine amidotransferase class-I
3395	 72.70	0	3817238..3818464	-	408	163852852	-	Mext_3438	-	ABC-2 type transporter
3396	 75.54	+1	3818461..3819429	-	322	163852853	-	Mext_3439	-	ABC transporter related
3397	 76.92	+1	3819437..3819865	-	142	163852854	-	Mext_3440	-	hypothetical protein
3398	 67.80	0	3819865..3821457	-	530	163852855	-	Mext_3441	-	phytoene desaturase
3399	 72.73	0	3821570..3823069	-	499	163852856	-	Mext_3442	-	hypothetical protein
3400	 73.70	+1	3823184..3823993	-	269	163852857	-	Mext_3443	-	tRNA/rRNA methyltransferase (SpoU)
3401	 69.20	0	3824063..3824536	-	157	163852858	-	Mext_3444	-	dehydratase
3402	 72.01	0	3824736..3825353	+	205	163852859	-	Mext_3445	-	cation efflux protein
3403	 73.38	+1	3825390..3826238	+	282	163852860	-	Mext_3446	-	metallophosphoesterase
3404	 64.86	0	3826331..3826552	+	73	163852861	-	Mext_3447	-	hypothetical protein
3405	 74.37	+1	3826677..3827819	+	380	163852862	-	Mext_3448	-	hypothetical protein
3406	 71.73	0	3827870..3828481	+	203	163852863	-	Mext_3449	-	glutathione S-transferase domain-containing protein
3407	 68.08	0	3828652..3828864	+	70	163852864	-	Mext_3450	-	hypothetical protein
3408	 64.99	0	3829057..3830250	-	397	163852865	-	Mext_3451	-	non-specific serine/threonine protein kinase
3409	 71.02	0	3830402..3831595	+	397	163852866	-	Mext_3452	-	membrane protein
3410	 67.63	0	3831586..3832209	+	207	163852867	-	Mext_3453	-	toluene tolerance family protein
3411	 68.42	0	3832393..3833589	+	398	163852868	-	Mext_3454	-	putative glucosyltransferase
3412	 63.72	-1	3833647..3835071	+	474	163852869	-	Mext_3455	-	hopanoid biosynthesis associated radical SAM protein HpnJ
3413	 73.07	+1	3835201..3836043	+	280	163852870	-	Mext_3456	-	hopanoid biosynthesis associated protein HpnK
3414	 72.82	+1	3836287..3836790	+	167	163852871	-	Mext_3457	-	hypothetical protein
68.64	MEAN

4.16	STD DEV
