IslandPath Analysis: Methylobacterium extorquens PA1

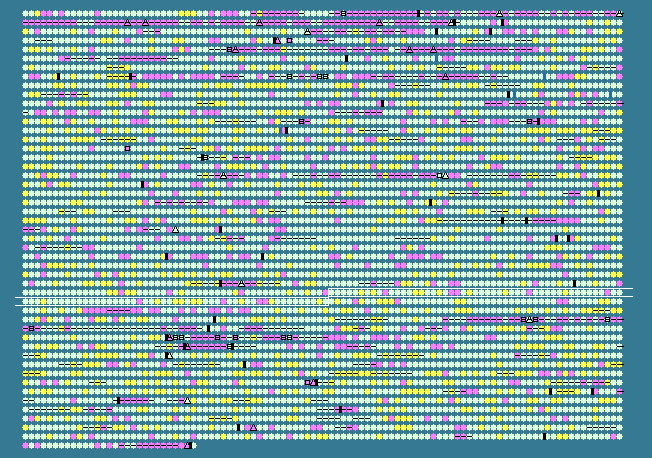

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.64 STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3152	 70.22	0	3546035..3546625	-	196	163852609	-	Mext_3194	-	orotate phosphoribosyltransferase
3153	 69.83	0	3546842..3547189	-	115	163852610	-	Mext_3195	-	hypothetical protein
3154	 68.50	0	3547304..3549535	-	743	163852611	-	Mext_3196	-	RelA/SpoT family protein
3155	 67.40	0	3549907..3550317	-	136	163852612	-	Mext_3197	-	DNA-directed RNA polymerase subunit omega
3156	 69.31	0	3550521..3551087	+	188	163852613	-	Mext_3198	-	scaffold protein Nfu/NifU
3157	 72.25	0	3551245..3551925	+	226	163852614	-	Mext_3199	-	peptidase M22 glycoprotease
3158	 70.42	0	3551991..3552443	+	150	163852615	-	Mext_3200	-	GCN5-related N-acetyltransferase
3159	 72.92	+1	3552469..3553347	+	292	163852616	-	Mext_3201	-	phospholipid/glycerol acyltransferase
3160	 70.50	0	3553352..3553795	-	147	163852617	-	Mext_3202	-	MEKHLA domain-containing protein
3161	 59.28	-2	3553894..3554340	+	148	163852618	-	Mext_3203	-	hypothetical protein
3162	 69.65	0	3554572..3555912	+	446	163852619	-	Mext_3204	-	RNA modification protein
3163	 69.74	0	3555949..3557055	+	368	163852620	-	Mext_3205	-	PhoH family protein
3164	 65.64	0	3557125..3557610	+	161	163852621	-	Mext_3206	-	hypothetical protein
3165	 72.06	0	3557647..3558795	+	382	163852622	-	Mext_3207	-	CBS domain-containing protein
3166	 72.36	0	3558824..3560527	+	567	163852623	-	Mext_3208	-	apolipoprotein N-acyltransferase
3167	 73.15	+1	3560710..3561480	+	256	163852624	-	Mext_3209	-	hypothetical protein
3168	 66.29	0	3561607..3563199	-	530	163852625	-	Mext_3210	-	catalase
3169	 71.30	0	3563347..3564318	+	323	163852626	-	Mext_3211	-	LysR substrate-binding
3170	 75.09	+1	3564472..3565527	+	351	163852627	-	Mext_3212	-	membrane protein AbrB duplication
3171	 69.28	0	3565524..3565868	+	114	163852628	-	Mext_3213	-	diacylglycerol kinase
3172	 65.15	0	3565891..3566088	-	65	163852629	-	Mext_3214	-	hypothetical protein
3173	 61.69	-1	3566085..3566285	-	66	163852630	-	Mext_3215	-	hypothetical protein
3174	 70.61	0	3566560..3567117	+	185	163852631	-	Mext_3216	-	metallophosphoesterase
3175	 72.26	0	3567127..3568002	-	291	163852632	-	Mext_3217	-	glutamate racemase
3176	 69.75	0	3568213..3569475	+	420	163852633	-	Mext_3218	-	hypothetical protein
3177	 70.76	0	3569533..3570510	+	325	163852634	-	Mext_3219	-	hypothetical protein
3178	 65.59	0	3570785..3572926	+	713	163852635	-	Mext_3220	-	hypothetical protein
3179	 69.16	0	3572976..3573416	-	146	163852636	-	Mext_3221	-	hypothetical protein
3180	 71.91	0	3573639..3576326	+	895	163852637	-	Mext_3222	-	nitrate reductase
3181	 73.94	+1	3576442..3577899	+	485	163852638	-	Mext_3223	-	uroporphyrin-III C-methyltransferase
3182	 68.72	0	3578107..3578787	+	226	163852639	-	Mext_3224	-	electron transport protein SCO1/SenC
3183	 71.58	0	3578738..3580528	-	596	163852640	-	Mext_3225	-	glycosyl transferase family protein
3184	 66.13	0	3580704..3581627	+	307	163852641	-	Mext_3226	-	extracellular solute-binding protein
3185	 62.80	-1	3581723..3581929	+	68	163852642	-	Mext_3227	-	hypothetical protein
3186	 66.91	0	3581953..3582363	-	136	163852643	-	Mext_3228	-	hypothetical protein
3187	 70.28	0	3582457..3584364	-	635	163852644	-	Mext_3229	-	cobalt chelatase, pCobT subunit
3188	 65.35	0	3584485..3585468	-	327	163852645	-	Mext_3230	-	cobalt chelatase, pCobS small subunit
3189	 70.62	0	3585808..3586515	-	235	163852646	-	Mext_3231	-	heat shock protein DnaJ domain-containing protein
3190	 69.72	0	3586602..3586961	+	119	163852647	-	Mext_3232	-	BolA family protein
3191	 73.76	+1	3586993..3587415	+	140	163852648	-	Mext_3233	-	class I peptide chain release factor
3192	 68.38	0	3587429..3588187	-	252	163852649	-	Mext_3234	-	hypothetical protein
3193	 71.49	0	3588223..3589218	-	331	163852650	-	Mext_3235	-	methyltransferase type 12
3194	 69.78	0	3589264..3590322	+	352	163852651	-	Mext_3236	-	putative mRNA 3-end processing factor
3195	 70.52	0	3590319..3592160	+	613	163852652	-	Mext_3237	-	ATP dependent DNA ligase
3196	 69.15	0	3592157..3592639	+	160	163852653	-	Mext_3238	-	hypothetical protein
3197	 71.59	0	3592648..3593094	-	148	163852654	-	Mext_3239	-	hypothetical protein
3198	 56.97	-2	3593217..3593381	-	54	163852655	-	Mext_3240	-	hypothetical protein
3199	 68.48	0	3593484..3595685	-	733	163852656	-	Mext_3241	-	3-hydroxyacyl-CoA dehydrogenase NAD-binding
3200	 69.25	0	3595753..3596604	+	283	163852657	-	Mext_3242	-	EAL domain-containing protein
3201	 65.86	0	3596680..3597177	-	165	163852658	-	Mext_3243	-	hypothetical protein
3202	 69.89	0	3597305..3598513	-	402	163852659	-	Mext_3244	-	acetyl-CoA acetyltransferase
3203	 68.45	0	3598700..3600490	-	596	163852660	-	Mext_3245	-	acyl-CoA dehydrogenase domain-containing protein
3204	 73.41	+1	3600696..3604133	+	1145	163852661	-	Mext_3246	-	Sel1 domain-containing protein
3205	 71.56	0	3604584..3604910	+	108	163852662	-	Mext_3247	-	hypothetical protein
3206	 69.84	0	3604968..3605912	-	314	163852663	-	Mext_3248	-	hypothetical protein
3207	 70.71	0	3606050..3606568	+	172	163852664	-	Mext_3249	-	hypothetical protein
3208	 70.90	0	3606565..3607368	+	267	163852665	-	Mext_3250	-	phosphoesterase PA-phosphatase related
3209	 70.49	0	3607424..3608731	+	435	163852666	-	Mext_3251	-	oxidoreductase domain-containing protein
3210	 68.71	0	3608843..3608989	-	48	163852667	-	Mext_3252	-	hypothetical protein
3211	 70.99	0	3609070..3610365	-	431	163852668	-	Mext_3253	-	processing peptidase
3212	 68.86	0	3610587..3611999	-	470	163852669	-	Mext_3254	-	threonine synthase
3213	 69.57	0	3612085..3612498	-	137	163852670	-	Mext_3255	-	hypothetical protein
3214	 70.95	0	3612595..3613365	-	256	163852671	-	Mext_3256	-	Surfeit locus 1 family protein
3215	 70.40	0	3613365..3613739	-	124	163852672	-	Mext_3257	-	hypothetical protein
3216	 66.43	0	3613866..3614723	-	285	163852673	-	Mext_3258	-	cytochrome c oxidase subunit III
3217	 67.16	0	3614870..3615478	-	202	163852674	-	Mext_3259	-	cytochrome c oxidase assembly protein CtaG/Cox11
3218	 67.27	0	3615491..3615655	-	54	163852675	-	Mext_3260	-	protein CoxF
3219	 69.50	0	3615664..3616617	-	317	163852676	-	Mext_3261	-	protoheme IX farnesyltransferase
3220	 64.70	0	3616783..3618411	-	542	163852677	-	Mext_3262	-	cytochrome c oxidase, subunit I
3221	 66.19	0	3618489..3619328	-	279	163852678	-	Mext_3263	-	cytochrome c oxidase, subunit II
3222	 70.78	0	3619584..3620459	+	291	163852679	-	Mext_3264	-	formate dehydrogenase family accessory protein FdhD
3223	 72.91	+1	3620486..3621526	-	346	163852680	-	Mext_3265	-	hypothetical protein
3224	 68.04	0	3622149..3626867	+	1572	163852681	-	Mext_3266	-	glutamate synthase (ferredoxin)
3225	 68.27	0	3626991..3628424	+	477	163852682	-	Mext_3267	-	glutamate synthase, NADH/NADPH, small subunit
3226	 72.73	0	3628503..3629459	-	318	163852683	-	Mext_3268	-	beta-lactamase domain-containing protein
3227	 75.32	+1	3629629..3630969	+	446	163852684	-	Mext_3269	-	ATPase domain-containing protein
3228	 71.49	0	3630975..3631637	+	220	163852685	-	Mext_3270	-	response regulator receiver
3229	 74.62	+1	3631665..3633122	-	485	163852686	-	Mext_3271	-	hypothetical protein
3230	 72.93	+1	3633393..3634574	-	393	163852687	-	Mext_3272	-	lytic murein transglycosylase
3231	 68.48	0	3634571..3635563	-	330	163852688	-	Mext_3273	-	UDP-glucose 4-epimerase
3232	 65.74	0	3635736..3636602	+	288	163852689	-	Mext_3274	-	UTP-glucose-1-phosphate uridylyltransferase
3233	 68.23	0	3636844..3637740	-	298	163852690	-	Mext_3275	-	N-formylglutamate amidohydrolase
3234	 61.62	-1	3638047..3638403	+	118	163852691	-	Mext_3276	-	response regulator receiver
3235	 68.99	0	3638526..3638783	+	85	163852692	-	Mext_3277	-	glutaredoxin 3
3236	 70.21	0	3638780..3639625	+	281	163852693	-	Mext_3278	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
3237	 72.54	0	3639746..3640222	+	158	163852694	-	Mext_3279	-	hypothetical protein
3238	 69.95	0	3640241..3641305	-	354	163852695	-	Mext_3280	-	PAS sensor protein
3239	 67.88	0	3641480..3642139	+	219	163852696	-	Mext_3281	-	peptide methionine sulfoxide reductase
3240	 62.10	-1	3642244..3642747	+	167	163852697	-	Mext_3282	-	hypothetical protein
3241	 62.75	-1	3642834..3643292	-	152	163852698	-	Mext_3283	-	hypothetical protein
3242	 73.55	+1	3643324..3644253	-	309	163852699	-	Mext_3284	-	penicillin-insensitive murein endopeptidase
3243	 69.95	0	3644380..3644775	+	131	163852700	-	Mext_3285	-	PRC-barrel domain-containing protein
3244	 70.11	0	3644806..3645153	-	115	163852701	-	Mext_3286	-	hypothetical protein
3245	 70.77	0	3645239..3646480	-	413	163852702	-	Mext_3287	-	Na+/H+ antiporter NhaA
3246	 71.50	0	3646552..3647193	-	213	163852703	-	Mext_3288	-	redoxin domain-containing protein
3247	 70.33	0	3647233..3648624	+	463	163852704	-	Mext_3289	-	argininosuccinate lyase
3248	 69.87	0	3648721..3649032	+	103	163852705	-	Mext_3290	-	hypothetical protein
3249	 71.05	0	3649188..3649871	+	227	163852706	-	Mext_3291	-	hypothetical protein
3250	 72.73	0	3650031..3650294	-	87	163852707	-	Mext_3292	-	hypothetical protein
3251	 71.95	0	3650736..3651473	-	245	163852708	-	Mext_3293	-	HAD family hydrolase
68.64	MEAN

4.16	STD DEV
