IslandPath Analysis: Methylobacterium extorquens PA1

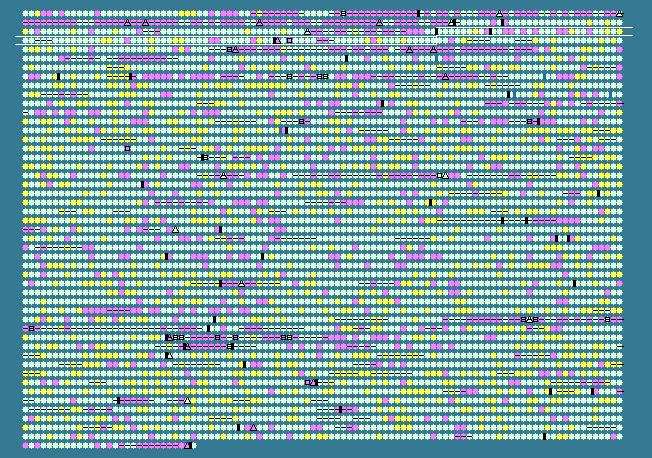

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.64 STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
270	 68.87	0	308527..309840	+	437	163849727	-	Mext_0275	-	recombination factor protein RarA
271	 70.95	0	309876..311369	+	497	163849728	-	Mext_0276	-	carboxypeptidase Taq
272	 69.79	0	311466..312779	+	437	163849729	-	Mext_0277	-	molecular chaperone, HSP70 class
273	 71.43	0	313007..314413	+	468	163849730	-	Mext_0278	-	RluA family pseudouridine synthase
274	 70.92	0	314497..314919	+	140	163849731	-	Mext_0279	-	hypothetical protein
275	 67.52	0	315058..315759	+	233	163849732	-	Mext_0280	-	HAD family hydrolase
276	 72.76	0	315820..316623	+	267	163849733	-	Mext_0281	-	ATP12 ATPase
277	 66.01	0	317218..318750	+	510	163849734	-	Mext_0282	-	carboxyl transferase
278	 65.05	0	318812..319366	-	184	163849735	-	Mext_0283	-	hypothetical protein
279	 68.67	0	319803..320450	+	215	163849736	-	Mext_0284	-	regulatory protein TetR
280	 65.39	0	320484..321503	+	339	163849737	-	Mext_0285	-	ketol-acid reductoisomerase
281	 64.22	-1	321671..322324	+	217	163849738	-	Mext_0286	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
282	 64.48	0	322436..323260	+	274	163849739	-	Mext_0287	-	hypothetical protein
283	 67.51	0	323333..324631	-	432	163849740	-	Mext_0288	-	crotonyl-CoA reductase
284	 64.22	-1	324812..326284	-	490	163849741	-	Mext_0289	-	catalase
285	 67.59	0	326651..328717	+	688	163849742	-	Mext_0290	-	methylmalonyl-CoA mutase, large subunit
286	 63.17	-1	328827..329513	-	228	163849743	-	Mext_0291	-	hypothetical protein
287	 67.68	0	329810..330598	-	262	163849744	-	Mext_0292	-	short-chain dehydrogenase/reductase SDR
288	 68.48	0	330665..330994	+	109	163849745	-	Mext_0293	-	regulatory protein ArsR
289	 66.76	0	331146..332207	+	353	163849746	-	Mext_0294	-	tryptophanyl-tRNA synthetase
290	 64.94	0	332221..332394	-	57	163849747	-	Mext_0295	-	hypothetical protein
291	 63.70	-1	332554..333159	+	201	163849748	-	Mext_0296	-	3-isopropylmalate dehydratase, small subunit
292	 73.30	+1	333167..333784	-	205	163849749	-	Mext_0297	-	peptidase C15 pyroglutamyl peptidase I
293	 72.05	0	333781..334821	-	346	163849750	-	Mext_0298	-	arginine/ornithine transport system ATPase
294	 71.98	0	334917..335951	+	344	163849751	-	Mext_0299	-	protein of unknown function DUF900 hydrolase family protein
295	 63.79	-1	336137..336484	+	115	163849752	-	Mext_0300	-	hypothetical protein
296	 70.33	0	336562..338442	-	626	163849753	-	Mext_0301	-	peptidase S9 prolyl oligopeptidase
297	 67.97	0	338511..339428	-	305	163849754	-	Mext_0302	-	ErfK/YbiS/YcfS/YnhG family protein
298	 75.29	+1	339770..340024	+	84	163849755	-	Mext_0303	-	hypothetical protein
299	 71.55	0	340156..341403	+	415	163849756	-	Mext_0304	-	nuclease SbcCD, D subunit
300	 75.50	+1	341415..345161	+	1248	163849757	-	Mext_0305	-	SMC domain-containing protein
301	 66.74	0	345364..346683	+	439	163849758	-	Mext_0306	-	major facilitator transporter
302	 69.40	0	346765..347532	-	255	163849759	-	Mext_0307	-	competence protein F
303	 69.30	0	347562..347789	-	75	163849760	-	Mext_0308	-	hypothetical protein
304	 71.03	0	347993..348886	+	297	163849761	-	Mext_0309	-	methyltransferase type 11
305	 69.47	0	348883..349239	+	118	163849762	-	Mext_0310	-	hypothetical protein
306	 71.60	0	349248..350789	-	513	163849763	-	Mext_0311	-	hypothetical protein
307	 70.74	0	350821..351237	-	138	163849764	-	Mext_0312	-	mutator MutT protein
308	 71.65	0	351234..351956	-	240	163849765	-	Mext_0313	-	hypothetical protein
309	 71.33	0	351953..353197	-	414	163849766	-	Mext_0314	-	arginine biosynthesis bifunctional protein ArgJ
310	 67.09	0	353579..354049	+	156	163849767	-	Mext_0315	-	sensor histidine kinase
311	 69.55	0	354142..354696	+	184	163849768	-	Mext_0316	-	glutathione peroxidase
312	 70.06	0	354943..355266	+	107	163849769	-	Mext_0317	-	hypothetical protein
313	 69.55	0	355457..355699	+	80	163849770	-	Mext_0318	-	hypothetical protein
314	 72.94	+1	355706..358813	-	1035	163849771	-	Mext_0319	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
315	 74.60	+1	358901..362428	-	1175	163849772	-	Mext_0320	-	hypothetical protein
316	 68.25	0	362589..362840	-	83	163849773	-	Mext_0321	-	hypothetical protein
317	 68.89	0	362956..365343	+	795	163849774	-	Mext_0322	-	UvrD/REP helicase
318	 62.76	-1	365740..366456	+	238	163849775	-	Mext_0323	-	PhoH family protein
319	 65.32	0	366527..367267	-	246	163849776	-	Mext_0324	-	MIP family channel protein
320	 70.58	0	367638..368531	-	297	163849777	-	Mext_0325	-	exonuclease RNase T and DNA polymerase III
321	 71.32	0	368582..371545	-	987	163849778	-	Mext_0326	-	(glutamate--ammonia-ligase) adenylyltransferase
322	 74.12	+1	371787..372551	-	254	163849779	-	Mext_0327	-	hypothetical protein
323	 70.72	0	373127..374557	-	476	163849780	-	Mext_0328	-	ATPase domain-containing protein
324	 68.81	0	374554..375252	-	232	163849781	-	Mext_0329	-	response regulator receiver
325	 67.84	0	375279..375788	-	169	163849782	-	Mext_0330	-	OsmC family protein
326	 72.18	0	375865..376644	-	259	163849783	-	Mext_0331	-	ABC transporter related
327	 72.26	0	376652..377491	-	279	163849784	-	Mext_0332	-	binding-protein-dependent transport systems inner membrane component
328	 70.62	0	377552..378184	-	210	163849785	-	Mext_0333	-	lysine exporter protein LysE/YggA
329	 68.72	0	378193..379167	-	324	163849786	-	Mext_0334	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
330	 67.38	0	379327..382113	+	928	163849787	-	Mext_0335	-	PII uridylyl-transferase
331	 69.29	0	382205..382813	+	202	163849788	-	Mext_0336	-	ribulose-phosphate 3-epimerase
332	 65.09	0	382921..383238	-	105	163849789	-	Mext_0337	-	hypothetical protein
333	 62.68	-1	383228..383503	-	91	163849790	-	Mext_0338	-	hypothetical protein
334	 67.95	0	383595..384452	-	285	163849791	-	Mext_0339	-	prephenate dehydratase
335	 70.16	0	384469..385212	-	247	163849792	-	Mext_0340	-	3-deoxy-D-manno-octulosonate cytidylyltransferase
336	 70.15	0	385520..386437	+	305	163849793	-	Mext_0341	-	cytochrome c class I
337	 66.72	0	386610..388523	+	637	163849794	-	Mext_0342	-	extracellular solute-binding protein
338	 69.23	0	388520..390394	+	624	163849795	-	Mext_0343	-	extracellular solute-binding protein
339	 63.84	-1	390404..391501	+	365	163849796	-	Mext_0344	-	binding-protein-dependent transport systems inner membrane component
340	 75.00	+1	391522..392073	+	183	163849797	-	Mext_0345	-	GCN5-related N-acetyltransferase
341	 70.91	0	392187..393719	+	510	163849798	-	Mext_0346	-	AMP-dependent synthetase and ligase
342	 69.22	0	393780..394562	+	260	163849799	-	Mext_0347	-	glycosyl transferase family protein
343	 63.94	-1	394798..396705	+	635	163849800	-	Mext_0348	-	integrase family protein
344	 66.12	0	397030..398124	-	364	163849801	-	Mext_0349	-	flagellin domain-containing protein
345	 63.98	-1	400171..401100	+	309	163849802	-	Mext_0352	-	transposase IS116/IS110/IS902 family protein
346	 69.50	0	401448..402047	+	199	163849803	-	Mext_0353	-	hypothetical protein
347	 66.93	0	402106..402867	+	253	163849804	-	Mext_0354	-	hypothetical protein
348	 65.97	0	402938..403081	+	47	163849805	-	Mext_0355	-	hypothetical protein
349	 66.67	0	403091..403501	+	136	163849806	-	Mext_0356	-	hypothetical protein
350	 64.38	-1	403467..403859	+	130	163849807	-	Mext_0357	-	hypothetical protein
351	 58.27	-2	404320..405831	+	503	163849808	-	Mext_0358	-	hemolysin-type calcium-binding region
352	 67.49	0	406060..406302	-	80	163849809	-	Mext_0359	-	hypothetical protein
353	 66.67	0	406305..406559	-	84	163849810	-	Mext_0360	-	hypothetical protein
354	 66.45	0	406700..407155	+	151	163849811	-	Mext_0361	-	peptidase S24/S26 domain-containing protein
355	 68.23	0	407420..407803	+	127	163849812	-	Mext_0362	-	DNA-directed DNA polymerase
356	 68.22	0	408475..409311	+	278	163849813	-	Mext_0363	-	PAS sensor protein
357	 68.27	0	409588..409962	+	124	163849814	-	Mext_0364	-	CsbD family protein
358	 73.25	+1	410006..410917	+	303	163849815	-	Mext_0365	-	hypothetical protein
359	 64.71	0	411008..411211	+	67	163849816	-	Mext_0366	-	CsbD family protein
360	 72.92	+1	411286..411669	+	127	163849817	-	Mext_0367	-	CsbD family protein
361	 71.77	0	411890..412810	-	306	163849818	-	Mext_0368	-	hypothetical protein
362	 70.49	0	412821..413996	-	391	163849819	-	Mext_0369	-	acetylornithine deacetylase (ArgE)
363	 67.43	0	413993..414385	-	130	163849820	-	Mext_0370	-	ApaG
364	 74.22	+1	414553..415002	+	149	163849821	-	Mext_0371	-	hypothetical protein
365	 70.87	0	414999..416117	+	372	163849822	-	Mext_0372	-	2'-deoxycytidine 5'-triphosphate deaminase
366	 66.10	0	416164..417051	-	295	163849823	-	Mext_0373	-	putative transport protein, YfdC-like protein
367	 69.38	0	417163..417900	-	245	163849824	-	Mext_0374	-	molybdopterin binding domain-containing protein
368	 67.60	0	417984..418730	+	248	163849825	-	Mext_0375	-	sugar fermentation stimulation protein
369	 67.48	0	418687..419667	-	326	163849826	-	Mext_0376	-	FkbM family methyltransferase
68.64	MEAN

4.16	STD DEV
