IslandPath Analysis: Methylobacterium extorquens PA1

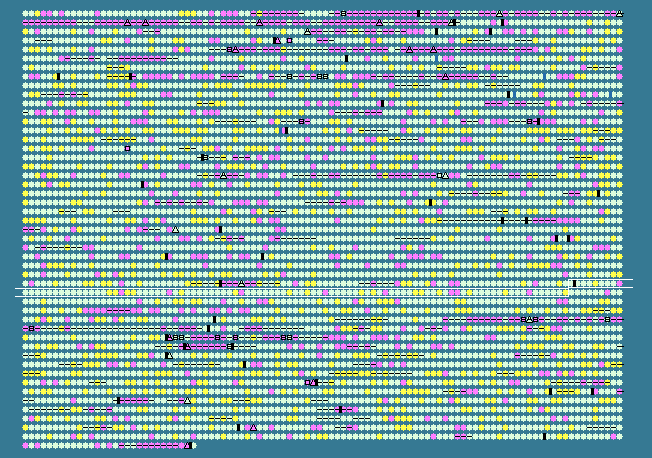

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.64 STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3092	 67.33	0	3484683..3484985	-	100	163852549	-	Mext_3133	-	hypothetical protein
3093	 66.99	0	3485200..3485511	+	103	163852550	-	Mext_3134	-	ETC complex I subunit region
3094	 70.78	0	3485577..3486038	-	153	163852551	-	Mext_3135	-	CMP/dCMP deaminase zinc-binding
3095	 65.26	0	3486053..3487117	-	354	163852552	-	Mext_3136	-	radical SAM domain-containing protein
3096	 72.14	0	3487177..3487980	-	267	163852553	-	Mext_3137	-	hypothetical protein
3097	 66.67	0	3488207..3490483	+	758	163852554	-	Mext_3138	-	glycogen debranching enzyme GlgX
3098	 68.79	0	3490656..3492257	+	533	163852555	-	Mext_3139	-	histidine kinase
3099	 68.55	0	3492284..3492601	+	105	163852556	-	Mext_3140	-	hypothetical protein
3100	 63.37	-1	3492760..3493974	-	404	163852557	-	Mext_3141	-	isocitrate dehydrogenase
3101	 70.37	0	3494119..3494658	-	179	163852558	-	Mext_3142	-	hypothetical protein
3102	 65.39	0	3494814..3495362	+	182	163852559	-	Mext_3143	-	formaldehyde-activating protein
3103	 69.51	0	3495431..3496168	+	245	163852560	-	Mext_3144	-	RNA methyltransferase
3104	 69.44	0	3496172..3496495	-	107	163852561	-	Mext_3145	-	hypothetical protein
3105	 70.41	0	3496542..3497555	-	337	163852562	-	Mext_3146	-	alcohol dehydrogenase
3106	 69.16	0	3497688..3499373	-	561	163852563	-	Mext_3147	-	chemotaxis sensory transducer
3107	 71.22	0	3499870..3500418	-	182	163852564	-	Mext_3148	-	hypothetical protein
3108	 68.04	0	3500426..3501733	-	435	163852565	-	Mext_3149	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
3109	 67.70	0	3501877..3502263	-	128	163852566	-	Mext_3150	-	response regulator receiver
3110	 68.53	0	3502377..3503774	-	465	163852567	-	Mext_3151	-	hypothetical protein
3111	 68.56	0	3503930..3504298	-	122	163852568	-	Mext_3152	-	hypothetical protein
3112	 71.08	0	3504506..3505456	+	316	163852569	-	Mext_3153	-	alpha/beta hydrolase domain-containing protein
3113	 70.57	0	3505496..3508006	+	836	163852570	-	Mext_3154	-	DEAD/DEAH box helicase domain-containing protein
3114	 71.43	0	3508048..3508761	+	237	163852571	-	Mext_3155	-	putative ICC-like phosphoesterase
3115	 73.06	+1	3508874..3509311	-	145	163852572	-	Mext_3156	-	hypothetical protein
3116	 72.70	0	3509613..3510938	+	441	163852573	-	Mext_3157	-	chloride channel core
3117	 63.33	-1	3511012..3511191	+	59	163852574	-	Mext_3158	-	hypothetical protein
3118	 72.81	+1	3511207..3512052	+	281	163852575	-	Mext_3159	-	short-chain dehydrogenase/reductase SDR
3119	 74.23	+1	3512222..3513199	-	325	163852576	-	Mext_3160	-	thiamine-monophosphate kinase
3120	 70.74	0	3513205..3513720	-	171	163852577	-	Mext_3161	-	transcription antitermination factor NusB
3121	 71.07	0	3513717..3514238	-	173	163852578	-	Mext_3162	-	6,7-dimethyl-8-ribityllumazine synthase
3122	 71.91	0	3514551..3516077	+	508	163852579	-	Mext_3163	-	hypothetical protein
3123	 71.36	0	3516077..3516502	+	141	163852580	-	Mext_3164	-	GtrA family protein
3124	 68.80	0	3516490..3517710	-	406	163852581	-	Mext_3165	-	hypothetical protein
3125	 63.19	-1	3518004..3518492	+	162	163852582	-	Mext_3166	-	hypothetical protein
3126	 71.83	0	3518538..3519176	-	212	163852583	-	Mext_3167	-	riboflavin synthase, alpha subunit
3127	 74.01	+1	3519178..3520293	-	371	163852584	-	Mext_3168	-	riboflavin biosynthesis protein RibD
3128	 69.71	0	3520305..3520862	-	185	163852585	-	Mext_3169	-	ATP-cone domain-containing protein
3129	 67.97	0	3521633..3522937	-	434	163852586	-	Mext_3171	-	glycine hydroxymethyltransferase
3130	 71.17	0	3523303..3523791	-	162	163852587	-	Mext_3172	-	H+transporting two-sector ATPase B/B' subunit
3131	 69.64	0	3523879..3524484	-	201	163852588	-	Mext_3173	-	H+transporting two-sector ATPase B/B' subunit
3132	 69.74	0	3524682..3524909	-	75	163852589	-	Mext_3174	-	H+transporting two-sector ATPase C subunit
3133	 65.34	0	3524970..3525725	-	251	163852590	-	Mext_3175	-	F0F1 ATP synthase subunit A
3134	 65.85	0	3525846..3526214	-	122	163852591	-	Mext_3176	-	hypothetical protein
3135	 65.90	0	3526378..3527031	-	217	163852592	-	Mext_3177	-	DsbA oxidoreductase
3136	 72.96	+1	3527305..3527781	-	158	163852593	-	Mext_3178	-	hypothetical protein
3137	 62.35	-1	3527914..3528237	-	107	163852594	-	Mext_3179	-	hypothetical protein
3138	 70.97	0	3528273..3529598	+	441	163852595	-	Mext_3180	-	A/G-specific adenine glycosylase
3139	 67.67	0	3529662..3530858	-	398	163852596	-	Mext_3181	-	DNA methylase N-4/N-6 domain-containing protein
3140	 69.25	0	3531288..3531635	+	115	163852597	-	Mext_3182	-	rare lipoprotein A
3141	 65.72	0	3531763..3532080	+	105	163852598	-	Mext_3183	-	hypothetical protein
3142	 72.07	0	3532188..3532409	+	73	163852599	-	Mext_3184	-	hypothetical protein
3143	 70.12	0	3532583..3534406	+	607	163852600	-	Mext_3185	-	ABC transporter related
3144	 67.45	0	3534733..3536394	+	553	163852601	-	Mext_3186	-	porin
3145	 73.48	+1	3536609..3538618	+	669	163852602	-	Mext_3187	-	hypothetical protein
3146	 71.52	0	3538661..3539896	-	411	163852603	-	Mext_3188	-	adenylyl cyclase class-3/4/guanylyl cyclase
3147	 69.80	0	3540037..3540642	+	201	163852604	-	Mext_3189	-	metal-dependent phosphohydrolase
3148	 72.30	0	3540666..3542990	-	774	163852605	-	Mext_3190	-	lytic transglycosylase catalytic
3149	 66.78	0	3543190..3544080	+	296	163852606	-	Mext_3191	-	dihydrodipicolinate synthase
3150	 66.24	0	3544183..3544656	+	157	163852607	-	Mext_3192	-	SsrA-binding protein
3151	 63.01	-1	3544879..3545535	-	218	163852608	-	Mext_3193	-	hypothetical protein
3152	 70.22	0	3546035..3546625	-	196	163852609	-	Mext_3194	-	orotate phosphoribosyltransferase
3153	 69.83	0	3546842..3547189	-	115	163852610	-	Mext_3195	-	hypothetical protein
3154	 68.50	0	3547304..3549535	-	743	163852611	-	Mext_3196	-	RelA/SpoT family protein
3155	 67.40	0	3549907..3550317	-	136	163852612	-	Mext_3197	-	DNA-directed RNA polymerase subunit omega
3156	 69.31	0	3550521..3551087	+	188	163852613	-	Mext_3198	-	scaffold protein Nfu/NifU
3157	 72.25	0	3551245..3551925	+	226	163852614	-	Mext_3199	-	peptidase M22 glycoprotease
3158	 70.42	0	3551991..3552443	+	150	163852615	-	Mext_3200	-	GCN5-related N-acetyltransferase
3159	 72.92	+1	3552469..3553347	+	292	163852616	-	Mext_3201	-	phospholipid/glycerol acyltransferase
3160	 70.50	0	3553352..3553795	-	147	163852617	-	Mext_3202	-	MEKHLA domain-containing protein
3161	 59.28	-2	3553894..3554340	+	148	163852618	-	Mext_3203	-	hypothetical protein
3162	 69.65	0	3554572..3555912	+	446	163852619	-	Mext_3204	-	RNA modification protein
3163	 69.74	0	3555949..3557055	+	368	163852620	-	Mext_3205	-	PhoH family protein
3164	 65.64	0	3557125..3557610	+	161	163852621	-	Mext_3206	-	hypothetical protein
3165	 72.06	0	3557647..3558795	+	382	163852622	-	Mext_3207	-	CBS domain-containing protein
3166	 72.36	0	3558824..3560527	+	567	163852623	-	Mext_3208	-	apolipoprotein N-acyltransferase
3167	 73.15	+1	3560710..3561480	+	256	163852624	-	Mext_3209	-	hypothetical protein
3168	 66.29	0	3561607..3563199	-	530	163852625	-	Mext_3210	-	catalase
3169	 71.30	0	3563347..3564318	+	323	163852626	-	Mext_3211	-	LysR substrate-binding
3170	 75.09	+1	3564472..3565527	+	351	163852627	-	Mext_3212	-	membrane protein AbrB duplication
3171	 69.28	0	3565524..3565868	+	114	163852628	-	Mext_3213	-	diacylglycerol kinase
3172	 65.15	0	3565891..3566088	-	65	163852629	-	Mext_3214	-	hypothetical protein
3173	 61.69	-1	3566085..3566285	-	66	163852630	-	Mext_3215	-	hypothetical protein
3174	 70.61	0	3566560..3567117	+	185	163852631	-	Mext_3216	-	metallophosphoesterase
3175	 72.26	0	3567127..3568002	-	291	163852632	-	Mext_3217	-	glutamate racemase
3176	 69.75	0	3568213..3569475	+	420	163852633	-	Mext_3218	-	hypothetical protein
3177	 70.76	0	3569533..3570510	+	325	163852634	-	Mext_3219	-	hypothetical protein
3178	 65.59	0	3570785..3572926	+	713	163852635	-	Mext_3220	-	hypothetical protein
3179	 69.16	0	3572976..3573416	-	146	163852636	-	Mext_3221	-	hypothetical protein
3180	 71.91	0	3573639..3576326	+	895	163852637	-	Mext_3222	-	nitrate reductase
3181	 73.94	+1	3576442..3577899	+	485	163852638	-	Mext_3223	-	uroporphyrin-III C-methyltransferase
3182	 68.72	0	3578107..3578787	+	226	163852639	-	Mext_3224	-	electron transport protein SCO1/SenC
3183	 71.58	0	3578738..3580528	-	596	163852640	-	Mext_3225	-	glycosyl transferase family protein
3184	 66.13	0	3580704..3581627	+	307	163852641	-	Mext_3226	-	extracellular solute-binding protein
3185	 62.80	-1	3581723..3581929	+	68	163852642	-	Mext_3227	-	hypothetical protein
3186	 66.91	0	3581953..3582363	-	136	163852643	-	Mext_3228	-	hypothetical protein
3187	 70.28	0	3582457..3584364	-	635	163852644	-	Mext_3229	-	cobalt chelatase, pCobT subunit
3188	 65.35	0	3584485..3585468	-	327	163852645	-	Mext_3230	-	cobalt chelatase, pCobS small subunit
3189	 70.62	0	3585808..3586515	-	235	163852646	-	Mext_3231	-	heat shock protein DnaJ domain-containing protein
3190	 69.72	0	3586602..3586961	+	119	163852647	-	Mext_3232	-	BolA family protein
3191	 73.76	+1	3586993..3587415	+	140	163852648	-	Mext_3233	-	class I peptide chain release factor
68.64	MEAN

4.16	STD DEV
