IslandPath Analysis: Methylobacterium extorquens PA1

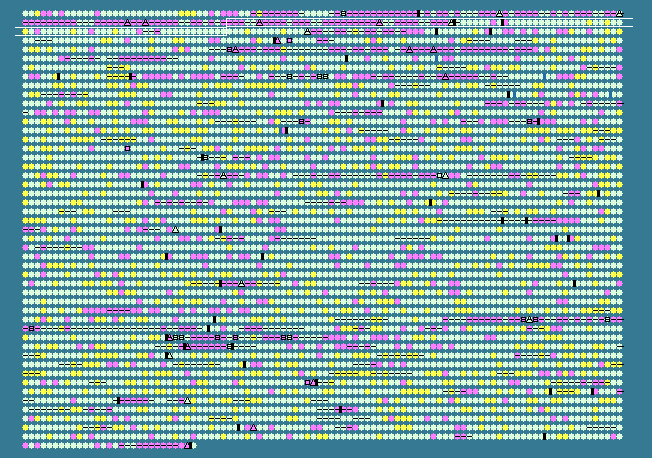

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.64   STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
135	 63.70	-1	152043..153254	+	403	163849592	-	Mext_0137	-	hypothetical protein
136	 58.33	-2	153292..153699	+	135	163849593	-	Mext_0138	-	TadE family protein
137	 59.80	-2	153975..154280	+	101	163849594	-	Mext_0139	-	hypothetical protein
138	 65.36	0	155000..155305	-	101	163849595	-	Mext_0140	-	hypothetical protein
139	 66.67	0	155305..157002	-	565	163849596	-	Mext_0141	-	chemotaxis sensory transducer
140	 60.71	-1	157274..157609	-	111	163849597	-	Mext_0142	-	integrase, catalytic region
141	 65.12	0	157640..157768	-	42	163849598	-	Mext_0143	-	hypothetical protein
142	 62.18	-1	159244..159600	+	118	163849599	-	Mext_0144	-	hypothetical protein
143	 59.06	-2	159907..160248	+	113	163849600	-	Mext_0145	-	hypothetical protein
144	 63.97	-1	160542..160949	-	135	163849601	-	Mext_0146	-	hypothetical protein
145	 65.58	0	160982..161443	-	153	163849602	-	Mext_0147	-	hypothetical protein
146	 57.30	-2	162144..162698	+	184	163849603	-	Mext_0148	-	hypothetical protein
147	 60.20	-2	163251..166871	-	1206	163849604	-	Mext_0150	-	outer membrane adhesin like proteiin
148	 62.04	-1	167643..167858	+	71	163849605	-	Mext_0151	-	hypothetical protein
149	 71.74	0	167931..168068	+	45	163849606	-	Mext_0152	-	hypothetical protein
150	 66.21	0	168080..168298	+	72	163849607	-	Mext_0153	-	hypothetical protein
151	 62.22	-1	168920..169324	+	134	163849608	-	Mext_0154	-	helix-turn-helix domain-containing protein
152	 61.52	-1	169575..169982	+	135	163849609	-	Mext_0155	-	helix-turn-helix domain-containing protein
153	 60.91	-1	170460..170945	-	161	163849610	-	Mext_0156	-	hypothetical protein
154	 62.38	-1	171034..172107	-	357	163849611	-	Mext_0157	-	hypothetical protein
155	 58.02	-2	172104..172496	-	130	163849612	-	Mext_0158	-	hypothetical protein
156	 56.04	-2	172493..173047	-	184	163849613	-	Mext_0159	-	hypothetical protein
157	 57.06	-2	173056..174585	-	509	163849614	-	Mext_0160	-	hypothetical protein
158	 54.85	-2	174686..176377	+	563	163849615	-	Mext_0161	-	hypothetical protein
159	 65.03	0	176402..176767	-	121	163849616	-	Mext_0162	-	hypothetical protein
160	 64.39	-1	176990..177559	+	189	163849617	-	Mext_0163	-	integrase family protein
161	 67.12	0	178135..178794	+	219	163849618	-	Mext_0164	-	ErfK/YbiS/YcfS/YnhG family protein
162	 66.85	0	178932..180023	-	363	163849619	-	Mext_0165	-	lytic transglycosylase catalytic
163	 61.96	-1	180413..180688	-	91	163849620	-	Mext_0166	-	hypothetical protein
164	 63.23	-1	180782..181945	-	387	163849621	-	Mext_0167	-	hypothetical protein
165	 60.75	-1	182013..182198	+	61	163849622	-	Mext_0168	-	hypothetical protein
166	 60.71	-1	182218..182670	+	150	163849623	-	Mext_0169	-	hypothetical protein
167	 65.24	0	183431..183991	+	186	163849624	-	Mext_0170	-	ROSMUCR transcriptional regulator
168	 66.81	0	183988..184692	-	234	163849625	-	Mext_0171	-	dienelactone hydrolase
169	 64.07	-1	185264..185494	+	76	163849626	-	Mext_0172	-	hypothetical protein
170	 44.79	-2	185773..187317	-	514	163849627	-	Mext_0173	-	hypothetical protein
171	 44.66	-2	187499..188125	-	208	163849628	-	Mext_0174	-	putative transmembrane protein
172	 65.99	0	188402..189724	-	440	163849629	-	Mext_0175	-	integrase family protein
173	 66.90	0	190109..191401	-	430	163849630	-	Mext_0176	-	tryptophan synthase subunit beta
174	 70.99	0	191473..192120	-	215	163849631	-	Mext_0177	-	phosphoribosylanthranilate isomerase
175	 68.83	0	192137..192505	-	122	163849632	-	Mext_0178	-	hypothetical protein
176	 67.96	0	192731..193039	-	102	163849633	-	Mext_0179	-	integration host factor, beta subunit
177	 68.74	0	193081..194046	-	321	163849634	-	Mext_0180	-	signal peptide peptidase SppA, 36K type
178	 69.46	0	194307..195632	-	441	163849635	-	Mext_0181	-	hypothetical protein
179	 64.51	0	195725..197437	-	570	163849636	-	Mext_0182	-	30S ribosomal protein S1
180	 71.87	0	197852..198658	-	268	163849637	-	Mext_0183	-	RNA methyltransferase
181	 65.01	0	199300..200085	-	261	163849638	-	Mext_0184	-	hypothetical protein
182	 67.52	0	200217..201155	+	312	163849639	-	Mext_0185	-	pirin domain-containing protein
183	 68.99	0	201258..203024	+	588	163849640	-	Mext_0186	-	potassium efflux system protein
184	 71.67	0	203204..203923	+	239	163849641	-	Mext_0187	-	cytochrome c biogenesis protein transmembrane region
185	 69.59	0	204031..204645	+	204	163849642	-	Mext_0188	-	HhH-GPD family protein
186	 67.44	0	204651..204908	-	85	163849643	-	Mext_0189	-	hypothetical protein
187	 66.67	0	205236..205454	+	72	163849644	-	Mext_0190	-	hypothetical protein
188	 69.55	0	205569..207266	-	565	163849645	-	Mext_0191	-	chemotaxis sensory transducer
189	 66.36	0	207649..209271	+	540	163849646	-	Mext_0192	-	ABC transporter related
190	 71.99	0	209279..209635	-	118	163849647	-	Mext_0193	-	hypothetical protein
191	 68.75	0	209645..209884	-	79	163849648	-	Mext_0194	-	hypothetical protein
192	 70.39	0	210102..210746	-	214	163849649	-	Mext_0195	-	hypothetical protein
193	 69.97	0	210757..211392	-	211	163849650	-	Mext_0196	-	hypothetical protein
194	 71.31	0	211493..212482	+	329	163849651	-	Mext_0197	-	hypothetical protein
195	 75.61	+1	212502..213686	-	394	163849652	-	Mext_0198	-	glycosyl transferase group 1
196	 69.16	0	213686..214726	-	346	163849653	-	Mext_0199	-	glycosyl transferase group 1
197	 70.75	0	214784..216838	+	684	163849654	-	Mext_0200	-	HAD family hydrolase
198	 74.97	+1	216860..217750	+	296	163849655	-	Mext_0201	-	putative sugar transferase
199	 71.28	0	217798..218946	+	382	163849656	-	Mext_0202	-	hypothetical protein
200	 67.73	0	218997..219938	+	313	163849657	-	Mext_0203	-	glycosyl transferase family protein
201	 72.35	0	219935..220990	+	351	163849658	-	Mext_0204	-	glycosyl transferase group 1
202	 66.07	0	221035..221703	+	222	163849659	-	Mext_0205	-	hypothetical protein
203	 64.50	0	222390..223499	+	369	163849660	-	Mext_0206	-	metal-dependent phosphohydrolase
204	 71.26	0	223664..226360	+	898	163849661	-	Mext_0207	-	ABC transporter related
205	 72.10	0	226402..227358	-	318	163849662	-	Mext_0208	-	ThiJ/PfpI domain-containing protein
206	 70.85	0	227486..228274	+	262	163849663	-	Mext_0209	-	short-chain dehydrogenase/reductase SDR
207	 65.55	0	228467..228913	+	148	163849664	-	Mext_0210	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
208	 71.89	0	228924..231182	+	752	163849665	-	Mext_0211	-	aldehyde oxidase and xanthine dehydrogenase molybdopterin binding
209	 73.71	+1	231193..232200	+	335	163849666	-	Mext_0212	-	C4-dicarboxylate transporter/malic acid transport protein
210	 69.70	0	232432..233682	+	416	163849667	-	Mext_0213	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
211	 72.03	0	233698..235095	+	465	163849668	-	Mext_0214	-	FAD linked oxidase domain-containing protein
212	 64.85	0	235867..236526	+	219	163849669	-	Mext_0215	-	chaperone protein HtpG
213	 70.79	0	236514..239324	+	936	163849670	-	Mext_0216	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
214	 66.45	0	239321..240691	+	456	163849671	-	Mext_0217	-	polysulphide reductase NrfD
215	 67.63	0	240688..241206	+	172	163849672	-	Mext_0218	-	hypothetical protein
216	 72.73	0	241203..241730	+	175	163849673	-	Mext_0219	-	hypothetical protein
217	 70.85	0	241727..242683	+	318	163849674	-	Mext_0220	-	hypothetical protein
218	 71.26	0	242676..243197	+	173	163849675	-	Mext_0221	-	hypothetical protein
219	 67.22	0	243197..244285	+	362	163849676	-	Mext_0222	-	cytochrome c oxidase, subunit II
220	 64.30	-1	244317..246008	+	563	163849677	-	Mext_0223	-	cytochrome c oxidase, subunit I
221	 66.96	0	246005..246694	+	229	163849678	-	Mext_0224	-	cytochrome c oxidase subunit III
222	 67.99	0	246691..246993	+	100	163849679	-	Mext_0225	-	caa(3)-type oxidase, subunit IV
223	 62.11	-1	247134..247484	-	116	163849680	-	Mext_0226	-	hypothetical protein
224	 67.02	0	247508..247792	-	94	163849681	-	Mext_0227	-	hypothetical protein
225	 69.92	0	248069..248590	+	173	163849682	-	Mext_0228	-	sigma-70 family RNA polymerase sigma factor
226	 70.96	0	248593..249360	+	255	163849683	-	Mext_0229	-	hypothetical protein
227	 69.27	0	249407..250480	+	357	163849684	-	Mext_0230	-	catalase domain-containing protein
228	 67.20	0	250477..251043	+	188	163849685	-	Mext_0231	-	cytochrome B561
229	 67.72	0	251640..253355	+	571	163849686	-	Mext_0233	-	potassium-transporting ATPase subunit A
230	 69.25	0	253602..255692	+	696	163849687	-	Mext_0234	-	K+-transporting ATPase, B subunit
231	 71.29	0	255716..256321	+	201	163849688	-	Mext_0235	-	potassium-transporting ATPase, C subunit
232	 71.85	0	256332..259049	+	905	163849689	-	Mext_0236	-	osmosensitive K channel His kinase sensor
233	 69.34	0	259046..259792	+	248	163849690	-	Mext_0237	-	response regulator receiver
234	 69.05	0	260040..260291	-	83	163849691	-	Mext_0238	-	hypothetical protein
68.64	MEAN

4.16	STD DEV
