IslandPathversion 1.0

IslandPath Analysis: Methylobacterium extorquens PA1

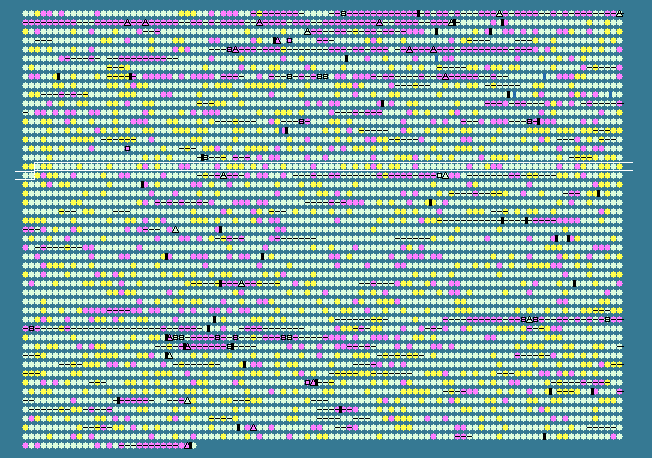

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.64 STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1703	 70.53	0	1956430..1957284	-	284	163851160	-	Mext_1733	-	ABC transporter related
1704	 75.53	+1	1957487..1958095	-	202	163851161	-	Mext_1734	-	flavin reductase domain-containing protein
1705	 72.67	0	1958141..1958923	-	260	163851162	-	Mext_1735	-	alpha/beta hydrolase fold
1706	 68.45	0	1958928..1959320	-	130	163851163	-	Mext_1736	-	endoribonuclease L-PSP
1707	 70.82	0	1959333..1960079	-	248	163851164	-	Mext_1737	-	isochorismatase hydrolase
1708	 65.86	0	1960079..1961197	-	372	163851165	-	Mext_1738	-	luciferase family protein
1709	 69.63	0	1961424..1962065	-	213	163851166	-	Mext_1739	-	tetracycline transcriptional regulator YcdC domain-containing protein
1710	 72.29	0	1962192..1962689	-	165	163851167	-	Mext_1740	-	ureidoglycolate hydrolase
1711	 71.19	0	1962686..1963525	-	279	163851168	-	Mext_1741	-	hypothetical protein
1712	 70.10	0	1963572..1964822	-	416	163851169	-	Mext_1742	-	hypothetical protein
1713	 70.42	0	1964957..1965889	+	310	163851170	-	Mext_1743	-	carbonate dehydratase
1714	 70.56	0	1965922..1967334	-	470	163851171	-	Mext_1744	-	urate catabolism protein
1715	 72.22	0	1967571..1967966	+	131	163851172	-	Mext_1745	-	hydroxyisourate hydrolase
1716	 69.39	0	1968774..1969766	+	330	163851173	-	Mext_1746	-	hypothetical protein
1717	 68.73	0	1969946..1971013	+	355	163851174	-	Mext_1747	-	EAL domain-containing protein
1718	 67.70	0	1971160..1972413	+	417	163851175	-	Mext_1748	-	diguanylate cyclase
1719	 66.81	0	1972640..1973320	+	226	163851176	-	Mext_1749	-	OmpW family protein
1720	 72.73	0	1973599..1973961	-	120	163851177	-	Mext_1750	-	hypothetical protein
1721	 63.02	-1	1974103..1974294	+	63	163851178	-	Mext_1751	-	hypothetical protein
1722	 68.69	0	1974710..1975006	+	98	163851179	-	Mext_1752	-	hypothetical protein
1723	 77.66	+2	1975257..1975538	+	93	163851180	-	Mext_1753	-	hypothetical protein
1724	 71.14	0	1975580..1977481	+	633	163851181	-	Mext_1754	-	gamma-glutamyltransferase
1725	 71.75	0	1977478..1978401	-	307	163851182	-	Mext_1755	-	aminoglycoside phosphotransferase
1726	 70.58	0	1978832..1979623	+	263	163851183	-	Mext_1756	-	phospholipid/glycerol acyltransferase
1727	 60.35	-1	1979713..1979997	+	94	163851184	-	Mext_1757	-	hypothetical protein
1728	 63.03	-1	1979951..1980280	+	109	163851185	-	Mext_1758	-	hypothetical protein
1729	 70.43	0	1980338..1981027	-	229	163851186	-	Mext_1759	-	methionine biosynthesis protein MetW
1730	 68.80	0	1981034..1982251	-	405	163851187	-	Mext_1760	-	homoserine O-acetyltransferase
1731	 70.69	0	1982558..1983154	+	198	163851188	-	Mext_1761	-	methionine-R-sulfoxide reductase
1732	 69.85	0	1983182..1983904	+	240	163851189	-	Mext_1762	-	peptide methionine sulfoxide reductase
1733	 61.65	-1	1983950..1984447	-	165	163851190	-	Mext_1763	-	bacterioferritin
1734	 65.64	0	1984488..1984778	-	96	163851191	-	Mext_1764	-	hypothetical protein
1735	 73.00	+1	1985120..1986067	-	315	163851192	-	Mext_1765	-	UspA domain-containing protein
1736	 73.39	+1	1986097..1987197	-	366	163851193	-	Mext_1766	-	acyltransferase 3
1737	 72.43	0	1987368..1988078	+	236	163851194	-	Mext_1767	-	hypothetical protein
1738	 70.22	0	1988344..1989468	-	374	163851195	-	Mext_1768	-	radical SAM domain-containing protein
1739	 76.63	+1	1989648..1990169	+	173	163851196	-	Mext_1769	-	hypothetical protein
1740	 69.95	0	1990230..1990412	-	60	163851197	-	Mext_1770	-	hypothetical protein
1741	 55.95	-2	1990655..1990822	-	55	163851198	-	Mext_1771	-	ribosomal protein L33
1742	 69.45	0	1990976..1991800	-	274	163851199	-	Mext_1772	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1743	 69.70	0	1992227..1992622	-	131	163851200	-	Mext_1773	-	thioredoxin domain-containing protein
1744	 74.32	+1	1992653..1993240	-	195	163851201	-	Mext_1774	-	rhodanese
1745	 66.79	0	1993258..1994073	-	271	163851202	-	Mext_1775	-	sulphur oxidation protein SoxZ
1746	 68.70	0	1994115..1995047	-	310	163851203	-	Mext_1776	-	beta-lactamase domain-containing protein
1747	 70.75	0	1995230..1995817	+	195	163851204	-	Mext_1777	-	regulatory protein TetR
1748	 66.06	0	1995917..1996903	+	328	163851205	-	Mext_1778	-	cobalamin synthesis protein P47K
1749	 60.63	-1	1997005..1997319	+	104	163851206	-	Mext_1779	-	hypothetical protein
1750	 65.88	0	1997356..1997610	-	84	163851207	-	Mext_1780	-	hypothetical protein
1751	 69.26	0	1998158..1999621	+	487	163851208	-	Mext_1781	-	hypothetical protein
1752	 71.31	0	1999618..2002995	+	1125	163851209	-	Mext_1782	-	PAS sensor protein
1753	 72.05	0	2003096..2004544	+	482	163851210	-	Mext_1783	-	protein of unknown function DUF463 YcjX family protein
1754	 73.22	+1	2004541..2005563	+	340	163851211	-	Mext_1784	-	hypothetical protein
1755	 70.80	0	2005712..2006098	-	128	163851212	-	Mext_1785	-	hypothetical protein
1756	 74.28	+1	2006319..2006870	-	183	163851213	-	Mext_1786	-	hypothetical protein
1757	 70.37	0	2006941..2008209	-	422	163851214	-	Mext_1787	-	diaminopimelate decarboxylase
1758	 75.50	+1	2008410..2008760	-	116	163851215	-	Mext_1788	-	hypothetical protein
1759	 63.44	-1	2008913..2009191	-	92	163851216	-	Mext_1789	-	hypothetical protein
1760	 74.97	+1	2009382..2010104	-	240	163851217	-	Mext_1790	-	hypothetical protein
1761	 71.60	0	2010314..2011063	-	249	163851218	-	Mext_1791	-	hypothetical protein
1762	 73.73	+1	2011283..2011933	-	216	163851219	-	Mext_1792	-	ribonuclease H
1763	 74.28	+1	2012061..2013137	-	358	163851220	-	Mext_1793	-	glycosyl transferase group 1
1764	 66.67	0	2013170..2013982	-	270	163851221	-	Mext_1794	-	metallophosphoesterase
1765	 67.99	0	2014645..2015853	+	402	163851222	-	Mext_1795	-	Serine--glyoxylate transaminase
1766	 64.97	0	2016134..2017078	+	314	163851223	-	Mext_1796	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
1767	 67.70	0	2017222..2018088	+	288	163851224	-	Mext_1797	-	methylenetetrahydrofolate dehydrogenase (NADP(+))
1768	 67.15	0	2018182..2018808	+	208	163851225	-	Mext_1798	-	formiminotransferase-cyclodeaminase
1769	 66.84	0	2019358..2020530	+	390	163851226	-	Mext_1799	-	succinyl-CoA synthetase subunit beta
1770	 68.13	0	2020553..2021443	+	296	163851227	-	Mext_1800	-	succinyl-CoA synthetase subunit alpha
1771	 68.65	0	2021643..2024411	+	922	163851228	-	Mext_1801	-	phosphoenolpyruvate carboxylase
1772	 66.77	0	2024599..2025573	+	324	163851229	-	Mext_1802	-	citrate (pro-3S)-lyase
1773	 66.84	0	2025644..2026210	-	188	163851230	-	Mext_1803	-	hypothetical protein
1774	 67.81	0	2026506..2027381	+	291	163851231	-	Mext_1804	-	carboxymethylenebutenolidase
1775	 65.08	0	2027389..2027766	-	125	163851232	-	Mext_1805	-	transcriptional coactivator/pterin dehydratase
1776	 71.29	0	2027993..2028988	+	331	163851233	-	Mext_1806	-	putative ABC transporter periplasmic solute-binding protein
1777	 68.57	0	2029028..2029762	+	244	163851234	-	Mext_1807	-	binding-protein-dependent transport systems inner membrane component
1778	 72.61	0	2029743..2030516	+	257	163851235	-	Mext_1808	-	ABC transporter related
1779	 64.34	-1	2031223..2033028	+	601	163851236	-	Mext_1809	-	methanol/ethanol family PQQ-dependent dehydrogenase
1780	 62.82	-1	2033150..2033773	+	207	163851237	-	Mext_1810	-	hypothetical protein
1781	 67.25	0	2033773..2034627	+	284	163851238	-	Mext_1811	-	extracellular solute-binding protein
1782	 69.60	0	2034733..2035209	-	158	163851239	-	Mext_1812	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
1783	 69.47	0	2035206..2035598	-	130	163851240	-	Mext_1813	-	dihydroneopterin aldolase
1784	 71.84	0	2035591..2036460	-	289	163851241	-	Mext_1814	-	dihydropteroate synthase
1785	 67.58	0	2036555..2036884	-	109	163851242	-	Mext_1815	-	hypothetical protein
1786	 66.80	0	2036901..2037635	-	244	163851243	-	Mext_1816	-	hypothetical protein
1787	 67.27	0	2037632..2038786	-	384	163851244	-	Mext_1817	-	pyrroloquinoline quinone biosynthesis protein PqqE
1788	 66.76	0	2038783..2039883	-	366	163851245	-	Mext_1818	-	pyrroloquinoline quinone biosynthesis protein PqqC
1789	 67.22	0	2040050..2040949	-	299	163851246	-	Mext_1819	-	pyrroloquinoline quinone biosynthesis protein PqqB
1790	 55.74	-2	2040997..2041179	-	60	163851247	-	Mext_1820	-	coenzyme PQQ biosynthesis protein A
1791	 69.49	0	2041421..2042128	-	235	163851248	-	Mext_1821	-	response regulator receiver
1792	 71.55	0	2042125..2043762	-	545	163851249	-	Mext_1822	-	ATPase domain-containing protein
1793	 63.77	-1	2043871..2044077	-	68	163851250	-	Mext_1823	-	hypothetical protein
1794	 72.56	0	2044225..2045022	-	265	163851251	-	Mext_1824	-	formylmethanofuran dehydrogenase subunit C
1795	 68.48	0	2045019..2045954	-	311	163851252	-	Mext_1825	-	tetrahydromethanopterin formyltransferase
1796	 68.85	0	2045980..2047626	-	548	163851253	-	Mext_1826	-	formylmethanofuran dehydrogenase subunit A
1797	 73.00	+1	2047620..2048708	-	362	163851254	-	Mext_1827	-	tungsten-containing formylmethanofuran dehydrogenase, subunit B
1798	 73.51	+1	2049113..2050135	+	340	163851255	-	Mext_1828	-	beta-ribofuranosylaminobenzene 5'-phosphate synthase
1799	 67.90	0	2050246..2051139	+	297	163851256	-	Mext_1829	-	methylene-tetrahydromethanopterin dehydrogenase
1800	 73.16	+1	2051250..2052374	+	374	163851257	-	Mext_1830	-	hypothetical protein
1801	 70.06	0	2052304..2053275	+	323	163851258	-	Mext_1831	-	N(5),N(10)-methenyltetrahydromethanopterin cyclohydrolase
1802	 71.48	0	2053553..2054467	+	304	163851259	-	Mext_1832	-	alpha-L-glutamate ligase
68.64	MEAN

4.16	STD DEV
