IslandPath Analysis: Methylobacterium extorquens PA1

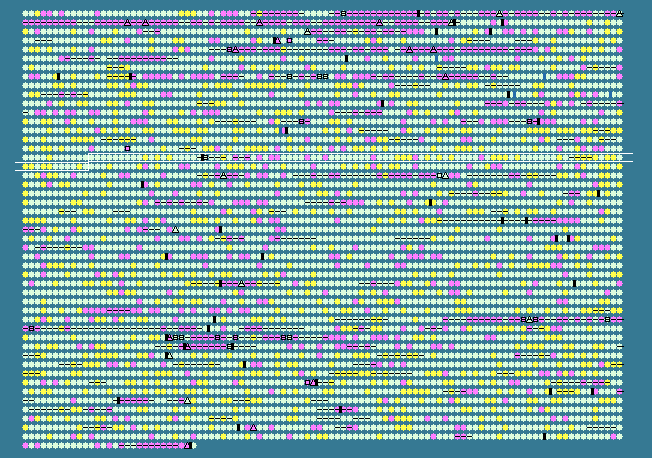

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.64 STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1612	 71.17	0	1832108..1832839	+	243	163851069	-	Mext_1642	-	regulatory protein TetR
1613	 67.19	0	1833190..1834152	+	320	163851070	-	Mext_1643	-	malate dehydrogenase, NAD-dependent
1614	 66.33	0	1834230..1835426	+	398	163851071	-	Mext_1644	-	succinyl-CoA synthetase, beta subunit
1615	 68.69	0	1835435..1836322	+	295	163851072	-	Mext_1645	-	succinyl-CoA synthetase, alpha subunit
1616	 66.93	0	1836547..1839537	+	996	163851073	-	Mext_1646	-	alpha-ketoglutarate decarboxylase
1617	 67.57	0	1839621..1840949	+	442	163851074	-	Mext_1647	-	2-oxoglutarate dehydrogenase, E2 subunit, dihydrolipoamide succinyltransferase
1618	 67.24	0	1841237..1842640	+	467	163851075	-	Mext_1648	-	dihydrolipoamide dehydrogenase
1619	 68.02	0	1842840..1844465	+	541	163851076	-	Mext_1649	-	histidine kinase
1620	 71.88	0	1844525..1845157	+	210	163851077	-	Mext_1650	-	hypothetical protein
1621	 72.38	0	1845139..1845768	-	209	163851078	-	Mext_1651	-	sarcosine oxidase gamma subunit
1622	 72.11	0	1845761..1848790	-	1009	163851079	-	Mext_1652	-	sarcosine oxidase alpha subunit family protein
1623	 73.96	+1	1848787..1849074	-	95	163851080	-	Mext_1653	-	sarcosine oxidase delta subunit heterotetrameric
1624	 68.82	0	1849256..1850506	-	416	163851081	-	Mext_1654	-	sarcosine oxidase beta subunit family protein
1625	 72.97	+1	1850707..1851705	+	332	163851082	-	Mext_1655	-	ThiJ/PfpI domain-containing protein
1626	 69.55	0	1851880..1852815	+	311	163851083	-	Mext_1656	-	glutamine amidotransferase class-II
1627	 69.13	0	1852815..1853504	+	229	163851084	-	Mext_1657	-	glutamate synthase alpha subunit
1628	 70.76	0	1853504..1854847	+	447	163851085	-	Mext_1658	-	ferredoxin-dependent glutamate synthase
1629	 67.36	0	1854937..1856235	+	432	163851086	-	Mext_1659	-	glutamine synthetase, type III
1630	 71.96	0	1856410..1856919	+	169	163851087	-	Mext_1660	-	hypothetical protein
1631	 66.26	0	1857361..1857606	-	81	163851088	-	Mext_1661	-	transposase and inactivated derivatives-like protein
1632	 68.78	0	1858023..1868786	+	3587	163851089	-	Mext_1662	-	heme peroxidase
1633	 70.97	0	1868847..1870613	+	588	163851090	-	Mext_1663	-	type I secretion system ATPase
1634	 72.69	0	1870610..1872835	+	741	163851091	-	Mext_1664	-	hemolysin-type calcium-binding region
1635	 66.96	0	1872857..1874203	+	448	163851092	-	Mext_1665	-	HlyD family type I secretion membrane fusion protein
1636	 60.04	-2	1874447..1874914	+	155	163851093	-	Mext_1666	-	hypothetical protein
1637	 67.19	0	1874931..1876085	+	384	163851094	-	Mext_1667	-	ATPase domain-containing protein
1638	 64.13	-1	1876078..1876746	+	222	163851095	-	Mext_1668	-	response regulator receiver
1639	 66.89	0	1877109..1877984	-	291	163851096	-	Mext_1669	-	esterase/lipase-like protein
1640	 63.70	-1	1878084..1878893	-	269	163851097	-	Mext_1670	-	methyltransferase type 11
1641	 65.36	0	1879549..1885362	+	1937	163851098	-	Mext_1671	-	histidine kinase
1642	 60.78	-1	1885359..1887446	+	695	163851099	-	Mext_1672	-	PAS sensor protein
1643	 64.38	-1	1887717..1888589	-	290	163851100	-	Mext_1673	-	NmrA family protein
1644	 67.45	0	1888693..1889586	+	297	163851101	-	Mext_1674	-	LysR substrate-binding
1645	 69.53	0	1889710..1890756	-	348	163851102	-	Mext_1675	-	luciferase family protein
1646	 67.71	0	1890993..1891472	-	159	163851103	-	Mext_1676	-	DoxX family protein
1647	 67.56	0	1891517..1892407	+	296	163851104	-	Mext_1677	-	LysR substrate-binding
1648	 61.93	-1	1892754..1893407	-	217	163851105	-	Mext_1678	-	isochorismatase hydrolase
1649	 67.40	0	1893510..1894466	-	318	163851106	-	Mext_1679	-	alcohol dehydrogenase
1650	 67.41	0	1894562..1895500	+	312	163851107	-	Mext_1680	-	LysR substrate-binding
1651	 61.87	-1	1896086..1896460	-	124	163851108	-	Mext_1681	-	glyoxalase/bleomycin resistance protein/dioxygenase
1652	 69.06	0	1897168..1897962	+	264	163851109	-	Mext_1682	-	ErfK/YbiS/YcfS/YnhG family protein
1653	 68.15	0	1898025..1898903	+	292	163851110	-	Mext_1683	-	LysR substrate-binding
1654	 66.26	0	1899041..1899283	+	80	163851111	-	Mext_1684	-	antibiotic biosynthesis monooxygenase
1655	 67.61	0	1899356..1899781	-	141	163851112	-	Mext_1685	-	cupin 2 domain-containing protein
1656	 69.58	0	1899791..1900099	-	102	163851113	-	Mext_1686	-	hypothetical protein
1657	 70.60	0	1900239..1901255	-	338	163851114	-	Mext_1687	-	zinc-binding alcohol dehydrogenase family protein
1658	 70.03	0	1901283..1902143	-	286	163851115	-	Mext_1688	-	hypothetical protein
1659	 63.07	-1	1902857..1904581	+	574	163851116	-	Mext_1689	-	diguanylate cyclase
1660	 70.14	0	1904889..1909787	-	1632	163851117	-	Mext_1690	-	beta strand repeat-containing protein
1661	 68.81	0	1910433..1911833	+	466	163851118	-	Mext_1691	-	xanthine permease
1662	 71.81	0	1911960..1912367	-	135	163851119	-	Mext_1692	-	hypothetical protein
1663	 73.87	+1	1912364..1913779	-	471	163851120	-	Mext_1693	-	amidase
1664	 77.45	+2	1913776..1913979	-	67	163851121	-	Mext_1694	-	hypothetical protein
1665	 74.74	+1	1914077..1914757	-	226	163851122	-	Mext_1695	-	isochorismatase hydrolase
1666	 64.06	-1	1915263..1916258	+	331	163851123	-	Mext_1696	-	putative signal peptide
1667	 70.92	0	1916284..1917648	+	454	163851124	-	Mext_1697	-	hydroxydechloroatrazine ethylaminohydrolase
1668	 73.88	+1	1917645..1919252	+	535	163851125	-	Mext_1698	-	ABC transporter related
1669	 71.34	0	1919315..1920406	+	363	163851126	-	Mext_1699	-	inner-membrane translocator
1670	 72.82	+1	1920403..1921329	+	308	163851127	-	Mext_1700	-	inner-membrane translocator
1671	 66.93	0	1921495..1922634	+	379	163851128	-	Mext_1701	-	basic membrane lipoprotein
1672	 73.06	+1	1922808..1923965	+	385	163851129	-	Mext_1702	-	inner-membrane translocator
1673	 71.12	0	1923988..1924908	+	306	163851130	-	Mext_1703	-	inner-membrane translocator
1674	 66.38	0	1924918..1925946	+	342	163851131	-	Mext_1704	-	formamidase
1675	 68.75	0	1925943..1926662	+	239	163851132	-	Mext_1705	-	isochorismatase hydrolase
1676	 71.53	0	1926670..1928232	+	520	163851133	-	Mext_1706	-	ABC transporter related
1677	 61.01	-1	1928573..1929385	-	270	163851134	-	Mext_1707	-	hypothetical protein
1678	 65.81	0	1929515..1930795	+	426	163851135	-	Mext_1708	-	basic membrane lipoprotein
1679	 77.66	+2	1930872..1931153	-	93	163851136	-	Mext_1709	-	hypothetical protein
1680	 72.95	+1	1931224..1931430	-	68	163851137	-	Mext_1710	-	hypothetical protein
1681	 75.90	+1	1931519..1933165	-	548	163851138	-	Mext_1711	-	peptidase S15
1682	 71.05	0	1933155..1933976	-	273	163851139	-	Mext_1712	-	creatininase
1683	 73.01	+1	1933973..1935532	-	519	163851140	-	Mext_1713	-	AMP-dependent synthetase and ligase
1684	 69.73	0	1935573..1936160	-	195	163851141	-	Mext_1714	-	NAD(P)H dehydrogenase (quinone)
1685	 70.27	0	1936157..1937545	-	462	163851142	-	Mext_1715	-	FAD linked oxidase domain-containing protein
1686	 70.88	0	1937547..1938518	-	323	163851143	-	Mext_1716	-	2OG-Fe(II) oxygenase
1687	 68.73	0	1938531..1939499	-	322	163851144	-	Mext_1717	-	NMT1/THI5-like domain-containing protein
1688	 67.13	0	1939499..1940572	-	357	163851145	-	Mext_1718	-	Rieske (2Fe-2S) domain-containing protein
1689	 70.44	0	1940639..1941433	-	264	163851146	-	Mext_1719	-	binding-protein-dependent transport systems inner membrane component
1690	 72.24	0	1941430..1942344	-	304	163851147	-	Mext_1720	-	ABC transporter related
1691	 66.16	0	1942353..1943339	-	328	163851148	-	Mext_1721	-	NMT1/THI5-like domain-containing protein
1692	 70.09	0	1943666..1944571	+	301	163851149	-	Mext_1722	-	LysR substrate-binding
1693	 74.28	+1	1944650..1946029	+	459	163851150	-	Mext_1723	-	cytosine deaminase
1694	 73.49	+1	1946324..1946572	+	82	163851151	-	Mext_1724	-	hypothetical protein
1695	 75.32	+1	1946841..1947071	+	76	163851152	-	Mext_1725	-	hypothetical protein
1696	 72.40	0	1947252..1948175	+	307	163851153	-	Mext_1726	-	LysR substrate-binding
1697	 69.90	0	1948204..1949562	-	452	163851154	-	Mext_1727	-	guanine deaminase
1698	 72.42	0	1949559..1952339	-	926	163851155	-	Mext_1728	-	aldehyde oxidase and xanthine dehydrogenase molybdopterin binding
1699	 74.63	+1	1952336..1953151	-	271	163851156	-	Mext_1729	-	molybdopterin dehydrogenase FAD-binding
1700	 68.99	0	1953464..1954453	-	329	163851157	-	Mext_1730	-	NMT1/THI5-like domain-containing protein
1701	 73.29	+1	1954570..1955535	-	321	163851158	-	Mext_1731	-	binding-protein-dependent transport systems inner membrane component
1702	 73.05	+1	1955532..1956440	-	302	163851159	-	Mext_1732	-	binding-protein-dependent transport systems inner membrane component
1703	 70.53	0	1956430..1957284	-	284	163851160	-	Mext_1733	-	ABC transporter related
1704	 75.53	+1	1957487..1958095	-	202	163851161	-	Mext_1734	-	flavin reductase domain-containing protein
1705	 72.67	0	1958141..1958923	-	260	163851162	-	Mext_1735	-	alpha/beta hydrolase fold
1706	 68.45	0	1958928..1959320	-	130	163851163	-	Mext_1736	-	endoribonuclease L-PSP
1707	 70.82	0	1959333..1960079	-	248	163851164	-	Mext_1737	-	isochorismatase hydrolase
1708	 65.86	0	1960079..1961197	-	372	163851165	-	Mext_1738	-	luciferase family protein
1709	 69.63	0	1961424..1962065	-	213	163851166	-	Mext_1739	-	tetracycline transcriptional regulator YcdC domain-containing protein
1710	 72.29	0	1962192..1962689	-	165	163851167	-	Mext_1740	-	ureidoglycolate hydrolase
1711	 71.19	0	1962686..1963525	-	279	163851168	-	Mext_1741	-	hypothetical protein
68.64	MEAN

4.16	STD DEV
