IslandPath Analysis: Methylobacterium extorquens PA1

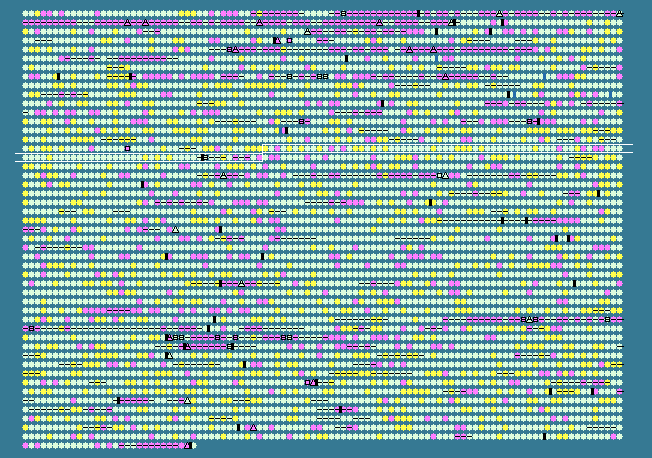

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.64 STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1541	 75.25	+1	1753688..1754374	-	228	163850998	-	Mext_1571	-	hypothetical protein
1542	 65.32	0	1754567..1754863	-	98	163850999	-	Mext_1572	-	helix-turn-helix domain-containing protein
1543	 63.52	-1	1754894..1755274	-	126	163851000	-	Mext_1573	-	RelE-like cytotoxic translational repressor of toxin-antitoxin stability system
1544	 69.63	0	1755331..1756173	-	280	163851001	-	Mext_1574	-	2,3,4,5-tetrahydropyridine-2,6-dicarboxylate N-succinyltransferase
1545	 72.86	+1	1756336..1756803	-	155	163851002	-	Mext_1575	-	cyclic nucleotide-binding
1546	 66.81	0	1756990..1757697	-	235	163851003	-	Mext_1576	-	response regulator receiver
1547	 72.39	0	1757967..1758560	+	197	163851004	-	Mext_1577	-	hypothetical protein
1548	 68.01	0	1758600..1759343	-	247	163851005	-	Mext_1578	-	alanine racemase domain-containing protein
1549	 69.11	0	1759572..1762277	+	901	163851006	-	Mext_1579	-	leucyl-tRNA synthetase
1550	 72.51	0	1762370..1763704	+	444	163851007	-	Mext_1580	-	tRNA modification GTPase TrmE
1551	 67.74	0	1763718..1764740	-	340	163851008	-	Mext_1581	-	PAS sensor protein
1552	 64.18	-1	1765093..1765374	+	93	163851009	-	Mext_1582	-	hypothetical protein
1553	 71.25	0	1765548..1767422	+	624	163851010	-	Mext_1583	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1554	 65.09	0	1767457..1768092	+	211	163851011	-	Mext_1584	-	methyltransferase GidB
1555	 67.71	0	1768089..1768949	+	286	163851012	-	Mext_1585	-	cobyrinic acid ac-diamide synthase
1556	 72.76	0	1768977..1769879	+	300	163851013	-	Mext_1586	-	parB-like partition protein
1557	 72.97	+1	1769943..1770974	-	343	163851014	-	Mext_1587	-	DNA polymerase III subunit delta
1558	 69.19	0	1770985..1771539	-	184	163851015	-	Mext_1588	-	hypothetical protein
1559	 75.65	+1	1771937..1772281	+	114	163851016	-	Mext_1589	-	hypothetical protein
1560	 71.03	0	1772416..1773516	+	366	163851017	-	Mext_1590	-	hypothetical protein
1561	 72.38	0	1773523..1774467	-	314	163851018	-	Mext_1591	-	hypothetical protein
1562	 70.50	0	1774485..1775423	-	312	163851019	-	Mext_1592	-	prephenate dehydrogenase
1563	 70.51	0	1775420..1776538	-	372	163851020	-	Mext_1593	-	histidinol-phosphate aminotransferase
1564	 71.29	0	1776653..1777150	-	165	163851021	-	Mext_1594	-	hypothetical protein
1565	 68.14	0	1777297..1779531	-	744	163851022	-	Mext_1595	-	TonB-dependent siderophore receptor
1566	 68.31	0	1779803..1781809	-	668	163851023	-	Mext_1596	-	K potassium transporter
1567	 68.92	0	1782128..1783456	-	442	163851024	-	Mext_1597	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1568	 69.96	0	1783788..1785032	+	414	163851025	-	Mext_1598	-	patatin
1569	 73.05	+1	1785124..1786173	+	349	163851026	-	Mext_1599	-	methyltransferase type 11
1570	 68.49	0	1786273..1787205	+	310	163851027	-	Mext_1600	-	5,10-methylenetetrahydrofolate reductase
1571	 66.75	0	1787405..1791157	+	1250	163851028	-	Mext_1601	-	B12-dependent methionine synthase
1572	 69.44	0	1791301..1791516	+	71	163851029	-	Mext_1602	-	hypothetical protein
1573	 73.73	+1	1791527..1792729	-	400	163851030	-	Mext_1603	-	putative acyl-CoA N-acyltransferase related protein
1574	 72.84	+1	1792936..1793988	+	350	163851031	-	Mext_1604	-	polysaccharide deacetylase
1575	 75.57	+1	1794001..1794438	-	145	163851032	-	Mext_1605	-	hypothetical protein
1576	 67.65	0	1794574..1794879	-	101	163851033	-	Mext_1606	-	hypothetical protein
1577	 72.32	0	1795154..1796302	+	382	163851034	-	Mext_1607	-	cytochrome oxidase assembly
1578	 66.67	0	1796583..1797263	+	226	163851035	-	Mext_1608	-	Hly-III family protein
1579	 66.67	0	1797465..1797881	+	138	163851036	-	Mext_1609	-	hypothetical protein
1580	 67.30	0	1798088..1799980	+	630	163851037	-	Mext_1610	-	thiamine biosynthesis protein ThiC
1581	 70.40	0	1800197..1800544	+	115	163851038	-	Mext_1611	-	hypothetical protein
1582	 68.27	0	1800718..1801092	-	124	163851039	-	Mext_1612	-	flagellar FlaF family protein
1583	 68.75	0	1801270..1801509	+	79	163851040	-	Mext_1613	-	hypothetical protein
1584	 68.20	0	1801958..1802284	-	108	163851041	-	Mext_1614	-	hypothetical protein
1585	 69.47	0	1802520..1803089	-	189	163851042	-	Mext_1615	-	metallophosphoesterase
1586	 75.99	+1	1803147..1804283	-	378	163851043	-	Mext_1616	-	TonB family protein
1587	 67.32	0	1804288..1804749	-	153	163851044	-	Mext_1617	-	protein TolR
1588	 69.52	0	1804834..1805535	-	233	163851045	-	Mext_1618	-	MotA/TolQ/ExbB proton channel
1589	 69.57	0	1805607..1806089	-	160	163851046	-	Mext_1619	-	hypothetical protein
1590	 65.05	0	1806658..1807089	+	143	163851047	-	Mext_1620	-	heat shock protein Hsp20
1591	 69.86	0	1807263..1807544	+	93	163851048	-	Mext_1621	-	hypothetical protein
1592	 70.34	0	1807576..1808391	-	271	163851049	-	Mext_1622	-	hypothetical protein
1593	 72.93	+1	1808487..1809716	+	409	163851050	-	Mext_1623	-	glycosyl transferase group 1
1594	 63.09	-1	1809884..1810414	+	176	163851051	-	Mext_1624	-	translation initiation factor IF-3
1595	 68.38	0	1810605..1812941	-	778	163851052	-	Mext_1625	-	Amylo-alpha-16-glucosidase
1596	 64.90	0	1813100..1814233	-	377	163851053	-	Mext_1626	-	glycosyl transferase group 1
1597	 60.78	-1	1814688..1814891	+	67	163851054	-	Mext_1627	-	50S ribosomal protein L35
1598	 65.57	0	1814944..1815309	+	121	163851055	-	Mext_1628	-	ribosomal protein L20
1599	 68.24	0	1815493..1816572	+	359	163851056	-	Mext_1629	-	phenylalanyl-tRNA synthetase, alpha subunit
1600	 71.86	0	1816637..1819060	+	807	163851057	-	Mext_1630	-	phenylalanyl-tRNA synthetase, beta subunit
1601	 71.46	0	1819086..1819961	+	291	163851058	-	Mext_1631	-	SecC motif-containing protein
1602	 71.38	0	1819909..1820736	-	275	163851059	-	Mext_1632	-	UBA/THIF-type NAD/FAD binding protein
1603	 70.30	0	1820957..1822168	+	403	163851060	-	Mext_1633	-	succinyl-diaminopimelate desuccinylase
1604	 70.12	0	1822223..1822975	-	250	163851061	-	Mext_1634	-	tRNA pseudouridine synthase A
1605	 72.47	0	1822989..1823918	-	309	163851062	-	Mext_1635	-	methionyl-tRNA formyltransferase
1606	 65.89	0	1823929..1824444	-	171	163851063	-	Mext_1636	-	peptide deformylase
1607	 70.71	0	1824722..1826008	-	428	163851064	-	Mext_1637	-	hypothetical protein
1608	 71.95	0	1826123..1826728	-	201	163851065	-	Mext_1638	-	recombination protein RecR
1609	 68.09	0	1827056..1828675	+	539	163851066	-	Mext_1639	-	phosphoenolpyruvate carboxykinase
1610	 68.86	0	1828721..1829998	-	425	163851067	-	Mext_1640	-	radical SAM protein
1611	 70.41	0	1830117..1831931	-	604	163851068	-	Mext_1641	-	shikimate kinase., 3-dehydroquinate synthase
1612	 71.17	0	1832108..1832839	+	243	163851069	-	Mext_1642	-	regulatory protein TetR
1613	 67.19	0	1833190..1834152	+	320	163851070	-	Mext_1643	-	malate dehydrogenase, NAD-dependent
1614	 66.33	0	1834230..1835426	+	398	163851071	-	Mext_1644	-	succinyl-CoA synthetase, beta subunit
1615	 68.69	0	1835435..1836322	+	295	163851072	-	Mext_1645	-	succinyl-CoA synthetase, alpha subunit
1616	 66.93	0	1836547..1839537	+	996	163851073	-	Mext_1646	-	alpha-ketoglutarate decarboxylase
1617	 67.57	0	1839621..1840949	+	442	163851074	-	Mext_1647	-	2-oxoglutarate dehydrogenase, E2 subunit, dihydrolipoamide succinyltransferase
1618	 67.24	0	1841237..1842640	+	467	163851075	-	Mext_1648	-	dihydrolipoamide dehydrogenase
1619	 68.02	0	1842840..1844465	+	541	163851076	-	Mext_1649	-	histidine kinase
1620	 71.88	0	1844525..1845157	+	210	163851077	-	Mext_1650	-	hypothetical protein
1621	 72.38	0	1845139..1845768	-	209	163851078	-	Mext_1651	-	sarcosine oxidase gamma subunit
1622	 72.11	0	1845761..1848790	-	1009	163851079	-	Mext_1652	-	sarcosine oxidase alpha subunit family protein
1623	 73.96	+1	1848787..1849074	-	95	163851080	-	Mext_1653	-	sarcosine oxidase delta subunit heterotetrameric
1624	 68.82	0	1849256..1850506	-	416	163851081	-	Mext_1654	-	sarcosine oxidase beta subunit family protein
1625	 72.97	+1	1850707..1851705	+	332	163851082	-	Mext_1655	-	ThiJ/PfpI domain-containing protein
1626	 69.55	0	1851880..1852815	+	311	163851083	-	Mext_1656	-	glutamine amidotransferase class-II
1627	 69.13	0	1852815..1853504	+	229	163851084	-	Mext_1657	-	glutamate synthase alpha subunit
1628	 70.76	0	1853504..1854847	+	447	163851085	-	Mext_1658	-	ferredoxin-dependent glutamate synthase
1629	 67.36	0	1854937..1856235	+	432	163851086	-	Mext_1659	-	glutamine synthetase, type III
1630	 71.96	0	1856410..1856919	+	169	163851087	-	Mext_1660	-	hypothetical protein
1631	 66.26	0	1857361..1857606	-	81	163851088	-	Mext_1661	-	transposase and inactivated derivatives-like protein
1632	 68.78	0	1858023..1868786	+	3587	163851089	-	Mext_1662	-	heme peroxidase
1633	 70.97	0	1868847..1870613	+	588	163851090	-	Mext_1663	-	type I secretion system ATPase
1634	 72.69	0	1870610..1872835	+	741	163851091	-	Mext_1664	-	hemolysin-type calcium-binding region
1635	 66.96	0	1872857..1874203	+	448	163851092	-	Mext_1665	-	HlyD family type I secretion membrane fusion protein
1636	 60.04	-2	1874447..1874914	+	155	163851093	-	Mext_1666	-	hypothetical protein
1637	 67.19	0	1874931..1876085	+	384	163851094	-	Mext_1667	-	ATPase domain-containing protein
1638	 64.13	-1	1876078..1876746	+	222	163851095	-	Mext_1668	-	response regulator receiver
1639	 66.89	0	1877109..1877984	-	291	163851096	-	Mext_1669	-	esterase/lipase-like protein
1640	 63.70	-1	1878084..1878893	-	269	163851097	-	Mext_1670	-	methyltransferase type 11
68.64	MEAN

4.16	STD DEV
