IslandPath Analysis: Methylobacterium extorquens PA1

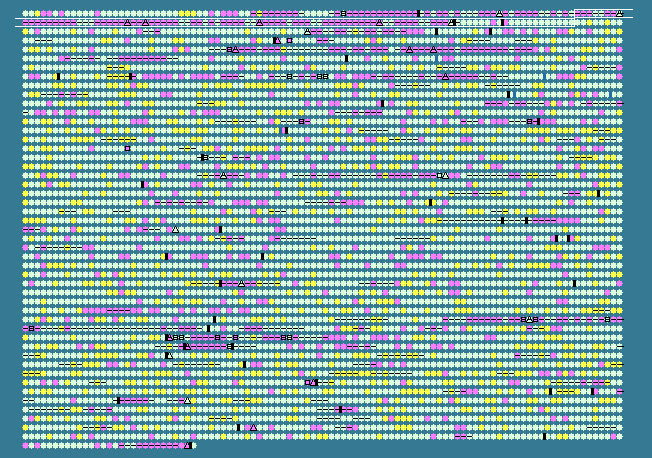

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.64   STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
93	 63.90	-1	98364..99014	-	216	163849550	-	Mext_0094	-	putative cytochrome c oxidase subunit III protein
94	 63.28	-1	99011..100927	-	638	163849551	-	Mext_0095	-	cytochrome c oxidase, subunit I
95	 64.88	0	100924..101928	-	334	163849552	-	Mext_0096	-	cytochrome c oxidase, subunit II
96	 65.78	0	101936..102499	-	187	163849553	-	Mext_0097	-	cytochrome c class I
97	 66.07	0	102496..103332	-	278	163849554	-	Mext_0098	-	extracellular solute-binding protein
98	 64.74	0	103313..105130	-	605	163849555	-	Mext_0099	-	methanol/ethanol family PQQ-dependent dehydrogenase
99	 59.88	-2	105565..105888	+	107	163849556	-	Mext_0100	-	hypothetical protein
100	 66.44	0	105966..107288	-	440	163849557	-	Mext_0101	-	integrase family protein
101	 63.86	-1	107628..108626	-	332	163849558	-	Mext_0102	-	alpha/beta hydrolase fold
102	 59.01	-2	108935..109156	+	73	163849559	-	Mext_0103	-	hypothetical protein
103	 57.99	-2	109706..110512	+	268	163849560	-	Mext_0104	-	GDSL family lipase
104	 61.08	-1	110845..111471	+	208	163849561	-	Mext_0105	-	SNARE associated Golgi protein
105	 62.49	-1	111509..113017	-	502	163849562	-	Mext_0106	-	phospholipase D/transphosphatidylase
106	 62.04	-1	113414..113629	+	71	163849563	-	Mext_0107	-	hypothetical protein
107	 62.80	-1	113859..115721	+	620	163849564	-	Mext_0108	-	PAS sensor protein
108	 58.68	-2	115718..116080	+	120	163849565	-	Mext_0109	-	response regulator receiver
109	 57.91	-2	116695..117162	-	155	163849566	-	Mext_0110	-	hypothetical protein
110	 67.40	0	118719..119402	-	227	163849567	-	Mext_0111	-	nuclease
111	 65.33	0	119435..119584	-	49	163849568	-	Mext_0112	-	hypothetical protein
112	 65.63	0	121179..121661	-	160	163849569	-	Mext_0113	-	PAS sensor protein
113	 61.59	-1	121875..122327	+	150	163849570	-	Mext_0114	-	BLUF domain-containing protein
114	 64.94	0	122428..122658	+	76	163849571	-	Mext_0115	-	hypothetical protein
115	 56.20	-2	122986..123396	-	136	163849572	-	Mext_0116	-	cupin 2 domain-containing protein
116	 62.96	-1	123900..124142	-	80	163849573	-	Mext_0117	-	hypothetical protein
117	 63.00	-1	124232..124558	-	108	163849574	-	Mext_0118	-	hypothetical protein
118	 63.02	-1	125064..125693	+	209	163849575	-	Mext_0119	-	integrase family protein
119	 63.11	-1	125636..126253	-	205	163849576	-	Mext_0120	-	hypothetical protein
120	 61.64	-1	126855..128168	-	437	163849577	-	Mext_0121	-	major facilitator transporter
121	 64.26	-1	128592..129257	-	221	163849578	-	Mext_0122	-	integrase, catalytic region
122	 62.53	-1	130415..132493	+	692	163849579	-	Mext_0123	-	PAS sensor protein
123	 61.90	-1	133225..134925	-	566	163849580	-	Mext_0124	-	AMP-dependent synthetase and ligase
124	 54.11	-2	135015..135866	+	283	163849581	-	Mext_0125	-	porin
125	 58.79	-2	135978..136916	-	312	163849582	-	Mext_0126	-	alpha/beta hydrolase domain-containing protein
126	 61.63	-1	137062..137319	+	85	163849583	-	Mext_0127	-	hypothetical protein
127	 65.70	0	138930..139136	-	68	163849584	-	Mext_0129	-	hypothetical protein
128	 67.93	0	139133..139369	-	78	163849585	-	Mext_0130	-	hypothetical protein
129	 56.15	-2	140434..141507	+	357	163849586	-	Mext_0131	-	hemolysin-type calcium-binding region
130	 64.50	0	142801..143355	+	184	163849587	-	Mext_0132	-	sigma-70 region 2 domain-containing protein
131	 66.47	0	144084..144590	+	168	163849588	-	Mext_0133	-	regulatory protein MarR
132	 63.14	-1	144709..145473	-	254	163849589	-	Mext_0134	-	hypothetical protein
133	 65.58	0	145592..145960	-	122	163849590	-	Mext_0135	-	rare lipoprotein A
134	 63.52	-1	146955..151241	-	1428	163849591	-	Mext_0136	-	diguanylate cyclase
135	 63.70	-1	152043..153254	+	403	163849592	-	Mext_0137	-	hypothetical protein
136	 58.33	-2	153292..153699	+	135	163849593	-	Mext_0138	-	TadE family protein
137	 59.80	-2	153975..154280	+	101	163849594	-	Mext_0139	-	hypothetical protein
138	 65.36	0	155000..155305	-	101	163849595	-	Mext_0140	-	hypothetical protein
139	 66.67	0	155305..157002	-	565	163849596	-	Mext_0141	-	chemotaxis sensory transducer
140	 60.71	-1	157274..157609	-	111	163849597	-	Mext_0142	-	integrase, catalytic region
141	 65.12	0	157640..157768	-	42	163849598	-	Mext_0143	-	hypothetical protein
142	 62.18	-1	159244..159600	+	118	163849599	-	Mext_0144	-	hypothetical protein
143	 59.06	-2	159907..160248	+	113	163849600	-	Mext_0145	-	hypothetical protein
144	 63.97	-1	160542..160949	-	135	163849601	-	Mext_0146	-	hypothetical protein
145	 65.58	0	160982..161443	-	153	163849602	-	Mext_0147	-	hypothetical protein
146	 57.30	-2	162144..162698	+	184	163849603	-	Mext_0148	-	hypothetical protein
147	 60.20	-2	163251..166871	-	1206	163849604	-	Mext_0150	-	outer membrane adhesin like proteiin
148	 62.04	-1	167643..167858	+	71	163849605	-	Mext_0151	-	hypothetical protein
149	 71.74	0	167931..168068	+	45	163849606	-	Mext_0152	-	hypothetical protein
150	 66.21	0	168080..168298	+	72	163849607	-	Mext_0153	-	hypothetical protein
151	 62.22	-1	168920..169324	+	134	163849608	-	Mext_0154	-	helix-turn-helix domain-containing protein
152	 61.52	-1	169575..169982	+	135	163849609	-	Mext_0155	-	helix-turn-helix domain-containing protein
153	 60.91	-1	170460..170945	-	161	163849610	-	Mext_0156	-	hypothetical protein
154	 62.38	-1	171034..172107	-	357	163849611	-	Mext_0157	-	hypothetical protein
155	 58.02	-2	172104..172496	-	130	163849612	-	Mext_0158	-	hypothetical protein
156	 56.04	-2	172493..173047	-	184	163849613	-	Mext_0159	-	hypothetical protein
157	 57.06	-2	173056..174585	-	509	163849614	-	Mext_0160	-	hypothetical protein
158	 54.85	-2	174686..176377	+	563	163849615	-	Mext_0161	-	hypothetical protein
159	 65.03	0	176402..176767	-	121	163849616	-	Mext_0162	-	hypothetical protein
160	 64.39	-1	176990..177559	+	189	163849617	-	Mext_0163	-	integrase family protein
161	 67.12	0	178135..178794	+	219	163849618	-	Mext_0164	-	ErfK/YbiS/YcfS/YnhG family protein
162	 66.85	0	178932..180023	-	363	163849619	-	Mext_0165	-	lytic transglycosylase catalytic
163	 61.96	-1	180413..180688	-	91	163849620	-	Mext_0166	-	hypothetical protein
164	 63.23	-1	180782..181945	-	387	163849621	-	Mext_0167	-	hypothetical protein
165	 60.75	-1	182013..182198	+	61	163849622	-	Mext_0168	-	hypothetical protein
166	 60.71	-1	182218..182670	+	150	163849623	-	Mext_0169	-	hypothetical protein
167	 65.24	0	183431..183991	+	186	163849624	-	Mext_0170	-	ROSMUCR transcriptional regulator
168	 66.81	0	183988..184692	-	234	163849625	-	Mext_0171	-	dienelactone hydrolase
169	 64.07	-1	185264..185494	+	76	163849626	-	Mext_0172	-	hypothetical protein
170	 44.79	-2	185773..187317	-	514	163849627	-	Mext_0173	-	hypothetical protein
171	 44.66	-2	187499..188125	-	208	163849628	-	Mext_0174	-	putative transmembrane protein
172	 65.99	0	188402..189724	-	440	163849629	-	Mext_0175	-	integrase family protein
173	 66.90	0	190109..191401	-	430	163849630	-	Mext_0176	-	tryptophan synthase subunit beta
174	 70.99	0	191473..192120	-	215	163849631	-	Mext_0177	-	phosphoribosylanthranilate isomerase
175	 68.83	0	192137..192505	-	122	163849632	-	Mext_0178	-	hypothetical protein
176	 67.96	0	192731..193039	-	102	163849633	-	Mext_0179	-	integration host factor, beta subunit
177	 68.74	0	193081..194046	-	321	163849634	-	Mext_0180	-	signal peptide peptidase SppA, 36K type
178	 69.46	0	194307..195632	-	441	163849635	-	Mext_0181	-	hypothetical protein
179	 64.51	0	195725..197437	-	570	163849636	-	Mext_0182	-	30S ribosomal protein S1
180	 71.87	0	197852..198658	-	268	163849637	-	Mext_0183	-	RNA methyltransferase
181	 65.01	0	199300..200085	-	261	163849638	-	Mext_0184	-	hypothetical protein
182	 67.52	0	200217..201155	+	312	163849639	-	Mext_0185	-	pirin domain-containing protein
183	 68.99	0	201258..203024	+	588	163849640	-	Mext_0186	-	potassium efflux system protein
184	 71.67	0	203204..203923	+	239	163849641	-	Mext_0187	-	cytochrome c biogenesis protein transmembrane region
185	 69.59	0	204031..204645	+	204	163849642	-	Mext_0188	-	HhH-GPD family protein
186	 67.44	0	204651..204908	-	85	163849643	-	Mext_0189	-	hypothetical protein
187	 66.67	0	205236..205454	+	72	163849644	-	Mext_0190	-	hypothetical protein
188	 69.55	0	205569..207266	-	565	163849645	-	Mext_0191	-	chemotaxis sensory transducer
189	 66.36	0	207649..209271	+	540	163849646	-	Mext_0192	-	ABC transporter related
190	 71.99	0	209279..209635	-	118	163849647	-	Mext_0193	-	hypothetical protein
191	 68.75	0	209645..209884	-	79	163849648	-	Mext_0194	-	hypothetical protein
192	 70.39	0	210102..210746	-	214	163849649	-	Mext_0195	-	hypothetical protein
68.64	MEAN

4.16	STD DEV
