IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

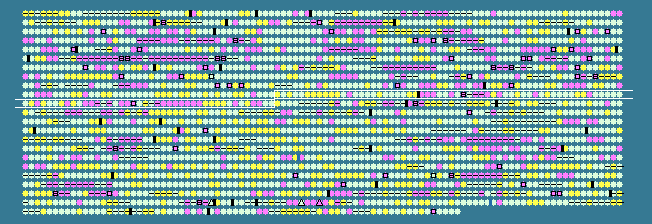

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
943	 46.37	0	1114698..1115771	+	357	91773025	egsA	Mbur_1032	-	NAD(P)-dependent glycerol-1-phosphate dehydrogenase
944	 43.27	0	1115895..1116347	+	150	91773026	-	Mbur_1033	-	hypothetical protein
945	 45.51	0	1116424..1117047	+	207	91773027	-	Mbur_1034	-	hypothetical protein
946	 43.43	0	1117425..1117820	+	131	91773028	-	Mbur_1035	-	sirohydrochlorin cobaltochelatase
947	 43.00	0	1117835..1119199	+	454	91773029	-	Mbur_1036	-	hypothetical protein
948	 47.35	+1	1119253..1120365	+	370	91773030	-	Mbur_1037	-	hypothetical protein
949	 48.30	+1	1120382..1121176	+	264	91773031	-	Mbur_1038	-	nitrogenase iron protein subunit NifH
950	 46.73	+1	1121191..1122660	+	489	91773032	-	Mbur_1039	-	hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing) / cobyrinate a,c-diamide synthase
951	 45.64	0	1122657..1123712	+	351	91773033	-	Mbur_1040	-	tRNA splicing endonuclease
952	 45.53	0	1123766..1124470	+	234	91773034	-	Mbur_1041	-	Ala-tRNA(Pro) hydrolase
953	 46.54	+1	1124494..1125591	-	365	91773035	-	Mbur_1042	-	cytochrome c assembly protein
954	 42.48	0	1126757..1127248	-	163	91773036	-	Mbur_1044	-	rubrerythrin
955	 32.94	-1	1128007..1128774	+	255	91773037	-	Mbur_1046	-	hypothetical protein
956	 40.88	0	1129377..1130489	+	370	91773038	-	Mbur_1047	-	Fe3+-hydroxamate binding protein
957	 43.62	0	1130648..1131658	+	336	91773039	-	Mbur_1048	-	ABC Fe3+-siderophore transporter, inner membrane subunit
958	 40.11	0	1131658..1132410	+	250	91773040	-	Mbur_1049	-	ABC cobalamin/Fe3+-siderophores transporter, ATPase subunit
959	 39.06	0	1132456..1133031	-	191	91773041	-	Mbur_1050	-	hypothetical protein
960	 46.02	0	1133655..1134182	+	175	91773042	-	Mbur_1051	-	hypothetical protein
961	 41.89	0	1134200..1134748	+	182	91773043	-	Mbur_1052	-	orotate phosphoribosyltransferase
962	 44.63	0	1134980..1136599	+	539	91773044	-	Mbur_1053	-	hydroxylamine reductase
963	 43.17	0	1136666..1136980	+	104	91773045	-	Mbur_1054	-	cupin family protein
964	 39.55	0	1137051..1137404	-	117	91773046	-	Mbur_1055	-	hypothetical protein
965	 48.81	+1	1137735..1139033	+	432	91773047	-	Mbur_1056	-	phosphoribosylamine--glycine ligase
966	 48.12	+1	1139056..1139961	+	301	91773048	-	Mbur_1057	-	ornithine carbamoyltransferase
967	 37.93	0	1140871..1141566	-	231	91773049	-	Mbur_1058	-	4Fe-4S ferredoxin, iron-sulfur binding
968	 37.98	0	1141965..1142330	+	121	91773050	-	Mbur_1060	-	hypothetical protein
969	 32.54	-2	1142548..1143180	-	210	91773051	-	Mbur_1061	-	hypothetical protein
970	 41.47	0	1143449..1144099	+	216	91773052	-	Mbur_1062	-	hypothetical protein
971	 41.48	0	1144366..1145802	+	478	91773053	-	Mbur_1063	-	K+ transporter Trk
972	 36.75	-1	1146013..1146246	+	77	91773054	-	Mbur_1064	-	hypothetical protein
973	 40.74	0	1146261..1146530	+	89	91773055	-	Mbur_1065	-	hypothetical protein
974	 35.82	-1	1146851..1147975	-	374	91773056	-	Mbur_1067	-	transposase, mutator type
975	 43.49	0	1148412..1148933	+	173	91773057	-	Mbur_1069	-	hypothetical protein
976	 34.73	-1	1149243..1149671	+	142	91773058	-	Mbur_1070	-	hypothetical protein
977	 37.97	0	1149924..1150160	+	78	91773059	-	Mbur_1071	-	hypothetical protein
978	 34.81	-1	1150271..1150744	-	157	91773060	-	Mbur_1072	-	hypothetical protein
979	 45.56	0	1150993..1152006	+	337	91773061	-	Mbur_1073	-	isocitrate dehydrogenase (NADP)
980	 37.04	-1	1152126..1153313	-	395	91773062	-	Mbur_1074	-	MscS mechanosensitive ion channel
981	 43.66	0	1153530..1154807	-	425	91773063	-	Mbur_1075	-	pyruvate carboxyltransferase
982	 44.44	0	1155163..1155666	+	167	91773064	-	Mbur_1076	-	amino acid-binding protein
983	 45.42	0	1155672..1156871	-	399	91773065	-	Mbur_1077	-	geranylgeranyl reductase
984	 45.25	0	1156906..1158189	-	427	91773066	-	Mbur_1078	-	3-phosphoshikimate 1-carboxyvinyltransferase
985	 43.43	0	1158190..1158843	-	217	91773067	thyA	Mbur_1079	-	thymidylate synthase
986	 38.40	0	1159211..1159585	+	124	91773068	-	Mbur_1080	-	hypothetical protein
987	 38.70	0	1159752..1160198	+	148	91773069	-	Mbur_1081	-	hypothetical protein
988	 47.20	+1	1160203..1161060	-	285	91773070	-	Mbur_1082	-	HtpX-2 peptidase
989	 43.92	0	1161427..1161681	-	84	91773071	-	Mbur_1083	-	hypothetical protein
990	 43.43	0	1161684..1163099	-	471	91773072	-	Mbur_1084	-	hypothetical protein
991	 40.78	0	1163504..1164376	+	290	91773073	-	Mbur_1085	-	hypothetical protein
992	 43.00	0	1164461..1164967	+	168	91773074	-	Mbur_1086	-	hypothetical protein
993	 46.29	0	1164981..1165976	+	331	91773075	-	Mbur_1087	-	homoserine dehydrogenase
994	 45.66	0	1166020..1167723	+	567	91773076	-	Mbur_1088	-	DNA ligase I, ATP-dependent (dnl1)
995	 38.29	0	1168744..1169934	+	396	91773077	-	Mbur_1089	-	cell surface protein
996	 43.08	0	1169976..1170827	+	283	91773078	-	Mbur_1090	-	methyltransferase
997	 42.35	0	1170824..1171588	+	254	91773079	-	Mbur_1091	-	cobyrinic acid a,c-diamide synthase
998	 42.76	0	1171625..1172239	+	204	91773080	-	Mbur_1092	-	hypothetical protein
999	 42.62	0	1172236..1173516	+	426	91773081	-	Mbur_1093	-	Fe3+-hydroxamate binding protein
1000	 40.91	0	1173616..1174737	+	373	91773082	-	Mbur_1094	-	ABC Fe3+-siderophore transporter, inner membrane subunit
1001	 40.81	0	1174739..1175527	+	262	91773083	-	Mbur_1095	-	ABC cobalamin/Fe3+-siderophores transporter, ATPase subunit
1002	 47.79	+1	1177539..1178783	-	414	91773084	-	Mbur_1098	-	3-hydroxy-3-methylglutaryl-coenzyme A reductase
1003	 38.25	0	1179227..1179796	+	189	91773085	-	Mbur_1099	-	hypothetical protein
1004	 45.82	0	1179980..1181284	+	434	91773086	-	Mbur_1100	-	tryptophan synthase subunit beta
1005	 42.60	0	1181345..1181959	-	204	91773087	-	Mbur_1101	-	endonuclease III / DNA-(apurinic or apyrimidinic site) lyase
1006	 44.55	0	1182074..1184356	+	760	91773088	-	Mbur_1102	-	ski2-like helicase
1007	 46.60	+1	1184434..1185714	+	426	91773089	hisD	Mbur_1103	-	histidinol dehydrogenase
1008	 36.59	-1	1185819..1186217	+	132	91773090	-	Mbur_1104	-	hypothetical protein
1009	 50.07	+1	1186426..1187178	+	250	91773091	-	Mbur_1105	-	uroporphyrinogen-III C-methyltransferase
1010	 43.20	0	1187209..1188009	+	266	91773092	hemD	Mbur_1106	-	uroporphyrinogen-III synthase
1011	 29.59	-2	1189453..1189986	-	177	91773093	-	Mbur_1108	-	hypothetical protein
1012	 36.69	-1	1190058..1190771	-	237	91773094	-	Mbur_1109	-	hypothetical protein
1013	 31.88	-2	1191002..1191277	-	91	91773095	-	Mbur_1110	-	hypothetical protein
1014	 38.94	0	1191464..1192711	-	415	91773096	-	Mbur_1111	-	YVTN beta-propeller repeat-containing protein
1015	 37.98	0	1192947..1194152	-	401	91773097	-	Mbur_1112	-	hypothetical protein
1016	 41.82	0	1194669..1195481	+	270	91773098	-	Mbur_1113	-	ArsR family transcriptional regulator
1017	 36.81	-1	1195585..1196016	-	143	91773099	-	Mbur_1114	-	hypothetical protein
1018	 34.30	-1	1196108..1196725	-	205	91773100	-	Mbur_1115	-	hypothetical protein
1019	 37.11	-1	1198994..1200475	+	493	91773101	-	Mbur_1117	-	transposase
1020	 39.62	0	1200668..1201813	-	381	91773102	-	Mbur_1118	-	hypothetical protein
1021	 45.56	0	1202239..1202598	-	119	91773103	-	Mbur_1119	-	carboxymuconolactone decarboxylase
1022	 45.20	0	1202605..1203135	-	176	91773104	-	Mbur_1120	-	Ferritin and Dps
1023	 35.81	-1	1203460..1204185	+	241	91773105	-	Mbur_1121	-	CRISPR-associated Cas6 family protein
1024	 27.21	-2	1204231..1206108	+	625	91773106	-	Mbur_1122	-	hypothetical protein
1025	 31.48	-2	1206133..1206993	+	286	91773107	-	Mbur_1123	-	hypothetical protein
1026	 31.32	-2	1206994..1207788	+	264	91773108	-	Mbur_1124	-	hypothetical protein
1027	 27.13	-2	1207778..1210420	+	880	91773109	-	Mbur_1125	-	CRISPR-associated helicase Cas3
1028	 33.00	-1	1210526..1211125	+	199	91773110	-	Mbur_1126	-	CRISPR-associated Cas4 family protein
1029	 32.04	-2	1211168..1212169	+	333	91773111	-	Mbur_1127	-	CRISPR-associated Cas1 family protein
1030	 30.30	-2	1212171..1212434	+	87	91773112	-	Mbur_1128	-	hypothetical protein
1031	 45.86	0	1214110..1215450	+	446	91773113	-	Mbur_1130	-	tRNA CCA-pyrophosphorylase
1032	 45.95	0	1215476..1216315	-	279	91773114	-	Mbur_1131	-	8-oxoguanine DNA glycosylase-like protein
1033	 49.07	+1	1216378..1216968	-	196	91773115	-	Mbur_1132	-	indolepyruvate oxidoreductase subunit B
1034	 47.90	+1	1216965..1218770	-	601	91773116	-	Mbur_1133	-	thiamine pyrophosphate enzyme-like TPP-binding
1035	 39.94	0	1218906..1220843	-	645	91773117	-	Mbur_1134	-	hydantoinase/oxoprolinase
1036	 33.33	-1	1220889..1221347	-	152	91773118	-	Mbur_1135	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1037	 41.78	0	1221585..1221797	+	70	91773119	-	Mbur_1136	-	hypothetical protein
1038	 47.04	+1	1222356..1224245	-	629	91773120	-	Mbur_1137	-	acetyl-coenzyme A synthetase
1039	 32.67	-2	1224612..1224761	+	49	91773121	-	Mbur_1138	-	hypothetical protein
1040	 30.61	-2	1224853..1225512	-	219	91773122	-	Mbur_1139	-	hypothetical protein
1041	 39.66	0	1226641..1226988	+	115	91773123	-	Mbur_1140	-	hypothetical protein
1042	 44.66	0	1226989..1227606	+	205	91773124	-	Mbur_1141	-	4Fe-4S ferredoxin, iron-sulfur binding
41.89	MEAN

4.51	STD DEV
