IslandPath Analysis: Methanococcoides burtonii DSM 6242

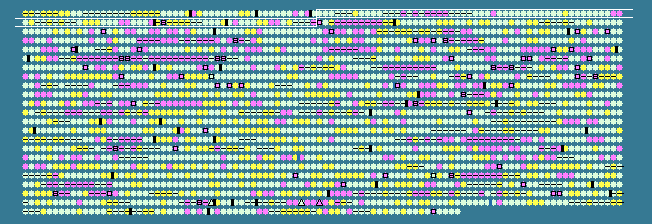

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
50	 43.23	0	38736..39665	+	309	91772132	-	Mbur_0052	-	hypothetical protein
51	 44.55	0	39784..40095	-	103	91772133	-	Mbur_0053	-	hypothetical protein
52	 43.29	0	40108..41061	-	317	91772134	-	Mbur_0054	-	GTP cyclohydrolase
53	 44.78	0	41365..41661	+	98	91772135	-	Mbur_0055	-	nucleoid protein MC1
54	 42.73	0	41796..42710	+	304	91772136	-	Mbur_0056	-	acetylglutamate kinase
55	 44.35	0	42736..43779	-	347	91772137	-	Mbur_0057	-	hypothetical protein
56	 46.56	+1	43780..44694	-	304	91772138	-	Mbur_0058	-	GMP synthase subunit B
57	 43.97	0	45035..46369	+	444	91772139	-	Mbur_0059	-	hypothetical protein
58	 42.22	0	46778..48184	+	468	91772140	-	Mbur_0060	-	hypothetical protein
59	 44.50	0	48323..50266	+	647	91772141	-	Mbur_0061	-	ATP-dependent DNA helicase RecQ
60	 42.42	0	50274..51032	-	252	91772142	-	Mbur_0062	-	peptidase A24B, FlaK-like
61	 41.82	0	52556..52885	+	109	91772143	-	Mbur_0064	-	hypothetical protein
62	 44.98	0	52974..53900	+	308	91772144	pyrB	Mbur_0065	-	aspartate carbamoyltransferase catalytic subunit
63	 41.88	0	53897..54376	+	159	91772145	-	Mbur_0066	-	aspartate carbamoyltransferase regulatory subunit
64	 33.44	-1	54490..55398	-	302	91772146	-	Mbur_0067	-	cell surface protein
65	 42.48	0	55818..58265	-	815	91772147	-	Mbur_0068	-	plasma-membrane proton-efflux P-type ATPase
66	 38.10	0	58499..59800	-	433	91772148	-	Mbur_0069	-	amino acid transporter
67	 38.69	0	59813..60652	-	279	91772149	-	Mbur_0070	-	amino acid transporter
68	 32.77	-2	61225..61581	+	118	91772150	-	Mbur_0071	-	hypothetical protein
69	 29.59	-2	61749..62522	-	257	91772151	-	Mbur_0072	-	alpha/beta hydrolase
70	 37.27	-1	62500..63768	-	422	91772152	-	Mbur_0073	-	radical SAM family Fe-S protein
71	 35.51	-1	63798..64532	-	244	91772153	-	Mbur_0074	-	hypothetical protein
72	 41.86	0	65008..66039	+	343	91772154	-	Mbur_0075	-	major facilitator transporter
73	 42.92	0	66015..66233	+	72	91772155	-	Mbur_0076	-	class H tetracycline resistance efflux protein
74	 41.61	0	66303..66785	-	160	91772156	-	Mbur_0077	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
75	 42.06	0	66871..68085	-	404	91772157	-	Mbur_0078	-	hypothetical protein
76	 43.87	0	68101..69315	-	404	91772158	-	Mbur_0079	-	cell division protein FtsX
77	 42.47	0	69320..70567	-	415	91772159	-	Mbur_0080	-	hypothetical protein
78	 43.57	0	70587..71309	-	240	91772160	-	Mbur_0081	-	ABC transporter, ATPase subunit
79	 38.09	0	73103..75394	+	763	91772161	-	Mbur_0083	-	PAS/PAC sensor signal transduction histidine kinase
80	 43.70	0	75833..76459	-	208	91772162	-	Mbur_0084	-	methyltransferase type 11
81	 41.13	0	76519..77262	-	247	91772163	-	Mbur_0085	-	sugar fermentation stimulation protein
82	 38.99	0	77293..77628	-	111	91772164	-	Mbur_0086	-	hypothetical protein
83	 42.72	0	78966..79487	+	173	91772165	-	Mbur_0088	-	hypothetical protein
84	 43.69	0	79634..79855	+	73	91772166	-	Mbur_0089	-	SirA-like protein
85	 43.83	0	79908..80288	+	126	91772167	-	Mbur_0090	-	hypothetical protein
86	 42.59	0	80314..80475	+	53	91772168	-	Mbur_0091	-	rubredoxin-type Fe(Cys)4 protein
87	 45.07	0	80511..82001	+	496	91772169	-	Mbur_0092	-	glutamate synthase (NADPH) GltB2 subunit
88	 44.09	0	82022..82300	+	92	91772170	-	Mbur_0093	-	fumarate hydratase class II
89	 42.17	0	82356..82898	+	180	91772171	-	Mbur_0094	-	succinate dehydrogenase subunit B
90	 44.67	0	83208..85439	+	743	91772172	-	Mbur_0095	-	DNA topoisomerase I
91	 45.79	0	85463..86698	+	411	91772173	-	Mbur_0096	-	beta-lactamase-like
92	 44.14	0	87817..88362	+	181	91772174	-	Mbur_0098	-	hypothetical protein
93	 43.69	0	88414..89301	-	295	91772175	-	Mbur_0099	-	serine/threonine protein kinase
94	 43.00	0	89360..89752	-	130	91772176	-	Mbur_0100	-	hypothetical protein
95	 44.52	0	89814..90734	-	306	91772177	-	Mbur_0101	-	thioredoxin reductase
96	 39.92	0	90747..90989	-	80	91772178	-	Mbur_0102	-	hypothetical protein
97	 40.48	0	91097..92047	-	316	91772179	-	Mbur_0103	-	hypothetical protein
98	 43.21	0	92159..92938	-	259	91772180	-	Mbur_0104	-	flagellin
99	 37.64	0	93332..94120	+	262	91772181	-	Mbur_0105	-	hypothetical protein
100	 38.29	0	94113..94475	+	120	91772182	-	Mbur_0106	-	hypothetical protein
101	 40.81	0	94544..95359	+	271	91772183	-	Mbur_0107	-	indole-3-glycerol phosphate synthase
102	 46.70	+1	95377..96558	+	393	91772184	-	Mbur_0108	-	tryptophan synthase subunit beta
103	 44.23	0	96560..97339	+	259	91772185	trpA	Mbur_0109	-	tryptophan synthase subunit alpha
104	 43.69	0	97382..98482	-	366	91772186	-	Mbur_0110	-	signal recognition particle-docking protein FtsY
105	 48.20	+1	98542..98958	-	138	91772187	-	Mbur_0111	-	prefoldin subunit alpha
106	 40.11	0	98964..99140	-	58	91772188	rplX	Mbur_0112	-	50S ribosomal protein LX
107	 45.72	0	99182..99835	-	217	91772189	-	Mbur_0113	-	translation initiation factor IF-6
108	 44.94	0	99875..100141	-	88	91772190	-	Mbur_0114	-	50S ribosomal protein L31e
109	 44.87	0	100152..100307	-	51	91772191	rpl39e	Mbur_0115	-	50S ribosomal protein L39e
110	 41.92	0	100450..101043	-	197	91772192	-	Mbur_0116	-	ATP-binding protein
111	 47.83	+1	101046..101390	-	114	91772193	-	Mbur_0117	-	hypothetical protein
112	 47.56	+1	101491..101940	-	149	91772194	-	Mbur_0118	-	30S ribosomal protein S19e
113	 45.60	0	102155..103426	-	423	91772195	-	Mbur_0119	-	adenylosuccinate synthetase
114	 41.14	0	103569..104234	+	221	91772196	-	Mbur_0120	-	hexapaptide repeat-containing transferase
115	 44.75	0	104255..105331	+	358	91772197	-	Mbur_0121	-	DegT/DnrJ/EryC1/StrS aminotransferase
116	 42.25	0	105328..106269	+	313	91772198	-	Mbur_0122	-	oxidoreductase-like protein
117	 35.34	-1	106284..106781	-	165	91772199	-	Mbur_0123	-	VanZ like protein
118	 38.23	0	106975..107955	+	326	91772200	-	Mbur_0124	-	glycosyl transferase family protein
119	 40.57	0	107981..109237	-	418	91772201	-	Mbur_0125	-	hypothetical protein
120	 42.89	0	109535..110476	-	313	91772202	-	Mbur_0126	-	TPR repeat-containing protein
121	 40.57	0	111229..111546	+	105	91772203	-	Mbur_0128	-	hypothetical protein
122	 36.82	-1	112306..112821	+	171	91772204	-	Mbur_0129	-	hypothetical protein
123	 45.74	0	113408..114181	-	257	91772205	-	Mbur_0130	-	UBA/THIF-type NAD/FAD binding protein
124	 37.79	0	114393..115334	-	313	91772206	-	Mbur_0131	-	transposase, IS4
125	 46.35	0	115542..117908	+	788	91772207	-	Mbur_0132	-	putative monovalent cation/H+ antiporter subunit A
126	 45.95	0	117908..118327	+	139	91772208	-	Mbur_0133	-	putative monovalent cation/H+ antiporter subunit B
127	 46.34	0	118320..118742	+	140	91772209	-	Mbur_0134	-	putative monovalent cation/H+ antiporter subunit C
128	 46.43	+1	118739..120280	+	513	91772210	-	Mbur_0135	-	putative monovalent cation/H+ antiporter subunit D
129	 40.61	0	120277..120771	+	164	91772211	-	Mbur_0136	-	putative monovalent cation/H+ antiporter subunit E
130	 40.82	0	120768..121034	+	88	91772212	-	Mbur_0137	-	putative monovalent cation/H+ antiporter subunit F
131	 42.82	0	121031..121378	+	115	91772213	-	Mbur_0138	-	putative monovalent cation/H+ antiporter subunit G
132	 43.97	0	121415..122467	+	350	91772214	-	Mbur_0139	-	translation factor SUA5
133	 39.43	0	122475..122720	+	81	91772215	-	Mbur_0140	-	hypothetical protein
134	 47.35	+1	122790..124109	-	439	91772216	-	Mbur_0141	-	signal recognition particle protein Srp54
135	 44.69	0	124585..124998	+	137	91772217	-	Mbur_0142	-	hypothetical protein
136	 37.27	-1	125074..125835	+	253	91772218	-	Mbur_0143	-	hypothetical protein
137	 42.72	0	125849..126913	-	354	91772219	-	Mbur_0144	-	DNA-directed DNA polymerase
138	 40.55	0	127050..127340	+	96	91772220	-	Mbur_0145	-	hypothetical protein
139	 38.97	0	127460..127654	+	64	91772221	rps17E	Mbur_0146	-	30S ribosomal protein S17e
140	 46.69	+1	127674..128549	+	291	91772222	-	Mbur_0147	-	dihydrodipicolinate synthase
141	 47.10	+1	128546..129337	+	263	91772223	-	Mbur_0148	-	dihydrodipicolinate reductase
142	 33.33	-1	129478..130065	+	195	91772224	-	Mbur_0149	-	hypothetical protein
143	 35.61	-1	134240..135031	-	263	91772225	-	Mbur_0155	-	hypothetical protein
144	 39.96	0	135080..135532	-	150	91772226	-	Mbur_0156	-	hypothetical protein
145	 49.00	+1	135938..137086	-	382	91772227	-	Mbur_0157	-	AAA ATPase
146	 40.91	0	137348..137941	-	197	91772228	-	Mbur_0158	-	phosphoesterase, PA-phosphatase related
147	 40.65	0	138540..138785	-	81	91772229	-	Mbur_0159	-	hypothetical protein
148	 39.94	0	138861..139223	-	120	91772230	-	Mbur_0160	-	hypothetical protein
149	 32.73	-2	139878..140873	+	331	91772231	-	Mbur_0161	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
