IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

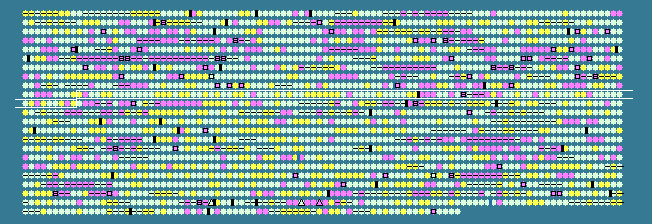

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
910	 47.45	+1	1076139..1078157	-	672	91772992	hppA	Mbur_0994	-	membrane-bound proton-translocating pyrophosphatase
911	 37.27	-1	1079080..1079562	-	160	91772993	-	Mbur_0996	-	hypothetical protein
912	 38.72	0	1080206..1080706	+	166	91772994	-	Mbur_0997	-	hypothetical protein
913	 40.35	0	1080958..1081299	-	113	91772995	-	Mbur_0998	-	ABC transporter, ATPase subunit
914	 46.41	+1	1081419..1083368	+	649	91772996	-	Mbur_0999	-	acetyl-coenzyme A synthetase
915	 48.77	+1	1083437..1084084	+	215	91772997	-	Mbur_1000	-	orotidine-5'-phosphate decarboxylase
916	 43.69	0	1084155..1085264	+	369	91772998	-	Mbur_1001	-	hypothetical protein
917	 40.12	0	1085419..1086273	+	284	91772999	-	Mbur_1002	-	metal-dependent phosphohydrolase
918	 40.20	0	1086313..1086822	-	169	91773000	-	Mbur_1003	-	hypothetical protein
919	 44.19	0	1087102..1088418	+	438	91773001	-	Mbur_1004	-	hypothetical protein
920	 41.71	0	1088725..1089762	+	345	91773002	-	Mbur_1005	-	methylcobalamin:coenzyme M methyltransferase
921	 41.60	0	1089920..1090282	+	120	91773003	-	Mbur_1006	-	desulfoferrodoxin
922	 44.69	0	1090326..1090871	-	181	91773004	-	Mbur_1007	-	4Fe-4S ferredoxin, iron-sulfur binding
923	 47.22	+1	1091113..1091688	+	191	91773005	-	Mbur_1008	-	PBP family phospholipid-binding protein
924	 47.50	+1	1091712..1092071	-	119	91773006	-	Mbur_1009	-	cupin family protein
925	 47.58	+1	1092061..1092846	-	261	91773007	-	Mbur_1010	-	cobyrinic acid a,c-diamide synthase
926	 42.41	0	1092993..1093862	+	289	91773008	-	Mbur_1011	-	cation diffusion facilitator family transporter
927	 47.32	+1	1093889..1094989	+	366	91773009	-	Mbur_1012	-	chorismate synthase
928	 47.67	+1	1095149..1096306	-	385	91773010	-	Mbur_1013	-	aspartate aminotransferase
929	 43.96	0	1096443..1097270	-	275	91773011	-	Mbur_1014	-	acetolactate decarboxylase
930	 43.52	0	1097573..1098505	+	310	91773012	-	Mbur_1015	-	solute binding protein
931	 47.47	+1	1098518..1099267	+	249	91773013	-	Mbur_1016	-	ABC transporter, ATPase subunit
932	 40.94	0	1099281..1100108	+	275	91773014	-	Mbur_1017	-	ABC transporter, inner membrane subunit
933	 46.11	0	1101185..1102624	+	479	91773015	-	Mbur_1020	-	sodium--dicarboxylate symporter
934	 40.52	0	1103729..1105900	+	723	91773016	-	Mbur_1023	-	Cache sensor signal transduction histidine kinase
935	 40.35	0	1106056..1107951	+	631	91773017	-	Mbur_1024	-	PAS/PAC sensor signal transduction histidine kinase
936	 46.14	0	1108083..1109558	+	491	91773018	-	Mbur_1025	-	argininosuccinate lyase
937	 45.83	0	1109590..1110837	+	415	91773019	-	Mbur_1026	-	glutamyl-tRNA(Gln) amidotransferase subunit D
938	 43.19	0	1110923..1111399	-	158	91773020	-	Mbur_1027	-	hypothetical protein
939	 38.21	0	1111428..1111673	-	81	91773021	-	Mbur_1028	-	hypothetical protein
940	 44.99	0	1111845..1113002	-	385	91773022	purP	Mbur_1029	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase-like protein
941	 41.51	0	1113101..1113748	-	215	91773023	-	Mbur_1030	-	hypothetical protein
942	 42.49	0	1113754..1114605	-	283	91773024	-	Mbur_1031	-	hypothetical protein
943	 46.37	0	1114698..1115771	+	357	91773025	egsA	Mbur_1032	-	NAD(P)-dependent glycerol-1-phosphate dehydrogenase
944	 43.27	0	1115895..1116347	+	150	91773026	-	Mbur_1033	-	hypothetical protein
945	 45.51	0	1116424..1117047	+	207	91773027	-	Mbur_1034	-	hypothetical protein
946	 43.43	0	1117425..1117820	+	131	91773028	-	Mbur_1035	-	sirohydrochlorin cobaltochelatase
947	 43.00	0	1117835..1119199	+	454	91773029	-	Mbur_1036	-	hypothetical protein
948	 47.35	+1	1119253..1120365	+	370	91773030	-	Mbur_1037	-	hypothetical protein
949	 48.30	+1	1120382..1121176	+	264	91773031	-	Mbur_1038	-	nitrogenase iron protein subunit NifH
950	 46.73	+1	1121191..1122660	+	489	91773032	-	Mbur_1039	-	hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing) / cobyrinate a,c-diamide synthase
951	 45.64	0	1122657..1123712	+	351	91773033	-	Mbur_1040	-	tRNA splicing endonuclease
952	 45.53	0	1123766..1124470	+	234	91773034	-	Mbur_1041	-	Ala-tRNA(Pro) hydrolase
953	 46.54	+1	1124494..1125591	-	365	91773035	-	Mbur_1042	-	cytochrome c assembly protein
954	 42.48	0	1126757..1127248	-	163	91773036	-	Mbur_1044	-	rubrerythrin
955	 32.94	-1	1128007..1128774	+	255	91773037	-	Mbur_1046	-	hypothetical protein
956	 40.88	0	1129377..1130489	+	370	91773038	-	Mbur_1047	-	Fe3+-hydroxamate binding protein
957	 43.62	0	1130648..1131658	+	336	91773039	-	Mbur_1048	-	ABC Fe3+-siderophore transporter, inner membrane subunit
958	 40.11	0	1131658..1132410	+	250	91773040	-	Mbur_1049	-	ABC cobalamin/Fe3+-siderophores transporter, ATPase subunit
959	 39.06	0	1132456..1133031	-	191	91773041	-	Mbur_1050	-	hypothetical protein
960	 46.02	0	1133655..1134182	+	175	91773042	-	Mbur_1051	-	hypothetical protein
961	 41.89	0	1134200..1134748	+	182	91773043	-	Mbur_1052	-	orotate phosphoribosyltransferase
962	 44.63	0	1134980..1136599	+	539	91773044	-	Mbur_1053	-	hydroxylamine reductase
963	 43.17	0	1136666..1136980	+	104	91773045	-	Mbur_1054	-	cupin family protein
964	 39.55	0	1137051..1137404	-	117	91773046	-	Mbur_1055	-	hypothetical protein
965	 48.81	+1	1137735..1139033	+	432	91773047	-	Mbur_1056	-	phosphoribosylamine--glycine ligase
966	 48.12	+1	1139056..1139961	+	301	91773048	-	Mbur_1057	-	ornithine carbamoyltransferase
967	 37.93	0	1140871..1141566	-	231	91773049	-	Mbur_1058	-	4Fe-4S ferredoxin, iron-sulfur binding
968	 37.98	0	1141965..1142330	+	121	91773050	-	Mbur_1060	-	hypothetical protein
969	 32.54	-2	1142548..1143180	-	210	91773051	-	Mbur_1061	-	hypothetical protein
970	 41.47	0	1143449..1144099	+	216	91773052	-	Mbur_1062	-	hypothetical protein
971	 41.48	0	1144366..1145802	+	478	91773053	-	Mbur_1063	-	K+ transporter Trk
972	 36.75	-1	1146013..1146246	+	77	91773054	-	Mbur_1064	-	hypothetical protein
973	 40.74	0	1146261..1146530	+	89	91773055	-	Mbur_1065	-	hypothetical protein
974	 35.82	-1	1146851..1147975	-	374	91773056	-	Mbur_1067	-	transposase, mutator type
975	 43.49	0	1148412..1148933	+	173	91773057	-	Mbur_1069	-	hypothetical protein
976	 34.73	-1	1149243..1149671	+	142	91773058	-	Mbur_1070	-	hypothetical protein
977	 37.97	0	1149924..1150160	+	78	91773059	-	Mbur_1071	-	hypothetical protein
978	 34.81	-1	1150271..1150744	-	157	91773060	-	Mbur_1072	-	hypothetical protein
979	 45.56	0	1150993..1152006	+	337	91773061	-	Mbur_1073	-	isocitrate dehydrogenase (NADP)
980	 37.04	-1	1152126..1153313	-	395	91773062	-	Mbur_1074	-	MscS mechanosensitive ion channel
981	 43.66	0	1153530..1154807	-	425	91773063	-	Mbur_1075	-	pyruvate carboxyltransferase
982	 44.44	0	1155163..1155666	+	167	91773064	-	Mbur_1076	-	amino acid-binding protein
983	 45.42	0	1155672..1156871	-	399	91773065	-	Mbur_1077	-	geranylgeranyl reductase
984	 45.25	0	1156906..1158189	-	427	91773066	-	Mbur_1078	-	3-phosphoshikimate 1-carboxyvinyltransferase
985	 43.43	0	1158190..1158843	-	217	91773067	thyA	Mbur_1079	-	thymidylate synthase
986	 38.40	0	1159211..1159585	+	124	91773068	-	Mbur_1080	-	hypothetical protein
987	 38.70	0	1159752..1160198	+	148	91773069	-	Mbur_1081	-	hypothetical protein
988	 47.20	+1	1160203..1161060	-	285	91773070	-	Mbur_1082	-	HtpX-2 peptidase
989	 43.92	0	1161427..1161681	-	84	91773071	-	Mbur_1083	-	hypothetical protein
990	 43.43	0	1161684..1163099	-	471	91773072	-	Mbur_1084	-	hypothetical protein
991	 40.78	0	1163504..1164376	+	290	91773073	-	Mbur_1085	-	hypothetical protein
992	 43.00	0	1164461..1164967	+	168	91773074	-	Mbur_1086	-	hypothetical protein
993	 46.29	0	1164981..1165976	+	331	91773075	-	Mbur_1087	-	homoserine dehydrogenase
994	 45.66	0	1166020..1167723	+	567	91773076	-	Mbur_1088	-	DNA ligase I, ATP-dependent (dnl1)
995	 38.29	0	1168744..1169934	+	396	91773077	-	Mbur_1089	-	cell surface protein
996	 43.08	0	1169976..1170827	+	283	91773078	-	Mbur_1090	-	methyltransferase
997	 42.35	0	1170824..1171588	+	254	91773079	-	Mbur_1091	-	cobyrinic acid a,c-diamide synthase
998	 42.76	0	1171625..1172239	+	204	91773080	-	Mbur_1092	-	hypothetical protein
999	 42.62	0	1172236..1173516	+	426	91773081	-	Mbur_1093	-	Fe3+-hydroxamate binding protein
1000	 40.91	0	1173616..1174737	+	373	91773082	-	Mbur_1094	-	ABC Fe3+-siderophore transporter, inner membrane subunit
1001	 40.81	0	1174739..1175527	+	262	91773083	-	Mbur_1095	-	ABC cobalamin/Fe3+-siderophores transporter, ATPase subunit
1002	 47.79	+1	1177539..1178783	-	414	91773084	-	Mbur_1098	-	3-hydroxy-3-methylglutaryl-coenzyme A reductase
1003	 38.25	0	1179227..1179796	+	189	91773085	-	Mbur_1099	-	hypothetical protein
1004	 45.82	0	1179980..1181284	+	434	91773086	-	Mbur_1100	-	tryptophan synthase subunit beta
1005	 42.60	0	1181345..1181959	-	204	91773087	-	Mbur_1101	-	endonuclease III / DNA-(apurinic or apyrimidinic site) lyase
1006	 44.55	0	1182074..1184356	+	760	91773088	-	Mbur_1102	-	ski2-like helicase
1007	 46.60	+1	1184434..1185714	+	426	91773089	hisD	Mbur_1103	-	histidinol dehydrogenase
1008	 36.59	-1	1185819..1186217	+	132	91773090	-	Mbur_1104	-	hypothetical protein
1009	 50.07	+1	1186426..1187178	+	250	91773091	-	Mbur_1105	-	uroporphyrinogen-III C-methyltransferase
41.89	MEAN

4.51	STD DEV
