IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

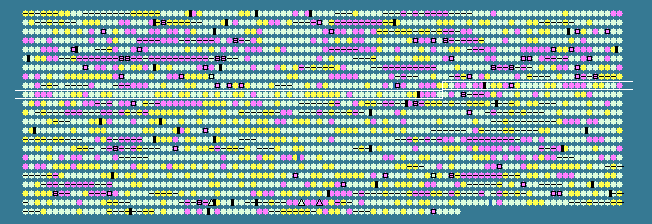

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
871	 47.23	+1	1031441..1032865	-	474	91772953	-	Mbur_0953	-	FAD linked oxidase-like protein
872	 45.08	0	1032878..1034128	-	416	91772954	-	Mbur_0954	-	hypothetical protein
873	 33.20	-1	1034571..1036868	+	765	91772955	-	Mbur_0955	-	PAS/PAC sensor signal transduction histidine kinase
874	 33.33	-1	1037002..1037646	+	214	91772956	-	Mbur_0956	-	cobalamin B12-binding protein
875	 41.17	0	1037643..1038689	+	348	91772957	-	Mbur_0957	-	uroporphyrinogen decarboxylase
876	 34.81	-1	1038696..1040387	+	563	91772958	-	Mbur_0958	-	ATP-binding region, ATPase-like protein
877	 37.85	0	1040734..1041420	+	228	91772959	-	Mbur_0959	-	peroxiredoxin
878	 45.18	0	1042532..1043527	-	331	91772960	-	Mbur_0961	-	methyltransferase
879	 45.63	0	1043553..1044170	-	205	91772961	-	Mbur_0962	-	lysine exporter protein LysE/YggA
880	 47.34	+1	1044265..1045278	-	337	91772962	tfb	Mbur_0963	-	transcription initiation factor IIB
881	 35.92	-1	1045348..1045656	-	102	91772963	-	Mbur_0964	-	RNA-binding protein
882	 35.82	-1	1045968..1047092	+	374	91772964	-	Mbur_0965	-	transposase, mutator type
883	 47.01	+1	1047420..1050074	+	884	91772965	-	Mbur_0966	-	pyruvate phosphate dikinase
884	 44.41	0	1050262..1051164	-	300	91772966	-	Mbur_0967	-	cytidine kinase / inosine-guanosine kinase
885	 42.03	0	1051178..1051522	-	114	91772967	-	Mbur_0968	-	hypothetical protein
886	 45.04	0	1051599..1051880	-	93	91772968	-	Mbur_0969	-	hypothetical protein
887	 44.56	0	1051929..1053602	-	557	91772969	-	Mbur_0970	-	hypothetical protein
888	 46.27	0	1053703..1054506	-	267	91772970	-	Mbur_0971	-	diphthine synthase
889	 45.91	0	1054674..1056287	+	537	91772971	-	Mbur_0972	-	chaperonin Cpn60/TCP-1
890	 42.44	0	1056307..1056888	-	193	91772972	-	Mbur_0973	-	hypothetical protein
891	 38.10	0	1057046..1057360	-	104	91772973	-	Mbur_0974	-	Sec-independent protein translocase TatA
892	 31.31	-2	1058199..1058987	+	262	91772974	-	Mbur_0976	-	hypothetical protein
893	 37.43	0	1058990..1059940	+	316	91772975	-	Mbur_0977	-	hypothetical protein
894	 35.42	-1	1059966..1061066	+	366	91772976	-	Mbur_0978	-	hypothetical protein
895	 44.54	0	1061189..1061866	-	225	91772977	-	Mbur_0979	-	RNA-binding S4
896	 45.89	0	1061938..1063020	-	360	91772978	-	Mbur_0980	-	NADH peroxidase
897	 46.89	+1	1063076..1063783	-	235	91772979	-	Mbur_0981	-	ABC heme exporter, inner membrane subunit C
898	 45.33	0	1063847..1064521	-	224	91772980	-	Mbur_0982	-	ABC heme exporter, inner membrane subunit B
899	 42.95	0	1064534..1065334	-	266	91772981	-	Mbur_0983	-	ABC heme exporter, ATPase subunit
900	 36.51	-1	1065616..1066842	+	408	91772982	-	Mbur_0984	-	hypothetical protein
901	 41.27	0	1066858..1068066	+	402	91772983	-	Mbur_0985	-	hypothetical protein
902	 44.06	0	1068068..1068766	+	232	91772984	-	Mbur_0986	-	ABC transporter, ATPase subunit
903	 34.69	-1	1068880..1069173	+	97	91772985	-	Mbur_0987	-	hypothetical protein
904	 29.70	-2	1070009..1070614	-	201	91772986	-	Mbur_0988	-	hypothetical protein
905	 32.30	-2	1070797..1071279	-	160	91772987	-	Mbur_0989	-	hypothetical protein
906	 38.91	0	1071948..1072736	-	262	91772988	-	Mbur_0990	-	metal-dependent phosphohydrolase
907	 44.88	0	1073287..1074195	+	302	91772989	-	Mbur_0991	-	hypothetical protein
908	 40.95	0	1074249..1075154	-	301	91772990	-	Mbur_0992	-	hypothetical protein
909	 46.75	+1	1075381..1075842	+	153	91772991	-	Mbur_0993	-	hypothetical protein
910	 47.45	+1	1076139..1078157	-	672	91772992	hppA	Mbur_0994	-	membrane-bound proton-translocating pyrophosphatase
911	 37.27	-1	1079080..1079562	-	160	91772993	-	Mbur_0996	-	hypothetical protein
912	 38.72	0	1080206..1080706	+	166	91772994	-	Mbur_0997	-	hypothetical protein
913	 40.35	0	1080958..1081299	-	113	91772995	-	Mbur_0998	-	ABC transporter, ATPase subunit
914	 46.41	+1	1081419..1083368	+	649	91772996	-	Mbur_0999	-	acetyl-coenzyme A synthetase
915	 48.77	+1	1083437..1084084	+	215	91772997	-	Mbur_1000	-	orotidine-5'-phosphate decarboxylase
916	 43.69	0	1084155..1085264	+	369	91772998	-	Mbur_1001	-	hypothetical protein
917	 40.12	0	1085419..1086273	+	284	91772999	-	Mbur_1002	-	metal-dependent phosphohydrolase
918	 40.20	0	1086313..1086822	-	169	91773000	-	Mbur_1003	-	hypothetical protein
919	 44.19	0	1087102..1088418	+	438	91773001	-	Mbur_1004	-	hypothetical protein
920	 41.71	0	1088725..1089762	+	345	91773002	-	Mbur_1005	-	methylcobalamin:coenzyme M methyltransferase
921	 41.60	0	1089920..1090282	+	120	91773003	-	Mbur_1006	-	desulfoferrodoxin
922	 44.69	0	1090326..1090871	-	181	91773004	-	Mbur_1007	-	4Fe-4S ferredoxin, iron-sulfur binding
923	 47.22	+1	1091113..1091688	+	191	91773005	-	Mbur_1008	-	PBP family phospholipid-binding protein
924	 47.50	+1	1091712..1092071	-	119	91773006	-	Mbur_1009	-	cupin family protein
925	 47.58	+1	1092061..1092846	-	261	91773007	-	Mbur_1010	-	cobyrinic acid a,c-diamide synthase
926	 42.41	0	1092993..1093862	+	289	91773008	-	Mbur_1011	-	cation diffusion facilitator family transporter
927	 47.32	+1	1093889..1094989	+	366	91773009	-	Mbur_1012	-	chorismate synthase
928	 47.67	+1	1095149..1096306	-	385	91773010	-	Mbur_1013	-	aspartate aminotransferase
929	 43.96	0	1096443..1097270	-	275	91773011	-	Mbur_1014	-	acetolactate decarboxylase
930	 43.52	0	1097573..1098505	+	310	91773012	-	Mbur_1015	-	solute binding protein
931	 47.47	+1	1098518..1099267	+	249	91773013	-	Mbur_1016	-	ABC transporter, ATPase subunit
932	 40.94	0	1099281..1100108	+	275	91773014	-	Mbur_1017	-	ABC transporter, inner membrane subunit
933	 46.11	0	1101185..1102624	+	479	91773015	-	Mbur_1020	-	sodium--dicarboxylate symporter
934	 40.52	0	1103729..1105900	+	723	91773016	-	Mbur_1023	-	Cache sensor signal transduction histidine kinase
935	 40.35	0	1106056..1107951	+	631	91773017	-	Mbur_1024	-	PAS/PAC sensor signal transduction histidine kinase
936	 46.14	0	1108083..1109558	+	491	91773018	-	Mbur_1025	-	argininosuccinate lyase
937	 45.83	0	1109590..1110837	+	415	91773019	-	Mbur_1026	-	glutamyl-tRNA(Gln) amidotransferase subunit D
938	 43.19	0	1110923..1111399	-	158	91773020	-	Mbur_1027	-	hypothetical protein
939	 38.21	0	1111428..1111673	-	81	91773021	-	Mbur_1028	-	hypothetical protein
940	 44.99	0	1111845..1113002	-	385	91773022	purP	Mbur_1029	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase-like protein
941	 41.51	0	1113101..1113748	-	215	91773023	-	Mbur_1030	-	hypothetical protein
942	 42.49	0	1113754..1114605	-	283	91773024	-	Mbur_1031	-	hypothetical protein
943	 46.37	0	1114698..1115771	+	357	91773025	egsA	Mbur_1032	-	NAD(P)-dependent glycerol-1-phosphate dehydrogenase
944	 43.27	0	1115895..1116347	+	150	91773026	-	Mbur_1033	-	hypothetical protein
945	 45.51	0	1116424..1117047	+	207	91773027	-	Mbur_1034	-	hypothetical protein
946	 43.43	0	1117425..1117820	+	131	91773028	-	Mbur_1035	-	sirohydrochlorin cobaltochelatase
947	 43.00	0	1117835..1119199	+	454	91773029	-	Mbur_1036	-	hypothetical protein
948	 47.35	+1	1119253..1120365	+	370	91773030	-	Mbur_1037	-	hypothetical protein
949	 48.30	+1	1120382..1121176	+	264	91773031	-	Mbur_1038	-	nitrogenase iron protein subunit NifH
950	 46.73	+1	1121191..1122660	+	489	91773032	-	Mbur_1039	-	hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing) / cobyrinate a,c-diamide synthase
951	 45.64	0	1122657..1123712	+	351	91773033	-	Mbur_1040	-	tRNA splicing endonuclease
952	 45.53	0	1123766..1124470	+	234	91773034	-	Mbur_1041	-	Ala-tRNA(Pro) hydrolase
953	 46.54	+1	1124494..1125591	-	365	91773035	-	Mbur_1042	-	cytochrome c assembly protein
954	 42.48	0	1126757..1127248	-	163	91773036	-	Mbur_1044	-	rubrerythrin
955	 32.94	-1	1128007..1128774	+	255	91773037	-	Mbur_1046	-	hypothetical protein
956	 40.88	0	1129377..1130489	+	370	91773038	-	Mbur_1047	-	Fe3+-hydroxamate binding protein
957	 43.62	0	1130648..1131658	+	336	91773039	-	Mbur_1048	-	ABC Fe3+-siderophore transporter, inner membrane subunit
958	 40.11	0	1131658..1132410	+	250	91773040	-	Mbur_1049	-	ABC cobalamin/Fe3+-siderophores transporter, ATPase subunit
959	 39.06	0	1132456..1133031	-	191	91773041	-	Mbur_1050	-	hypothetical protein
960	 46.02	0	1133655..1134182	+	175	91773042	-	Mbur_1051	-	hypothetical protein
961	 41.89	0	1134200..1134748	+	182	91773043	-	Mbur_1052	-	orotate phosphoribosyltransferase
962	 44.63	0	1134980..1136599	+	539	91773044	-	Mbur_1053	-	hydroxylamine reductase
963	 43.17	0	1136666..1136980	+	104	91773045	-	Mbur_1054	-	cupin family protein
964	 39.55	0	1137051..1137404	-	117	91773046	-	Mbur_1055	-	hypothetical protein
965	 48.81	+1	1137735..1139033	+	432	91773047	-	Mbur_1056	-	phosphoribosylamine--glycine ligase
966	 48.12	+1	1139056..1139961	+	301	91773048	-	Mbur_1057	-	ornithine carbamoyltransferase
967	 37.93	0	1140871..1141566	-	231	91773049	-	Mbur_1058	-	4Fe-4S ferredoxin, iron-sulfur binding
968	 37.98	0	1141965..1142330	+	121	91773050	-	Mbur_1060	-	hypothetical protein
969	 32.54	-2	1142548..1143180	-	210	91773051	-	Mbur_1061	-	hypothetical protein
970	 41.47	0	1143449..1144099	+	216	91773052	-	Mbur_1062	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
