IslandPath Analysis: Methanococcoides burtonii DSM 6242

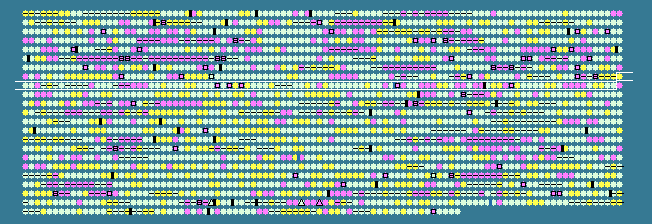

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
800	 46.41	+1	930899..931762	+	287	91772882	-	Mbur_0875	-	shikimate kinase
801	 42.36	0	931778..932065	+	95	91772883	-	Mbur_0876	-	chorismate mutase
802	 42.31	0	932078..932467	+	129	91772884	-	Mbur_0877	-	phosphoribosylaminoimidazole carboxylase
803	 38.39	0	932513..933421	-	302	91772885	-	Mbur_0878	-	response regulator receiver
804	 38.61	0	933576..934295	-	239	91772886	-	Mbur_0879	-	KaiC
805	 46.60	+1	934666..936579	+	637	91772887	-	Mbur_0880	-	ATP-dependent protease Lon
806	 44.59	0	936572..937903	+	443	91772888	-	Mbur_0881	-	peptidase U62, modulator of DNA gyrase
807	 41.57	0	937905..939215	+	436	91772889	-	Mbur_0882	-	peptidase U62, modulator of DNA gyrase
808	 38.69	0	939393..940214	+	273	91772890	-	Mbur_0883	-	response regulator receiver
809	 38.96	0	940275..947933	-	2552	91772891	-	Mbur_0884	-	KP-43 peptidase
810	 41.97	0	948195..950858	+	887	91772892	-	Mbur_0885	-	cation transporting P-type ATPase
811	 42.58	0	951053..951679	-	208	91772893	-	Mbur_0886	-	hypothetical protein
812	 38.35	0	952359..953255	+	298	91772894	-	Mbur_0887	-	hypothetical protein
813	 41.20	0	953362..954009	+	215	91772895	-	Mbur_0888	-	lysine exporter protein LysE/YggA
814	 44.21	0	954037..954891	-	284	91772896	-	Mbur_0889	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
815	 44.87	0	954893..956617	-	574	91772897	-	Mbur_0890	-	pyruvate flavodoxin/ferredoxin oxidoreductase-like protein
816	 44.89	0	956662..957033	-	123	91772898	-	Mbur_0891	-	glyoxalase/bleomycin resistance protein/dioxygenase
817	 34.33	-1	958383..959381	-	332	91772899	-	Mbur_0893	-	hypothetical protein
818	 32.48	-2	960495..961664	+	389	91772900	-	Mbur_0894	-	hypothetical protein
819	 33.08	-1	961654..962856	+	400	91772901	-	Mbur_0895	-	hypothetical protein
820	 34.35	-1	962859..963548	+	229	91772902	-	Mbur_0896	-	ABC transporter, ATPase subunit
821	 32.90	-1	964584..964814	+	76	91772903	-	Mbur_0898	-	hypothetical protein
822	 44.51	0	965594..967525	-	643	91772904	-	Mbur_0899	-	hydantoinase/oxoprolinase
823	 43.67	0	967767..969692	-	641	91772905	-	Mbur_0900	-	hydantoinase/oxoprolinase
824	 46.31	0	969843..970451	-	202	91772906	-	Mbur_0901	-	putative methylase
825	 41.94	0	970456..971268	-	270	91772907	ksgA	Mbur_0902	-	dimethyladenosine transferase
826	 44.05	0	971287..971883	-	198	91772908	-	Mbur_0903	-	hypothetical protein
827	 41.28	0	971962..972351	-	129	91772909	-	Mbur_0904	-	DNA-directed RNA polymerase, subunit F
828	 45.92	0	972466..972759	-	97	91772910	-	Mbur_0905	-	50S ribosomal protein L21e
829	 48.33	+1	972825..974111	-	428	91772911	-	Mbur_0906	-	hypothetical protein
830	 45.16	0	974141..974749	-	202	91772912	-	Mbur_0907	-	hypothetical protein
831	 42.69	0	975791..976303	+	170	91772913	-	Mbur_0910	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
832	 44.31	0	976788..977990	+	400	91772914	-	Mbur_0911	-	hypothetical protein
833	 37.69	0	978235..979176	-	313	91772915	-	Mbur_0912	-	transposase, IS4
834	 40.02	0	979255..982230	+	991	91772916	-	Mbur_0913	-	multisensor signal transduction histidine kinase
835	 37.11	-1	983809..985290	-	493	91772917	-	Mbur_0915	-	transposase
836	 46.59	+1	985901..986692	+	263	91772918	-	Mbur_0917	-	fructose-bisphosphate aldolase
837	 37.58	0	987189..988130	+	313	91772919	-	Mbur_0918	-	transposase, IS4
838	 47.54	+1	989375..991120	+	581	91772920	-	Mbur_0919	-	glycyl-tRNA synthetase
839	 44.68	0	991167..993476	+	769	91772921	-	Mbur_0920	-	Hef nuclease
840	 43.82	0	993548..994024	-	158	91772922	-	Mbur_0921	-	hypothetical protein
841	 41.30	0	994138..994413	+	91	91772923	-	Mbur_0922	-	hypothetical protein
842	 45.56	0	994630..996249	+	539	91772924	-	Mbur_0923	-	O-phosphoseryl-tRNA synthetase
843	 43.85	0	996270..996887	+	205	91772925	-	Mbur_0924	-	hypothetical protein
844	 42.05	0	996889..997278	-	129	91772926	-	Mbur_0925	-	hypothetical protein
845	 42.57	0	997285..998031	-	248	91772927	-	Mbur_0926	-	hypothetical protein
846	 44.28	0	998202..998795	+	197	91772928	-	Mbur_0927	-	hypothetical protein
847	 40.44	0	998836..999060	-	74	91772929	-	Mbur_0928	-	hypothetical protein
848	 46.84	+1	999097..999918	-	273	91772930	-	Mbur_0929	-	F420-dependent methylenetetrahydromethanopterin dehydrogenase
849	 42.36	0	1000459..1002198	-	579	91772931	-	Mbur_0930	-	hypothetical protein
850	 32.03	-2	1002511..1002969	+	152	91772932	-	Mbur_0931	-	hypothetical protein
851	 46.45	+1	1003987..1004619	+	210	91772933	-	Mbur_0933	-	Rh-like protein/ammonium transporter
852	 42.34	0	1004719..1005051	+	110	91772934	-	Mbur_0934	-	nitrogen regulatory protein P-II
853	 41.19	0	1005308..1005982	+	224	91772935	-	Mbur_0935	-	phosphoserine phosphatase
854	 44.06	0	1006054..1006911	+	285	91772936	-	Mbur_0936	-	phosphoserine phosphatase
855	 39.15	0	1007099..1011154	-	1351	91772937	-	Mbur_0937	-	KP-43 peptidase
856	 42.93	0	1011343..1012488	-	381	91772938	-	Mbur_0938	-	radical SAM family Fe-S protein
857	 44.91	0	1012493..1013650	-	385	91772939	-	Mbur_0939	-	FAD dependent oxidoreductase
858	 45.54	0	1013666..1014607	-	313	91772940	-	Mbur_0940	-	UbiA prenyltransferase
859	 44.77	0	1014662..1016113	-	483	91772941	-	Mbur_0941	-	7-cyano-7-deazaguanine tRNA-ribosyltransferase
860	 39.90	0	1016214..1016594	-	126	91772942	-	Mbur_0942	-	hypothetical protein
861	 35.90	-1	1016612..1016845	-	77	91772943	-	Mbur_0943	-	redox-active disulfide protein 2
862	 39.85	0	1016884..1017927	-	347	91772944	-	Mbur_0944	-	transporter
863	 35.20	-1	1024064..1025185	-	373	91772945	-	Mbur_0945	-	transposase, IS4
864	 37.02	-1	1025554..1026069	+	171	91772946	-	Mbur_0946	-	ArsR family transcriptional regulator
865	 39.62	0	1026281..1027075	+	264	91772947	-	Mbur_0947	-	protein of unknown function RIO1
866	 43.02	0	1027117..1027653	+	178	91772948	-	Mbur_0948	-	putative RNA-processing protein
867	 34.80	-1	1027721..1028128	+	135	91772949	-	Mbur_0949	-	beta-Ig-H3/fasciclin
868	 38.20	0	1028131..1029321	-	396	91772950	-	Mbur_0950	-	PAS/PAC sensor signal transduction histidine kinase
869	 37.89	0	1029379..1030080	-	233	91772951	-	Mbur_0951	-	hypothetical protein
870	 45.81	0	1030343..1031440	-	365	91772952	-	Mbur_0952	-	hypothetical protein
871	 47.23	+1	1031441..1032865	-	474	91772953	-	Mbur_0953	-	FAD linked oxidase-like protein
872	 45.08	0	1032878..1034128	-	416	91772954	-	Mbur_0954	-	hypothetical protein
873	 33.20	-1	1034571..1036868	+	765	91772955	-	Mbur_0955	-	PAS/PAC sensor signal transduction histidine kinase
874	 33.33	-1	1037002..1037646	+	214	91772956	-	Mbur_0956	-	cobalamin B12-binding protein
875	 41.17	0	1037643..1038689	+	348	91772957	-	Mbur_0957	-	uroporphyrinogen decarboxylase
876	 34.81	-1	1038696..1040387	+	563	91772958	-	Mbur_0958	-	ATP-binding region, ATPase-like protein
877	 37.85	0	1040734..1041420	+	228	91772959	-	Mbur_0959	-	peroxiredoxin
878	 45.18	0	1042532..1043527	-	331	91772960	-	Mbur_0961	-	methyltransferase
879	 45.63	0	1043553..1044170	-	205	91772961	-	Mbur_0962	-	lysine exporter protein LysE/YggA
880	 47.34	+1	1044265..1045278	-	337	91772962	tfb	Mbur_0963	-	transcription initiation factor IIB
881	 35.92	-1	1045348..1045656	-	102	91772963	-	Mbur_0964	-	RNA-binding protein
882	 35.82	-1	1045968..1047092	+	374	91772964	-	Mbur_0965	-	transposase, mutator type
883	 47.01	+1	1047420..1050074	+	884	91772965	-	Mbur_0966	-	pyruvate phosphate dikinase
884	 44.41	0	1050262..1051164	-	300	91772966	-	Mbur_0967	-	cytidine kinase / inosine-guanosine kinase
885	 42.03	0	1051178..1051522	-	114	91772967	-	Mbur_0968	-	hypothetical protein
886	 45.04	0	1051599..1051880	-	93	91772968	-	Mbur_0969	-	hypothetical protein
887	 44.56	0	1051929..1053602	-	557	91772969	-	Mbur_0970	-	hypothetical protein
888	 46.27	0	1053703..1054506	-	267	91772970	-	Mbur_0971	-	diphthine synthase
889	 45.91	0	1054674..1056287	+	537	91772971	-	Mbur_0972	-	chaperonin Cpn60/TCP-1
890	 42.44	0	1056307..1056888	-	193	91772972	-	Mbur_0973	-	hypothetical protein
891	 38.10	0	1057046..1057360	-	104	91772973	-	Mbur_0974	-	Sec-independent protein translocase TatA
892	 31.31	-2	1058199..1058987	+	262	91772974	-	Mbur_0976	-	hypothetical protein
893	 37.43	0	1058990..1059940	+	316	91772975	-	Mbur_0977	-	hypothetical protein
894	 35.42	-1	1059966..1061066	+	366	91772976	-	Mbur_0978	-	hypothetical protein
895	 44.54	0	1061189..1061866	-	225	91772977	-	Mbur_0979	-	RNA-binding S4
896	 45.89	0	1061938..1063020	-	360	91772978	-	Mbur_0980	-	NADH peroxidase
897	 46.89	+1	1063076..1063783	-	235	91772979	-	Mbur_0981	-	ABC heme exporter, inner membrane subunit C
898	 45.33	0	1063847..1064521	-	224	91772980	-	Mbur_0982	-	ABC heme exporter, inner membrane subunit B
899	 42.95	0	1064534..1065334	-	266	91772981	-	Mbur_0983	-	ABC heme exporter, ATPase subunit
41.89	MEAN

4.51	STD DEV
