IslandPath Analysis: Methanococcoides burtonii DSM 6242

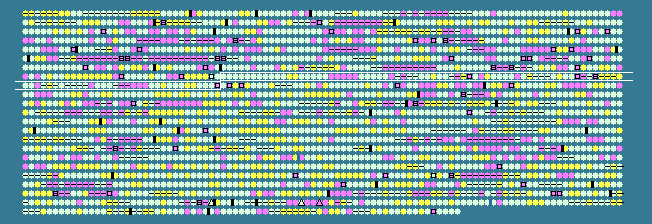

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
734	 44.12	0	842389..844260	-	623	91772816	-	Mbur_0802	-	hypothetical protein
735	 44.33	0	844260..845141	-	293	91772817	-	Mbur_0803	-	hypothetical protein
736	 44.51	0	845202..846176	-	324	91772818	-	Mbur_0804	-	ATPase
737	 42.36	0	846333..847229	-	298	91772819	-	Mbur_0805	-	hypothetical protein
738	 41.17	0	847289..848143	-	284	91772820	-	Mbur_0806	-	prephenate dehydratase
739	 40.00	0	848191..849645	-	484	91772821	-	Mbur_0807	-	metalloenzyme
740	 44.15	0	850243..851259	+	338	91772822	-	Mbur_0808	-	methylcobalamin:coenzyme M methyltransferase
741	 42.66	0	851406..853013	+	535	91772823	-	Mbur_0809	-	4Fe-4S ferredoxin, iron-sulfur binding
742	 39.45	0	853340..856690	+	1116	91772824	-	Mbur_0810	-	multi-PAS sensor
743	 44.44	0	856811..857575	+	254	91772825	-	Mbur_0811	-	methanol corrinoid protein
744	 44.42	0	857582..858970	+	462	91772826	-	Mbur_0812	-	methanol:corrinoid methyltransferase
745	 45.53	0	859768..860538	+	256	91772827	-	Mbur_0813	-	methanol corrinoid protein
746	 46.90	+1	860552..861937	+	461	91772828	-	Mbur_0814	-	methanol:corrinoid methyltransferase
747	 44.17	0	862257..862874	+	205	91772829	-	Mbur_0815	-	GPR1/FUN34/YaaH family protein
748	 42.36	0	863872..865788	+	638	91772830	-	Mbur_0817	-	hydantoinase/oxoprolinase
749	 39.27	0	865934..867079	+	381	91772831	-	Mbur_0818	-	cobalamin synthesis protein, P47K
750	 39.29	0	867327..867494	-	55	91772832	-	Mbur_0819	-	hypothetical protein
751	 40.19	0	867618..869177	-	519	91772833	-	Mbur_0820	-	multisensor signal transduction histidine kinase
752	 37.05	-1	869982..870680	-	232	91772834	-	Mbur_0822	-	signal transduction ATPase
753	 36.26	-1	870743..871870	-	375	91772835	-	Mbur_0823	-	hypothetical protein
754	 35.73	-1	871883..872884	-	333	91772836	-	Mbur_0824	-	hypothetical protein
755	 35.61	-1	872909..873523	-	204	91772837	-	Mbur_0825	-	response regulator receiver
756	 37.19	-1	873664..874803	-	379	91772838	-	Mbur_0826	-	major facilitator transporter
757	 40.04	0	875365..875886	+	173	91772839	aroK	Mbur_0827	-	shikimate kinase
758	 44.42	0	875908..877269	-	453	91772840	-	Mbur_0828	-	hypothetical protein
759	 41.94	0	877284..877562	-	92	91772841	-	Mbur_0829	-	hypothetical protein
760	 41.49	0	877759..878175	-	138	91772842	-	Mbur_0830	-	hypothetical protein
761	 40.42	0	878312..879256	-	314	91772843	-	Mbur_0831	-	K+-dependent Na+/Ca+ exchanger related-protein
762	 37.28	-1	879287..879742	-	151	91772844	-	Mbur_0832	-	hypothetical protein
763	 40.00	0	879815..880339	-	174	91772845	-	Mbur_0833	-	hypothetical protein
764	 37.28	-1	880438..880842	-	134	91772846	-	Mbur_0834	-	response regulator receiver
765	 41.94	0	880962..881507	-	181	91772847	-	Mbur_0835	-	neelarodoxin
766	 42.97	0	881522..881770	-	82	91772848	-	Mbur_0836	-	hypothetical protein
767	 39.26	0	881784..882053	-	89	91772849	-	Mbur_0837	-	monomethylamine transporter
768	 44.86	0	882069..883439	-	456	91772850	-	Mbur_0838	-	amino acid transporter
769	 45.57	0	885086..885739	-	217	91772851	-	Mbur_0840	-	monomethylamine corrinoid protein
770	 38.73	0	886090..886497	-	135	91772852	-	Mbur_0841	-	response regulator receiver
771	 39.70	0	886510..888693	-	727	91772853	-	Mbur_0842	-	multisensor signal transduction histidine kinase
772	 38.95	0	888727..889509	-	260	91772854	-	Mbur_0843	-	hypothetical protein
773	 37.15	-1	889526..890311	-	261	91772855	-	Mbur_0844	-	hypothetical protein
774	 45.41	0	892607..893260	-	217	91772856	-	Mbur_0847	-	monomethylamine corrinoid protein
775	 37.23	-1	893423..893833	+	136	91772857	-	Mbur_0848	-	transposase ISA1083-3, ISORF2
776	 43.61	0	894172..895047	+	291	91772858	-	Mbur_0849	-	hypothetical protein
777	 37.57	0	895178..895366	+	62	91772859	-	Mbur_0850	-	hypothetical protein
778	 45.63	0	895510..896517	+	335	91772860	-	Mbur_0851	-	glyceraldehyde-3-phosphate dehydrogenase
779	 42.32	0	896539..897339	+	266	91772861	-	Mbur_0852	-	bifunctional inositol-1 monophosphatase/fructose-1,6-bisphosphatase
780	 44.92	0	897344..898180	+	278	91772862	-	Mbur_0853	-	NAD(+) kinase
781	 42.05	0	898252..899421	+	389	91772863	aksA	Mbur_0854	-	trans-homoaconitate synthase
782	 39.67	0	899501..900052	-	183	91772864	-	Mbur_0855	-	hypothetical protein
783	 36.34	-1	900250..900582	-	110	91772865	-	Mbur_0856	-	hypothetical protein
784	 42.98	0	900669..901508	-	279	91772866	-	Mbur_0857	-	rhomboid-like protein
785	 46.12	0	901941..904349	+	802	91772867	-	Mbur_0858	-	acetyl-CoA decarbonylase/synthase complex subunit alpha
786	 41.67	0	904352..904867	+	171	91772868	-	Mbur_0859	-	acetyl-CoA decarbonylase/synthase complex subunit epsilon
787	 45.29	0	904916..906328	+	470	91772869	-	Mbur_0860	-	acetyl-CoA decarbonylase/synthase complex subunit beta
788	 42.36	0	906341..907093	+	250	91772870	-	Mbur_0861	-	cobyrinic acid a,c-diamide synthase
789	 45.30	0	907134..908453	+	439	91772871	-	Mbur_0862	-	acetyl-CoA decarbonylase/synthase complex subunit delta
790	 46.55	+1	908457..909863	+	468	91772872	-	Mbur_0863	-	acetyl-CoA decarbonylase/synthase complex subunit gamma
791	 42.43	0	909935..910879	+	314	91772873	-	Mbur_0864	-	hydrolase
792	 40.03	0	910925..917122	-	2065	91772874	-	Mbur_0865	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
793	 37.04	-1	917754..919235	+	493	91772875	-	Mbur_0866	-	transposase
794	 31.18	-2	919344..919901	+	185	91772876	-	Mbur_0867	-	pentapeptide repeat-containing protein
795	 40.69	0	920037..920267	+	76	91772877	-	Mbur_0868	-	hypothetical protein
796	 34.85	-1	921768..922889	+	373	91772878	-	Mbur_0870	-	transposase, IS4
797	 46.08	0	923158..924255	+	365	91772879	-	Mbur_0871	-	carbamoyl phosphate synthase small subunit
798	 48.57	+1	924255..927482	+	1075	91772880	carB	Mbur_0872	-	carbamoyl phosphate synthase large subunit
799	 50.38	+1	927508..928692	+	394	91772881	-	Mbur_0873	-	argininosuccinate synthase
800	 46.41	+1	930899..931762	+	287	91772882	-	Mbur_0875	-	shikimate kinase
801	 42.36	0	931778..932065	+	95	91772883	-	Mbur_0876	-	chorismate mutase
802	 42.31	0	932078..932467	+	129	91772884	-	Mbur_0877	-	phosphoribosylaminoimidazole carboxylase
803	 38.39	0	932513..933421	-	302	91772885	-	Mbur_0878	-	response regulator receiver
804	 38.61	0	933576..934295	-	239	91772886	-	Mbur_0879	-	KaiC
805	 46.60	+1	934666..936579	+	637	91772887	-	Mbur_0880	-	ATP-dependent protease Lon
806	 44.59	0	936572..937903	+	443	91772888	-	Mbur_0881	-	peptidase U62, modulator of DNA gyrase
807	 41.57	0	937905..939215	+	436	91772889	-	Mbur_0882	-	peptidase U62, modulator of DNA gyrase
808	 38.69	0	939393..940214	+	273	91772890	-	Mbur_0883	-	response regulator receiver
809	 38.96	0	940275..947933	-	2552	91772891	-	Mbur_0884	-	KP-43 peptidase
810	 41.97	0	948195..950858	+	887	91772892	-	Mbur_0885	-	cation transporting P-type ATPase
811	 42.58	0	951053..951679	-	208	91772893	-	Mbur_0886	-	hypothetical protein
812	 38.35	0	952359..953255	+	298	91772894	-	Mbur_0887	-	hypothetical protein
813	 41.20	0	953362..954009	+	215	91772895	-	Mbur_0888	-	lysine exporter protein LysE/YggA
814	 44.21	0	954037..954891	-	284	91772896	-	Mbur_0889	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
815	 44.87	0	954893..956617	-	574	91772897	-	Mbur_0890	-	pyruvate flavodoxin/ferredoxin oxidoreductase-like protein
816	 44.89	0	956662..957033	-	123	91772898	-	Mbur_0891	-	glyoxalase/bleomycin resistance protein/dioxygenase
817	 34.33	-1	958383..959381	-	332	91772899	-	Mbur_0893	-	hypothetical protein
818	 32.48	-2	960495..961664	+	389	91772900	-	Mbur_0894	-	hypothetical protein
819	 33.08	-1	961654..962856	+	400	91772901	-	Mbur_0895	-	hypothetical protein
820	 34.35	-1	962859..963548	+	229	91772902	-	Mbur_0896	-	ABC transporter, ATPase subunit
821	 32.90	-1	964584..964814	+	76	91772903	-	Mbur_0898	-	hypothetical protein
822	 44.51	0	965594..967525	-	643	91772904	-	Mbur_0899	-	hydantoinase/oxoprolinase
823	 43.67	0	967767..969692	-	641	91772905	-	Mbur_0900	-	hydantoinase/oxoprolinase
824	 46.31	0	969843..970451	-	202	91772906	-	Mbur_0901	-	putative methylase
825	 41.94	0	970456..971268	-	270	91772907	ksgA	Mbur_0902	-	dimethyladenosine transferase
826	 44.05	0	971287..971883	-	198	91772908	-	Mbur_0903	-	hypothetical protein
827	 41.28	0	971962..972351	-	129	91772909	-	Mbur_0904	-	DNA-directed RNA polymerase, subunit F
828	 45.92	0	972466..972759	-	97	91772910	-	Mbur_0905	-	50S ribosomal protein L21e
829	 48.33	+1	972825..974111	-	428	91772911	-	Mbur_0906	-	hypothetical protein
830	 45.16	0	974141..974749	-	202	91772912	-	Mbur_0907	-	hypothetical protein
831	 42.69	0	975791..976303	+	170	91772913	-	Mbur_0910	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
832	 44.31	0	976788..977990	+	400	91772914	-	Mbur_0911	-	hypothetical protein
833	 37.69	0	978235..979176	-	313	91772915	-	Mbur_0912	-	transposase, IS4
41.89	MEAN

4.51	STD DEV
