IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

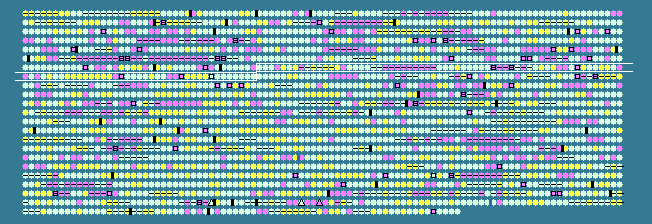

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
640	 44.03	0	719570..720784	-	404	91772722	-	Mbur_0699	-	hypothetical protein
641	 41.02	0	720820..722055	-	411	91772723	-	Mbur_0700	-	hypothetical protein
642	 42.84	0	722065..722790	-	241	91772724	-	Mbur_0701	-	ABC transporter, ATPase subunit
643	 33.81	-1	722964..724226	+	420	91772725	-	Mbur_0702	-	proteinase inhibitor I4, serpin
644	 47.29	+1	724470..725759	-	429	91772726	-	Mbur_0703	-	thiamine biosynthesis protein ThiC
645	 44.30	0	725973..726419	+	148	91772727	-	Mbur_0704	-	hypothetical protein
646	 46.65	+1	726570..728912	+	780	91772728	-	Mbur_0705	-	DNA topoisomerase
647	 30.20	-2	729028..729666	-	212	91772729	-	Mbur_0706	-	hypothetical protein
648	 42.32	0	730370..730903	-	177	91772730	-	Mbur_0707	-	nitroreductase
649	 49.11	+1	730975..731982	-	335	91772731	-	Mbur_0708	-	ketol-acid reductoisomerase
650	 44.65	0	732026..732511	-	161	91772732	ilvH	Mbur_0709	-	acetolactate synthase 3 regulatory subunit
651	 46.34	0	732508..734199	-	563	91772733	-	Mbur_0710	-	acetolactate synthase 3 catalytic subunit
652	 47.05	+1	734346..735803	-	485	91772734	-	Mbur_0711	-	(R)-citramalate synthase
653	 47.10	+1	736342..737394	-	350	91772735	-	Mbur_0712	-	cellulase
654	 28.86	-2	737510..738046	-	178	91772736	-	Mbur_0713	-	hypothetical protein
655	 42.26	0	738138..738641	-	167	91772737	-	Mbur_0714	-	hypothetical protein
656	 39.87	0	738836..741160	-	774	91772738	-	Mbur_0715	-	hypothetical protein
657	 42.05	0	741799..742590	+	263	91772739	-	Mbur_0716	-	protease HtpX-like protein
658	 42.45	0	742834..743667	-	277	91772740	-	Mbur_0717	-	hypothetical protein
659	 42.07	0	743949..744749	+	266	91772741	-	Mbur_0718	-	hypothetical protein
660	 42.42	0	744765..745766	+	333	91772742	-	Mbur_0719	-	hypothetical protein
661	 33.91	-1	745810..746844	+	344	91772743	-	Mbur_0720	-	hypothetical protein
662	 32.89	-1	746891..747340	+	149	91772744	-	Mbur_0721	-	galactoside-O-acetyltransferase
663	 34.01	-1	747446..748330	+	294	91772745	-	Mbur_0722	-	glycosyl transferase family protein
664	 30.89	-2	748308..749861	+	517	91772746	-	Mbur_0723	-	hypothetical protein
665	 27.42	-2	749867..750982	+	371	91772747	-	Mbur_0724	-	glycosyl transferase, group 1
666	 27.78	-2	751010..752143	+	377	91772748	-	Mbur_0725	-	glycosyl transferase, group 1
667	 30.21	-2	752288..753409	+	373	91772749	-	Mbur_0726	-	glycosyl transferase, group 1
668	 29.99	-2	753424..754860	+	478	91772750	-	Mbur_0727	-	polysaccharide biosynthesis protein
669	 38.12	0	755888..759268	+	1126	91772751	-	Mbur_0728	-	putative Ig
670	 41.12	0	759597..760277	+	226	91772752	-	Mbur_0729	-	cellulosome anchoring protein
671	 44.36	0	760824..761222	+	132	91772753	-	Mbur_0730	-	hypothetical protein
672	 45.37	0	761225..762088	+	287	91772754	-	Mbur_0731	-	putative phosphoesterase
673	 47.65	+1	762085..764919	+	944	91772755	-	Mbur_0732	-	DEAD/DEAH box helicase-like protein
674	 44.67	0	764973..766727	+	584	91772756	-	Mbur_0733	-	adenine deaminase
675	 42.08	0	766871..768094	-	407	91772757	-	Mbur_0734	-	glucoamylase and related glycosyl hydrolases
676	 43.50	0	768100..768630	-	176	91772758	-	Mbur_0735	-	hypothetical protein
677	 42.25	0	768661..769479	-	272	91772759	-	Mbur_0736	-	mannosyl-3-phosphoglycerate phosphatase
678	 42.06	0	769717..770931	+	404	91772760	-	Mbur_0737	-	hypothetical protein
679	 35.17	-1	771291..772214	+	307	91772761	-	Mbur_0738	-	transposase, IS4
680	 31.28	-2	774889..775278	+	129	91772762	-	Mbur_0741	-	hypothetical protein
681	 35.06	-1	775372..775833	+	153	91772763	-	Mbur_0742	-	hypothetical protein
682	 37.11	-1	776842..778323	+	493	91772764	-	Mbur_0744	-	transposase
683	 39.16	0	778603..778911	+	102	91772765	-	Mbur_0745	-	hypothetical protein
684	 37.16	-1	779844..780470	-	208	91772766	-	Mbur_0747	-	hypothetical protein
685	 42.09	0	781083..781733	-	216	91772767	-	Mbur_0748	-	phosphate uptake regulator, PhoU
686	 41.93	0	781738..782505	-	255	91772768	-	Mbur_0749	-	ABC phosphate transporter, ATPase subunit
687	 46.81	+1	782528..783388	-	286	91772769	-	Mbur_0750	-	ABC phosphate transporter, inner membrane subunit
688	 43.62	0	783385..784278	-	297	91772770	-	Mbur_0751	-	phosphate ABC transporter inner membrane protein
689	 46.97	+1	784314..785171	-	285	91772771	-	Mbur_0752	-	phosphate ABC transporter phosphate-binding protein
690	 32.44	-2	785851..787635	+	594	91772772	-	Mbur_0753	-	ATP-dependent OLD family endonuclease
691	 33.16	-1	787638..789401	+	587	91772773	-	Mbur_0754	-	ATP-dependent DNA helicase Rep
692	 43.46	0	789591..790163	-	190	91772774	-	Mbur_0755	-	GPR1/FUN34/yaaH
693	 37.58	0	790334..791275	+	313	91772775	-	Mbur_0756	-	transposase, IS4
694	 45.98	0	791534..792901	+	455	91772776	-	Mbur_0757	-	dihydroorotase
695	 39.62	0	792972..793877	+	301	91772777	-	Mbur_0758	-	KaiC
696	 38.82	0	793854..794546	-	230	91772778	-	Mbur_0759	-	hypothetical protein
697	 46.09	0	795577..796893	-	438	91772779	-	Mbur_0760	-	phenylacetate-CoA ligase
698	 47.33	+1	796928..797527	-	199	91772780	-	Mbur_0761	-	indolepyruvate oxidoreductase subunit B
699	 45.36	0	797524..799410	-	628	91772781	-	Mbur_0762	-	thiamine pyrophosphate enzyme-like TPP-binding
700	 32.49	-2	799623..799979	+	118	91772782	-	Mbur_0763	-	hypothetical protein
701	 34.60	-1	801921..803651	+	576	91772783	-	Mbur_0765	-	RNA-directed DNA polymerase
702	 40.11	0	804197..805687	+	496	91772784	-	Mbur_0767	-	hypothetical protein
703	 34.90	-1	805881..807032	+	383	91772785	-	Mbur_0768	-	signal transduction histidine kinase
704	 39.77	0	807266..807871	+	201	91772786	-	Mbur_0769	-	hypothetical protein
705	 46.85	+1	810209..811540	+	443	91772787	aspC	Mbur_0772	-	aspartyl-tRNA synthetase
706	 45.11	0	811586..812281	+	231	91772788	-	Mbur_0773	-	ribose-5-phosphate isomerase
707	 39.15	0	813380..813568	-	62	91772789	-	Mbur_0775	-	hypothetical protein
708	 45.93	0	814035..814526	-	163	91772790	-	Mbur_0776	-	iron dependent repressor
709	 50.20	+1	814749..814997	+	82	91772791	-	Mbur_0777	-	hypothetical protein
710	 52.63	+2	815004..815231	+	75	91772792	-	Mbur_0778	-	hypothetical protein
711	 49.40	+1	815235..817301	+	688	91772793	-	Mbur_0779	-	ferrous iron transport protein B
712	 49.43	+1	817323..817763	+	146	91772794	-	Mbur_0780	-	hypothetical protein
713	 48.95	+1	817773..818105	+	110	91772795	-	Mbur_0781	-	hypothetical protein
714	 46.78	+1	818102..818443	+	113	91772796	-	Mbur_0782	-	hypothetical protein
715	 46.58	+1	818424..818642	+	72	91772797	-	Mbur_0783	-	iron dependent repressor
716	 37.93	0	818862..820124	-	420	91772798	-	Mbur_0784	-	hypothetical protein
717	 37.79	0	820522..821463	+	313	91772799	-	Mbur_0785	-	transposase, IS4
718	 42.09	0	821708..822358	-	216	91772800	-	Mbur_0786	-	CDP-alcohol phosphatidyltransferase
719	 42.74	0	822358..823473	-	371	91772801	-	Mbur_0787	-	L-threonine O-3-phosphate decarboxylase
720	 41.07	0	823706..824455	-	249	91772802	-	Mbur_0788	-	nucleotidyl transferase
721	 38.81	0	824588..825025	-	145	91772803	-	Mbur_0789	-	hypothetical protein
722	 45.66	0	825514..826746	-	410	91772804	-	Mbur_0790	-	TrkA-C
723	 44.21	0	826859..827419	-	186	91772805	-	Mbur_0791	-	MgtE, divalent cation transporter
724	 43.00	0	827416..828036	-	206	91772806	-	Mbur_0792	-	MgtE integral membrane region
725	 27.62	-2	828292..829377	+	361	91772807	-	Mbur_0793	-	hypothetical protein
726	 31.82	-2	829449..829712	+	87	91772808	-	Mbur_0794	-	hypothetical protein
727	 34.04	-1	830087..831211	-	374	91772809	-	Mbur_0795	-	transposase
728	 46.16	0	831689..833068	+	459	91772810	-	Mbur_0796	-	Sep-tRNA:Cys-tRNA synthetase
729	 48.23	+1	833079..834374	+	431	91772811	-	Mbur_0797	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
730	 47.24	+1	834377..835843	+	488	91772812	-	Mbur_0798	-	homoserine O-acetyltransferase
731	 47.09	+1	835939..838344	-	801	91772813	-	Mbur_0799	-	phosphoenolpyruvate synthase
732	 41.53	0	838715..839836	+	373	91772814	-	Mbur_0800	-	transposase
733	 44.51	0	839951..842392	-	813	91772815	-	Mbur_0801	-	hypothetical protein
734	 44.12	0	842389..844260	-	623	91772816	-	Mbur_0802	-	hypothetical protein
735	 44.33	0	844260..845141	-	293	91772817	-	Mbur_0803	-	hypothetical protein
736	 44.51	0	845202..846176	-	324	91772818	-	Mbur_0804	-	ATPase
737	 42.36	0	846333..847229	-	298	91772819	-	Mbur_0805	-	hypothetical protein
738	 41.17	0	847289..848143	-	284	91772820	-	Mbur_0806	-	prephenate dehydratase
739	 40.00	0	848191..849645	-	484	91772821	-	Mbur_0807	-	metalloenzyme
41.89	MEAN

4.51	STD DEV
