IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

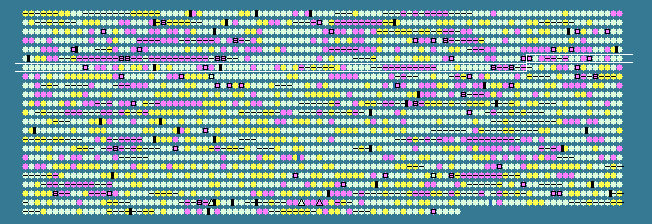

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
585	 34.04	-1	657369..658493	-	374	91772667	-	Mbur_0638	-	transposase
586	 38.58	0	658646..660016	+	456	91772668	-	Mbur_0639	-	PAS/PAC sensor signal transduction histidine kinase
587	 34.65	-1	660244..660546	+	100	91772669	-	Mbur_0640	-	hypothetical protein
588	 30.62	-2	660553..660810	+	85	91772670	-	Mbur_0641	-	hypothetical protein
589	 28.75	-2	660917..661156	+	79	91772671	-	Mbur_0642	-	hypothetical protein
590	 43.15	0	661620..662006	-	128	91772672	-	Mbur_0643	-	hypothetical protein
591	 36.88	-1	662069..662689	-	206	91772673	-	Mbur_0644	-	hypothetical protein
592	 39.28	0	663044..663514	-	156	91772674	-	Mbur_0645	-	hypothetical protein
593	 38.42	0	664034..665095	-	353	91772675	-	Mbur_0646	-	magnesium and cobalt transport protein CorA
594	 33.66	-1	665451..666371	+	306	91772676	-	Mbur_0647	-	MscS mechanosensitive ion channel
595	 37.11	-1	666813..668294	-	493	91772677	-	Mbur_0648	-	transposase
596	 41.75	0	668513..669094	-	193	91772678	-	Mbur_0649	-	hypothetical protein
597	 40.90	0	669296..670009	-	237	91772679	-	Mbur_0650	-	oxidoreductase, molybdopterin binding
598	 36.87	-1	670317..670712	+	131	91772680	-	Mbur_0651	-	methyltransferase
599	 40.95	0	670823..671137	+	104	91772681	-	Mbur_0652	-	hypothetical protein
600	 44.65	0	671296..672258	+	320	91772682	-	Mbur_0653	-	N(5),N(10)-methenyltetrahydromethanopterin cyclohydrolase
601	 41.14	0	672317..672790	+	157	91772683	-	Mbur_0654	-	hypothetical protein
602	 42.01	0	672897..673910	-	337	91772684	-	Mbur_0655	-	methyltransferase
603	 38.64	0	674134..674868	+	244	91772685	-	Mbur_0656	-	4-vinyl reductase, 4VR
604	 44.06	0	675006..675695	-	229	91772686	-	Mbur_0657	-	hypothetical protein
605	 40.54	0	675720..676274	-	184	91772687	-	Mbur_0658	-	MarR family transcriptional regulator
606	 44.39	0	676430..677596	-	388	91772688	-	Mbur_0659	-	N(2),N(2)-dimethylguanosine tRNA methyltransferase
607	 39.57	0	677621..678085	-	154	91772689	-	Mbur_0660	-	hypothetical protein
608	 44.73	0	678231..678809	+	192	91772690	-	Mbur_0661	-	MerR family transcriptional regulator
609	 42.51	0	678820..679233	+	137	91772691	-	Mbur_0662	-	thioesterase superfamily protein
610	 42.82	0	679250..680893	+	547	91772692	-	Mbur_0663	-	acyl-CoA synthetase
611	 34.33	-1	681786..682994	+	402	91772693	-	Mbur_0665	-	transposase, IS204/IS1001/IS1096/IS1165
612	 45.07	0	683725..686076	-	783	91772694	-	Mbur_0667	-	hypothetical protein
613	 37.32	-1	686248..687174	-	308	91772695	-	Mbur_0668	-	hypothetical protein
614	 36.37	-1	687318..689030	-	570	91772696	-	Mbur_0669	-	cell surfacr protein
615	 44.32	0	689034..689306	-	90	91772697	-	Mbur_0670	-	hypothetical protein
616	 37.65	0	689571..690776	-	401	91772698	-	Mbur_0671	-	hypothetical protein
617	 47.35	+1	690791..691375	-	194	91772699	-	Mbur_0672	-	hypothetical protein
618	 45.37	0	691429..692724	-	431	91772700	-	Mbur_0673	-	hypothetical protein
619	 48.56	+1	693865..694836	+	323	91772701	-	Mbur_0675	-	HEAT repeat-containing PBS lyase
620	 47.67	+1	694833..696032	+	399	91772702	-	Mbur_0676	-	hypothetical protein
621	 34.66	-1	697469..697921	+	150	91772703	-	Mbur_0678	-	hypothetical protein
622	 44.06	0	699277..701001	+	574	91772704	-	Mbur_0680	-	thiamine pyrophosphate requiring enzyme
623	 46.61	+1	702322..703074	+	250	91772705	-	Mbur_0681	-	beta-lactamase-like protein
624	 42.35	0	703120..703773	-	217	91772706	-	Mbur_0682	-	metallophosphoesterase
625	 47.56	+1	703796..704575	-	259	91772707	-	Mbur_0683	-	hypothetical protein
626	 43.54	0	704849..705181	+	110	91772708	-	Mbur_0684	-	protein of unknown function DUF306, Meta and HslJ
627	 41.20	0	705481..705963	+	160	91772709	-	Mbur_0685	-	hypothetical protein
628	 44.59	0	705960..706865	+	301	91772710	-	Mbur_0686	-	SSU ribosomal protein S6P modification protein
629	 44.22	0	706869..707915	+	348	91772711	-	Mbur_0687	-	succinylglutamate desuccinylase/aspartoacylase
630	 38.01	0	708100..709125	+	341	91772712	-	Mbur_0688	-	hypothetical protein
631	 32.47	-2	709180..709410	-	76	91772713	-	Mbur_0689	-	transposase
632	 34.60	-1	709600..711330	-	576	91772714	-	Mbur_0690	-	RNA-directed DNA polymerase
633	 41.59	0	713708..714361	+	217	91772715	-	Mbur_0692	-	hypothetical protein
634	 40.17	0	715198..715665	-	155	91772716	-	Mbur_0693	-	hypothetical protein
635	 42.38	0	715675..717453	-	592	91772717	-	Mbur_0694	-	external sensor signal transduction histidine kinase
636	 43.47	0	717487..717999	-	170	91772718	-	Mbur_0695	-	response regulator receiver
637	 42.55	0	718149..718430	+	93	91772719	-	Mbur_0696	-	hypothetical protein
638	 38.89	0	718494..719249	-	251	91772720	-	Mbur_0697	-	hypothetical protein
639	 36.89	-1	719309..719533	-	74	91772721	-	Mbur_0698	-	hypothetical protein
640	 44.03	0	719570..720784	-	404	91772722	-	Mbur_0699	-	hypothetical protein
641	 41.02	0	720820..722055	-	411	91772723	-	Mbur_0700	-	hypothetical protein
642	 42.84	0	722065..722790	-	241	91772724	-	Mbur_0701	-	ABC transporter, ATPase subunit
643	 33.81	-1	722964..724226	+	420	91772725	-	Mbur_0702	-	proteinase inhibitor I4, serpin
644	 47.29	+1	724470..725759	-	429	91772726	-	Mbur_0703	-	thiamine biosynthesis protein ThiC
645	 44.30	0	725973..726419	+	148	91772727	-	Mbur_0704	-	hypothetical protein
646	 46.65	+1	726570..728912	+	780	91772728	-	Mbur_0705	-	DNA topoisomerase
647	 30.20	-2	729028..729666	-	212	91772729	-	Mbur_0706	-	hypothetical protein
648	 42.32	0	730370..730903	-	177	91772730	-	Mbur_0707	-	nitroreductase
649	 49.11	+1	730975..731982	-	335	91772731	-	Mbur_0708	-	ketol-acid reductoisomerase
650	 44.65	0	732026..732511	-	161	91772732	ilvH	Mbur_0709	-	acetolactate synthase 3 regulatory subunit
651	 46.34	0	732508..734199	-	563	91772733	-	Mbur_0710	-	acetolactate synthase 3 catalytic subunit
652	 47.05	+1	734346..735803	-	485	91772734	-	Mbur_0711	-	(R)-citramalate synthase
653	 47.10	+1	736342..737394	-	350	91772735	-	Mbur_0712	-	cellulase
654	 28.86	-2	737510..738046	-	178	91772736	-	Mbur_0713	-	hypothetical protein
655	 42.26	0	738138..738641	-	167	91772737	-	Mbur_0714	-	hypothetical protein
656	 39.87	0	738836..741160	-	774	91772738	-	Mbur_0715	-	hypothetical protein
657	 42.05	0	741799..742590	+	263	91772739	-	Mbur_0716	-	protease HtpX-like protein
658	 42.45	0	742834..743667	-	277	91772740	-	Mbur_0717	-	hypothetical protein
659	 42.07	0	743949..744749	+	266	91772741	-	Mbur_0718	-	hypothetical protein
660	 42.42	0	744765..745766	+	333	91772742	-	Mbur_0719	-	hypothetical protein
661	 33.91	-1	745810..746844	+	344	91772743	-	Mbur_0720	-	hypothetical protein
662	 32.89	-1	746891..747340	+	149	91772744	-	Mbur_0721	-	galactoside-O-acetyltransferase
663	 34.01	-1	747446..748330	+	294	91772745	-	Mbur_0722	-	glycosyl transferase family protein
664	 30.89	-2	748308..749861	+	517	91772746	-	Mbur_0723	-	hypothetical protein
665	 27.42	-2	749867..750982	+	371	91772747	-	Mbur_0724	-	glycosyl transferase, group 1
666	 27.78	-2	751010..752143	+	377	91772748	-	Mbur_0725	-	glycosyl transferase, group 1
667	 30.21	-2	752288..753409	+	373	91772749	-	Mbur_0726	-	glycosyl transferase, group 1
668	 29.99	-2	753424..754860	+	478	91772750	-	Mbur_0727	-	polysaccharide biosynthesis protein
669	 38.12	0	755888..759268	+	1126	91772751	-	Mbur_0728	-	putative Ig
670	 41.12	0	759597..760277	+	226	91772752	-	Mbur_0729	-	cellulosome anchoring protein
671	 44.36	0	760824..761222	+	132	91772753	-	Mbur_0730	-	hypothetical protein
672	 45.37	0	761225..762088	+	287	91772754	-	Mbur_0731	-	putative phosphoesterase
673	 47.65	+1	762085..764919	+	944	91772755	-	Mbur_0732	-	DEAD/DEAH box helicase-like protein
674	 44.67	0	764973..766727	+	584	91772756	-	Mbur_0733	-	adenine deaminase
675	 42.08	0	766871..768094	-	407	91772757	-	Mbur_0734	-	glucoamylase and related glycosyl hydrolases
676	 43.50	0	768100..768630	-	176	91772758	-	Mbur_0735	-	hypothetical protein
677	 42.25	0	768661..769479	-	272	91772759	-	Mbur_0736	-	mannosyl-3-phosphoglycerate phosphatase
678	 42.06	0	769717..770931	+	404	91772760	-	Mbur_0737	-	hypothetical protein
679	 35.17	-1	771291..772214	+	307	91772761	-	Mbur_0738	-	transposase, IS4
680	 31.28	-2	774889..775278	+	129	91772762	-	Mbur_0741	-	hypothetical protein
681	 35.06	-1	775372..775833	+	153	91772763	-	Mbur_0742	-	hypothetical protein
682	 37.11	-1	776842..778323	+	493	91772764	-	Mbur_0744	-	transposase
683	 39.16	0	778603..778911	+	102	91772765	-	Mbur_0745	-	hypothetical protein
684	 37.16	-1	779844..780470	-	208	91772766	-	Mbur_0747	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
