IslandPath Analysis: Methanococcoides burtonii DSM 6242

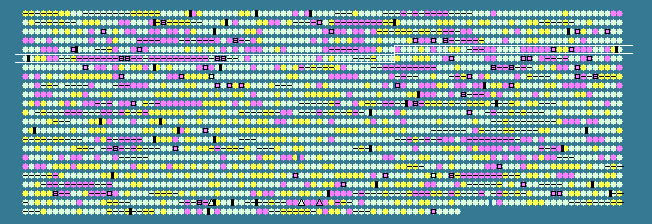

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
463	 35.93	-1	499489..500334	-	281	91772545	-	Mbur_0504	-	metallophosphoesterase
464	 44.21	0	500775..501896	+	373	91772546	-	Mbur_0505	-	hypothetical protein
465	 42.70	0	503488..504939	-	483	91772547	-	Mbur_0507	-	divergent AAA ATPase
466	 41.86	0	504936..506471	-	511	91772548	-	Mbur_0508	-	restriction modification system DNA specificity subunit
467	 47.26	+1	506614..509370	-	918	91772549	-	Mbur_0509	-	type III restriction enzyme, res subunit
468	 42.59	0	509531..511432	-	633	91772550	-	Mbur_0510	-	Cache sensor signal transduction histidine kinase
469	 37.91	0	511788..511940	+	50	91772551	-	Mbur_0511	-	response regulator
470	 43.19	0	512008..512565	+	185	91772552	-	Mbur_0512	-	XRE family transcriptional regulator
471	 40.66	0	512804..513826	+	340	91772553	-	Mbur_0513	-	hypothetical protein
472	 48.82	+1	514158..515300	+	380	91772554	-	Mbur_0514	-	phosphoserine aminotransferase / L-aspartate aminotransferase
473	 48.60	+1	515316..515780	+	154	91772555	-	Mbur_0515	-	riboflavin synthase
474	 42.14	0	515924..516559	-	211	91772556	-	Mbur_0516	-	hypothetical protein
475	 40.77	0	516836..517198	+	120	91772557	-	Mbur_0517	-	hypothetical protein
476	 31.21	-2	517464..518450	-	328	91772558	-	Mbur_0518	-	hypothetical protein
477	 33.87	-1	519047..519421	+	124	91772559	-	Mbur_0519	-	hypothetical protein
478	 34.60	-1	519957..520745	+	262	91772560	-	Mbur_0520	-	hypothetical protein
479	 38.31	0	520717..520917	-	66	91772561	-	Mbur_0521	-	hypothetical protein
480	 44.15	0	521164..521616	+	150	91772562	-	Mbur_0522	-	hypothetical protein
481	 44.75	0	521831..523345	-	504	91772563	-	Mbur_0523	-	catalase
482	 44.06	0	523731..524588	-	285	91772564	-	Mbur_0524	-	hypothetical protein
483	 44.17	0	526405..528342	+	645	91772565	-	Mbur_0526	-	glycoside hydrolase 15-related
484	 38.18	0	528795..529433	+	212	91772566	-	Mbur_0527	-	multiple antibiotic resistance (MarC)-related proteins
485	 31.60	-2	530827..532095	+	422	91772567	-	Mbur_0529	-	proteinase inhibitor I4, serpin
486	 33.83	-1	534399..535607	+	402	91772568	-	Mbur_0532	-	hypothetical protein
487	 31.73	-2	535635..536195	+	186	91772569	-	Mbur_0533	-	hypothetical protein
488	 34.37	-1	536849..537235	+	128	91772570	-	Mbur_0534	-	hypothetical protein
489	 35.29	-1	537465..538586	-	373	91772571	-	Mbur_0535	-	transposase, IS4
490	 49.83	+1	538750..539658	+	302	91772572	-	Mbur_0536	-	hypothetical protein
491	 47.46	+1	539655..541190	+	511	91772573	-	Mbur_0537	-	thiamine pyrophosphate enzyme-like TPP-binding
492	 36.84	-1	542518..543687	+	389	91772574	-	Mbur_0539	-	transposase
493	 36.11	-1	543924..544103	+	59	91772575	-	Mbur_0540	-	hypothetical protein
494	 35.86	-1	544093..544647	-	184	91772576	-	Mbur_0541	-	hypothetical protein
495	 37.08	-1	544640..544879	-	79	91772577	-	Mbur_0542	-	hypothetical protein
496	 40.20	0	545211..547322	-	703	91772578	-	Mbur_0543	-	hypothetical protein
497	 39.73	0	551107..551622	-	171	91772579	-	Mbur_0544	-	hypothetical protein
498	 37.38	0	551738..552058	+	106	91772580	-	Mbur_0545	-	hypothetical protein
499	 45.77	0	552087..552488	+	133	91772581	-	Mbur_0546	-	hypothetical protein
500	 40.76	0	553655..554314	-	219	91772582	-	Mbur_0547	-	K+ transport systems NAD-binding subunit
501	 42.39	0	554311..555768	-	485	91772583	-	Mbur_0548	-	Trk-type K+ transport systems membrane subunit
502	 42.27	0	558302..558592	+	96	91772584	-	Mbur_0551	-	hypothetical protein
503	 49.68	+1	558693..561053	+	786	91772585	-	Mbur_0552	-	CoB--CoM heterodisulfide reductase subunit A
504	 46.91	+1	561046..562356	+	436	91772586	-	Mbur_0553	-	formylmethanofuran dehydrogenase, subunit F
505	 31.17	-2	562442..562765	-	107	91772587	-	Mbur_0554	-	hypothetical protein
506	 34.88	-1	563335..564108	+	257	91772588	-	Mbur_0555	-	hypothetical protein
507	 40.36	0	564493..564990	+	165	91772589	-	Mbur_0556	-	hypothetical protein
508	 41.60	0	565256..565642	+	128	91772590	-	Mbur_0557	-	resolvase-like protein
509	 47.19	+1	565623..565889	+	88	91772591	-	Mbur_0558	-	hypothetical protein
510	 28.09	-2	566223..566927	+	234	91772592	-	Mbur_0559	-	hypothetical protein
511	 37.55	0	566998..568206	-	402	91772593	-	Mbur_0560	-	CRISPR-associated Cas1 family protein
512	 31.28	-2	568206..569324	-	372	91772594	-	Mbur_0561	-	hypothetical protein
513	 35.21	-1	569532..570170	+	212	91772595	-	Mbur_0562	-	hypothetical protein
514	 34.23	-1	570187..570519	+	110	91772596	-	Mbur_0563	-	hypothetical protein
515	 33.48	-1	570512..573184	+	890	91772597	-	Mbur_0564	-	DNA-directed DNA polymerase B
516	 27.66	-2	573210..574178	-	322	91772598	-	Mbur_0565	-	hypothetical protein
517	 37.79	0	574540..575481	+	313	91772599	-	Mbur_0566	-	transposase, IS4
518	 37.79	0	575915..576856	+	313	91772600	-	Mbur_0567	-	transposase, IS4
519	 35.36	-1	578143..580812	-	889	91772601	-	Mbur_0569	-	DNA-directed DNA polymerase B
520	 34.83	-1	580805..581137	-	110	91772602	-	Mbur_0570	-	hypothetical protein
521	 38.94	0	581150..581791	-	213	91772603	-	Mbur_0571	-	hypothetical protein
522	 31.11	-2	582060..582959	+	299	91772604	-	Mbur_0572	-	hypothetical protein
523	 37.43	0	582959..584155	+	398	91772605	-	Mbur_0573	-	CRISPR-associated Cas1 family protein
524	 33.33	-1	584257..584760	+	167	91772606	-	Mbur_0574	-	hypothetical protein
525	 31.74	-2	584836..585336	+	166	91772607	-	Mbur_0575	-	hypothetical protein
526	 28.06	-2	585575..586864	+	429	91772608	-	Mbur_0576	-	hypothetical protein
527	 33.09	-1	586871..589345	-	824	91772609	-	Mbur_0577	-	DNA-directed DNA polymerase B
528	 32.79	-2	589361..589543	-	60	91772610	-	Mbur_0578	-	hypothetical protein
529	 29.82	-2	589728..589955	-	75	91772611	-	Mbur_0579	-	hypothetical protein
530	 32.71	-2	589948..590586	-	212	91772612	-	Mbur_0580	-	hypothetical protein
531	 36.15	-1	591703..592908	+	401	91772613	-	Mbur_0582	-	CRISPR-associated Cas1 family protein
532	 41.28	0	592968..593747	-	259	91772614	-	Mbur_0583	-	hypothetical protein
533	 37.79	0	594187..595128	-	313	91772615	-	Mbur_0584	-	transposase, IS4
534	 34.95	-1	596233..597342	+	369	91772616	-	Mbur_0585	-	transposase, IS4
535	 43.46	0	597494..597898	+	134	91772617	-	Mbur_0586	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
536	 43.30	0	598004..598264	-	86	91772618	-	Mbur_0587	-	hypothetical protein
537	 40.03	0	599785..600366	+	193	91772619	-	Mbur_0590	-	DNA-3-methyladenine glycosylase I
538	 34.78	-1	600425..600562	-	45	91772620	-	Mbur_0591	-	hypothetical protein
539	 38.57	0	600697..601422	-	241	91772621	-	Mbur_0592	-	hypothetical protein
540	 42.41	0	602025..604790	+	921	91772622	-	Mbur_0593	-	CRISPR-associated helicase Cas3
541	 41.21	0	604805..606391	+	528	91772623	-	Mbur_0594	-	hypothetical protein
542	 41.20	0	606512..606943	+	143	91772624	-	Mbur_0595	-	hypothetical protein
543	 44.20	0	606965..608068	+	367	91772625	-	Mbur_0596	-	CRISPR-associated Cse4 family protein
544	 42.86	0	608089..608823	+	244	91772626	-	Mbur_0597	-	CRISPR-associated Cas5e family protein
545	 40.74	0	608833..609507	+	224	91772627	-	Mbur_0598	-	CRISPR-associated Cse3 family protein
546	 45.07	0	609520..610431	+	303	91772628	-	Mbur_0599	-	CRISPR-associated Cas1 family protein
547	 42.91	0	610412..610693	+	93	91772629	-	Mbur_0600	-	hypothetical protein
548	 40.83	0	615138..615524	+	128	91772630	-	Mbur_0601	-	hypothetical protein
549	 44.54	0	615605..616960	-	451	91772631	-	Mbur_0602	-	coenzyme F390 synthetase
550	 38.06	0	616974..618623	-	549	91772632	-	Mbur_0603	-	unusual protein kinase
551	 41.67	0	618895..619098	-	67	91772633	-	Mbur_0604	-	hypothetical protein
552	 47.35	+1	619816..621249	-	477	91772634	-	Mbur_0605	-	ketoisovalerate ferredoxin oxidoreductase, gamma subunit / ketoisovalerate ferredoxin oxidoreductase, beta subunit
553	 44.92	0	621252..622313	-	353	91772635	-	Mbur_0606	-	2-ketoisovalerate ferredoxin reductase
554	 42.79	0	622336..622557	-	73	91772636	-	Mbur_0607	-	ketoisovalerate ferredoxin oxidoreductase, delta subunit
555	 44.92	0	622766..624370	-	534	91772637	-	Mbur_0608	-	AMP-dependent synthetase and ligase
556	 43.24	0	624423..624977	-	184	91772638	-	Mbur_0609	-	cupin sensor transcriptional regulator
557	 43.25	0	625152..626543	-	463	91772639	-	Mbur_0610	-	hypothetical protein
558	 38.51	0	627708..628190	+	160	91772640	-	Mbur_0611	-	hypothetical protein
559	 47.61	+1	628292..631120	-	942	91772641	-	Mbur_0612	-	copper-translocating P-type ATPase
560	 42.16	0	631206..631409	-	67	91772642	-	Mbur_0613	-	heavy metal transport/detoxification protein
561	 44.19	0	631644..632564	+	306	91772643	-	Mbur_0614	-	quinolinate synthetase
562	 43.07	0	632604..633476	-	290	91772644	-	Mbur_0615	-	cobyrinic acid a,c-diamide synthase
41.89	MEAN

4.51	STD DEV
