IslandPath Analysis: Methanococcoides burtonii DSM 6242

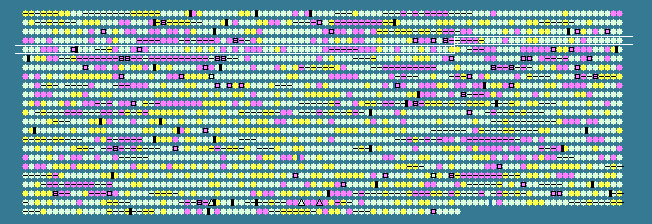

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
373	 39.29	0	390022..390189	+	55	91772455	-	Mbur_0407	-	hypothetical protein
374	 38.10	0	390193..391326	+	377	91772456	-	Mbur_0408	-	Na+/proline symporter-like protein
375	 35.49	-1	391350..391766	+	138	91772457	-	Mbur_0409	-	hypothetical protein
376	 33.72	-1	393226..393486	+	86	91772458	-	Mbur_0412	-	hypothetical protein
377	 46.13	0	393722..394651	-	309	91772459	-	Mbur_0413	-	cysteine synthase
378	 42.06	0	394703..395665	-	320	91772460	-	Mbur_0414	-	Serine O-acetyltransferase
379	 39.70	0	395813..397273	+	486	91772461	-	Mbur_0415	-	hypothetical protein
380	 40.51	0	397312..398244	-	310	91772462	-	Mbur_0416	-	putative transporter
381	 33.42	-1	398468..399559	-	363	91772463	-	Mbur_0417	-	hypothetical protein
382	 39.57	0	400068..400676	+	202	91772464	-	Mbur_0418	-	hypothetical protein
383	 45.18	0	400945..402843	+	632	91772465	-	Mbur_0419	-	DNA gyrase subunit B
384	 44.65	0	402854..405346	+	830	91772466	-	Mbur_0420	-	DNA gyrase subunit A
385	 48.38	+1	405414..406310	+	298	91772467	-	Mbur_0421	-	pyridoxine biosynthesis protein
386	 46.90	+1	406347..406943	+	198	91772468	-	Mbur_0422	-	glutamine amidotransferase subunit PdxT
387	 38.98	0	407203..408123	-	306	91772469	-	Mbur_0423	-	TM helix protein
388	 38.69	0	408610..408777	+	55	91772470	-	Mbur_0424	-	hypothetical protein
389	 43.82	0	408781..410373	+	530	91772471	-	Mbur_0425	-	Na+/solute symporter
390	 42.10	0	410508..411317	+	269	91772472	-	Mbur_0426	-	hypothetical protein
391	 43.29	0	411402..411833	+	143	91772473	-	Mbur_0427	-	cytidyltransferase-related protein
392	 46.63	+1	411872..413014	-	380	91772474	-	Mbur_0428	-	aspartate aminotransferase
393	 44.12	0	413064..413480	-	138	91772475	ribH	Mbur_0429	-	riboflavin synthase subunit beta
394	 38.30	0	413633..414679	+	348	91772476	-	Mbur_0430	-	K+-dependent Na+/Ca+ exchanger related-protein
395	 44.19	0	414746..417361	-	871	91772477	-	Mbur_0431	-	cation transporting P-type ATPase
396	 40.55	0	418183..418653	-	156	91772478	-	Mbur_0432	-	hypothetical protein
397	 39.81	0	418874..420679	+	601	91772479	-	Mbur_0433	-	hypothetical protein
398	 39.39	0	420755..421744	+	329	91772480	-	Mbur_0434	-	sulfate adenylyltransferase
399	 40.77	0	421806..422975	+	389	91772481	-	Mbur_0435	-	glycosyl transferase, group 1
400	 39.79	0	423035..424165	+	376	91772482	-	Mbur_0436	-	glycoside hydrolase family protein
401	 43.39	0	424162..425364	+	400	91772483	-	Mbur_0437	-	Alpha-amylase
402	 43.42	0	425387..427330	+	647	91772484	-	Mbur_0438	-	glycoside hydrolase 15-related protein
403	 42.51	0	427375..429357	+	660	91772485	-	Mbur_0439	-	glycogen debranching protein
404	 35.31	-1	430914..431267	+	117	91772486	-	Mbur_0440	-	hypothetical protein
405	 36.61	-1	431543..432091	-	182	91772487	-	Mbur_0441	-	hypothetical protein
406	 33.33	-1	432653..433786	-	377	91772488	-	Mbur_0443	-	hypothetical protein
407	 41.67	0	434075..434602	-	175	91772489	-	Mbur_0444	-	Na-K-Cl cotransporter, putative
408	 41.70	0	435053..435793	+	246	91772490	-	Mbur_0445	-	hypothetical protein
409	 36.54	-1	435655..436434	-	259	91772491	-	Mbur_0446	-	transposase, IS4
410	 44.79	0	436898..438520	-	540	91772492	pheT	Mbur_0447	-	phenylalanyl-tRNA synthetase subunit beta
411	 41.14	0	438741..441134	+	797	91772493	-	Mbur_0448	-	type II secretion system protein E
412	 40.31	0	441152..443302	+	716	91772494	-	Mbur_0449	-	type II secretion system protein
413	 44.08	0	443348..443989	+	213	91772495	rnhB	Mbur_0450	-	ribonuclease HII
414	 44.91	0	445965..446897	+	310	91772496	-	Mbur_0452	-	methylcobalamin:coenzyme M methyltransferase
415	 45.82	0	446953..447777	-	274	91772497	-	Mbur_0453	-	nitroreductase
416	 35.47	-1	448954..449328	+	124	91772498	-	Mbur_0455	-	hypothetical protein
417	 43.93	0	449649..449969	+	106	91772499	-	Mbur_0456	-	translation initiation factor IF-1A
418	 43.53	0	450229..451572	-	447	91772500	-	Mbur_0457	-	L-threonine synthase
419	 33.42	-1	451859..452983	+	374	91772501	-	Mbur_0458	-	hypothetical protein
420	 35.29	-1	453072..454193	-	373	91772502	-	Mbur_0459	-	transposase, IS4
421	 30.63	-2	454549..454770	+	73	91772503	-	Mbur_0460	-	hypothetical protein
422	 44.97	0	454759..455454	-	231	91772504	-	Mbur_0461	-	phosphoribosylformylglycinamidine synthase subunit I
423	 39.76	0	455455..455703	-	82	91772505	-	Mbur_0462	-	phosphoribosylformylglycinamidine synthase subunit PurS
424	 43.17	0	455857..456354	-	165	91772506	-	Mbur_0463	-	CDP-alcohol phosphatidyltransferase
425	 38.83	0	456508..457125	-	205	91772507	-	Mbur_0464	-	TPR repeat-containing protein
426	 42.00	0	457430..458836	+	468	91772508	-	Mbur_0465	-	asparagine synthase
427	 42.96	0	458838..459533	+	231	91772509	-	Mbur_0466	-	hypothetical protein
428	 45.38	0	459620..461014	-	464	91772510	-	Mbur_0467	-	hydroxylamine oxidase
429	 41.09	0	461782..462039	+	85	91772511	-	Mbur_0468	-	hypothetical protein
430	 46.03	0	462129..463562	+	477	91772512	-	Mbur_0469	-	pyruvate kinase
431	 44.38	0	463601..464686	-	361	91772513	-	Mbur_0470	-	hypothetical protein
432	 45.82	0	464735..465991	+	418	91772514	-	Mbur_0471	-	gluconate transporter
433	 42.48	0	466036..466560	+	174	91772515	-	Mbur_0472	-	ADP-ribose binding protein
434	 35.19	-1	466586..466801	-	71	91772516	-	Mbur_0473	-	hypothetical protein
435	 38.53	0	467030..467992	-	320	91772517	-	Mbur_0474	-	MscS mechanosensitive ion channel
436	 37.15	-1	468241..468948	+	235	91772518	-	Mbur_0475	-	hypothetical protein
437	 40.00	0	468945..469784	+	279	91772519	-	Mbur_0476	-	MscS mechanosensitive ion channel
438	 34.02	-1	469862..470296	-	144	91772520	-	Mbur_0477	-	hypothetical protein
439	 36.75	-1	471025..472194	+	389	91772521	-	Mbur_0479	-	hypothetical protein
440	 29.88	-2	473217..473708	-	163	91772522	-	Mbur_0481	-	hypothetical protein
441	 43.35	0	473746..475173	-	475	91772523	-	Mbur_0482	-	divergent AAA ATP
442	 44.05	0	475215..476921	-	568	91772524	-	Mbur_0483	-	N-6 DNA methylase
443	 47.49	+1	477076..479901	-	941	91772525	-	Mbur_0484	-	DEAD/DEAH box helicase-like protein
444	 31.77	-2	480205..480972	+	255	91772526	-	Mbur_0485	-	hypothetical protein
445	 43.95	0	481101..481712	-	203	91772527	-	Mbur_0486	-	ABC proline/glycine betaine transporter, inner membrane subunit
446	 43.55	0	481706..482302	-	198	91772528	-	Mbur_0487	-	ABC proline/glycine betaine transporter, inner membrane subunit
447	 43.68	0	482367..483497	-	376	91772529	-	Mbur_0488	-	glycine betaine/L-proline ABC transporter, ATPase subunit
448	 42.18	0	483579..484505	-	308	91772530	-	Mbur_0489	-	ABC glycine betaine transporter, substrate-binding subunit
449	 44.93	0	484711..485934	-	407	91772531	-	Mbur_0490	-	SufBD
450	 44.00	0	485913..486662	-	249	91772532	-	Mbur_0491	-	ABC transporter, ATPase subunit
451	 33.88	-1	487336..487887	-	183	91772533	-	Mbur_0492	-	hypothetical protein
452	 36.31	-1	488270..488605	-	111	91772534	-	Mbur_0493	-	hypothetical protein
453	 25.93	-2	488844..489113	-	89	91772535	-	Mbur_0494	-	hypothetical protein
454	 37.32	-1	489213..489488	-	91	91772536	-	Mbur_0495	-	hypothetical protein
455	 35.80	-1	489866..490636	-	256	91772537	-	Mbur_0496	-	ABC Fe3+-siderophore transporter, ATPase subunit
456	 38.03	0	490633..491697	-	354	91772538	-	Mbur_0497	-	ABC Fe3+-siderophore transporter, inner membrane subunit
457	 36.20	-1	491735..493477	-	580	91772539	-	Mbur_0498	-	radical SAM family Fe-S protein
458	 36.53	-1	493481..494137	-	218	91772540	-	Mbur_0499	-	UbiE/COQ5 methyltransferase
459	 36.27	-1	494185..495273	-	362	91772541	-	Mbur_0500	-	ABC Fe3+-siderophore transporter, substrate binding subunit
460	 45.55	0	496078..497076	+	332	91772542	-	Mbur_0501	-	ABC glycine betaine/L-proline transporter, ATPase subunit
461	 42.84	0	497080..497910	+	276	91772543	-	Mbur_0502	-	ABC glycine betaine/L-proline transporter, inner membrane subunit
462	 44.56	0	497990..498862	+	290	91772544	-	Mbur_0503	-	ABC glycine betaine/L-proline transporter, substrate-binding subunit
463	 35.93	-1	499489..500334	-	281	91772545	-	Mbur_0504	-	metallophosphoesterase
464	 44.21	0	500775..501896	+	373	91772546	-	Mbur_0505	-	hypothetical protein
465	 42.70	0	503488..504939	-	483	91772547	-	Mbur_0507	-	divergent AAA ATPase
466	 41.86	0	504936..506471	-	511	91772548	-	Mbur_0508	-	restriction modification system DNA specificity subunit
467	 47.26	+1	506614..509370	-	918	91772549	-	Mbur_0509	-	type III restriction enzyme, res subunit
468	 42.59	0	509531..511432	-	633	91772550	-	Mbur_0510	-	Cache sensor signal transduction histidine kinase
469	 37.91	0	511788..511940	+	50	91772551	-	Mbur_0511	-	response regulator
470	 43.19	0	512008..512565	+	185	91772552	-	Mbur_0512	-	XRE family transcriptional regulator
471	 40.66	0	512804..513826	+	340	91772553	-	Mbur_0513	-	hypothetical protein
472	 48.82	+1	514158..515300	+	380	91772554	-	Mbur_0514	-	phosphoserine aminotransferase / L-aspartate aminotransferase
41.89	MEAN

4.51	STD DEV
