IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

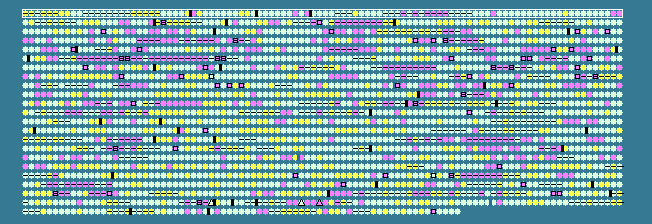

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 47.63	+1	379..1392	+	337	91772083	rpl3p	Mbur_0001	-	50S ribosomal protein L3P
2	 47.90	+1	1398..2159	+	253	91772084	rpl4lp	Mbur_0002	-	50S ribosomal protein L4P
3	 40.96	0	2156..2404	+	82	91772085	rplW	Mbur_0003	-	50S ribosomal protein L23
4	 47.76	+1	2416..3129	+	237	91772086	rpl2p	Mbur_0004	-	50S ribosomal protein L2P
5	 45.89	0	3146..3559	+	137	91772087	rps19p	Mbur_0005	-	30S ribosomal protein S19P
6	 45.83	0	3570..4025	+	151	91772088	rpl22p	Mbur_0006	-	50S ribosomal protein L22P
7	 47.54	+1	4025..4939	+	304	91772089	rps3p	Mbur_0007	-	30S ribosomal protein S3P
8	 48.04	+1	4942..5145	+	67	91772090	-	Mbur_0008	-	50S ribosomal protein L29
9	 41.18	0	5147..5452	+	101	91772091	-	Mbur_0009	-	ribonuclease P protein component 1
10	 44.85	0	5458..5787	+	109	91772092	rps17p	Mbur_0010	-	30S ribosomal protein S17P
11	 45.36	0	5784..6182	+	132	91772093	rpl14p	Mbur_0011	-	50S ribosomal protein L14P
12	 44.63	0	6193..6546	+	117	91772094	rpl24p	Mbur_0012	-	50S ribosomal protein L24P
13	 43.46	0	6551..7261	+	236	91772095	-	Mbur_0013	-	30S ribosomal protein S4e
14	 42.94	0	7254..7763	+	169	91772096	rpl5p	Mbur_0014	-	50S ribosomal protein L5P
15	 43.79	0	7763..7915	+	50	91772097	rps14P	Mbur_0015	-	30S ribosomal protein S14P
16	 41.98	0	7927..8319	+	130	91772098	rps8p	Mbur_0016	-	30S ribosomal protein S8P
17	 43.07	0	8338..8871	+	177	91772099	rpl6p	Mbur_0017	-	50S ribosomal protein L6P
18	 44.07	0	8896..9342	+	148	91772100	rpl32e	Mbur_0018	-	50S ribosomal protein L32e
19	 46.76	+1	9344..9790	+	148	91772101	rpl19e	Mbur_0019	-	50S ribosomal protein L19e
20	 48.47	+1	9850..10371	+	173	91772102	rpl18p	Mbur_0020	-	50S ribosomal protein L18P
21	 46.86	+1	10384..11019	+	211	91772103	rps5p	Mbur_0021	-	30S ribosomal protein S5P
22	 47.40	+1	11022..11483	+	153	91772104	rpl30p	Mbur_0022	-	50S ribosomal protein L30P
23	 46.17	0	11488..11931	+	147	91772105	rpl15p	Mbur_0023	-	50S ribosomal protein L15P
24	 45.10	0	12037..13515	+	492	91772106	-	Mbur_0024	-	preprotein translocase subunit SecY
25	 44.14	0	13537..14184	+	215	91772107	adk	Mbur_0025	-	adenylate kinase
26	 43.64	0	14204..14824	+	206	91772108	-	Mbur_0026	-	hypothetical protein
27	 42.61	0	14827..15354	+	175	91772109	-	Mbur_0027	-	cytidylate kinase
28	 46.18	0	15375..16370	+	331	91772110	-	Mbur_0028	-	H/ACA RNA-protein complex component Cbf5p
29	 32.56	-2	16763..17281	+	172	91772111	-	Mbur_0029	-	death-on-curing protein
30	 45.48	0	17872..19089	+	405	91772112	-	Mbur_0030	-	hypothetical protein
31	 42.86	0	19141..19665	-	174	91772113	-	Mbur_0031	-	ThiJ/PfpI
32	 43.71	0	19828..22650	+	940	91772114	-	Mbur_0032	-	peptidase M1, membrane alanine aminopeptidase
33	 40.24	0	22656..23321	-	221	91772115	-	Mbur_0033	-	HAD family hydrolase
34	 40.07	0	23343..23609	-	88	91772116	-	Mbur_0034	-	hypothetical protein
35	 39.76	0	23792..24694	+	300	91772117	-	Mbur_0035	-	hypothetical protein
36	 44.07	0	25003..25449	+	148	91772118	rps13p	Mbur_0036	-	30S ribosomal protein S13P
37	 47.93	+1	25462..26016	+	184	91772119	rps4p	Mbur_0037	-	30S ribosomal protein S4
38	 51.44	+2	26030..26410	+	126	91772120	rps11p	Mbur_0038	-	30S ribosomal protein S11P
39	 43.78	0	26434..27237	+	267	91772121	-	Mbur_0039	-	DNA-directed RNA polymerase subunit D
40	 42.25	0	28589..29440	-	283	91772122	-	Mbur_0041	-	undecaprenyl pyrophosphate synthetase
41	 42.95	0	29584..29895	-	103	91772123	-	Mbur_0042	-	hypothetical protein
42	 43.17	0	30002..31048	-	348	91772124	-	Mbur_0043	-	radical SAM family Fe-S protein
43	 39.58	0	31124..31315	+	63	91772125	-	Mbur_0044	-	4Fe-4S ferredoxin, iron-sulfur binding
44	 40.77	0	32951..33286	-	111	91772126	-	Mbur_0046	-	hypothetical protein
45	 43.88	0	33307..34851	-	514	91772127	-	Mbur_0047	-	type II secretion system protein E
46	 34.97	-1	35190..35618	-	142	91772128	-	Mbur_0048	-	hypothetical protein
47	 43.61	0	35836..37266	-	476	91772129	-	Mbur_0049	-	UDP-glucose/GDP-mannose dehydrogenase
48	 37.86	0	37648..37890	-	80	91772130	-	Mbur_0050	-	hypothetical protein
49	 41.50	0	38209..38661	+	150	91772131	-	Mbur_0051	-	N-acetylglutamate synthase
50	 43.23	0	38736..39665	+	309	91772132	-	Mbur_0052	-	hypothetical protein
51	 44.55	0	39784..40095	-	103	91772133	-	Mbur_0053	-	hypothetical protein
52	 43.29	0	40108..41061	-	317	91772134	-	Mbur_0054	-	GTP cyclohydrolase
53	 44.78	0	41365..41661	+	98	91772135	-	Mbur_0055	-	nucleoid protein MC1
54	 42.73	0	41796..42710	+	304	91772136	-	Mbur_0056	-	acetylglutamate kinase
55	 44.35	0	42736..43779	-	347	91772137	-	Mbur_0057	-	hypothetical protein
56	 46.56	+1	43780..44694	-	304	91772138	-	Mbur_0058	-	GMP synthase subunit B
57	 43.97	0	45035..46369	+	444	91772139	-	Mbur_0059	-	hypothetical protein
58	 42.22	0	46778..48184	+	468	91772140	-	Mbur_0060	-	hypothetical protein
59	 44.50	0	48323..50266	+	647	91772141	-	Mbur_0061	-	ATP-dependent DNA helicase RecQ
60	 42.42	0	50274..51032	-	252	91772142	-	Mbur_0062	-	peptidase A24B, FlaK-like
61	 41.82	0	52556..52885	+	109	91772143	-	Mbur_0064	-	hypothetical protein
62	 44.98	0	52974..53900	+	308	91772144	pyrB	Mbur_0065	-	aspartate carbamoyltransferase catalytic subunit
63	 41.88	0	53897..54376	+	159	91772145	-	Mbur_0066	-	aspartate carbamoyltransferase regulatory subunit
64	 33.44	-1	54490..55398	-	302	91772146	-	Mbur_0067	-	cell surface protein
65	 42.48	0	55818..58265	-	815	91772147	-	Mbur_0068	-	plasma-membrane proton-efflux P-type ATPase
66	 38.10	0	58499..59800	-	433	91772148	-	Mbur_0069	-	amino acid transporter
67	 38.69	0	59813..60652	-	279	91772149	-	Mbur_0070	-	amino acid transporter
68	 32.77	-2	61225..61581	+	118	91772150	-	Mbur_0071	-	hypothetical protein
69	 29.59	-2	61749..62522	-	257	91772151	-	Mbur_0072	-	alpha/beta hydrolase
70	 37.27	-1	62500..63768	-	422	91772152	-	Mbur_0073	-	radical SAM family Fe-S protein
71	 35.51	-1	63798..64532	-	244	91772153	-	Mbur_0074	-	hypothetical protein
72	 41.86	0	65008..66039	+	343	91772154	-	Mbur_0075	-	major facilitator transporter
73	 42.92	0	66015..66233	+	72	91772155	-	Mbur_0076	-	class H tetracycline resistance efflux protein
74	 41.61	0	66303..66785	-	160	91772156	-	Mbur_0077	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
75	 42.06	0	66871..68085	-	404	91772157	-	Mbur_0078	-	hypothetical protein
76	 43.87	0	68101..69315	-	404	91772158	-	Mbur_0079	-	cell division protein FtsX
77	 42.47	0	69320..70567	-	415	91772159	-	Mbur_0080	-	hypothetical protein
78	 43.57	0	70587..71309	-	240	91772160	-	Mbur_0081	-	ABC transporter, ATPase subunit
79	 38.09	0	73103..75394	+	763	91772161	-	Mbur_0083	-	PAS/PAC sensor signal transduction histidine kinase
80	 43.70	0	75833..76459	-	208	91772162	-	Mbur_0084	-	methyltransferase type 11
81	 41.13	0	76519..77262	-	247	91772163	-	Mbur_0085	-	sugar fermentation stimulation protein
82	 38.99	0	77293..77628	-	111	91772164	-	Mbur_0086	-	hypothetical protein
83	 42.72	0	78966..79487	+	173	91772165	-	Mbur_0088	-	hypothetical protein
84	 43.69	0	79634..79855	+	73	91772166	-	Mbur_0089	-	SirA-like protein
85	 43.83	0	79908..80288	+	126	91772167	-	Mbur_0090	-	hypothetical protein
86	 42.59	0	80314..80475	+	53	91772168	-	Mbur_0091	-	rubredoxin-type Fe(Cys)4 protein
87	 45.07	0	80511..82001	+	496	91772169	-	Mbur_0092	-	glutamate synthase (NADPH) GltB2 subunit
88	 44.09	0	82022..82300	+	92	91772170	-	Mbur_0093	-	fumarate hydratase class II
89	 42.17	0	82356..82898	+	180	91772171	-	Mbur_0094	-	succinate dehydrogenase subunit B
90	 44.67	0	83208..85439	+	743	91772172	-	Mbur_0095	-	DNA topoisomerase I
91	 45.79	0	85463..86698	+	411	91772173	-	Mbur_0096	-	beta-lactamase-like
92	 44.14	0	87817..88362	+	181	91772174	-	Mbur_0098	-	hypothetical protein
93	 43.69	0	88414..89301	-	295	91772175	-	Mbur_0099	-	serine/threonine protein kinase
94	 43.00	0	89360..89752	-	130	91772176	-	Mbur_0100	-	hypothetical protein
95	 44.52	0	89814..90734	-	306	91772177	-	Mbur_0101	-	thioredoxin reductase
96	 39.92	0	90747..90989	-	80	91772178	-	Mbur_0102	-	hypothetical protein
97	 40.48	0	91097..92047	-	316	91772179	-	Mbur_0103	-	hypothetical protein
98	 43.21	0	92159..92938	-	259	91772180	-	Mbur_0104	-	flagellin
99	 37.64	0	93332..94120	+	262	91772181	-	Mbur_0105	-	hypothetical protein
100	 38.29	0	94113..94475	+	120	91772182	-	Mbur_0106	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
