IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

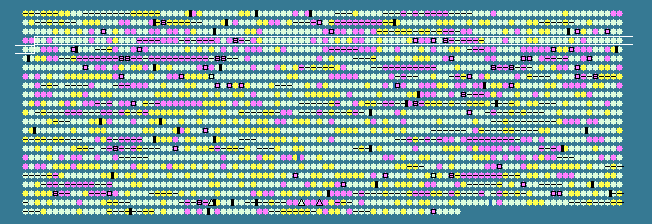

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
303	 42.20	0	311247..312227	+	326	91772385	-	Mbur_0331	-	hypothetical protein
304	 39.24	0	312336..313487	+	383	91772386	-	Mbur_0332	-	hypothetical protein
305	 35.17	-1	313510..314436	+	308	91772387	-	Mbur_0333	-	cell surface glycoprotein (s-layer protein)
306	 39.39	0	314864..315589	+	241	91772388	-	Mbur_0334	-	thioredoxin-related protein
307	 43.79	0	315644..316102	+	152	91772389	-	Mbur_0335	-	formylmethanofuran dehydrogenase, subunit G
308	 44.26	0	316119..317363	+	414	91772390	-	Mbur_0336	-	formylmethanofuran dehydrogenase, subunit B
309	 43.36	0	317364..317762	+	132	91772391	-	Mbur_0337	-	formylmethanofuran dehydrogenase, subunit D
310	 44.41	0	317839..318687	-	282	91772392	-	Mbur_0338	-	hypothetical protein
311	 42.78	0	318762..320063	-	433	91772393	-	Mbur_0339	-	phenylacetate-CoA ligase
312	 35.57	-1	320326..321264	+	312	91772394	ubiA	Mbur_0340	-	prenyltransferase
313	 38.45	0	322209..323498	+	429	91772395	-	Mbur_0342	-	hypothetical protein
314	 42.39	0	323644..324648	+	334	91772396	-	Mbur_0343	-	hypothetical protein
315	 36.93	-1	324717..325022	-	101	91772397	-	Mbur_0344	-	hypothetical protein
316	 49.21	+1	325764..325952	-	62	91772398	-	Mbur_0345	-	hypothetical protein
317	 42.76	0	326834..327406	+	190	91772399	-	Mbur_0346	-	flagellin
318	 42.25	0	327421..327981	+	186	91772400	-	Mbur_0347	-	flagellin
319	 39.48	0	328099..328863	+	254	91772401	-	Mbur_0348	-	hypothetical protein
320	 37.34	-1	328845..329318	+	157	91772402	-	Mbur_0349	-	hypothetical protein
321	 36.71	-1	329323..329796	+	157	91772403	-	Mbur_0350	-	putative flagellar protein FlaF
322	 37.66	0	329798..330514	+	238	91772404	-	Mbur_0351	-	flagellar accessory protein FlaH
323	 36.39	-1	330546..332378	+	610	91772405	-	Mbur_0352	-	type II secretion system protein E
324	 37.72	0	332393..334012	+	539	91772406	-	Mbur_0353	-	flagellar assembly protein J
325	 37.14	-1	334014..334958	+	314	91772407	-	Mbur_0354	-	hypothetical protein
326	 29.01	-2	335200..335361	+	53	91772408	-	Mbur_0355	-	hypothetical protein
327	 40.58	0	335909..337867	+	652	91772409	-	Mbur_0356	-	chemotaxis sensory transducer
328	 37.29	-1	337909..338388	+	159	91772410	-	Mbur_0357	-	CheW-like protein
329	 40.20	0	338385..339185	+	266	91772411	-	Mbur_0358	-	hypothetical protein
330	 37.19	-1	339203..339565	+	120	91772412	-	Mbur_0359	-	CheY like protein
331	 37.78	0	339580..340635	+	351	91772413	-	Mbur_0360	-	chemotaxis-specific methylesterase
332	 36.38	-1	340625..343318	+	897	91772414	-	Mbur_0361	-	CheW-like protein
333	 37.15	-1	343311..343913	+	200	91772415	-	Mbur_0362	-	CheC-like protein
334	 41.30	0	344096..344572	+	158	91772416	-	Mbur_0363	-	chemoreceptor glutamine deamidase CheD
335	 34.44	-1	344563..345375	+	270	91772417	-	Mbur_0364	-	protein-glutamate O-methyltransferase
336	 35.99	-1	345498..346664	+	388	91772418	-	Mbur_0365	-	putative transposase
337	 30.57	-2	346624..347202	-	192	91772419	-	Mbur_0366	-	hypothetical protein
338	 43.69	0	347296..347778	-	160	91772420	-	Mbur_0367	-	formaldehyde-activating enzyme
339	 32.01	-2	347987..348364	+	125	91772421	-	Mbur_0368	-	HxlR family transcriptional regulator
340	 46.13	0	349199..350425	+	408	91772422	-	Mbur_0369	-	geranylgeranyl reductase
341	 44.63	0	350552..351613	+	353	91772423	-	Mbur_0370	-	hypothetical protein
342	 42.73	0	351910..352782	+	290	91772424	-	Mbur_0371	-	hypothetical protein
343	 44.78	0	353003..353500	+	165	91772425	-	Mbur_0372	-	transcription factor IIE (TFIIE), alpha subunit
344	 43.79	0	353503..354009	+	168	91772426	-	Mbur_0373	-	hypothetical protein
345	 43.44	0	354138..354770	+	210	91772427	-	Mbur_0374	-	proteasome endopeptidase complex
346	 43.54	0	354873..356783	+	636	91772428	-	Mbur_0375	-	beta-lactamase-like protein
347	 40.50	0	356787..357428	-	213	91772429	-	Mbur_0376	-	HAD family hydrolase
348	 39.91	0	357690..357902	+	70	91772430	-	Mbur_0377	-	hypothetical protein
349	 37.60	0	357982..358356	-	124	91772431	-	Mbur_0378	-	hypothetical protein
350	 41.49	0	358667..359659	-	330	91772432	-	Mbur_0379	-	aspartate semialdehyde dehydrogenase
351	 35.88	-1	360103..360810	+	235	91772433	-	Mbur_0380	-	histidine kinase
352	 43.56	0	360895..361725	-	276	91772434	-	Mbur_0381	-	molybdopterin-guanine dinucleotide biosynthesis protein B
353	 46.52	+1	361851..362540	+	229	91772435	radC	Mbur_0382	-	DNA repair protein RadC
354	 43.08	0	362573..362962	-	129	91772436	-	Mbur_0383	-	hypothetical protein
355	 47.23	+1	362987..364267	+	426	91772437	-	Mbur_0384	-	hypothetical protein
356	 37.68	0	364335..364748	-	137	91772438	-	Mbur_0385	-	hypothetical protein
357	 36.21	-1	366051..366398	-	115	91772439	-	Mbur_0387	-	transcriptional regulator
358	 41.20	0	366558..367307	-	249	91772440	-	Mbur_0388	-	ABC efflux pump, inner membrane subunit
359	 40.85	0	367312..368295	-	327	91772441	-	Mbur_0389	-	daunorubicin resistance ABC transporter, ATPase subunit
360	 46.21	0	369355..371256	+	633	91772442	-	Mbur_0391	-	glutamyl-tRNA(Gln) amidotransferase subunit E
361	 38.78	0	371265..372329	+	354	91772443	-	Mbur_0392	-	WD40-like beta propeller protein
362	 43.01	0	373057..374595	+	512	91772444	-	Mbur_0394	-	sulphate transporter
363	 39.90	0	374819..375016	+	65	91772445	-	Mbur_0395	-	hypothetical protein
364	 43.40	0	375063..375827	-	254	91772446	-	Mbur_0396	-	GTP-binding protein YlqF
365	 46.23	0	376112..377173	-	353	91772447	-	Mbur_0397	-	hypothetical protein
366	 37.58	0	377626..378567	+	313	91772448	-	Mbur_0398	-	transposase, IS4
367	 33.17	-1	378853..381315	+	820	91772449	-	Mbur_0399	-	MCP methyltransferase, CheR-type
368	 30.74	-2	381331..382641	+	436	91772450	-	Mbur_0400	-	PAS sensor signal transduction histidine kinase
369	 36.50	-1	382938..384107	-	389	91772451	-	Mbur_0401	-	transposase
370	 42.18	0	385443..385736	-	97	91772452	-	Mbur_0402	-	hypothetical protein
371	 35.17	-1	386243..387166	+	307	91772453	-	Mbur_0403	-	transposase, IS4
372	 34.99	-1	387293..387895	-	200	91772454	-	Mbur_0404	-	alkylhydroperoxidase-like protein
373	 39.29	0	390022..390189	+	55	91772455	-	Mbur_0407	-	hypothetical protein
374	 38.10	0	390193..391326	+	377	91772456	-	Mbur_0408	-	Na+/proline symporter-like protein
375	 35.49	-1	391350..391766	+	138	91772457	-	Mbur_0409	-	hypothetical protein
376	 33.72	-1	393226..393486	+	86	91772458	-	Mbur_0412	-	hypothetical protein
377	 46.13	0	393722..394651	-	309	91772459	-	Mbur_0413	-	cysteine synthase
378	 42.06	0	394703..395665	-	320	91772460	-	Mbur_0414	-	Serine O-acetyltransferase
379	 39.70	0	395813..397273	+	486	91772461	-	Mbur_0415	-	hypothetical protein
380	 40.51	0	397312..398244	-	310	91772462	-	Mbur_0416	-	putative transporter
381	 33.42	-1	398468..399559	-	363	91772463	-	Mbur_0417	-	hypothetical protein
382	 39.57	0	400068..400676	+	202	91772464	-	Mbur_0418	-	hypothetical protein
383	 45.18	0	400945..402843	+	632	91772465	-	Mbur_0419	-	DNA gyrase subunit B
384	 44.65	0	402854..405346	+	830	91772466	-	Mbur_0420	-	DNA gyrase subunit A
385	 48.38	+1	405414..406310	+	298	91772467	-	Mbur_0421	-	pyridoxine biosynthesis protein
386	 46.90	+1	406347..406943	+	198	91772468	-	Mbur_0422	-	glutamine amidotransferase subunit PdxT
387	 38.98	0	407203..408123	-	306	91772469	-	Mbur_0423	-	TM helix protein
388	 38.69	0	408610..408777	+	55	91772470	-	Mbur_0424	-	hypothetical protein
389	 43.82	0	408781..410373	+	530	91772471	-	Mbur_0425	-	Na+/solute symporter
390	 42.10	0	410508..411317	+	269	91772472	-	Mbur_0426	-	hypothetical protein
391	 43.29	0	411402..411833	+	143	91772473	-	Mbur_0427	-	cytidyltransferase-related protein
392	 46.63	+1	411872..413014	-	380	91772474	-	Mbur_0428	-	aspartate aminotransferase
393	 44.12	0	413064..413480	-	138	91772475	ribH	Mbur_0429	-	riboflavin synthase subunit beta
394	 38.30	0	413633..414679	+	348	91772476	-	Mbur_0430	-	K+-dependent Na+/Ca+ exchanger related-protein
395	 44.19	0	414746..417361	-	871	91772477	-	Mbur_0431	-	cation transporting P-type ATPase
396	 40.55	0	418183..418653	-	156	91772478	-	Mbur_0432	-	hypothetical protein
397	 39.81	0	418874..420679	+	601	91772479	-	Mbur_0433	-	hypothetical protein
398	 39.39	0	420755..421744	+	329	91772480	-	Mbur_0434	-	sulfate adenylyltransferase
399	 40.77	0	421806..422975	+	389	91772481	-	Mbur_0435	-	glycosyl transferase, group 1
400	 39.79	0	423035..424165	+	376	91772482	-	Mbur_0436	-	glycoside hydrolase family protein
401	 43.39	0	424162..425364	+	400	91772483	-	Mbur_0437	-	Alpha-amylase
402	 43.42	0	425387..427330	+	647	91772484	-	Mbur_0438	-	glycoside hydrolase 15-related protein
41.89	MEAN

4.51	STD DEV
