IslandPath Analysis: Methanococcoides burtonii DSM 6242

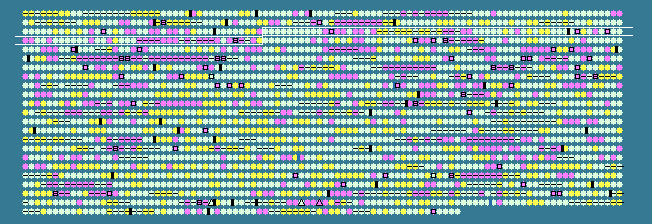

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
241	 43.86	0	234341..235081	-	246	91772323	-	Mbur_0258	-	hypothetical protein
242	 43.43	0	235446..236237	+	263	91772324	-	Mbur_0259	-	nicotinate-nucleotide diphosphorylase (carboxylating)
243	 41.49	0	236547..237098	-	183	91772325	-	Mbur_0260	-	hemerythrin HHE cation binding protein
244	 43.25	0	237318..237680	+	120	91772326	-	Mbur_0261	-	alkylhydroperoxidase family protein
245	 43.64	0	237923..239494	+	523	91772327	-	Mbur_0262	-	PAS/PAC sensor signal transduction histidine kinase
246	 43.14	0	239590..239793	-	67	91772328	-	Mbur_0263	-	hypothetical protein
247	 44.59	0	240041..240262	-	73	91772329	-	Mbur_0264	-	redox-active disulfide protein 2
248	 39.59	0	240793..242406	-	537	91772330	-	Mbur_0266	-	glycosyl transferase, group 1
249	 42.05	0	243533..246136	+	867	91772331	-	Mbur_0268	-	S-layer-related protein
250	 40.50	0	246344..247264	+	306	91772332	-	Mbur_0269	-	TM helix protein
251	 37.93	0	247461..248243	-	260	91772333	-	Mbur_0270	-	hypothetical protein
252	 33.78	-1	248623..249294	+	223	91772334	-	Mbur_0271	-	transposase, IS4
253	 37.52	0	249354..249998	-	214	91772335	-	Mbur_0272	-	multiple antibiotic resistance (MarC)-related proteins
254	 35.48	-1	250683..251522	-	279	91772336	-	Mbur_0273	-	GCN5-related N-acetyltransferase
255	 39.22	0	251519..252826	-	435	91772337	-	Mbur_0274	-	L-lysine 2,3-aminomutase
256	 35.58	-1	252981..253292	-	103	91772338	-	Mbur_0275	-	hypothetical protein
257	 37.87	0	253870..254244	-	124	91772339	-	Mbur_0277	-	hypothetical protein
258	 39.54	0	254241..254933	-	230	91772340	-	Mbur_0278	-	hypothetical protein
259	 34.28	-1	254975..256351	-	458	91772341	-	Mbur_0279	-	parallel beta-helix repeat-containing protein
260	 46.05	0	256573..257421	-	282	91772342	-	Mbur_0280	-	formate dehydrogenase family accessory protein FdhD
261	 47.25	+1	257424..258731	-	435	91772343	-	Mbur_0281	-	formylmethanofuran dehydrogenase, subunit B
262	 41.79	0	258733..259122	-	129	91772344	-	Mbur_0282	-	formylmethanofuran dehydrogenase, subunit D
263	 46.91	+1	259132..259941	-	269	91772345	-	Mbur_0283	-	formylmethanofuran dehydrogenase, subunit C
264	 46.61	+1	259946..261700	-	584	91772346	-	Mbur_0284	-	formylmethanofuran dehydrogenase, subunit A
265	 47.12	+1	261700..262722	-	340	91772347	-	Mbur_0285	-	formylmethanofuran dehydrogenase, subunit F
266	 43.99	0	262739..263329	-	196	91772348	-	Mbur_0286	-	formylmethanofuran dehydrogenase, subunit E
267	 45.49	0	263588..263875	-	95	91772349	-	Mbur_0287	-	hypothetical protein
268	 46.70	+1	263926..264561	-	211	91772350	-	Mbur_0288	-	nitrogen-fixing NifU-like protein
269	 44.79	0	264595..265764	-	389	91772351	-	Mbur_0289	-	aminotransferase, class V
270	 45.99	0	266191..266514	-	107	91772352	-	Mbur_0290	-	hypothetical protein
271	 36.46	-1	267847..268038	-	63	91772353	-	Mbur_0292	-	XRE family transcriptional regulator
272	 36.64	-1	268056..268448	-	130	91772354	-	Mbur_0293	-	hypothetical protein
273	 38.59	0	269259..270038	-	259	91772355	-	Mbur_0295	-	protein of unknown function DUF306, Meta and HslJ
274	 32.88	-1	270409..270846	-	145	91772356	-	Mbur_0296	-	hypothetical protein
275	 29.98	-2	270923..271489	+	188	91772357	-	Mbur_0297	-	hypothetical protein
276	 40.34	0	271941..273566	+	541	91772358	-	Mbur_0298	-	hypothetical protein
277	 38.92	0	273578..274831	+	417	91772359	-	Mbur_0299	-	hypothetical protein
278	 40.22	0	274896..275519	+	207	91772360	-	Mbur_0300	-	GTP-binding protein
279	 40.10	0	275534..276154	-	206	91772361	-	Mbur_0301	-	radical SAM family Fe-S protein
280	 39.84	0	276151..276519	-	122	91772362	-	Mbur_0302	-	hypothetical protein
281	 47.10	+1	276516..277706	-	396	91772363	-	Mbur_0303	-	geranylgeranyl reductase
282	 44.44	0	277908..278114	-	68	91772364	-	Mbur_0304	-	hypothetical protein
283	 38.13	0	278307..278765	-	152	91772365	-	Mbur_0305	-	hypothetical protein
284	 44.69	0	278781..280250	-	489	91772366	-	Mbur_0306	-	dihydropteroate synthase
285	 47.76	+1	280356..281540	-	394	91772367	-	Mbur_0307	-	cell division protein FtsZ
286	 42.53	0	282080..282775	+	231	91772368	-	Mbur_0308	-	hypothetical protein
287	 46.36	0	282843..283556	-	237	91772369	-	Mbur_0309	-	hypothetical protein
288	 47.55	+1	283566..283952	-	128	91772370	-	Mbur_0310	-	4Fe-4S ferredoxin, iron-sulfur binding
289	 44.71	0	283955..285457	-	500	91772371	-	Mbur_0311	-	hypothetical protein
290	 40.34	0	285696..287366	-	556	91772372	-	Mbur_0312	-	GAF sensor signal transduction histidine kinase
291	 44.95	0	287755..288486	+	243	91772373	-	Mbur_0313	-	peptidylprolyl isomerase, FKBP-type
292	 40.28	0	289064..292129	-	1021	91772374	-	Mbur_0314	-	cadherin
293	 36.98	-1	292509..293987	-	492	91772375	-	Mbur_0315	-	transposase
294	 50.51	+1	294326..296857	-	843	91772376	-	Mbur_0316	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
295	 40.24	0	298099..298431	+	110	91772377	-	Mbur_0318	-	hypothetical protein
296	 34.89	-1	299711..300418	+	235	91772378	-	Mbur_0320	-	hypothetical protein
297	 40.31	0	300430..301647	-	405	91772379	-	Mbur_0321	-	nicotinate phosphoribosyltransferase
298	 35.82	-1	302373..303497	+	374	91772380	-	Mbur_0323	-	transposase, mutator type
299	 43.09	0	308487..309050	+	187	91772381	-	Mbur_0327	-	hypothetical protein
300	 43.32	0	309172..309852	-	226	91772382	-	Mbur_0328	-	hypothetical protein
301	 33.93	-1	310072..310404	-	110	91772383	-	Mbur_0329	-	hypothetical protein
302	 31.82	-2	310683..310946	+	87	91772384	-	Mbur_0330	-	hypothetical protein
303	 42.20	0	311247..312227	+	326	91772385	-	Mbur_0331	-	hypothetical protein
304	 39.24	0	312336..313487	+	383	91772386	-	Mbur_0332	-	hypothetical protein
305	 35.17	-1	313510..314436	+	308	91772387	-	Mbur_0333	-	cell surface glycoprotein (s-layer protein)
306	 39.39	0	314864..315589	+	241	91772388	-	Mbur_0334	-	thioredoxin-related protein
307	 43.79	0	315644..316102	+	152	91772389	-	Mbur_0335	-	formylmethanofuran dehydrogenase, subunit G
308	 44.26	0	316119..317363	+	414	91772390	-	Mbur_0336	-	formylmethanofuran dehydrogenase, subunit B
309	 43.36	0	317364..317762	+	132	91772391	-	Mbur_0337	-	formylmethanofuran dehydrogenase, subunit D
310	 44.41	0	317839..318687	-	282	91772392	-	Mbur_0338	-	hypothetical protein
311	 42.78	0	318762..320063	-	433	91772393	-	Mbur_0339	-	phenylacetate-CoA ligase
312	 35.57	-1	320326..321264	+	312	91772394	ubiA	Mbur_0340	-	prenyltransferase
313	 38.45	0	322209..323498	+	429	91772395	-	Mbur_0342	-	hypothetical protein
314	 42.39	0	323644..324648	+	334	91772396	-	Mbur_0343	-	hypothetical protein
315	 36.93	-1	324717..325022	-	101	91772397	-	Mbur_0344	-	hypothetical protein
316	 49.21	+1	325764..325952	-	62	91772398	-	Mbur_0345	-	hypothetical protein
317	 42.76	0	326834..327406	+	190	91772399	-	Mbur_0346	-	flagellin
318	 42.25	0	327421..327981	+	186	91772400	-	Mbur_0347	-	flagellin
319	 39.48	0	328099..328863	+	254	91772401	-	Mbur_0348	-	hypothetical protein
320	 37.34	-1	328845..329318	+	157	91772402	-	Mbur_0349	-	hypothetical protein
321	 36.71	-1	329323..329796	+	157	91772403	-	Mbur_0350	-	putative flagellar protein FlaF
322	 37.66	0	329798..330514	+	238	91772404	-	Mbur_0351	-	flagellar accessory protein FlaH
323	 36.39	-1	330546..332378	+	610	91772405	-	Mbur_0352	-	type II secretion system protein E
324	 37.72	0	332393..334012	+	539	91772406	-	Mbur_0353	-	flagellar assembly protein J
325	 37.14	-1	334014..334958	+	314	91772407	-	Mbur_0354	-	hypothetical protein
326	 29.01	-2	335200..335361	+	53	91772408	-	Mbur_0355	-	hypothetical protein
327	 40.58	0	335909..337867	+	652	91772409	-	Mbur_0356	-	chemotaxis sensory transducer
328	 37.29	-1	337909..338388	+	159	91772410	-	Mbur_0357	-	CheW-like protein
329	 40.20	0	338385..339185	+	266	91772411	-	Mbur_0358	-	hypothetical protein
330	 37.19	-1	339203..339565	+	120	91772412	-	Mbur_0359	-	CheY like protein
331	 37.78	0	339580..340635	+	351	91772413	-	Mbur_0360	-	chemotaxis-specific methylesterase
332	 36.38	-1	340625..343318	+	897	91772414	-	Mbur_0361	-	CheW-like protein
333	 37.15	-1	343311..343913	+	200	91772415	-	Mbur_0362	-	CheC-like protein
334	 41.30	0	344096..344572	+	158	91772416	-	Mbur_0363	-	chemoreceptor glutamine deamidase CheD
335	 34.44	-1	344563..345375	+	270	91772417	-	Mbur_0364	-	protein-glutamate O-methyltransferase
336	 35.99	-1	345498..346664	+	388	91772418	-	Mbur_0365	-	putative transposase
337	 30.57	-2	346624..347202	-	192	91772419	-	Mbur_0366	-	hypothetical protein
338	 43.69	0	347296..347778	-	160	91772420	-	Mbur_0367	-	formaldehyde-activating enzyme
339	 32.01	-2	347987..348364	+	125	91772421	-	Mbur_0368	-	HxlR family transcriptional regulator
340	 46.13	0	349199..350425	+	408	91772422	-	Mbur_0369	-	geranylgeranyl reductase
41.89	MEAN

4.51	STD DEV
