IslandPath Analysis: Methanococcoides burtonii DSM 6242

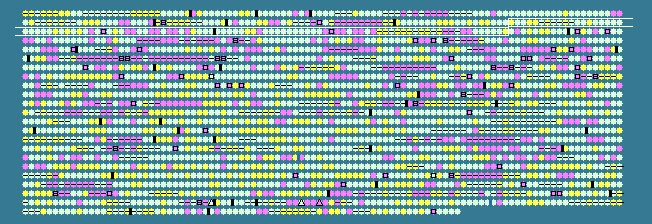

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
182	 46.72	+1	178818..179609	+	263	91772264	-	Mbur_0196	-	proteasome subunit alpha
183	 44.30	0	179653..180345	+	230	91772265	-	Mbur_0197	-	putative RNA-associated protein
184	 42.17	0	180357..181148	+	263	91772266	-	Mbur_0198	-	exosome complex RNA-binding protein Rrp4
185	 46.51	+1	181199..182230	+	343	91772267	-	Mbur_0199	-	exosome complex exonuclease Rrp41
186	 45.38	0	182223..183002	+	259	91772268	-	Mbur_0200	-	exosome complex RNA-binding protein Rrp42
187	 43.40	0	183096..183383	+	95	91772269	rpl37ae	Mbur_0201	-	50S ribosomal protein L37Ae
188	 47.52	+1	183389..183529	+	46	91772270	-	Mbur_0202	-	DNA-directed RNA polymerase subunit P
189	 39.53	0	183536..184003	+	155	91772271	-	Mbur_0203	-	Imp4 family protein
190	 43.14	0	184000..184254	+	84	91772272	-	Mbur_0204	-	hypothetical protein
191	 47.18	+1	184339..184692	+	117	91772273	-	Mbur_0205	-	prefoldin, beta subunit
192	 44.51	0	184754..185719	+	321	91772274	-	Mbur_0206	-	phosphoesterase, RecJ-like protein
193	 44.60	0	185770..187074	+	434	91772275	-	Mbur_0207	-	phenylacetate-CoA ligase
194	 43.84	0	187118..187555	+	145	91772276	-	Mbur_0208	-	amino acid-binding (ACT) protein
195	 46.15	0	187655..188005	+	116	91772277	-	Mbur_0209	-	hypothetical protein
196	 44.07	0	188022..188999	+	325	91772278	-	Mbur_0210	-	hypothetical protein
197	 39.36	0	189047..189859	-	270	91772279	-	Mbur_0211	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
198	 42.17	0	189863..191152	+	429	91772280	-	Mbur_0212	-	hypothetical protein
199	 43.78	0	191160..192107	+	315	91772281	-	Mbur_0213	-	triphosphoribosyl-dephospho-CoA protein
200	 41.21	0	192107..192703	+	198	91772282	-	Mbur_0214	-	hypothetical protein
201	 42.92	0	192707..193186	+	159	91772283	-	Mbur_0215	-	CMP/dCMP deaminase, zinc-binding
202	 40.29	0	193202..194092	-	296	91772284	-	Mbur_0216	-	TPR repeat-containing protein
203	 42.16	0	194363..196921	+	852	91772285	-	Mbur_0217	-	multi-sensor protein
204	 43.50	0	197068..197913	+	281	91772286	-	Mbur_0218	-	hypothetical protein
205	 43.79	0	198129..198482	+	117	91772287	rpl7ae	Mbur_0219	-	50S ribosomal protein L7Ae
206	 46.76	+1	198505..198720	+	71	91772288	rps28e	Mbur_0220	-	30S ribosomal protein S28e
207	 43.39	0	198726..198914	+	62	91772289	-	Mbur_0221	-	50S ribosomal protein L24e
208	 47.78	+1	198929..199378	+	149	91772290	-	Mbur_0222	-	nucleoside diphosphate kinase
209	 44.37	0	199534..201309	+	591	91772291	-	Mbur_0223	-	translation initiation factor IF-2
210	 45.83	0	201400..201807	+	135	91772292	-	Mbur_0224	-	30S ribosomal protein S6e
211	 41.77	0	202102..203346	+	414	91772293	-	Mbur_0225	-	TPR repeat-containing protein
212	 31.37	-2	203379..203735	+	118	91772294	-	Mbur_0226	-	hypothetical protein
213	 39.95	0	203797..204189	+	130	91772295	-	Mbur_0227	-	thioredoxin-related
214	 34.33	-1	204212..205420	-	402	91772296	-	Mbur_0228	-	transposase, IS204/IS1001/IS1096/IS1165
215	 40.89	0	205728..206336	-	202	91772297	-	Mbur_0229	-	hypothetical protein
216	 47.86	+1	206429..206779	-	116	91772298	-	Mbur_0230	-	hypothetical protein
217	 41.73	0	206805..207638	-	277	91772299	-	Mbur_0231	-	ArsR family transcriptional regulator
218	 35.95	-1	207722..207874	-	50	91772300	-	Mbur_0232	-	hypothetical protein
219	 37.33	-1	208509..208808	-	99	91772301	-	Mbur_0233	-	hypothetical protein
220	 42.70	0	209263..210009	-	248	91772302	-	Mbur_0234	-	ArsR family transcriptional regulator
221	 44.14	0	210212..211294	+	360	91772303	-	Mbur_0235	-	hypothetical protein
222	 36.40	-1	211391..211651	+	86	91772304	-	Mbur_0236	-	hypothetical protein
223	 38.01	0	211740..212423	+	227	91772305	-	Mbur_0237	-	hypothetical protein
224	 39.39	0	213078..213539	+	153	91772306	-	Mbur_0239	-	cell surface protein
225	 37.32	-1	213548..214576	+	342	91772307	-	Mbur_0240	-	hypothetical protein
226	 38.23	0	214677..215003	+	108	91772308	-	Mbur_0241	-	hypothetical protein
227	 44.44	0	217249..217545	+	98	91772309	-	Mbur_0243	-	hypothetical protein
228	 34.59	-1	217893..218210	-	105	91772310	-	Mbur_0244	-	hypothetical protein
229	 46.70	+1	218268..219659	+	463	91772311	-	Mbur_0245	-	DEAD/DEAH box helicase-like protein
230	 42.89	0	219967..220740	-	257	91772312	-	Mbur_0246	-	hypothetical protein
231	 43.65	0	222529..224283	-	584	91772313	-	Mbur_0248	-	peptidase M50
232	 43.05	0	224408..224860	-	150	91772314	-	Mbur_0249	-	hypothetical protein
233	 45.25	0	225226..226056	+	276	91772315	-	Mbur_0250	-	fumarate hydratase
234	 43.11	0	226056..226628	+	190	91772316	-	Mbur_0251	-	fumarate hydratase
235	 42.25	0	226742..227728	-	328	91772317	-	Mbur_0252	-	type II secretion system protein
236	 40.39	0	227731..228651	-	306	91772318	-	Mbur_0253	-	type II secretion system protein
237	 39.85	0	228644..230608	-	654	91772319	-	Mbur_0254	-	type II secretion system protein E
238	 46.42	+1	230876..232396	+	506	91772320	-	Mbur_0255	-	thymidine phosphorylase
239	 47.49	+1	232402..232938	+	178	91772321	-	Mbur_0256	-	tRNA 2'-O-methylase
240	 32.32	-2	233028..234116	+	362	91772322	-	Mbur_0257	-	hypothetical protein
241	 43.86	0	234341..235081	-	246	91772323	-	Mbur_0258	-	hypothetical protein
242	 43.43	0	235446..236237	+	263	91772324	-	Mbur_0259	-	nicotinate-nucleotide diphosphorylase (carboxylating)
243	 41.49	0	236547..237098	-	183	91772325	-	Mbur_0260	-	hemerythrin HHE cation binding protein
244	 43.25	0	237318..237680	+	120	91772326	-	Mbur_0261	-	alkylhydroperoxidase family protein
245	 43.64	0	237923..239494	+	523	91772327	-	Mbur_0262	-	PAS/PAC sensor signal transduction histidine kinase
246	 43.14	0	239590..239793	-	67	91772328	-	Mbur_0263	-	hypothetical protein
247	 44.59	0	240041..240262	-	73	91772329	-	Mbur_0264	-	redox-active disulfide protein 2
248	 39.59	0	240793..242406	-	537	91772330	-	Mbur_0266	-	glycosyl transferase, group 1
249	 42.05	0	243533..246136	+	867	91772331	-	Mbur_0268	-	S-layer-related protein
250	 40.50	0	246344..247264	+	306	91772332	-	Mbur_0269	-	TM helix protein
251	 37.93	0	247461..248243	-	260	91772333	-	Mbur_0270	-	hypothetical protein
252	 33.78	-1	248623..249294	+	223	91772334	-	Mbur_0271	-	transposase, IS4
253	 37.52	0	249354..249998	-	214	91772335	-	Mbur_0272	-	multiple antibiotic resistance (MarC)-related proteins
254	 35.48	-1	250683..251522	-	279	91772336	-	Mbur_0273	-	GCN5-related N-acetyltransferase
255	 39.22	0	251519..252826	-	435	91772337	-	Mbur_0274	-	L-lysine 2,3-aminomutase
256	 35.58	-1	252981..253292	-	103	91772338	-	Mbur_0275	-	hypothetical protein
257	 37.87	0	253870..254244	-	124	91772339	-	Mbur_0277	-	hypothetical protein
258	 39.54	0	254241..254933	-	230	91772340	-	Mbur_0278	-	hypothetical protein
259	 34.28	-1	254975..256351	-	458	91772341	-	Mbur_0279	-	parallel beta-helix repeat-containing protein
260	 46.05	0	256573..257421	-	282	91772342	-	Mbur_0280	-	formate dehydrogenase family accessory protein FdhD
261	 47.25	+1	257424..258731	-	435	91772343	-	Mbur_0281	-	formylmethanofuran dehydrogenase, subunit B
262	 41.79	0	258733..259122	-	129	91772344	-	Mbur_0282	-	formylmethanofuran dehydrogenase, subunit D
263	 46.91	+1	259132..259941	-	269	91772345	-	Mbur_0283	-	formylmethanofuran dehydrogenase, subunit C
264	 46.61	+1	259946..261700	-	584	91772346	-	Mbur_0284	-	formylmethanofuran dehydrogenase, subunit A
265	 47.12	+1	261700..262722	-	340	91772347	-	Mbur_0285	-	formylmethanofuran dehydrogenase, subunit F
266	 43.99	0	262739..263329	-	196	91772348	-	Mbur_0286	-	formylmethanofuran dehydrogenase, subunit E
267	 45.49	0	263588..263875	-	95	91772349	-	Mbur_0287	-	hypothetical protein
268	 46.70	+1	263926..264561	-	211	91772350	-	Mbur_0288	-	nitrogen-fixing NifU-like protein
269	 44.79	0	264595..265764	-	389	91772351	-	Mbur_0289	-	aminotransferase, class V
270	 45.99	0	266191..266514	-	107	91772352	-	Mbur_0290	-	hypothetical protein
271	 36.46	-1	267847..268038	-	63	91772353	-	Mbur_0292	-	XRE family transcriptional regulator
272	 36.64	-1	268056..268448	-	130	91772354	-	Mbur_0293	-	hypothetical protein
273	 38.59	0	269259..270038	-	259	91772355	-	Mbur_0295	-	protein of unknown function DUF306, Meta and HslJ
274	 32.88	-1	270409..270846	-	145	91772356	-	Mbur_0296	-	hypothetical protein
275	 29.98	-2	270923..271489	+	188	91772357	-	Mbur_0297	-	hypothetical protein
276	 40.34	0	271941..273566	+	541	91772358	-	Mbur_0298	-	hypothetical protein
277	 38.92	0	273578..274831	+	417	91772359	-	Mbur_0299	-	hypothetical protein
278	 40.22	0	274896..275519	+	207	91772360	-	Mbur_0300	-	GTP-binding protein
279	 40.10	0	275534..276154	-	206	91772361	-	Mbur_0301	-	radical SAM family Fe-S protein
280	 39.84	0	276151..276519	-	122	91772362	-	Mbur_0302	-	hypothetical protein
281	 47.10	+1	276516..277706	-	396	91772363	-	Mbur_0303	-	geranylgeranyl reductase
41.89	MEAN

4.51	STD DEV
