IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

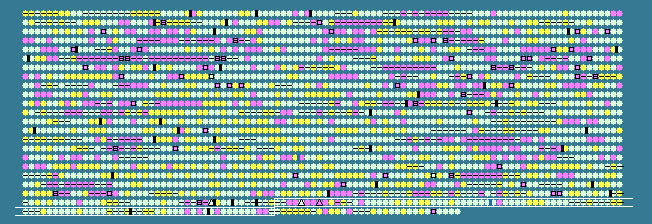

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2143	 44.73	0	2440487..2441530	+	347	91774225	-	Mbur_2311	-	trimethylamine transporter
2144	 39.39	0	2441532..2441828	+	98	91774226	-	Mbur_2312	-	hypothetical protein
2145	 34.43	-1	2442191..2443645	+	484	91774227	-	Mbur_2313	-	trimethylamine:corrinoid methyltransferase
2146	 35.31	-1	2443982..2444335	-	117	91774228	-	Mbur_2314	-	hypothetical protein
2147	 39.53	0	2446327..2446971	+	214	91774229	-	Mbur_2316	-	phage integrase
2148	 34.84	-1	2447547..2449268	-	573	91774230	-	Mbur_2318	-	tetratricopeptide protein
2149	 34.13	-1	2449271..2449648	-	125	91774231	-	Mbur_2319	-	hypothetical protein
2150	 36.75	-1	2450387..2451526	-	379	91774232	-	Mbur_2320	-	phage integrase
2151	 33.20	-1	2452197..2452919	+	240	91774233	-	Mbur_2321	-	hypothetical protein
2152	 47.37	+1	2453115..2454539	-	474	91774234	-	Mbur_2322	-	ribulose bisphosphate carboxylase
2153	 35.93	-1	2454717..2454947	-	76	91774235	-	Mbur_2323	-	putative ferredoxin
2154	 47.00	+1	2455047..2455346	-	99	91774236	-	Mbur_2324	-	carboxymuconolactone decarboxylase
2155	 41.98	0	2455521..2455844	+	107	91774237	-	Mbur_2325	-	small multidrug resistance protein
2156	 39.64	0	2455994..2456437	+	147	91774238	-	Mbur_2326	-	hypothetical protein
2157	 36.46	-1	2456691..2456978	-	95	91774239	-	Mbur_2327	-	hypothetical protein
2158	 44.16	0	2457419..2457880	-	153	91774240	-	Mbur_2328	-	peptide methionine sulfoxide reductase
2159	 40.09	0	2457893..2458321	-	142	91774241	-	Mbur_2329	-	methionine sulfoxide reductase B
2160	 40.53	0	2458939..2459355	+	138	91774242	-	Mbur_2330	-	hypothetical protein
2161	 42.86	0	2459411..2460334	+	307	91774243	-	Mbur_2331	-	MscS mechanosensitive ion channel
2162	 40.67	0	2460340..2460966	-	208	91774244	-	Mbur_2332	-	UbiE/COQ5 methyltransferase
2163	 45.93	0	2461119..2461856	+	245	91774245	-	Mbur_2333	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
2164	 41.00	0	2461856..2462155	+	99	91774246	-	Mbur_2334	-	hypothetical protein
2165	 45.79	0	2462223..2463932	+	569	91774247	gltX	Mbur_2335	-	glutamyl-tRNA synthetase
2166	 44.49	0	2464408..2465115	-	235	91774248	-	Mbur_2336	-	30S ribosomal protein S3Ae
2167	 48.51	+1	2465285..2466793	-	502	91774249	-	Mbur_2337	-	seryl-tRNA synthetase
2168	 47.03	+1	2466969..2467523	-	184	91774250	-	Mbur_2338	-	phage SPO1 DNA polymerase-related protein
2169	 42.08	0	2467520..2467759	-	79	91774251	-	Mbur_2339	-	hypothetical protein
2170	 44.90	0	2467769..2469082	-	437	91774252	-	Mbur_2340	-	phosphoesterase, RecJ-like protein
2171	 43.58	0	2469138..2470328	-	396	91774253	-	Mbur_2341	-	nucleotidyl transferase
2172	 46.16	0	2470325..2471626	-	433	91774254	-	Mbur_2342	-	phosphoglucomutase/phosphomannomutase alpha/beta/subunit
2173	 41.36	0	2471646..2473490	-	614	91774255	-	Mbur_2343	-	glutamine--fructose-6-phosphate transaminase
2174	 39.82	0	2473502..2474719	-	405	91774256	-	Mbur_2344	-	nucleotidyl transferase
2175	 41.18	0	2474969..2475427	-	152	91774257	rps15p	Mbur_2345	-	30S ribosomal protein S15P
2176	 40.03	0	2475584..2476315	-	243	91774258	-	Mbur_2346	-	hypothetical protein
2177	 45.03	0	2476363..2476704	-	113	91774259	-	Mbur_2347	-	hypothetical protein
2178	 44.89	0	2476812..2477945	-	377	91774260	hisS	Mbur_2348	-	histidyl-tRNA synthetase
2179	 39.40	0	2484137..2485306	+	389	91774261	-	Mbur_2349	-	amidohydrolase
2180	 38.41	0	2485319..2485771	+	150	91774262	-	Mbur_2350	-	hypothetical protein
2181	 42.84	0	2485795..2486646	+	283	91774263	-	Mbur_2351	-	CBS domain-containing protein
2182	 42.88	0	2486717..2487397	+	226	91774264	-	Mbur_2352	-	hypothetical protein
2183	 41.97	0	2487547..2488044	+	165	91774265	-	Mbur_2353	-	thioredoxin
2184	 40.78	0	2488093..2488737	+	214	91774266	-	Mbur_2354	-	cytochrome c biogenesis protein
2185	 48.40	+1	2488849..2489598	-	249	91774267	-	Mbur_2355	-	precorrin-8X methylmutase
2186	 46.14	0	2489588..2490391	-	267	91774268	-	Mbur_2356	-	precorrin-3 methyltransferase
2187	 46.99	+1	2491219..2491950	-	243	91774269	-	Mbur_2358	-	precorrin-4 C11-methyltransferase / cobalt-factor II C20-methyltransferase
2188	 43.30	0	2491964..2492575	-	203	91774270	-	Mbur_2359	-	cobalt-precorrin-2 C(20)-methyltransferase
2189	 40.40	0	2492630..2493181	-	183	91774271	-	Mbur_2360	-	precorrin-8W decarboxylase
2190	 44.29	0	2493258..2494745	+	495	91774272	-	Mbur_2361	-	cobyric acid synthase
2191	 43.69	0	2495044..2496105	+	353	91774273	-	Mbur_2363	-	anthranilate phosphoribosyltransferase
2192	 44.69	0	2496059..2496727	+	222	91774274	-	Mbur_2364	-	phosphoribosylanthranilate isomerase
2193	 44.91	0	2496724..2498295	+	523	91774275	-	Mbur_2365	-	anthranilate synthase, component I
2194	 43.82	0	2498292..2498882	+	196	91774276	-	Mbur_2366	-	anthranilate synthase component II
2195	 46.77	+1	2498882..2499454	+	190	91774277	-	Mbur_2367	-	hypothetical protein
2196	 41.54	0	2499458..2499652	-	64	91774278	-	Mbur_2368	-	hypothetical protein
2197	 41.01	0	2499765..2500220	+	151	91774279	-	Mbur_2369	-	hypothetical protein
2198	 44.05	0	2500317..2500829	-	170	91774280	-	Mbur_2370	-	nicotinamide-nucleotide adenylyltransferase
2199	 47.09	+1	2500841..2501872	-	343	91774281	-	Mbur_2371	-	F420H2 dehydrogenase subunit F
2200	 48.13	+1	2501872..2502858	-	328	91774282	-	Mbur_2372	-	methylenetetrahydromethanopterin reductase
2201	 42.62	0	2503434..2503670	+	78	91774283	-	Mbur_2373	-	hypothetical protein
2202	 44.74	0	2503672..2503899	+	75	91774284	-	Mbur_2374	-	hypothetical protein
2203	 43.59	0	2503951..2504301	+	116	91774285	-	Mbur_2375	-	alkylhydroperoxidase-like protein
2204	 47.02	+1	2504452..2505825	+	457	91774286	-	Mbur_2376	-	hypothetical protein
2205	 44.76	0	2505841..2506470	+	209	91774287	-	Mbur_2377	-	NADPH-dependent FMN reductase
2206	 42.78	0	2506471..2507169	+	232	91774288	-	Mbur_2378	-	oxidoreductase FAD/NAD(P)-binding
2207	 45.14	0	2507219..2507794	+	191	91774289	-	Mbur_2379	-	rubrerythrin
2208	 44.38	0	2507809..2508351	+	180	91774290	-	Mbur_2380	-	flavoprotein
2209	 45.20	0	2508449..2509552	-	367	91774291	-	Mbur_2381	-	myo-inositol-1-phosphate synthase
2210	 45.43	0	2510333..2511547	+	404	91774292	-	Mbur_2383	-	beta-lactamase-like protein
2211	 39.86	0	2511584..2511859	+	91	91774293	-	Mbur_2384	-	hypothetical protein
2212	 44.15	0	2512102..2513673	+	523	91774294	-	Mbur_2385	-	D-3-phosphoglycerate dehydrogenase
2213	 42.86	0	2513745..2514227	+	160	91774295	-	Mbur_2386	-	hypothetical protein
2214	 43.16	0	2514227..2514694	+	155	91774296	-	Mbur_2387	-	hypothetical protein
2215	 45.93	0	2514827..2515207	+	126	91774297	-	Mbur_2388	-	50S ribosomal protein L18e
2216	 44.76	0	2515218..2515637	+	139	91774298	rpl13p	Mbur_2389	-	50S ribosomal protein L13P
2217	 44.20	0	2515651..2516055	+	134	91774299	rps9p	Mbur_2390	-	30S ribosomal protein S9P
2218	 47.62	+1	2516070..2516258	+	62	91774300	-	Mbur_2391	-	DNA-directed RNA polymerase subunit N
2219	 38.54	0	2516567..2516758	+	63	91774301	-	Mbur_2392	-	DNA-directed RNA polymerase, subunit K
2220	 43.57	0	2516772..2517416	+	214	91774302	rps2P	Mbur_2393	-	30S ribosomal protein S2
2221	 45.53	0	2517489..2518283	+	264	91774303	-	Mbur_2394	-	hypothetical protein
2222	 47.48	+1	2518305..2519216	+	303	91774304	-	Mbur_2395	-	mevalonate kinase
2223	 44.96	0	2519213..2519986	+	257	91774305	-	Mbur_2396	-	aspartate/glutamate/uridylate kinase
2224	 47.20	+1	2520012..2521100	+	362	91774306	-	Mbur_2397	-	isopentenyl pyrophosphate isomerase
2225	 44.87	0	2521197..2522540	+	447	91774307	-	Mbur_2398	-	beta-lactamase-like protein
2226	 44.99	0	2522569..2523537	+	322	91774308	-	Mbur_2399	-	farnesyltranstransferase
2227	 40.91	0	2523812..2525461	+	549	91774309	-	Mbur_2400	-	type II secretion system protein E
2228	 37.96	0	2525468..2527411	+	647	91774310	-	Mbur_2401	-	type II secretion system protein
2229	 38.96	0	2527433..2528338	+	301	91774311	-	Mbur_2402	-	hypothetical protein
2230	 37.63	0	2528370..2529485	-	371	91774312	-	Mbur_2403	-	PAS/PAC sensor signal transduction histidine kinase
2231	 43.50	0	2529721..2530782	+	353	91774313	-	Mbur_2404	-	radical SAM family Fe-S protein
2232	 40.84	0	2531275..2531607	-	110	91774314	-	Mbur_2405	-	ArsR family transcriptional regulator
2233	 32.33	-2	2531751..2532350	-	199	91774315	-	Mbur_2406	-	CTP:2,3-di-O-geranylgeranyl-sn-glycero-1-phosphate cytidyltransferase
2234	 41.15	0	2532418..2533569	-	383	91774316	-	Mbur_2407	-	glycosyltransferase
2235	 39.95	0	2533566..2534411	-	281	91774317	-	Mbur_2408	-	hypothetical protein
2236	 41.59	0	2534620..2535648	+	342	91774318	-	Mbur_2409	-	hypothetical protein
2237	 38.42	0	2535808..2536200	+	130	91774319	-	Mbur_2410	-	hypothetical protein
2238	 42.35	0	2536238..2537479	+	413	91774320	-	Mbur_2411	-	small GTP-binding protein
2239	 44.64	0	2537748..2538419	+	223	91774321	-	Mbur_2412	-	PHP-like protein
2240	 37.48	0	2538437..2539474	-	345	91774322	-	Mbur_2413	-	hypothetical protein
2241	 37.94	0	2539561..2541078	-	505	91774323	-	Mbur_2414	-	multisensor signal transduction histidine kinase
2242	 44.24	0	2541203..2542330	-	375	91774324	-	Mbur_2415	-	gamma-glutamyl kinase
41.89	MEAN

4.51	STD DEV
