IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

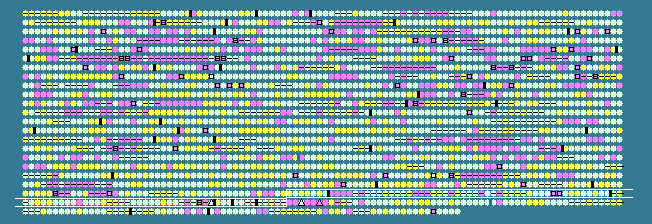

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2045	 47.57	+1	2319119..2320291	-	390	91774127	-	Mbur_2204	-	acetylornithine aminotransferase
2046	 44.04	0	2320319..2321149	-	276	91774128	-	Mbur_2205	-	hypothetical protein
2047	 46.71	+1	2321312..2321782	-	156	91774129	-	Mbur_2206	-	PUA domain-containing protein
2048	 48.46	+1	2322145..2323605	-	486	91774130	-	Mbur_2207	-	hypothetical protein
2049	 40.36	0	2323663..2324103	-	146	91774131	-	Mbur_2208	-	archease family protein
2050	 47.95	+1	2324173..2324781	-	202	91774132	-	Mbur_2209	-	CDP-alcohol phosphatidyltransferase
2051	 44.20	0	2324874..2325425	-	183	91774133	-	Mbur_2210	-	L-fuculose phosphate aldolase
2052	 36.59	-1	2325633..2325878	+	81	91774134	-	Mbur_2211	-	hypothetical protein
2053	 37.84	0	2326867..2327421	-	184	91774135	-	Mbur_2213	-	hypothetical protein
2054	 36.38	-1	2328686..2329963	+	425	91774136	-	Mbur_2214	-	hypothetical protein
2055	 37.78	0	2329976..2330155	-	59	91774137	-	Mbur_2215	-	hypothetical protein
2056	 38.46	0	2330451..2330606	-	51	91774138	-	Mbur_2216	-	hypothetical protein
2057	 33.56	-1	2330739..2331176	+	145	91774139	-	Mbur_2217	-	hypothetical protein
2058	 44.71	0	2331380..2332249	-	289	91774140	-	Mbur_2218	-	nitrite and sulphite reductase 4Fe-4S subunit
2059	 42.94	0	2332439..2333593	+	384	91774141	-	Mbur_2219	-	major facilitator transporter
2060	 39.64	0	2333666..2334172	+	168	91774142	-	Mbur_2220	-	methylated-DNA--protein-cysteine methyltransferase
2061	 46.30	0	2334769..2335647	-	292	91774143	-	Mbur_2222	-	hypothetical protein
2062	 38.79	0	2335800..2337926	-	708	91774144	-	Mbur_2223	-	hypothetical protein
2063	 43.56	0	2337939..2338505	-	188	91774145	-	Mbur_2224	-	hypothetical protein
2064	 44.96	0	2338592..2340079	-	495	91774146	-	Mbur_2225	-	polysaccharide biosynthesis protein
2065	 45.55	0	2340130..2342118	-	662	91774147	-	Mbur_2226	-	hypothetical protein
2066	 27.73	-2	2342162..2344465	-	767	91774148	-	Mbur_2227	-	hypothetical protein
2067	 30.32	-2	2344738..2345799	-	353	91774149	-	Mbur_2228	-	hypothetical protein
2068	 32.61	-2	2345801..2346625	-	274	91774150	-	Mbur_2229	-	glycosyl transferase family protein
2069	 47.03	+1	2346632..2347339	-	235	91774151	-	Mbur_2230	-	nucleotidyl transferase
2070	 46.44	+1	2347336..2348121	-	261	91774152	-	Mbur_2231	-	dTDP-4-dehydrorhamnose reductase
2071	 42.63	0	2348118..2349074	-	318	91774153	-	Mbur_2232	-	dTDP-glucose 4,6-dehydratase
2072	 38.41	0	2349114..2349665	-	183	91774154	-	Mbur_2233	-	dTDP-4-dehydrorhamnose 3,5-epimerase
2073	 48.83	+1	2349914..2350855	-	313	91774155	-	Mbur_2234	-	NAD-dependent epimerase/dehydratase
2074	 38.89	0	2350954..2351241	-	95	91774156	-	Mbur_2235	-	hypothetical protein
2075	 42.15	0	2351255..2352241	-	328	91774157	-	Mbur_2236	-	nucleotidyl transferase
2076	 39.80	0	2352310..2353113	-	267	91774158	-	Mbur_2237	-	glycosyl transferase family protein
2077	 35.05	-1	2353618..2354316	+	232	91774159	-	Mbur_2238	-	hypothetical protein
2078	 40.82	0	2354328..2354594	-	88	91774160	-	Mbur_2239	-	hypothetical protein
2079	 41.57	0	2354757..2355023	-	88	91774161	-	Mbur_2240	-	hypothetical protein
2080	 36.13	-1	2355326..2356363	-	345	91774162	-	Mbur_2241	-	hypothetical protein
2081	 47.32	+1	2356783..2358276	-	497	91774163	-	Mbur_2242	-	replication factor C large subunit
2082	 44.64	0	2358365..2359222	+	285	91774164	-	Mbur_2243	-	N5-methyl-tetrahydromethanopterin--coenzyme M methyltransferase subunit X
2083	 45.44	0	2359759..2360691	+	310	161611176	-	Mbur_2244	-	N5-methyltetrahydromethanopterin
2084	 42.59	0	2361143..2362147	-	334	91774166	-	Mbur_2245	-	hypothetical protein
2085	 46.69	+1	2362742..2364403	-	553	91774167	-	Mbur_2246	-	dihydroxy-acid dehydratase
2086	 45.09	0	2364521..2366221	+	566	91774168	-	Mbur_2247	-	radical SAM family Fe-S protein
2087	 41.64	0	2367484..2368518	-	344	91774169	-	Mbur_2249	-	hypothetical protein
2088	 44.33	0	2368539..2369738	-	399	91774170	-	Mbur_2250	-	nucleotidyl transferase
2089	 36.79	-1	2370329..2371747	+	472	91774171	-	Mbur_2252	-	transposase
2090	 33.96	-1	2371790..2372584	-	264	91774172	-	Mbur_2253	-	transposase
2091	 42.78	0	2372703..2373083	-	126	91774173	-	Mbur_2254	-	nucleic acid binding protein
2092	 50.11	+1	2373093..2373551	-	152	91774174	-	Mbur_2255	-	peptidylprolyl isomerase, FKBP-type
2093	 47.25	+1	2373620..2374165	-	181	91774175	-	Mbur_2256	-	peptidylprolyl isomerase, FKBP-type
2094	 43.11	0	2374627..2375301	+	224	91774176	-	Mbur_2257	-	hypothetical protein
2095	 44.71	0	2375304..2375927	+	207	91774177	-	Mbur_2258	-	MotA/TolQ/ExbB proton channel
2096	 47.22	+1	2375924..2376283	+	119	91774178	-	Mbur_2259	-	hypothetical protein
2097	 42.45	0	2376446..2381698	+	1750	91774179	-	Mbur_2260	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
2098	 43.25	0	2381878..2383047	+	389	91774180	-	Mbur_2261	-	coenzyme F420 hydrogenase/dehydrogenase beta subunit-like protein
2099	 39.32	0	2384156..2384506	+	116	91774181	-	Mbur_2262	-	hypothetical protein
2100	 47.91	+1	2384662..2385903	+	413	91774182	-	Mbur_2263	-	3-isopropylmalate dehydratase, large subunit
2101	 41.31	0	2385926..2386138	+	70	91774183	-	Mbur_2264	-	hypothetical protein
2102	 45.26	0	2386992..2388182	-	396	91774184	-	Mbur_2265	-	hypothetical protein
2103	 47.60	+1	2388203..2388973	-	256	91774185	-	Mbur_2266	-	phosphoribosylaminoimidazole carboxylase related protein
2104	 41.47	0	2389106..2393665	+	1519	91774186	-	Mbur_2267	-	TPR repeat-containing protein
2105	 45.79	0	2393744..2396224	+	826	91774187	-	Mbur_2268	-	peptidase U32
2106	 44.22	0	2396226..2396813	+	195	91774188	-	Mbur_2269	-	maf protein
2107	 43.51	0	2396914..2397198	+	94	91774189	-	Mbur_2270	-	hypothetical protein
2108	 45.28	0	2398996..2399631	-	211	91774190	-	Mbur_2272	-	hypothetical protein
2109	 43.76	0	2399658..2400434	-	258	91774191	-	Mbur_2273	-	MscS mechanosensitive ion channel
2110	 37.50	0	2400960..2401463	+	167	91774192	-	Mbur_2274	-	MarR family transcriptional regulator
2111	 45.06	0	2401423..2403861	+	812	91774193	-	Mbur_2275	-	hydrophobe/amphiphile efflux-3 HAE3
2112	 42.88	0	2403858..2404967	+	369	91774194	-	Mbur_2276	-	hypothetical protein
2113	 42.95	0	2405010..2406122	+	370	91774195	-	Mbur_2277	-	hypothetical protein
2114	 45.88	0	2406345..2407571	+	408	91774196	-	Mbur_2278	-	translation initiation factor IF-2 subunit gamma
2115	 45.80	0	2407568..2407936	+	122	91774197	-	Mbur_2279	-	hypothetical protein
2116	 45.60	0	2407995..2408573	+	192	91774198	-	Mbur_2280	-	DNA-directed RNA polymerase subunit E'
2117	 44.62	0	2408590..2408775	+	61	91774199	-	Mbur_2281	-	DNA-directed RNA polymerase, subunit E''
2118	 41.09	0	2408795..2409361	+	188	91774200	-	Mbur_2282	-	hypothetical protein
2119	 43.04	0	2409351..2409659	+	102	91774201	rps24e	Mbur_2283	-	30S ribosomal protein S24e
2120	 44.00	0	2409662..2409811	+	49	91774202	-	Mbur_2284	-	30S ribosomal protein S27ae
2121	 39.95	0	2409908..2410300	-	130	91774203	-	Mbur_2285	-	response regulator receiver
2122	 40.84	0	2410314..2412818	-	834	91774204	-	Mbur_2286	-	multisensor signal transduction histidine kinase
2123	 39.42	0	2412836..2413624	-	262	91774205	-	Mbur_2287	-	hypothetical protein
2124	 47.93	+1	2414081..2414587	+	168	91774206	-	Mbur_2288	-	dimethylamine corrinoid protein
2125	 43.78	0	2416859..2418361	+	500	91774207	-	Mbur_2292	-	amino acid transporter
2126	 40.70	0	2418466..2419374	+	302	91774208	-	Mbur_2293	-	PAS sensor protein
2127	 43.46	0	2419440..2419844	+	134	91774209	-	Mbur_2294	-	response regulator receiver
2128	 36.56	-1	2420047..2420325	+	92	91774210	-	Mbur_2295	-	hypothetical protein
2129	 39.84	0	2421447..2421692	+	81	91774211	-	Mbur_2296	-	AbrB family transcriptional regulator
2130	 37.11	-1	2421773..2423254	-	493	91774212	-	Mbur_2297	-	transposase
2131	 35.42	-1	2423436..2423771	+	111	91774213	-	Mbur_2298	-	transcriptional modulator of MazE/toxin, MazF
2132	 40.33	0	2424176..2425204	+	342	91774214	-	Mbur_2299	-	phage integrase
2133	 45.59	0	2427827..2429074	-	415	91774215	-	Mbur_2301	-	proteasome-activating nucleotidase
2134	 43.92	0	2429581..2430477	+	298	91774216	-	Mbur_2302	-	hypothetical protein
2135	 44.88	0	2430664..2432646	+	660	91774217	-	Mbur_2303	-	excinuclease ABC subunit B
2136	 43.31	0	2433049..2433549	+	166	91774218	-	Mbur_2304	-	SOUL heme-binding protein
2137	 45.09	0	2433546..2434949	+	467	91774219	-	Mbur_2305	-	deoxyribodipyrimidine photo-lyase type I
2138	 42.36	0	2435002..2435433	+	143	91774220	-	Mbur_2306	-	MarR family transcriptional regulator
2139	 45.13	0	2435430..2436785	+	451	91774221	-	Mbur_2307	-	MATE efflux family protein
2140	 41.69	0	2438105..2439109	+	334	91774222	-	Mbur_2308	-	trimethylamine:corrinoid methyltransferase
2141	 42.34	0	2439155..2439598	+	147	91774223	-	Mbur_2309	-	trimethylamine:corrinoid methyltransferase
2142	 46.54	+1	2439640..2440290	+	216	91774224	-	Mbur_2310	-	trimethylamine corrinoid protein
2143	 44.73	0	2440487..2441530	+	347	91774225	-	Mbur_2311	-	trimethylamine transporter
2144	 39.39	0	2441532..2441828	+	98	91774226	-	Mbur_2312	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
