IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

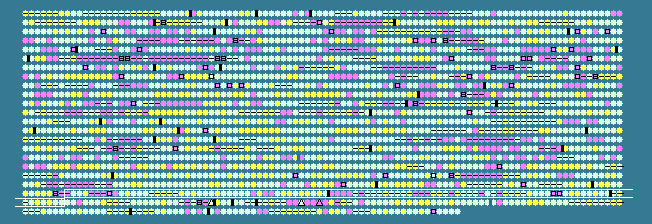

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2008	 37.22	-1	2271249..2274563	+	1104	91774090	-	Mbur_2163	-	hypothetical protein
2009	 44.70	0	2274560..2275219	+	219	91774091	-	Mbur_2164	-	DNA-(apurinic or apyrimidinic site) lyase / endonuclease III
2010	 40.73	0	2275300..2276043	+	247	91774092	-	Mbur_2165	-	hypothetical protein
2011	 48.58	+1	2276183..2277277	+	364	91774093	-	Mbur_2166	-	DNA-directed DNA polymerase
2012	 31.55	-2	2277570..2278466	+	298	91774094	-	Mbur_2167	-	hypothetical protein
2013	 37.45	0	2278585..2278827	-	80	91774095	-	Mbur_2168	-	hypothetical protein
2014	 36.30	-1	2279176..2279478	-	100	91774096	-	Mbur_2169	-	hypothetical protein
2015	 37.79	0	2281632..2282573	+	313	91774097	-	Mbur_2173	-	transposase, IS4
2016	 35.03	-1	2283502..2284974	+	490	91774098	-	Mbur_2175	-	HEAT repeat-containing PBS lyase
2017	 40.07	0	2284997..2285278	-	93	91774099	-	Mbur_2176	-	hypothetical protein
2018	 47.53	+1	2285245..2288865	-	1206	91774100	-	Mbur_2177	-	5-oxoprolinase (ATP-hydrolyzing)
2019	 42.71	0	2288921..2289421	+	166	91774101	-	Mbur_2178	-	phosphoesterase, PA-phosphatase related
2020	 44.71	0	2289462..2290850	-	462	91774102	-	Mbur_2179	-	amidophosphoribosyltransferase
2021	 43.27	0	2290877..2291047	-	56	91774103	rpl37e	Mbur_2180	-	50S ribosomal protein L37e
2022	 43.38	0	2291163..2291381	-	72	91774104	-	Mbur_2181	-	small nuclear ribonucleoprotein
2023	 48.80	+1	2291633..2293003	+	456	91774105	-	Mbur_2182	-	phosphomethylpyrimidine kinase
2024	 45.95	0	2293041..2293571	-	176	91774106	-	Mbur_2183	-	hypothetical protein
2025	 47.46	+1	2293631..2296228	-	865	91774107	valS	Mbur_2184	-	valyl-tRNA synthetase
2026	 42.67	0	2296365..2297435	-	356	91774108	-	Mbur_2185	-	response regulator receiver
2027	 46.18	0	2297727..2300498	-	923	91774109	alaS	Mbur_2186	-	alanyl-tRNA synthetase
2028	 40.94	0	2300798..2301073	+	91	91774110	-	Mbur_2187	-	hypothetical protein
2029	 46.18	0	2301184..2301969	+	261	91774111	surE	Mbur_2188	-	stationary phase survival protein SurE
2030	 42.23	0	2302062..2303714	-	550	91774112	-	Mbur_2189	-	sulphate transporter
2031	 44.51	0	2304262..2305218	-	318	91774113	moaA	Mbur_2190	-	molybdenum cofactor biosynthesis protein A
2032	 44.67	0	2305257..2306615	+	452	91774114	-	Mbur_2191	-	cobyrinate a,c-diamide synthase / hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing)
2033	 45.66	0	2306620..2307714	-	364	91774115	-	Mbur_2192	-	DNA primase large subunit
2034	 43.50	0	2307716..2308453	-	245	91774116	-	Mbur_2193	-	DNA polymerase sliding clamp
2035	 42.63	0	2308546..2308857	-	103	91774117	-	Mbur_2194	-	DNA-directed RNA polymerase, subunit M
2036	 43.81	0	2308835..2309254	-	139	91774118	-	Mbur_2195	-	NUDIX hydrolase
2037	 40.10	0	2309321..2310133	+	270	91774119	-	Mbur_2196	-	hypothetical protein
2038	 42.90	0	2310145..2310771	+	208	91774120	-	Mbur_2197	-	phosphatidylserine decarboxylase
2039	 38.16	0	2310768..2311451	+	227	91774121	-	Mbur_2198	-	archaetidylserine synthase
2040	 45.40	0	2311498..2314107	-	869	91774122	-	Mbur_2199	-	ATPase AAA-2
2041	 35.33	-1	2314309..2315709	+	466	91774123	-	Mbur_2200	-	PAS sensor protein
2042	 36.17	-1	2315702..2317603	+	633	91774124	-	Mbur_2201	-	multisensor signal transduction histidine kinase
2043	 42.01	0	2317665..2318033	+	122	91774125	-	Mbur_2202	-	hypothetical protein
2044	 45.98	0	2318050..2319132	-	360	91774126	-	Mbur_2203	-	histidinol-phosphate aminotransferase
2045	 47.57	+1	2319119..2320291	-	390	91774127	-	Mbur_2204	-	acetylornithine aminotransferase
2046	 44.04	0	2320319..2321149	-	276	91774128	-	Mbur_2205	-	hypothetical protein
2047	 46.71	+1	2321312..2321782	-	156	91774129	-	Mbur_2206	-	PUA domain-containing protein
2048	 48.46	+1	2322145..2323605	-	486	91774130	-	Mbur_2207	-	hypothetical protein
2049	 40.36	0	2323663..2324103	-	146	91774131	-	Mbur_2208	-	archease family protein
2050	 47.95	+1	2324173..2324781	-	202	91774132	-	Mbur_2209	-	CDP-alcohol phosphatidyltransferase
2051	 44.20	0	2324874..2325425	-	183	91774133	-	Mbur_2210	-	L-fuculose phosphate aldolase
2052	 36.59	-1	2325633..2325878	+	81	91774134	-	Mbur_2211	-	hypothetical protein
2053	 37.84	0	2326867..2327421	-	184	91774135	-	Mbur_2213	-	hypothetical protein
2054	 36.38	-1	2328686..2329963	+	425	91774136	-	Mbur_2214	-	hypothetical protein
2055	 37.78	0	2329976..2330155	-	59	91774137	-	Mbur_2215	-	hypothetical protein
2056	 38.46	0	2330451..2330606	-	51	91774138	-	Mbur_2216	-	hypothetical protein
2057	 33.56	-1	2330739..2331176	+	145	91774139	-	Mbur_2217	-	hypothetical protein
2058	 44.71	0	2331380..2332249	-	289	91774140	-	Mbur_2218	-	nitrite and sulphite reductase 4Fe-4S subunit
2059	 42.94	0	2332439..2333593	+	384	91774141	-	Mbur_2219	-	major facilitator transporter
2060	 39.64	0	2333666..2334172	+	168	91774142	-	Mbur_2220	-	methylated-DNA--protein-cysteine methyltransferase
2061	 46.30	0	2334769..2335647	-	292	91774143	-	Mbur_2222	-	hypothetical protein
2062	 38.79	0	2335800..2337926	-	708	91774144	-	Mbur_2223	-	hypothetical protein
2063	 43.56	0	2337939..2338505	-	188	91774145	-	Mbur_2224	-	hypothetical protein
2064	 44.96	0	2338592..2340079	-	495	91774146	-	Mbur_2225	-	polysaccharide biosynthesis protein
2065	 45.55	0	2340130..2342118	-	662	91774147	-	Mbur_2226	-	hypothetical protein
2066	 27.73	-2	2342162..2344465	-	767	91774148	-	Mbur_2227	-	hypothetical protein
2067	 30.32	-2	2344738..2345799	-	353	91774149	-	Mbur_2228	-	hypothetical protein
2068	 32.61	-2	2345801..2346625	-	274	91774150	-	Mbur_2229	-	glycosyl transferase family protein
2069	 47.03	+1	2346632..2347339	-	235	91774151	-	Mbur_2230	-	nucleotidyl transferase
2070	 46.44	+1	2347336..2348121	-	261	91774152	-	Mbur_2231	-	dTDP-4-dehydrorhamnose reductase
2071	 42.63	0	2348118..2349074	-	318	91774153	-	Mbur_2232	-	dTDP-glucose 4,6-dehydratase
2072	 38.41	0	2349114..2349665	-	183	91774154	-	Mbur_2233	-	dTDP-4-dehydrorhamnose 3,5-epimerase
2073	 48.83	+1	2349914..2350855	-	313	91774155	-	Mbur_2234	-	NAD-dependent epimerase/dehydratase
2074	 38.89	0	2350954..2351241	-	95	91774156	-	Mbur_2235	-	hypothetical protein
2075	 42.15	0	2351255..2352241	-	328	91774157	-	Mbur_2236	-	nucleotidyl transferase
2076	 39.80	0	2352310..2353113	-	267	91774158	-	Mbur_2237	-	glycosyl transferase family protein
2077	 35.05	-1	2353618..2354316	+	232	91774159	-	Mbur_2238	-	hypothetical protein
2078	 40.82	0	2354328..2354594	-	88	91774160	-	Mbur_2239	-	hypothetical protein
2079	 41.57	0	2354757..2355023	-	88	91774161	-	Mbur_2240	-	hypothetical protein
2080	 36.13	-1	2355326..2356363	-	345	91774162	-	Mbur_2241	-	hypothetical protein
2081	 47.32	+1	2356783..2358276	-	497	91774163	-	Mbur_2242	-	replication factor C large subunit
2082	 44.64	0	2358365..2359222	+	285	91774164	-	Mbur_2243	-	N5-methyl-tetrahydromethanopterin--coenzyme M methyltransferase subunit X
2083	 45.44	0	2359759..2360691	+	310	161611176	-	Mbur_2244	-	N5-methyltetrahydromethanopterin
2084	 42.59	0	2361143..2362147	-	334	91774166	-	Mbur_2245	-	hypothetical protein
2085	 46.69	+1	2362742..2364403	-	553	91774167	-	Mbur_2246	-	dihydroxy-acid dehydratase
2086	 45.09	0	2364521..2366221	+	566	91774168	-	Mbur_2247	-	radical SAM family Fe-S protein
2087	 41.64	0	2367484..2368518	-	344	91774169	-	Mbur_2249	-	hypothetical protein
2088	 44.33	0	2368539..2369738	-	399	91774170	-	Mbur_2250	-	nucleotidyl transferase
2089	 36.79	-1	2370329..2371747	+	472	91774171	-	Mbur_2252	-	transposase
2090	 33.96	-1	2371790..2372584	-	264	91774172	-	Mbur_2253	-	transposase
2091	 42.78	0	2372703..2373083	-	126	91774173	-	Mbur_2254	-	nucleic acid binding protein
2092	 50.11	+1	2373093..2373551	-	152	91774174	-	Mbur_2255	-	peptidylprolyl isomerase, FKBP-type
2093	 47.25	+1	2373620..2374165	-	181	91774175	-	Mbur_2256	-	peptidylprolyl isomerase, FKBP-type
2094	 43.11	0	2374627..2375301	+	224	91774176	-	Mbur_2257	-	hypothetical protein
2095	 44.71	0	2375304..2375927	+	207	91774177	-	Mbur_2258	-	MotA/TolQ/ExbB proton channel
2096	 47.22	+1	2375924..2376283	+	119	91774178	-	Mbur_2259	-	hypothetical protein
2097	 42.45	0	2376446..2381698	+	1750	91774179	-	Mbur_2260	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
2098	 43.25	0	2381878..2383047	+	389	91774180	-	Mbur_2261	-	coenzyme F420 hydrogenase/dehydrogenase beta subunit-like protein
2099	 39.32	0	2384156..2384506	+	116	91774181	-	Mbur_2262	-	hypothetical protein
2100	 47.91	+1	2384662..2385903	+	413	91774182	-	Mbur_2263	-	3-isopropylmalate dehydratase, large subunit
2101	 41.31	0	2385926..2386138	+	70	91774183	-	Mbur_2264	-	hypothetical protein
2102	 45.26	0	2386992..2388182	-	396	91774184	-	Mbur_2265	-	hypothetical protein
2103	 47.60	+1	2388203..2388973	-	256	91774185	-	Mbur_2266	-	phosphoribosylaminoimidazole carboxylase related protein
2104	 41.47	0	2389106..2393665	+	1519	91774186	-	Mbur_2267	-	TPR repeat-containing protein
2105	 45.79	0	2393744..2396224	+	826	91774187	-	Mbur_2268	-	peptidase U32
2106	 44.22	0	2396226..2396813	+	195	91774188	-	Mbur_2269	-	maf protein
2107	 43.51	0	2396914..2397198	+	94	91774189	-	Mbur_2270	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
