IslandPath Analysis: Methanococcoides burtonii DSM 6242

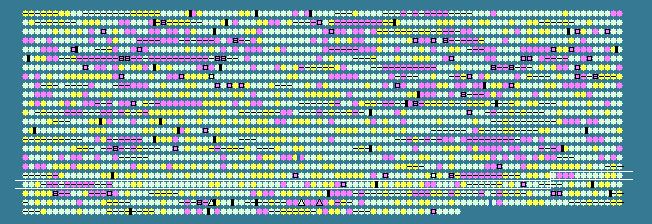

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1889	 42.33	0	2143433..2144332	-	299	91773971	-	Mbur_2037	-	NAD-dependent epimerase/dehydratase
1890	 32.14	-2	2144877..2145461	+	194	91773972	-	Mbur_2038	-	hypothetical protein
1891	 34.51	-1	2146770..2148548	+	592	91773973	-	Mbur_2039	-	RNA-directed DNA polymerase
1892	 35.14	-1	2148794..2149015	+	73	91773974	-	Mbur_2040	-	hypothetical protein
1893	 42.08	0	2149692..2150114	-	140	91773975	-	Mbur_2041	-	CopG family transcriptional regulator
1894	 43.10	0	2150288..2151004	+	238	91773976	-	Mbur_2042	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1895	 45.28	0	2151005..2152435	+	476	91773977	-	Mbur_2043	-	amine oxidase
1896	 42.36	0	2152436..2153122	-	228	91773978	-	Mbur_2044	-	hypothetical protein
1897	 45.24	0	2153122..2154162	-	346	91773979	-	Mbur_2045	-	phosphate transporter
1898	 46.73	+1	2154219..2155166	-	315	91773980	-	Mbur_2046	-	tetratricopeptide protein
1899	 47.75	+1	2155210..2156430	-	406	91773981	-	Mbur_2047	-	hypothetical protein
1900	 45.28	0	2156427..2156786	-	119	91773982	-	Mbur_2048	-	hypothetical protein
1901	 43.37	0	2156988..2157296	-	102	91773983	-	Mbur_2049	-	translation initiation factor Sui1
1902	 41.81	0	2157398..2157751	+	117	91773984	-	Mbur_2050	-	hypothetical protein
1903	 48.88	+1	2157834..2159981	+	715	91773985	-	Mbur_2051	-	phosphoribosylformylglycinamidine synthase II
1904	 39.61	0	2160498..2160704	+	68	91773986	-	Mbur_2052	-	hypothetical protein
1905	 36.78	-1	2160998..2161345	-	115	91773987	-	Mbur_2053	-	hypothetical protein
1906	 36.78	-1	2161342..2161689	-	115	91773988	-	Mbur_2054	-	voltage-dependent potassium channel
1907	 41.73	0	2161723..2162091	-	122	91773989	-	Mbur_2055	-	hypothetical protein
1908	 35.40	-1	2162088..2162426	-	112	91773990	-	Mbur_2056	-	hypothetical protein
1909	 34.43	-1	2162434..2162982	-	182	91773991	-	Mbur_2057	-	hypothetical protein
1910	 34.70	-1	2163020..2163895	-	291	91773992	-	Mbur_2058	-	ABC transporter, ATPase subunit
1911	 30.40	-2	2163952..2164701	-	249	91773993	-	Mbur_2059	-	hypothetical protein
1912	 33.33	-1	2164708..2165076	-	122	91773994	-	Mbur_2060	-	hypothetical protein
1913	 41.44	0	2165139..2165582	-	147	91773995	-	Mbur_2061	-	hypothetical protein
1914	 39.88	0	2166194..2167171	-	325	91773996	-	Mbur_2062	-	cytochrome c biogenesis protein
1915	 32.65	-2	2167168..2168343	-	391	91773997	-	Mbur_2063	-	hypothetical protein
1916	 40.13	0	2168677..2169309	-	210	91773998	-	Mbur_2064	-	hypothetical protein
1917	 40.65	0	2170153..2170890	+	245	91773999	-	Mbur_2065	-	UbiA prenyltransferase
1918	 39.21	0	2170876..2171556	-	226	91774000	-	Mbur_2066	-	AsnC family transcriptional regulator
1919	 46.56	+1	2172567..2173745	-	392	91774001	-	Mbur_2068	-	aminotransferase, class V
1920	 46.29	0	2174110..2175390	+	426	91774002	-	Mbur_2069	-	hypothetical protein
1921	 44.81	0	2175395..2176039	+	214	91774003	-	Mbur_2070	-	TfuA-like protein
1922	 43.15	0	2176042..2176479	-	145	91774004	-	Mbur_2071	-	iron dependent repressor
1923	 44.68	0	2176538..2177383	-	281	91774005	-	Mbur_2072	-	NUDIX hydrolase
1924	 44.04	0	2177449..2178756	-	435	91774006	-	Mbur_2073	-	hypothetical protein
1925	 40.94	0	2180605..2180985	-	126	91774007	-	Mbur_2075	-	dinitrogenase iron-molybdenum cofactor biosynthesis
1926	 44.44	0	2181068..2181724	-	218	91774008	-	Mbur_2076	-	beta-lactamase-like protein
1927	 41.67	0	2181724..2182299	-	191	91774009	-	Mbur_2077	-	hypothetical protein
1928	 40.82	0	2182296..2183123	-	275	91774010	-	Mbur_2078	-	4Fe-4S ferredoxin, iron-sulfur binding
1929	 43.31	0	2183258..2183638	-	126	91774011	-	Mbur_2079	-	dinitrogenase iron-molybdenum cofactor biosynthesis
1930	 44.69	0	2183640..2184053	-	137	91774012	-	Mbur_2080	-	dinitrogenase iron-molybdenum cofactor biosynthesis
1931	 45.11	0	2184214..2185011	+	265	91774013	-	Mbur_2081	-	bacitracin resistance protein BacA
1932	 48.99	+1	2185134..2186168	-	344	91774014	-	Mbur_2082	-	methylcobalamin:coenzyme M methyltransferase
1933	 46.54	+1	2186375..2187154	-	259	91774015	-	Mbur_2083	-	hypothetical protein
1934	 43.25	0	2187160..2188248	-	362	91774016	-	Mbur_2084	-	hypothetical protein
1935	 44.35	0	2188250..2189302	-	350	91774017	-	Mbur_2085	-	biotin synthase
1936	 44.84	0	2189313..2190563	-	416	91774018	pylS	Mbur_2086	-	pyrolysyl-tRNA synthetase
1937	 46.09	0	2191079..2192575	+	498	91774019	-	Mbur_2087	-	L-threonine O-3-phosphate decarboxylase
1938	 44.88	0	2192647..2193261	+	204	91774020	-	Mbur_2088	-	putative nucleotidyltransferase
1939	 46.69	+1	2193426..2194922	+	498	91774021	-	Mbur_2089	-	L-threonine O-3-phosphate decarboxylase
1940	 41.87	0	2194919..2195914	+	331	91774022	-	Mbur_2090	-	adenosylcobinamide-phosphate synthase
1941	 42.86	0	2195937..2196524	+	195	91774023	-	Mbur_2091	-	hypothetical protein
1942	 43.75	0	2196521..2197336	+	271	91774024	-	Mbur_2092	-	cobalamin-5'-phosphate synthase
1943	 43.23	0	2197336..2197941	+	201	91774025	-	Mbur_2093	-	putative nucleotidyltransferase
1944	 38.17	0	2197957..2198328	+	123	91774026	-	Mbur_2094	-	hypothetical protein
1945	 43.85	0	2198510..2199241	+	243	91774027	-	Mbur_2095	-	KaiC
1946	 42.07	0	2199311..2199997	-	228	91774028	-	Mbur_2096	-	hypothetical protein
1947	 41.60	0	2200106..2200480	+	124	91774029	-	Mbur_2097	-	transcriptional regulator TrmB
1948	 27.56	-2	2200723..2201103	-	126	91774030	-	Mbur_2098	-	hypothetical protein
1949	 47.28	+1	2201600..2202775	-	391	91774031	-	Mbur_2099	-	aminotransferase
1950	 43.90	0	2202824..2203315	-	163	91774032	-	Mbur_2100	-	AsnC family transcriptional regulator
1951	 46.30	0	2203359..2203736	-	125	91774033	-	Mbur_2101	-	30S ribosomal protein S8e
1952	 45.42	0	2203919..2204836	+	305	91774034	-	Mbur_2102	-	ribonuclease Z
1953	 38.26	0	2204909..2205619	+	236	91774035	-	Mbur_2103	-	hypothetical protein
1954	 37.11	-1	2205679..2207160	+	493	91774036	-	Mbur_2104	-	transposase
1955	 40.74	0	2207410..2207679	-	89	91774037	-	Mbur_2105	-	hypothetical protein
1956	 42.92	0	2207720..2208835	-	371	91774038	-	Mbur_2106	-	AAA ATPase
1957	 41.13	0	2209185..2209556	+	123	91774039	-	Mbur_2107	-	response regulator receiver protein
1958	 43.20	0	2209577..2211055	+	492	91774040	-	Mbur_2108	-	multisensor signal transduction histidine kinase
1959	 46.59	+1	2211203..2211979	+	258	91774041	-	Mbur_2109	-	ribulose-1,5-biphosphate synthetase
1960	 41.95	0	2212335..2212682	-	115	91774042	-	Mbur_2110	-	hypothetical protein
1961	 46.42	+1	2212804..2213613	-	269	91774043	-	Mbur_2111	-	pyrroline-5-carboxylate reductase
1962	 43.64	0	2213693..2214187	-	164	91774044	-	Mbur_2112	-	XRE family transcriptional regulator
1963	 46.45	+1	2214269..2215549	+	426	91774045	-	Mbur_2113	-	proteasome-activating nucleotidase
1964	 47.81	+1	2216140..2217486	-	448	91774046	-	Mbur_2115	-	phosphoglucosamine mutase
1965	 47.30	+1	2217577..2217891	+	104	91774047	-	Mbur_2116	-	signal recognition particle protein Srp19
1966	 44.07	0	2218040..2218216	-	58	91774048	-	Mbur_2117	-	preprotein translocase subunit SecG
1967	 45.69	0	2218259..2219278	-	339	91774049	-	Mbur_2118	-	translation initiation factor IF-2B subunit alpha
1968	 36.31	-1	2219343..2221091	-	582	91774050	-	Mbur_2119	-	multisensor signal transduction histidine kinase
1969	 34.55	-1	2221351..2223399	-	682	91774051	-	Mbur_2120	-	multisensor signal transduction histidine kinase
1970	 44.62	0	2223638..2225488	+	616	91774052	-	Mbur_2121	-	metal-dependent phosphohydrolase
1971	 44.89	0	2225485..2226237	+	250	91774053	-	Mbur_2122	-	putative methyltransferase
1972	 44.54	0	2226243..2226920	-	225	91774054	radB	Mbur_2123	-	DNA repair and recombination protein RadB
1973	 37.30	-1	2227350..2227601	+	83	91774055	-	Mbur_2124	-	glutaredoxin-like protein
1974	 46.02	0	2227615..2230002	+	795	91774056	-	Mbur_2125	-	ribonucleoside-triphosphate reductase, anaerobic
1975	 42.75	0	2230025..2230810	+	261	91774057	-	Mbur_2126	-	ribonucleoside-triphosphate reductase, anaerobic-like protein
1976	 39.91	0	2230877..2231728	+	283	91774058	-	Mbur_2127	-	hypothetical protein
1977	 44.98	0	2231778..2232773	+	331	91774059	-	Mbur_2128	-	thiamine-monophosphate kinase
1978	 41.63	0	2232800..2236714	+	1304	91774060	-	Mbur_2129	-	S-layer-like domain-containing protein
1979	 45.04	0	2236853..2237356	-	167	91774061	-	Mbur_2130	-	XRE family transcriptional regulator
1980	 47.29	+1	2237566..2238525	+	319	91774062	-	Mbur_2131	-	ABC transporter, substrate-binding protein, aliphatic sulphonates
1981	 44.74	0	2238602..2239390	+	262	91774063	-	Mbur_2132	-	ABC nitrate/sulfonate/bicarbonate transporter, inner membrane subunit
1982	 45.59	0	2239390..2240148	+	252	91774064	-	Mbur_2133	-	ABC nitrate/sulfonate/bicarbonate transporter, ATPase subunit
1983	 38.70	0	2240163..2240609	-	148	91774065	-	Mbur_2134	-	hypothetical protein
1984	 37.79	0	2243628..2244569	-	313	91774066	-	Mbur_2137	-	transposase, IS4
1985	 42.70	0	2245184..2245888	-	234	91774067	-	Mbur_2139	-	hypothetical protein
1986	 44.46	0	2245911..2247725	-	604	91774068	-	Mbur_2140	-	ribonucleoside-triphosphate reductase, anaerobic
1987	 44.68	0	2247896..2248732	-	278	91774069	-	Mbur_2141	-	ATP-binding protein involved in chromosome partitioning
1988	 44.75	0	2248769..2249092	-	107	91774070	-	Mbur_2142	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
