IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

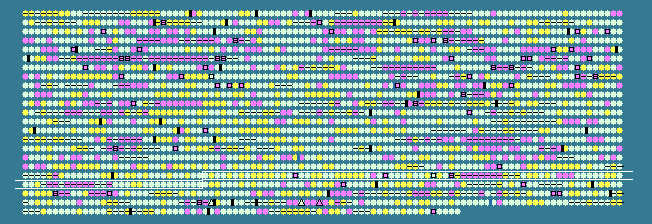

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1831	 41.25	0	2074844..2078947	+	1367	91773913	-	Mbur_1976	-	hypothetical protein
1832	 45.39	0	2079008..2079571	+	187	91773914	-	Mbur_1977	-	hypothetical protein
1833	 44.80	0	2079572..2079850	-	92	91773915	-	Mbur_1978	-	hypothetical protein
1834	 45.11	0	2079854..2080855	-	333	91773916	-	Mbur_1979	-	phosphoribosylaminoimidazole synthetase
1835	 45.39	0	2080869..2082278	-	469	91773917	-	Mbur_1980	-	aspartate kinase
1836	 39.41	0	2082394..2083611	-	405	91773918	-	Mbur_1981	-	hypothetical protein
1837	 48.01	+1	2083728..2084933	+	401	91773919	-	Mbur_1982	-	cofactor-independent phosphoglycerate mutase
1838	 41.99	0	2085042..2085503	+	153	91773920	-	Mbur_1983	-	heat shock protein Hsp20
1839	 47.62	+1	2085683..2086438	+	251	91773921	-	Mbur_1984	-	F420-0--gamma-glutamyl ligase
1840	 47.59	+1	2086429..2086884	-	151	91773922	-	Mbur_1985	-	CMP/dCMP deaminase, zinc-binding
1841	 46.84	+1	2086990..2087892	+	300	91773923	-	Mbur_1986	-	preprotein translocase subunit SecF
1842	 46.08	0	2087889..2089583	+	564	91773924	secD	Mbur_1987	-	preprotein translocase subunit SecD
1843	 44.35	0	2089605..2090630	+	341	91773925	-	Mbur_1988	-	replication factor C small subunit 2
1844	 46.21	0	2090646..2092292	+	548	91773926	-	Mbur_1989	-	ELP3 family histone acetyltransferase
1845	 44.83	0	2092443..2092790	+	115	91773927	-	Mbur_1990	-	hypothetical protein
1846	 37.58	0	2092984..2093925	+	313	91773928	-	Mbur_1991	-	transposase, IS4
1847	 42.76	0	2094097..2094849	+	250	91773929	-	Mbur_1992	-	ATPases involved in chromosome partitioning-like protein
1848	 38.45	0	2094894..2095694	-	266	91773930	-	Mbur_1993	-	hypothetical protein
1849	 48.87	+1	2095822..2097012	+	396	91773931	-	Mbur_1994	-	bifunctional formaldehyde-activating enzyme/3-hexulose-6-phosphate synthase
1850	 47.30	+1	2097055..2097720	+	221	91773932	-	Mbur_1995	-	triosephosphate isomerase
1851	 40.20	0	2097782..2098174	-	130	91773933	-	Mbur_1996	-	hypothetical protein
1852	 45.13	0	2098171..2099484	-	437	91773934	-	Mbur_1997	-	prephenate dehydrogenase
1853	 47.04	+1	2099481..2100290	-	269	91773935	-	Mbur_1998	-	shikimate dehydrogenase
1854	 46.72	+1	2100287..2100988	-	233	91773936	-	Mbur_1999	-	3-dehydroquinate dehydratase
1855	 49.18	+1	2100992..2102146	-	384	91773937	-	Mbur_2000	-	3-dehydroquinate synthase
1856	 46.74	+1	2102156..2103013	-	285	91773938	-	Mbur_2001	-	fructose-bisphosphate aldolase
1857	 45.96	0	2103128..2103697	+	189	91773939	-	Mbur_2002	-	GMP synthase subunit A
1858	 43.12	0	2103960..2105348	+	462	91773940	-	Mbur_2003	-	Ig-like protein
1859	 34.66	-1	2107476..2109206	+	576	91773941	-	Mbur_2004	-	RNA-directed DNA polymerase
1860	 43.65	0	2109858..2111165	-	435	91773942	-	Mbur_2006	-	hypothetical protein
1861	 35.03	-1	2111374..2112495	-	373	91773943	-	Mbur_2007	-	transposase, IS4
1862	 45.32	0	2112713..2113588	+	291	91773944	-	Mbur_2008	-	hypothetical protein
1863	 40.07	0	2113590..2114405	+	271	91773945	-	Mbur_2009	-	abortive infection protein
1864	 40.87	0	2114835..2115086	-	83	91773946	-	Mbur_2010	-	hypothetical protein
1865	 46.18	0	2115198..2117018	-	606	91773947	-	Mbur_2011	-	hypothetical protein
1866	 42.13	0	2117647..2118396	-	249	91773948	-	Mbur_2013	-	hypothetical protein
1867	 43.12	0	2118383..2119414	-	343	91773949	-	Mbur_2014	-	hypothetical protein
1868	 51.73	+2	2119564..2120460	-	298	91773950	-	Mbur_2015	-	endonuclease IV
1869	 41.91	0	2120522..2121640	+	372	91773951	-	Mbur_2016	-	transposase
1870	 49.43	+1	2121665..2122012	-	115	91773952	-	Mbur_2017	-	hypothetical protein
1871	 43.96	0	2122437..2123612	+	391	91773953	-	Mbur_2018	-	glycosyl transferase family protein
1872	 37.79	0	2123689..2124630	-	313	91773954	-	Mbur_2019	-	transposase, IS4
1873	 45.67	0	2124758..2125219	+	153	91773955	-	Mbur_2020	-	dolichyl-phosphate beta-D-mannosyltransferase
1874	 32.66	-2	2125310..2126353	+	347	91773956	-	Mbur_2021	-	hypothetical protein
1875	 36.50	-1	2126380..2127453	+	357	91773957	-	Mbur_2022	-	UDP-N-acetylglucosamine 2-epimerase
1876	 29.68	-2	2127434..2128639	+	401	91773958	-	Mbur_2023	-	glycosyl transferase, group 1
1877	 32.39	-2	2128652..2129605	+	317	91773959	-	Mbur_2024	-	NAD-dependent epimerase/dehydratase
1878	 26.01	-2	2129886..2131427	+	513	91773960	-	Mbur_2026	-	hypothetical protein
1879	 30.84	-2	2131522..2132604	+	360	91773961	-	Mbur_2027	-	glycosyl transferase, group 1
1880	 33.88	-1	2132626..2133897	-	423	91773962	-	Mbur_2028	-	polysaccharide biosynthesis protein
1881	 51.02	+2	2133950..2135368	-	472	91773963	-	Mbur_2029	-	UDP-glucose/GDP-mannose dehydrogenase
1882	 45.34	0	2135428..2136360	-	310	91773964	-	Mbur_2030	-	oxidoreductase-like protein
1883	 46.34	0	2136798..2137289	-	163	91773965	-	Mbur_2031	-	phosphopantetheine adenylyltransferase
1884	 43.83	0	2137584..2138126	-	180	91773966	-	Mbur_2032	-	membrane-bound metal-dependent hydrolase
1885	 51.12	+2	2138696..2139673	+	325	91773967	radA	Mbur_2033	-	DNA repair and recombination protein RadA
1886	 46.99	+1	2139711..2140391	+	226	91773968	-	Mbur_2034	-	phosphoglycolate phosphatase
1887	 42.49	0	2140406..2140678	-	90	91773969	-	Mbur_2035	-	PRC-barrel protein
1888	 47.32	+1	2140709..2142925	-	738	91773970	-	Mbur_2036	-	AAA family ATPase, CDC48 subfamily protein
1889	 42.33	0	2143433..2144332	-	299	91773971	-	Mbur_2037	-	NAD-dependent epimerase/dehydratase
1890	 32.14	-2	2144877..2145461	+	194	91773972	-	Mbur_2038	-	hypothetical protein
1891	 34.51	-1	2146770..2148548	+	592	91773973	-	Mbur_2039	-	RNA-directed DNA polymerase
1892	 35.14	-1	2148794..2149015	+	73	91773974	-	Mbur_2040	-	hypothetical protein
1893	 42.08	0	2149692..2150114	-	140	91773975	-	Mbur_2041	-	CopG family transcriptional regulator
1894	 43.10	0	2150288..2151004	+	238	91773976	-	Mbur_2042	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1895	 45.28	0	2151005..2152435	+	476	91773977	-	Mbur_2043	-	amine oxidase
1896	 42.36	0	2152436..2153122	-	228	91773978	-	Mbur_2044	-	hypothetical protein
1897	 45.24	0	2153122..2154162	-	346	91773979	-	Mbur_2045	-	phosphate transporter
1898	 46.73	+1	2154219..2155166	-	315	91773980	-	Mbur_2046	-	tetratricopeptide protein
1899	 47.75	+1	2155210..2156430	-	406	91773981	-	Mbur_2047	-	hypothetical protein
1900	 45.28	0	2156427..2156786	-	119	91773982	-	Mbur_2048	-	hypothetical protein
1901	 43.37	0	2156988..2157296	-	102	91773983	-	Mbur_2049	-	translation initiation factor Sui1
1902	 41.81	0	2157398..2157751	+	117	91773984	-	Mbur_2050	-	hypothetical protein
1903	 48.88	+1	2157834..2159981	+	715	91773985	-	Mbur_2051	-	phosphoribosylformylglycinamidine synthase II
1904	 39.61	0	2160498..2160704	+	68	91773986	-	Mbur_2052	-	hypothetical protein
1905	 36.78	-1	2160998..2161345	-	115	91773987	-	Mbur_2053	-	hypothetical protein
1906	 36.78	-1	2161342..2161689	-	115	91773988	-	Mbur_2054	-	voltage-dependent potassium channel
1907	 41.73	0	2161723..2162091	-	122	91773989	-	Mbur_2055	-	hypothetical protein
1908	 35.40	-1	2162088..2162426	-	112	91773990	-	Mbur_2056	-	hypothetical protein
1909	 34.43	-1	2162434..2162982	-	182	91773991	-	Mbur_2057	-	hypothetical protein
1910	 34.70	-1	2163020..2163895	-	291	91773992	-	Mbur_2058	-	ABC transporter, ATPase subunit
1911	 30.40	-2	2163952..2164701	-	249	91773993	-	Mbur_2059	-	hypothetical protein
1912	 33.33	-1	2164708..2165076	-	122	91773994	-	Mbur_2060	-	hypothetical protein
1913	 41.44	0	2165139..2165582	-	147	91773995	-	Mbur_2061	-	hypothetical protein
1914	 39.88	0	2166194..2167171	-	325	91773996	-	Mbur_2062	-	cytochrome c biogenesis protein
1915	 32.65	-2	2167168..2168343	-	391	91773997	-	Mbur_2063	-	hypothetical protein
1916	 40.13	0	2168677..2169309	-	210	91773998	-	Mbur_2064	-	hypothetical protein
1917	 40.65	0	2170153..2170890	+	245	91773999	-	Mbur_2065	-	UbiA prenyltransferase
1918	 39.21	0	2170876..2171556	-	226	91774000	-	Mbur_2066	-	AsnC family transcriptional regulator
1919	 46.56	+1	2172567..2173745	-	392	91774001	-	Mbur_2068	-	aminotransferase, class V
1920	 46.29	0	2174110..2175390	+	426	91774002	-	Mbur_2069	-	hypothetical protein
1921	 44.81	0	2175395..2176039	+	214	91774003	-	Mbur_2070	-	TfuA-like protein
1922	 43.15	0	2176042..2176479	-	145	91774004	-	Mbur_2071	-	iron dependent repressor
1923	 44.68	0	2176538..2177383	-	281	91774005	-	Mbur_2072	-	NUDIX hydrolase
1924	 44.04	0	2177449..2178756	-	435	91774006	-	Mbur_2073	-	hypothetical protein
1925	 40.94	0	2180605..2180985	-	126	91774007	-	Mbur_2075	-	dinitrogenase iron-molybdenum cofactor biosynthesis
1926	 44.44	0	2181068..2181724	-	218	91774008	-	Mbur_2076	-	beta-lactamase-like protein
1927	 41.67	0	2181724..2182299	-	191	91774009	-	Mbur_2077	-	hypothetical protein
1928	 40.82	0	2182296..2183123	-	275	91774010	-	Mbur_2078	-	4Fe-4S ferredoxin, iron-sulfur binding
1929	 43.31	0	2183258..2183638	-	126	91774011	-	Mbur_2079	-	dinitrogenase iron-molybdenum cofactor biosynthesis
1930	 44.69	0	2183640..2184053	-	137	91774012	-	Mbur_2080	-	dinitrogenase iron-molybdenum cofactor biosynthesis
41.89	MEAN

4.51	STD DEV
