IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

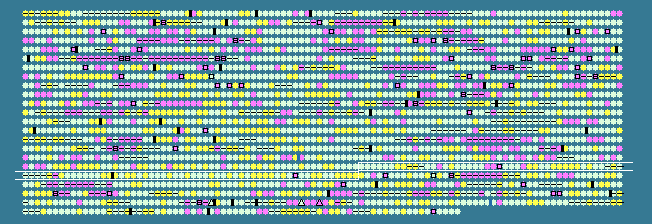

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1757	 40.32	0	1991792..1993180	-	462	91773839	-	Mbur_1899	-	multisensor signal transduction histidine kinase
1758	 44.69	0	1993313..1994113	+	266	91773840	-	Mbur_1900	-	nuclease (SNase-like)
1759	 43.45	0	1994196..1994996	+	266	91773841	-	Mbur_1901	-	haloacid dehalogenase-like hydrolase
1760	 44.28	0	1995262..1996878	+	538	91773842	-	Mbur_1902	-	ABC transporter, fused ATPase subunits
1761	 44.44	0	1996908..1998473	+	521	91773843	-	Mbur_1903	-	hypothetical protein
1762	 45.06	0	1998473..1998907	+	144	91773844	-	Mbur_1904	-	hypothetical protein
1763	 45.39	0	1998917..1999372	+	151	91773845	-	Mbur_1905	-	hypothetical protein
1764	 49.64	+1	1999369..2000613	+	414	91773846	-	Mbur_1906	-	CoA enzyme activase
1765	 47.31	+1	2000619..2001212	+	197	91773847	-	Mbur_1907	-	hypothetical protein
1766	 46.09	0	2001212..2002144	+	310	91773848	-	Mbur_1908	-	hypothetical protein
1767	 44.67	0	2002173..2002622	+	149	91773849	-	Mbur_1909	-	alkylhydroperoxidase-like protein
1768	 42.78	0	2002724..2003623	-	299	91773850	-	Mbur_1910	-	hypothetical protein
1769	 40.12	0	2003797..2004120	+	107	91773851	-	Mbur_1911	-	hypothetical protein
1770	 38.41	0	2004272..2004586	+	104	91773852	-	Mbur_1912	-	hypothetical protein
1771	 44.35	0	2004608..2005624	+	338	91773853	-	Mbur_1913	-	flap endonuclease-1
1772	 46.44	+1	2005621..2007177	-	518	91773854	-	Mbur_1914	-	phosphoglyceromutase
1773	 44.66	0	2007304..2008548	-	414	91773855	-	Mbur_1915	-	hypothetical protein
1774	 43.39	0	2008545..2009846	-	433	91773856	-	Mbur_1916	-	hypothetical protein
1775	 42.51	0	2009848..2010708	-	286	91773857	-	Mbur_1917	-	ABC transporter, ATPase subunit
1776	 39.02	0	2010956..2011747	-	263	91773858	-	Mbur_1918	-	hypothetical protein
1777	 39.18	0	2011755..2012678	-	307	91773859	-	Mbur_1919	-	hypothetical protein
1778	 35.16	-1	2012959..2013726	+	255	91773860	-	Mbur_1920	-	hypothetical protein
1779	 30.83	-2	2014176..2016731	+	851	91773861	-	Mbur_1921	-	Toll-interleukin receptor
1780	 37.79	0	2017163..2018104	+	313	91773862	-	Mbur_1923	-	transposase, IS4
1781	 43.26	0	2018292..2019167	+	291	91773863	-	Mbur_1924	-	methyltransferase type 12
1782	 43.13	0	2019169..2020536	-	455	91773864	-	Mbur_1925	-	MATE efflux family protein
1783	 41.67	0	2020821..2021744	+	307	91773865	ubiA	Mbur_1926	-	prenyltransferase
1784	 36.51	-1	2021761..2022546	-	261	91773866	-	Mbur_1927	-	hypothetical protein
1785	 45.45	0	2022836..2024452	-	538	91773867	-	Mbur_1928	-	phosphoribosylaminoimidazolecarboxamide formyltransferase / IMP cyclohydrolase
1786	 47.37	+1	2024528..2026429	-	633	91773868	-	Mbur_1929	-	hypothetical protein
1787	 38.58	0	2026481..2027299	-	272	91773869	-	Mbur_1930	-	hypothetical protein
1788	 44.26	0	2027422..2028162	+	246	91773870	-	Mbur_1931	-	XRE family transcriptional regulator
1789	 48.19	+1	2028219..2029268	+	349	91773871	-	Mbur_1932	-	hypothetical protein
1790	 50.47	+1	2029279..2030451	+	390	91773872	-	Mbur_1933	-	acetyl-CoA acetyltransferase
1791	 46.02	0	2030457..2030858	+	133	91773873	-	Mbur_1934	-	hypothetical protein
1792	 46.32	0	2030845..2031360	+	171	91773874	-	Mbur_1935	-	adenylate cyclase
1793	 45.89	0	2031398..2033452	-	684	91773875	metG	Mbur_1936	-	methionyl-tRNA synthetase
1794	 44.61	0	2033585..2034817	+	410	91773876	-	Mbur_1937	-	signal peptide peptidase A
1795	 46.07	0	2035601..2036566	-	321	91773877	-	Mbur_1938	-	translation initiation factor IF-2B subunit delta
1796	 42.08	0	2036779..2037018	+	79	91773878	-	Mbur_1939	-	hypothetical protein
1797	 45.20	0	2037083..2038447	+	454	91773879	-	Mbur_1940	-	aldehyde dehydrogenase
1798	 42.92	0	2038467..2039906	+	479	91773880	-	Mbur_1941	-	hypothetical protein
1799	 48.42	+1	2039998..2041104	+	368	91773881	-	Mbur_1942	-	cell division protein FtsZ
1800	 40.95	0	2041287..2041496	+	69	91773882	secE	Mbur_1943	-	preprotein translocase subunit SecE
1801	 44.52	0	2041501..2041965	+	154	91773883	nusG	Mbur_1944	-	transcription antitermination protein NusG
1802	 45.06	0	2042043..2042528	+	161	91773884	rpl11p	Mbur_1945	-	50S ribosomal protein L11P
1803	 42.99	0	2042778..2043419	+	213	91773885	rpl1P	Mbur_1946	-	50S ribosomal protein L1P
1804	 44.08	0	2043419..2044432	+	337	91773886	rplP0	Mbur_1947	-	acidic ribosomal protein P0
1805	 49.83	+1	2044477..2044779	+	100	91773887	rpl12p	Mbur_1948	-	50S ribosomal protein L12P
1806	 37.63	0	2044929..2045951	-	340	91773888	-	Mbur_1949	-	hypothetical protein
1807	 47.48	+1	2045995..2047563	-	522	91773889	-	Mbur_1950	-	DEAD/DEAH box helicase-like protein
1808	 40.67	0	2048091..2049071	+	326	91773890	-	Mbur_1951	-	radical SAM family Fe-S protein
1809	 45.28	0	2049253..2051169	+	638	91773891	-	Mbur_1952	-	Na+/solute symporter
1810	 38.50	0	2051263..2052210	+	315	91773892	-	Mbur_1953	-	hypothetical protein
1811	 42.70	0	2052214..2052960	-	248	91773893	-	Mbur_1954	-	beta-lactamase-like protein
1812	 44.70	0	2052967..2054259	-	430	91773894	-	Mbur_1955	-	AAA ATPase
1813	 40.43	0	2054390..2054953	-	187	91773895	-	Mbur_1956	-	hypothetical protein
1814	 45.95	0	2055041..2055460	+	139	91773896	-	Mbur_1957	-	SSU ribosomal protein S18P alanine acetyltransferase
1815	 47.14	+1	2056161..2057348	-	395	91773897	-	Mbur_1959	-	translation-associated GTPase
1816	 48.57	+1	2058096..2059598	+	500	91773898	-	Mbur_1960	-	thermosome subunit, group II chaperonin
1817	 43.44	0	2059746..2060309	+	187	91773899	-	Mbur_1961	-	BioY protein
1818	 46.05	0	2060326..2061135	+	269	91773900	-	Mbur_1962	-	ABC transporter, ATPase subunit
1819	 45.72	0	2061132..2061938	+	268	91773901	-	Mbur_1963	-	ABC transporter, ATPase subunit
1820	 45.18	0	2061943..2062710	+	255	91773902	-	Mbur_1964	-	cobalt ABC transporter, inner membrane subunit
1821	 45.73	0	2062723..2063085	+	120	91773903	-	Mbur_1965	-	ArsR family transcriptional regulator
1822	 44.68	0	2063082..2064218	+	378	91773904	-	Mbur_1966	-	hypothetical protein
1823	 44.32	0	2064775..2066694	+	639	91773905	-	Mbur_1967	-	hydantoinase/oxoprolinase
1824	 41.80	0	2067082..2067270	-	62	91773906	-	Mbur_1968	-	hypothetical protein
1825	 45.88	0	2067447..2068586	+	379	91773907	-	Mbur_1969	-	fructose-bisphosphate aldolase
1826	 38.57	0	2068654..2069283	-	209	91773908	-	Mbur_1970	-	hypothetical protein
1827	 42.90	0	2069343..2069666	-	107	91773909	-	Mbur_1971	-	hypothetical protein
1828	 49.72	+1	2070940..2072190	+	416	91773910	-	Mbur_1973	-	glutamate dehydrogenase (NAD/NADP)
1829	 42.11	0	2072373..2073101	+	242	91773911	-	Mbur_1974	-	reduced coenzyme F420:NADP oxidoreductase
1830	 43.79	0	2073396..2074724	+	442	91773912	-	Mbur_1975	-	L-glutamine synthetase
1831	 41.25	0	2074844..2078947	+	1367	91773913	-	Mbur_1976	-	hypothetical protein
1832	 45.39	0	2079008..2079571	+	187	91773914	-	Mbur_1977	-	hypothetical protein
1833	 44.80	0	2079572..2079850	-	92	91773915	-	Mbur_1978	-	hypothetical protein
1834	 45.11	0	2079854..2080855	-	333	91773916	-	Mbur_1979	-	phosphoribosylaminoimidazole synthetase
1835	 45.39	0	2080869..2082278	-	469	91773917	-	Mbur_1980	-	aspartate kinase
1836	 39.41	0	2082394..2083611	-	405	91773918	-	Mbur_1981	-	hypothetical protein
1837	 48.01	+1	2083728..2084933	+	401	91773919	-	Mbur_1982	-	cofactor-independent phosphoglycerate mutase
1838	 41.99	0	2085042..2085503	+	153	91773920	-	Mbur_1983	-	heat shock protein Hsp20
1839	 47.62	+1	2085683..2086438	+	251	91773921	-	Mbur_1984	-	F420-0--gamma-glutamyl ligase
1840	 47.59	+1	2086429..2086884	-	151	91773922	-	Mbur_1985	-	CMP/dCMP deaminase, zinc-binding
1841	 46.84	+1	2086990..2087892	+	300	91773923	-	Mbur_1986	-	preprotein translocase subunit SecF
1842	 46.08	0	2087889..2089583	+	564	91773924	secD	Mbur_1987	-	preprotein translocase subunit SecD
1843	 44.35	0	2089605..2090630	+	341	91773925	-	Mbur_1988	-	replication factor C small subunit 2
1844	 46.21	0	2090646..2092292	+	548	91773926	-	Mbur_1989	-	ELP3 family histone acetyltransferase
1845	 44.83	0	2092443..2092790	+	115	91773927	-	Mbur_1990	-	hypothetical protein
1846	 37.58	0	2092984..2093925	+	313	91773928	-	Mbur_1991	-	transposase, IS4
1847	 42.76	0	2094097..2094849	+	250	91773929	-	Mbur_1992	-	ATPases involved in chromosome partitioning-like protein
1848	 38.45	0	2094894..2095694	-	266	91773930	-	Mbur_1993	-	hypothetical protein
1849	 48.87	+1	2095822..2097012	+	396	91773931	-	Mbur_1994	-	bifunctional formaldehyde-activating enzyme/3-hexulose-6-phosphate synthase
1850	 47.30	+1	2097055..2097720	+	221	91773932	-	Mbur_1995	-	triosephosphate isomerase
1851	 40.20	0	2097782..2098174	-	130	91773933	-	Mbur_1996	-	hypothetical protein
1852	 45.13	0	2098171..2099484	-	437	91773934	-	Mbur_1997	-	prephenate dehydrogenase
1853	 47.04	+1	2099481..2100290	-	269	91773935	-	Mbur_1998	-	shikimate dehydrogenase
1854	 46.72	+1	2100287..2100988	-	233	91773936	-	Mbur_1999	-	3-dehydroquinate dehydratase
1855	 49.18	+1	2100992..2102146	-	384	91773937	-	Mbur_2000	-	3-dehydroquinate synthase
1856	 46.74	+1	2102156..2103013	-	285	91773938	-	Mbur_2001	-	fructose-bisphosphate aldolase
41.89	MEAN

4.51	STD DEV
