IslandPath Analysis: Methanococcoides burtonii DSM 6242

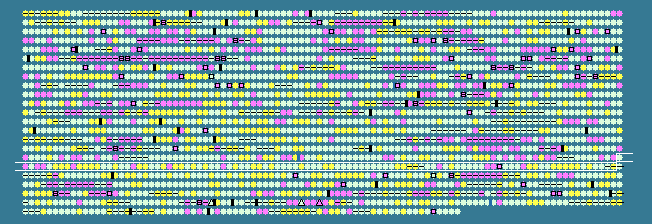

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1700	 39.27	0	1937996..1940857	-	953	91773782	-	Mbur_1841	-	HsdR family type I site-specific deoxyribonuclease
1701	 34.35	-1	1940886..1942061	-	391	91773783	-	Mbur_1842	-	restriction modification system DNA specificity subunit
1702	 43.00	0	1942089..1943753	-	554	91773784	-	Mbur_1843	-	type I restriction-modification system, M subunit
1703	 37.46	0	1943971..1944261	+	96	91773785	-	Mbur_1844	-	hypothetical protein
1704	 31.33	-2	1944258..1944506	+	82	91773786	-	Mbur_1845	-	hypothetical protein
1705	 41.57	0	1944903..1945691	+	262	91773787	-	Mbur_1846	-	hypothetical protein
1706	 48.70	+1	1945750..1946634	+	294	91773788	-	Mbur_1847	-	methylenetetrahydrofolate reductase
1707	 47.60	+1	1946666..1947913	+	415	91773789	-	Mbur_1848	-	thiamine biosynthesis protein ThiC
1708	 48.45	+1	1947918..1948691	+	257	91773790	-	Mbur_1849	-	coenzyme F420-0 gamma-glutamyl ligase
1709	 38.00	0	1948694..1949164	+	156	91773791	-	Mbur_1850	-	hypothetical protein
1710	 47.78	+1	1949237..1949506	+	89	91773792	-	Mbur_1851	-	thioredoxin-related
1711	 46.35	0	1949603..1950616	+	337	91773793	-	Mbur_1852	-	putative mRNA 3-end processing factor
1712	 45.38	0	1950703..1951092	+	129	91773794	-	Mbur_1853	-	hypothetical protein
1713	 45.54	0	1951167..1952936	+	589	91773795	-	Mbur_1854	-	putative ATPase RIL
1714	 43.99	0	1952964..1953254	-	96	91773796	-	Mbur_1855	-	hypothetical protein
1715	 39.27	0	1953320..1955122	-	600	91773797	-	Mbur_1856	-	hypothetical protein
1716	 46.59	+1	1955221..1956042	+	273	91773798	-	Mbur_1857	-	imidazole glycerol phosphate synthase subunit HisF
1717	 43.75	0	1956065..1956352	+	95	91773799	-	Mbur_1858	-	MazG nucleotide pyrophosphohydrolase
1718	 39.90	0	1956534..1957493	+	319	91773800	-	Mbur_1859	-	hypothetical protein
1719	 35.02	-1	1957493..1957729	+	78	91773801	-	Mbur_1860	-	hypothetical protein
1720	 47.88	+1	1957874..1960306	+	810	91773802	-	Mbur_1861	-	peptidase U32
1721	 48.24	+1	1960303..1960671	+	122	91773803	-	Mbur_1862	-	deoxynucleoside 5'-monophosphate N-glycosidase
1722	 40.65	0	1960762..1961007	+	81	91773804	-	Mbur_1863	-	hypothetical protein
1723	 44.59	0	1960981..1961646	-	221	91773805	-	Mbur_1864	-	hypothetical protein
1724	 47.95	+1	1961649..1963235	-	528	91773806	lysK	Mbur_1865	-	lysyl-tRNA synthetase
1725	 32.40	-2	1963467..1964426	-	319	91773807	-	Mbur_1866	-	hypothetical protein
1726	 46.29	0	1964506..1965555	-	349	91773808	-	Mbur_1867	-	Orn/DAP/Arg decarboxylase 2
1727	 47.59	+1	1965552..1966526	-	324	91773809	-	Mbur_1868	-	deoxyhypusine synthase
1728	 43.28	0	1966817..1967560	+	247	91773810	-	Mbur_1869	-	hypothetical protein
1729	 47.70	+1	1968052..1968594	+	180	91773811	-	Mbur_1870	-	pyruvoyl-dependent arginine decarboxylase
1730	 45.08	0	1968691..1969371	+	226	91773812	-	Mbur_1871	-	iron dependent repressor
1731	 45.98	0	1969352..1971328	+	658	91773813	-	Mbur_1872	-	ferrous iron transport protein B
1732	 42.01	0	1971406..1971624	+	72	91773814	-	Mbur_1873	-	hypothetical protein
1733	 42.32	0	1971634..1972434	-	266	91773815	-	Mbur_1874	-	hypothetical protein
1734	 38.10	0	1972436..1973149	-	237	91773816	-	Mbur_1875	-	DNA-3-methyladenine glycosylase III
1735	 43.27	0	1973180..1973662	-	160	91773817	-	Mbur_1876	-	hypothetical protein
1736	 47.47	+1	1973691..1974539	-	282	91773818	-	Mbur_1877	-	ribose-phosphate pyrophosphokinase
1737	 43.96	0	1974622..1975101	-	159	91773819	-	Mbur_1878	-	putative molybdenum cofactor biosynthesis protein C
1738	 41.80	0	1975119..1975307	-	62	91773820	-	Mbur_1879	-	hypothetical protein
1739	 46.33	0	1975313..1976758	-	481	91773821	-	Mbur_1880	-	YjeF-related protein
1740	 45.96	0	1976893..1978389	+	498	91773822	-	Mbur_1881	-	TrkA-N
1741	 42.90	0	1978414..1979124	+	236	91773823	-	Mbur_1882	-	hypothetical protein
1742	 47.40	+1	1979178..1980464	+	428	91773824	-	Mbur_1883	-	3-isopropylmalate dehydratase, large subunit
1743	 44.97	0	1980639..1981085	-	148	91773825	-	Mbur_1884	-	CBS domain-containing protein
1744	 41.00	0	1981310..1981609	+	99	91773826	-	Mbur_1885	-	phosphoribosyl-ATP pyrophosphatase
1745	 42.12	0	1981617..1982492	-	291	91773827	-	Mbur_1886	-	hypothetical protein
1746	 40.71	0	1982668..1983738	+	356	91773828	-	Mbur_1887	-	GTP-binding protein
1747	 47.08	+1	1983784..1984896	-	370	91773829	-	Mbur_1888	-	aminotransferase
1748	 42.04	0	1984909..1985517	-	202	91773830	-	Mbur_1889	-	hexulose-6-phosphate isomerase
1749	 41.13	0	1985536..1986048	-	170	91773831	-	Mbur_1890	-	hypothetical protein
1750	 42.78	0	1986066..1986425	-	119	91773832	-	Mbur_1891	-	hypothetical protein
1751	 45.51	0	1986431..1987054	-	207	91773833	-	Mbur_1892	-	small GTP-binding protein
1752	 46.57	+1	1988298..1988909	-	203	91773834	-	Mbur_1894	-	protein-L-isoaspartate O-methyltransferase
1753	 44.29	0	1988906..1989553	-	215	91773835	-	Mbur_1895	-	hypothetical protein
1754	 44.83	0	1989637..1990506	-	289	91773836	-	Mbur_1896	-	agmatinase
1755	 42.97	0	1990520..1990903	-	127	91773837	-	Mbur_1897	-	translation initiation factor IF-5A
1756	 43.25	0	1991077..1991772	-	231	91773838	-	Mbur_1898	-	peptidase M10A and M12B, matrixin and adamalysin
1757	 40.32	0	1991792..1993180	-	462	91773839	-	Mbur_1899	-	multisensor signal transduction histidine kinase
1758	 44.69	0	1993313..1994113	+	266	91773840	-	Mbur_1900	-	nuclease (SNase-like)
1759	 43.45	0	1994196..1994996	+	266	91773841	-	Mbur_1901	-	haloacid dehalogenase-like hydrolase
1760	 44.28	0	1995262..1996878	+	538	91773842	-	Mbur_1902	-	ABC transporter, fused ATPase subunits
1761	 44.44	0	1996908..1998473	+	521	91773843	-	Mbur_1903	-	hypothetical protein
1762	 45.06	0	1998473..1998907	+	144	91773844	-	Mbur_1904	-	hypothetical protein
1763	 45.39	0	1998917..1999372	+	151	91773845	-	Mbur_1905	-	hypothetical protein
1764	 49.64	+1	1999369..2000613	+	414	91773846	-	Mbur_1906	-	CoA enzyme activase
1765	 47.31	+1	2000619..2001212	+	197	91773847	-	Mbur_1907	-	hypothetical protein
1766	 46.09	0	2001212..2002144	+	310	91773848	-	Mbur_1908	-	hypothetical protein
1767	 44.67	0	2002173..2002622	+	149	91773849	-	Mbur_1909	-	alkylhydroperoxidase-like protein
1768	 42.78	0	2002724..2003623	-	299	91773850	-	Mbur_1910	-	hypothetical protein
1769	 40.12	0	2003797..2004120	+	107	91773851	-	Mbur_1911	-	hypothetical protein
1770	 38.41	0	2004272..2004586	+	104	91773852	-	Mbur_1912	-	hypothetical protein
1771	 44.35	0	2004608..2005624	+	338	91773853	-	Mbur_1913	-	flap endonuclease-1
1772	 46.44	+1	2005621..2007177	-	518	91773854	-	Mbur_1914	-	phosphoglyceromutase
1773	 44.66	0	2007304..2008548	-	414	91773855	-	Mbur_1915	-	hypothetical protein
1774	 43.39	0	2008545..2009846	-	433	91773856	-	Mbur_1916	-	hypothetical protein
1775	 42.51	0	2009848..2010708	-	286	91773857	-	Mbur_1917	-	ABC transporter, ATPase subunit
1776	 39.02	0	2010956..2011747	-	263	91773858	-	Mbur_1918	-	hypothetical protein
1777	 39.18	0	2011755..2012678	-	307	91773859	-	Mbur_1919	-	hypothetical protein
1778	 35.16	-1	2012959..2013726	+	255	91773860	-	Mbur_1920	-	hypothetical protein
1779	 30.83	-2	2014176..2016731	+	851	91773861	-	Mbur_1921	-	Toll-interleukin receptor
1780	 37.79	0	2017163..2018104	+	313	91773862	-	Mbur_1923	-	transposase, IS4
1781	 43.26	0	2018292..2019167	+	291	91773863	-	Mbur_1924	-	methyltransferase type 12
1782	 43.13	0	2019169..2020536	-	455	91773864	-	Mbur_1925	-	MATE efflux family protein
1783	 41.67	0	2020821..2021744	+	307	91773865	ubiA	Mbur_1926	-	prenyltransferase
1784	 36.51	-1	2021761..2022546	-	261	91773866	-	Mbur_1927	-	hypothetical protein
1785	 45.45	0	2022836..2024452	-	538	91773867	-	Mbur_1928	-	phosphoribosylaminoimidazolecarboxamide formyltransferase / IMP cyclohydrolase
1786	 47.37	+1	2024528..2026429	-	633	91773868	-	Mbur_1929	-	hypothetical protein
1787	 38.58	0	2026481..2027299	-	272	91773869	-	Mbur_1930	-	hypothetical protein
1788	 44.26	0	2027422..2028162	+	246	91773870	-	Mbur_1931	-	XRE family transcriptional regulator
1789	 48.19	+1	2028219..2029268	+	349	91773871	-	Mbur_1932	-	hypothetical protein
1790	 50.47	+1	2029279..2030451	+	390	91773872	-	Mbur_1933	-	acetyl-CoA acetyltransferase
1791	 46.02	0	2030457..2030858	+	133	91773873	-	Mbur_1934	-	hypothetical protein
1792	 46.32	0	2030845..2031360	+	171	91773874	-	Mbur_1935	-	adenylate cyclase
1793	 45.89	0	2031398..2033452	-	684	91773875	metG	Mbur_1936	-	methionyl-tRNA synthetase
1794	 44.61	0	2033585..2034817	+	410	91773876	-	Mbur_1937	-	signal peptide peptidase A
1795	 46.07	0	2035601..2036566	-	321	91773877	-	Mbur_1938	-	translation initiation factor IF-2B subunit delta
1796	 42.08	0	2036779..2037018	+	79	91773878	-	Mbur_1939	-	hypothetical protein
1797	 45.20	0	2037083..2038447	+	454	91773879	-	Mbur_1940	-	aldehyde dehydrogenase
1798	 42.92	0	2038467..2039906	+	479	91773880	-	Mbur_1941	-	hypothetical protein
1799	 48.42	+1	2039998..2041104	+	368	91773881	-	Mbur_1942	-	cell division protein FtsZ
41.89	MEAN

4.51	STD DEV
