IslandPath Analysis: Methanococcoides burtonii DSM 6242

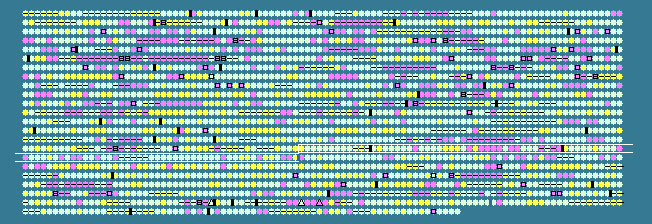

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1547	 47.17	+1	1755578..1757788	+	736	91773629	-	Mbur_1677	-	AAA family ATPase, CDC48 subfamily protein
1548	 45.17	0	1757829..1758521	+	230	91773630	-	Mbur_1678	-	hypothetical protein
1549	 44.56	0	1758527..1759372	-	281	91773631	ubiA	Mbur_1679	-	prenyltransferase
1550	 43.54	0	1759388..1760308	-	306	91773632	-	Mbur_1680	-	quinolinate synthetase
1551	 44.61	0	1760405..1761220	-	271	91773633	-	Mbur_1681	-	L-aspartate dehydrogenase
1552	 40.24	0	1761376..1762200	+	274	91773634	-	Mbur_1682	-	nicotinate-nucleotide pyrophosphorylase [carboxylating]
1553	 41.81	0	1762303..1763565	+	420	91773635	-	Mbur_1683	-	hypothetical protein
1554	 41.82	0	1763618..1764724	+	368	91773636	-	Mbur_1684	-	tubulin/FtsZ, GTPase
1555	 45.05	0	1764925..1765368	+	147	91773637	-	Mbur_1685	-	hypothetical protein
1556	 39.62	0	1765396..1765761	-	121	91773638	-	Mbur_1686	-	hypothetical protein
1557	 45.54	0	1765933..1767210	+	425	91773639	-	Mbur_1687	-	enolase
1558	 43.40	0	1767238..1769970	-	910	91773640	-	Mbur_1688	-	replicative DNA polymerase I
1559	 39.56	0	1770250..1770795	-	181	91773641	-	Mbur_1689	-	hypothetical protein
1560	 46.26	0	1770920..1772953	-	677	91773642	-	Mbur_1690	-	S-layer-related protein
1561	 42.18	0	1773490..1774269	+	259	91773643	-	Mbur_1691	-	KaiC
1562	 44.88	0	1774514..1777198	-	894	91773644	-	Mbur_1692	-	cation transporter, P-type ATPase
1563	 41.61	0	1777371..1777817	+	148	91773645	-	Mbur_1693	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1564	 42.36	0	1777871..1779166	-	431	91773646	-	Mbur_1694	-	PAS sensor protein
1565	 40.75	0	1779222..1780394	-	390	91773647	-	Mbur_1695	-	sodium/hydrogen exchanger
1566	 37.40	0	1780395..1780886	-	163	91773648	-	Mbur_1696	-	CBS domain-containing protein
1567	 41.95	0	1781035..1782357	-	440	91773649	-	Mbur_1697	-	cobalt ABC transporter, ATPase subunit
1568	 38.95	0	1782378..1783160	-	260	91773650	-	Mbur_1698	-	cobalt ABC transporter CbiQ, inner membrane subunit
1569	 42.67	0	1783267..1783566	-	99	91773651	-	Mbur_1699	-	cobalt transport binding protein
1570	 44.54	0	1783563..1784258	-	231	91773652	-	Mbur_1700	-	cobalt transport protein CbiM
1571	 48.68	+1	1785286..1786308	-	340	91773653	cbiD	Mbur_1702	-	cobalt-precorrin-6A synthase
1572	 47.85	+1	1786364..1788175	-	603	91773654	-	Mbur_1703	-	DNA mismatch repair protein MutL
1573	 47.41	+1	1788177..1790840	-	887	91773655	-	Mbur_1704	-	DNA mismatch repair protein
1574	 39.28	0	1790939..1791325	-	128	91773656	-	Mbur_1705	-	hypothetical protein
1575	 38.16	0	1791479..1791955	+	158	91773657	-	Mbur_1706	-	hypothetical protein
1576	 47.70	+1	1792043..1796254	-	1403	91773658	-	Mbur_1707	-	A-macroglobulin like protein
1577	 34.95	-1	1796720..1797277	-	185	91773659	-	Mbur_1709	-	hypothetical protein
1578	 35.63	-1	1797569..1798483	-	304	91773660	-	Mbur_1710	-	peptidase
1579	 32.17	-2	1798602..1799030	-	142	91773661	-	Mbur_1711	-	hypothetical protein
1580	 36.41	-1	1799188..1800456	-	422	91773662	-	Mbur_1712	-	hypothetical protein
1581	 43.85	0	1800915..1801475	-	186	91773663	-	Mbur_1713	-	NADPH-dependent FMN reductase
1582	 27.05	-2	1801671..1801877	-	68	91773664	-	Mbur_1714	-	hypothetical protein
1583	 28.64	-2	1801893..1802894	-	333	91773665	-	Mbur_1715	-	hypothetical protein
1584	 44.57	0	1803282..1804073	-	263	91773666	-	Mbur_1716	-	ABC transporter, inner membrane subunit
1585	 44.23	0	1804078..1804995	-	305	91773667	-	Mbur_1717	-	ABC transporter, ATPase subunit
1586	 41.53	0	1805222..1806991	+	589	91773668	-	Mbur_1718	-	hypothetical protein
1587	 35.86	-1	1807253..1807450	-	65	91773669	-	Mbur_1719	-	XRE family transcriptional regulator
1588	 40.20	0	1807447..1807839	-	130	91773670	-	Mbur_1720	-	hypothetical protein
1589	 35.92	-1	1807851..1808237	-	128	91773671	-	Mbur_1721	-	hypothetical protein
1590	 34.91	-1	1809010..1810215	+	401	91773672	-	Mbur_1722	-	hypothetical protein
1591	 45.61	0	1810472..1811188	-	238	91773673	-	Mbur_1723	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1592	 43.90	0	1811193..1811864	-	223	91773674	-	Mbur_1724	-	hypothetical protein
1593	 41.64	0	1812062..1812940	+	292	91773675	-	Mbur_1725	-	Ion transport protein
1594	 41.30	0	1812971..1814551	+	526	91773676	-	Mbur_1726	-	hypothetical protein
1595	 38.54	0	1814621..1814908	+	95	91773677	-	Mbur_1727	-	hypothetical protein
1596	 48.55	+1	1815248..1816141	+	297	91773678	-	Mbur_1728	-	tetrahydromethanopterin formyltransferase
1597	 41.81	0	1816318..1816836	+	172	91773679	-	Mbur_1729	-	putative lipoprotein
1598	 42.64	0	1816916..1818301	-	461	91773680	-	Mbur_1730	-	TraB family protein
1599	 39.69	0	1818310..1819410	-	366	91773681	-	Mbur_1731	-	peptidase M50
1600	 35.09	-1	1819682..1820821	-	379	91773682	-	Mbur_1732	-	L-tyrosine decarboxylase
1601	 38.19	0	1821769..1823004	+	411	91773683	cdc6	Mbur_1733	-	cell division control protein 6
1602	 39.10	0	1823050..1823604	-	184	91773684	-	Mbur_1734	-	peptidase S26B, signal peptidase
1603	 41.85	0	1825512..1826462	+	316	91773685	-	Mbur_1737	-	tRNA-modifying enzyme
1604	 44.82	0	1826628..1827872	+	414	91773686	-	Mbur_1738	-	peptide chain release factor 1
1605	 45.72	0	1827895..1829598	+	567	91773687	argS	Mbur_1739	-	arginyl-tRNA synthetase
1606	 39.72	0	1829641..1829922	+	93	91773688	-	Mbur_1740	-	hypothetical protein
1607	 37.80	0	1830426..1832105	+	559	91773689	-	Mbur_1741	-	hypothetical protein
1608	 38.43	0	1832383..1833735	-	450	91773690	-	Mbur_1742	-	proteinase inhibitor I4, serpin
1609	 37.79	0	1834015..1834575	+	186	91773691	-	Mbur_1743	-	hypothetical protein
1610	 37.83	0	1834709..1835353	+	214	91773692	-	Mbur_1744	-	transglutaminase-like protein
1611	 42.19	0	1835438..1836340	+	300	91773693	-	Mbur_1745	-	hypothetical protein
1612	 43.12	0	1836566..1837045	+	159	91773694	-	Mbur_1746	-	hypothetical protein
1613	 31.42	-2	1837131..1837757	+	208	91773695	-	Mbur_1747	-	hypothetical protein
1614	 39.52	0	1837770..1839062	+	430	91773696	-	Mbur_1748	-	peptidase M28
1615	 38.74	0	1839329..1840198	+	289	91773697	-	Mbur_1749	-	hypothetical protein
1616	 35.83	-1	1840312..1840551	+	79	91773698	-	Mbur_1750	-	hypothetical protein
1617	 42.40	0	1840775..1841182	+	135	91773699	-	Mbur_1751	-	putative inorganic pyrophosphatase
1618	 40.72	0	1843009..1844010	-	333	91773700	-	Mbur_1752	-	hypothetical protein
1619	 43.96	0	1844316..1845350	-	344	91773701	-	Mbur_1753	-	cobalamin synthesis protein, P47K
1620	 44.00	0	1845524..1846564	+	346	91773702	-	Mbur_1754	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1621	 40.59	0	1846792..1847535	+	247	91773703	-	Mbur_1755	-	ATPase
1622	 38.68	0	1847548..1848033	+	161	91773704	-	Mbur_1756	-	hypothetical protein
1623	 41.52	0	1848519..1849556	-	345	91773705	-	Mbur_1757	-	elongation factor Tu domain-containing protein
1624	 42.56	0	1849614..1850567	-	317	91773706	-	Mbur_1758	-	ATP dependent DNA ligase
1625	 42.60	0	1850788..1851564	-	258	91773707	-	Mbur_1759	-	CBS domain-containing protein
1626	 40.48	0	1851630..1852469	-	279	91773708	-	Mbur_1760	-	CBS domain-containing protein
1627	 39.77	0	1852515..1853462	-	315	91773709	-	Mbur_1761	-	CBS domain-containing protein
1628	 39.51	0	1853637..1854413	-	258	91773710	-	Mbur_1762	-	CBS domain-containing protein
1629	 40.13	0	1854452..1855054	-	200	91773711	-	Mbur_1763	-	CBS domain-containing protein
1630	 43.14	0	1855141..1856262	-	373	91773712	-	Mbur_1764	-	replication factor A
1631	 44.39	0	1856497..1857147	+	216	91773713	-	Mbur_1765	-	RNA 2'-phosphotransferase-like protein
1632	 40.46	0	1857150..1858145	-	331	91773714	-	Mbur_1766	-	RNA 3'-terminal-phosphate cyclase
1633	 43.54	0	1858142..1859503	-	453	91773715	-	Mbur_1767	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1634	 37.78	0	1859996..1860310	+	104	91773716	-	Mbur_1768	-	hypothetical protein
1635	 44.47	0	1860519..1861946	+	475	91773717	-	Mbur_1769	-	DNA primase
1636	 38.70	0	1862426..1862947	-	173	91773718	-	Mbur_1771	-	SSU ribosomal protein S18P alanine acetyltransferase
1637	 45.45	0	1863041..1864888	-	615	91773719	-	Mbur_1772	-	tRNA-guanine transglycosylases, various specificities
1638	 49.49	+1	1864978..1866351	+	457	91773720	-	Mbur_1773	-	D-lactate dehydrogenase (cytochrome)
1639	 43.88	0	1866353..1867423	+	356	91773721	-	Mbur_1774	-	hypothetical protein
1640	 37.70	0	1867426..1868958	-	510	91773722	-	Mbur_1775	-	PAS/PAC sensor hybrid histidine kinase
1641	 45.64	0	1869018..1870886	-	622	91773723	-	Mbur_1776	-	hypothetical protein
1642	 46.38	0	1870898..1871533	-	211	91773724	-	Mbur_1777	-	beta-lactamase-like protein
1643	 41.61	0	1871554..1872399	-	281	91773725	-	Mbur_1778	-	TatD-related deoxyribonuclease
1644	 34.84	-1	1872502..1873758	+	418	91773726	-	Mbur_1779	-	hypothetical protein
1645	 33.75	-1	1873767..1874006	+	79	91773727	-	Mbur_1780	-	hypothetical protein
1646	 48.68	+1	1874153..1875481	-	442	91773728	-	Mbur_1781	-	2-isopropylmalate synthase
41.89	MEAN

4.51	STD DEV
