IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

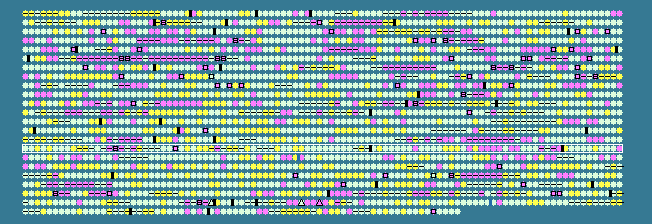

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1501	 40.10	0	1701713..1702333	+	206	91773583	-	Mbur_1621	-	hypothetical protein
1502	 45.14	0	1702423..1702710	+	95	91773584	-	Mbur_1622	-	hypothetical protein
1503	 47.34	+1	1702719..1703753	+	344	91773585	-	Mbur_1623	-	putative RNA methylase
1504	 41.13	0	1703777..1704340	-	187	91773586	-	Mbur_1624	-	hypothetical protein
1505	 45.89	0	1704337..1705164	-	275	91773587	truA	Mbur_1625	-	tRNA pseudouridine synthase A
1506	 44.57	0	1705351..1706418	+	355	91773588	purP	Mbur_1626	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase
1507	 41.82	0	1706564..1707046	-	160	91773589	-	Mbur_1627	-	hypothetical protein
1508	 40.16	0	1707091..1707603	-	170	91773590	-	Mbur_1628	-	hypothetical protein
1509	 48.83	+1	1709034..1709975	+	313	91773591	-	Mbur_1630	-	hypothetical protein
1510	 45.55	0	1710097..1710579	+	160	91773592	leuD	Mbur_1631	-	3-isopropylmalate dehydratase small subunit
1511	 50.00	+1	1710683..1711810	+	375	91773593	-	Mbur_1632	-	3-isopropylmalate dehydrogenase
1512	 40.70	0	1713418..1713702	+	94	91773594	-	Mbur_1634	-	ATPase
1513	 44.34	0	1713812..1714792	-	326	91773595	-	Mbur_1635	-	filamentation induced by cAMP protein Fic
1514	 40.35	0	1714823..1715050	-	75	91773596	-	Mbur_1636	-	hypothetical protein
1515	 32.69	-2	1715239..1715550	-	103	91773597	-	Mbur_1637	-	hypothetical protein
1516	 37.79	0	1716343..1717284	-	313	91773598	-	Mbur_1639	-	transposase, IS4
1517	 29.14	-2	1717835..1718644	+	269	91773599	-	Mbur_1641	-	hypothetical protein
1518	 39.89	0	1718675..1719040	-	121	91773600	-	Mbur_1642	-	hypothetical protein
1519	 36.97	-1	1719095..1722697	+	1200	91773601	-	Mbur_1643	-	cell surface protein
1520	 47.72	+1	1722711..1723961	+	416	91773602	-	Mbur_1644	-	hypothetical protein
1521	 40.93	0	1724154..1725509	+	451	91773603	-	Mbur_1645	-	ATPase
1522	 43.59	0	1725487..1726344	+	285	91773604	-	Mbur_1646	-	hypothetical protein
1523	 44.92	0	1726351..1727325	-	324	91773605	-	Mbur_1647	-	hypothetical protein
1524	 43.75	0	1727437..1729116	-	559	91773606	-	Mbur_1648	-	2-octaprenylphenol hydroxylase
1525	 39.53	0	1729205..1729591	-	128	91773607	-	Mbur_1649	-	hypothetical protein
1526	 34.67	-1	1729664..1730782	-	372	91773608	-	Mbur_1650	-	putative transposase, IS891/IS1136/IS1341
1527	 43.96	0	1731000..1732721	-	573	91773609	-	Mbur_1651	-	ABC transporter, ATPase subunit
1528	 46.91	+1	1732751..1733494	-	247	91773610	-	Mbur_1652	-	geranylgeranylglyceryl phosphate synthase-like protein
1529	 44.00	0	1733503..1733652	-	49	91773611	rpl40e	Mbur_1653	-	50S ribosomal protein L40e
1530	 47.61	+1	1734157..1735578	-	473	91773612	gatB	Mbur_1654	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1531	 47.20	+1	1735579..1737006	-	475	91773613	-	Mbur_1655	-	aspartyl/glutamyl-tRNA(Asn/Gln) amidotransferase subunit A
1532	 45.74	0	1737015..1737296	-	93	91773614	gatC	Mbur_1656	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1533	 38.27	0	1737518..1737922	-	134	91773615	-	Mbur_1657	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1534	 42.52	0	1738050..1738811	+	253	91773616	-	Mbur_1658	-	ArsR family transcriptional regulator
1535	 47.28	+1	1739916..1740761	-	281	91773617	-	Mbur_1659	-	hypothetical protein
1536	 45.83	0	1740978..1742666	+	562	91773618	-	Mbur_1660	-	hydroxylamine reductase
1537	 38.46	0	1742795..1743145	+	116	91773619	-	Mbur_1661	-	hypothetical protein
1538	 45.73	0	1743239..1744222	+	327	91773620	-	Mbur_1662	-	radical SAM family Fe-S protein
1539	 40.91	0	1744236..1744565	+	109	91773621	-	Mbur_1663	-	hypothetical protein
1540	 40.15	0	1750247..1750642	+	131	91773622	-	Mbur_1670	-	thioredoxin
1541	 44.89	0	1750657..1752093	+	478	91773623	-	Mbur_1671	-	hypothetical protein
1542	 45.24	0	1752141..1752812	-	223	91773624	-	Mbur_1672	-	hypothetical protein
1543	 45.54	0	1753063..1753668	+	201	91773625	tdk	Mbur_1673	-	thymidylate kinase
1544	 39.24	0	1753665..1753952	-	95	91773626	-	Mbur_1674	-	hypothetical protein
1545	 45.20	0	1753994..1754701	-	235	91773627	-	Mbur_1675	-	histidine biosynthesis
1546	 48.20	+1	1754747..1755439	+	230	91773628	-	Mbur_1676	-	hypothetical protein
1547	 47.17	+1	1755578..1757788	+	736	91773629	-	Mbur_1677	-	AAA family ATPase, CDC48 subfamily protein
1548	 45.17	0	1757829..1758521	+	230	91773630	-	Mbur_1678	-	hypothetical protein
1549	 44.56	0	1758527..1759372	-	281	91773631	ubiA	Mbur_1679	-	prenyltransferase
1550	 43.54	0	1759388..1760308	-	306	91773632	-	Mbur_1680	-	quinolinate synthetase
1551	 44.61	0	1760405..1761220	-	271	91773633	-	Mbur_1681	-	L-aspartate dehydrogenase
1552	 40.24	0	1761376..1762200	+	274	91773634	-	Mbur_1682	-	nicotinate-nucleotide pyrophosphorylase [carboxylating]
1553	 41.81	0	1762303..1763565	+	420	91773635	-	Mbur_1683	-	hypothetical protein
1554	 41.82	0	1763618..1764724	+	368	91773636	-	Mbur_1684	-	tubulin/FtsZ, GTPase
1555	 45.05	0	1764925..1765368	+	147	91773637	-	Mbur_1685	-	hypothetical protein
1556	 39.62	0	1765396..1765761	-	121	91773638	-	Mbur_1686	-	hypothetical protein
1557	 45.54	0	1765933..1767210	+	425	91773639	-	Mbur_1687	-	enolase
1558	 43.40	0	1767238..1769970	-	910	91773640	-	Mbur_1688	-	replicative DNA polymerase I
1559	 39.56	0	1770250..1770795	-	181	91773641	-	Mbur_1689	-	hypothetical protein
1560	 46.26	0	1770920..1772953	-	677	91773642	-	Mbur_1690	-	S-layer-related protein
1561	 42.18	0	1773490..1774269	+	259	91773643	-	Mbur_1691	-	KaiC
1562	 44.88	0	1774514..1777198	-	894	91773644	-	Mbur_1692	-	cation transporter, P-type ATPase
1563	 41.61	0	1777371..1777817	+	148	91773645	-	Mbur_1693	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1564	 42.36	0	1777871..1779166	-	431	91773646	-	Mbur_1694	-	PAS sensor protein
1565	 40.75	0	1779222..1780394	-	390	91773647	-	Mbur_1695	-	sodium/hydrogen exchanger
1566	 37.40	0	1780395..1780886	-	163	91773648	-	Mbur_1696	-	CBS domain-containing protein
1567	 41.95	0	1781035..1782357	-	440	91773649	-	Mbur_1697	-	cobalt ABC transporter, ATPase subunit
1568	 38.95	0	1782378..1783160	-	260	91773650	-	Mbur_1698	-	cobalt ABC transporter CbiQ, inner membrane subunit
1569	 42.67	0	1783267..1783566	-	99	91773651	-	Mbur_1699	-	cobalt transport binding protein
1570	 44.54	0	1783563..1784258	-	231	91773652	-	Mbur_1700	-	cobalt transport protein CbiM
1571	 48.68	+1	1785286..1786308	-	340	91773653	cbiD	Mbur_1702	-	cobalt-precorrin-6A synthase
1572	 47.85	+1	1786364..1788175	-	603	91773654	-	Mbur_1703	-	DNA mismatch repair protein MutL
1573	 47.41	+1	1788177..1790840	-	887	91773655	-	Mbur_1704	-	DNA mismatch repair protein
1574	 39.28	0	1790939..1791325	-	128	91773656	-	Mbur_1705	-	hypothetical protein
1575	 38.16	0	1791479..1791955	+	158	91773657	-	Mbur_1706	-	hypothetical protein
1576	 47.70	+1	1792043..1796254	-	1403	91773658	-	Mbur_1707	-	A-macroglobulin like protein
1577	 34.95	-1	1796720..1797277	-	185	91773659	-	Mbur_1709	-	hypothetical protein
1578	 35.63	-1	1797569..1798483	-	304	91773660	-	Mbur_1710	-	peptidase
1579	 32.17	-2	1798602..1799030	-	142	91773661	-	Mbur_1711	-	hypothetical protein
1580	 36.41	-1	1799188..1800456	-	422	91773662	-	Mbur_1712	-	hypothetical protein
1581	 43.85	0	1800915..1801475	-	186	91773663	-	Mbur_1713	-	NADPH-dependent FMN reductase
1582	 27.05	-2	1801671..1801877	-	68	91773664	-	Mbur_1714	-	hypothetical protein
1583	 28.64	-2	1801893..1802894	-	333	91773665	-	Mbur_1715	-	hypothetical protein
1584	 44.57	0	1803282..1804073	-	263	91773666	-	Mbur_1716	-	ABC transporter, inner membrane subunit
1585	 44.23	0	1804078..1804995	-	305	91773667	-	Mbur_1717	-	ABC transporter, ATPase subunit
1586	 41.53	0	1805222..1806991	+	589	91773668	-	Mbur_1718	-	hypothetical protein
1587	 35.86	-1	1807253..1807450	-	65	91773669	-	Mbur_1719	-	XRE family transcriptional regulator
1588	 40.20	0	1807447..1807839	-	130	91773670	-	Mbur_1720	-	hypothetical protein
1589	 35.92	-1	1807851..1808237	-	128	91773671	-	Mbur_1721	-	hypothetical protein
1590	 34.91	-1	1809010..1810215	+	401	91773672	-	Mbur_1722	-	hypothetical protein
1591	 45.61	0	1810472..1811188	-	238	91773673	-	Mbur_1723	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1592	 43.90	0	1811193..1811864	-	223	91773674	-	Mbur_1724	-	hypothetical protein
1593	 41.64	0	1812062..1812940	+	292	91773675	-	Mbur_1725	-	Ion transport protein
1594	 41.30	0	1812971..1814551	+	526	91773676	-	Mbur_1726	-	hypothetical protein
1595	 38.54	0	1814621..1814908	+	95	91773677	-	Mbur_1727	-	hypothetical protein
1596	 48.55	+1	1815248..1816141	+	297	91773678	-	Mbur_1728	-	tetrahydromethanopterin formyltransferase
1597	 41.81	0	1816318..1816836	+	172	91773679	-	Mbur_1729	-	putative lipoprotein
1598	 42.64	0	1816916..1818301	-	461	91773680	-	Mbur_1730	-	TraB family protein
1599	 39.69	0	1818310..1819410	-	366	91773681	-	Mbur_1731	-	peptidase M50
1600	 35.09	-1	1819682..1820821	-	379	91773682	-	Mbur_1732	-	L-tyrosine decarboxylase
41.89	MEAN

4.51	STD DEV
